PLEASE ENSURE THAT INSTRUCTIONS ARE UNDERSTOOD PRIOR TO FITMENT

PLACE THESE INSTRUCTIONS IN THE VEHICLE'S GLOVEBOX AFTER INSTALLATION IS COMPLETED

Towbar Installation Instructions

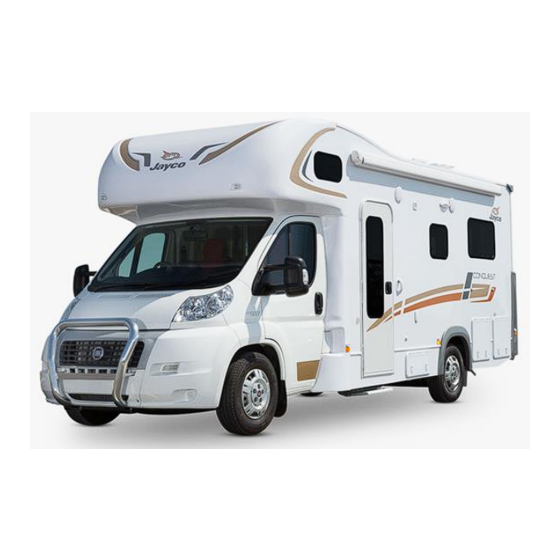

JAYCO FA25 SERIES CL4

Part Number

03260R

Hayman Reese (Cequent)

PO Box 4050, Dandenong South VIC 3164

Phone 1800 812 017

Email info@haymanreese.com.au

Rev: A

HAYMAN REESE

PART No:

JAYCO FA25 SERIES CL4

Page 1

03260R

Installation Time: Approx

Towbar capacity

Max Towing Braked

Max Towing Unbraked

Max Static Ball Load

Mins

1700

750

170

Issue Date:

22-10-2018

Table of Contents

Do you have a question about the 03260R and is the answer not in the manual?

Page 1 JAYCO FA25 SERIES CL4 Part Number 03260R Max Towing Braked 1700 Max Towing Unbraked Max Static Ball Load Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au Rev: A Page 1 Issue Date:...
Page 2 The high tensile fasteners supplied with this product were used to achieve the specified rating. If replacement is required ensure that fasteners of the same rating & quality are used. Contact an authorised Hayman Reese dealer if further information is required.
Page 3 HITCH BOX COLLAR COVER SCREW PAN HD M4 X 16 X 0.7P G4.6 ACRYLIC COMPLIANCE LABEL NUT NYLON LOCK HEX HD M4X0.7P G8 Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au Rev: A...
Page 4 3. Secure plug on to Towbar’s plug bracket using two x M4 Screws provided, complete with 1 x Flat Washer and 1 x Nyloc Nut per Screw. Hayman Reese (Cequent) PO Box 4050, Dandenong South VIC 3164 Phone 1800 812 017 Email info@haymanreese.com.au...
Page 5 *Do not tow with your vehicle if the R CLIP or the SMART PIN NUT is loose or missing. Replacement parts are available from Fig 1. Smart Pin assembly your Hayman Reese Distributor. Insert Trailer Ball Mount (TBM) into towbar HITCHBOX, aligning hole in TBM SHANK with hole in HITCHBOX STEP 1 (Fig.
