- Page 1 TWN4 MultiTech Mini DocRev5, February 5, 2019 Elatec GmbH...
- Page 2 Contents Contents 1 Introduction ..........2 Dimensions .

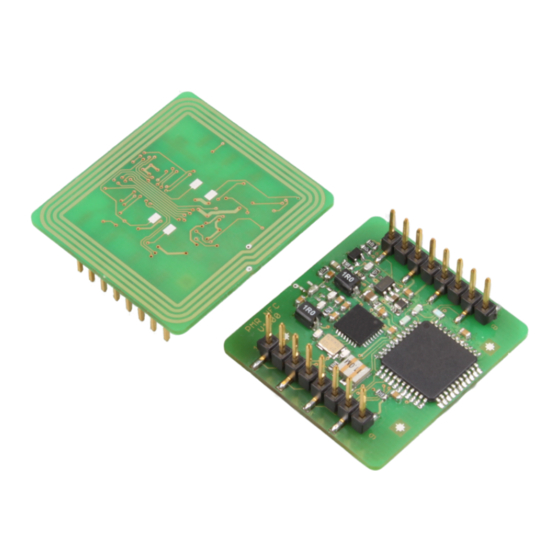

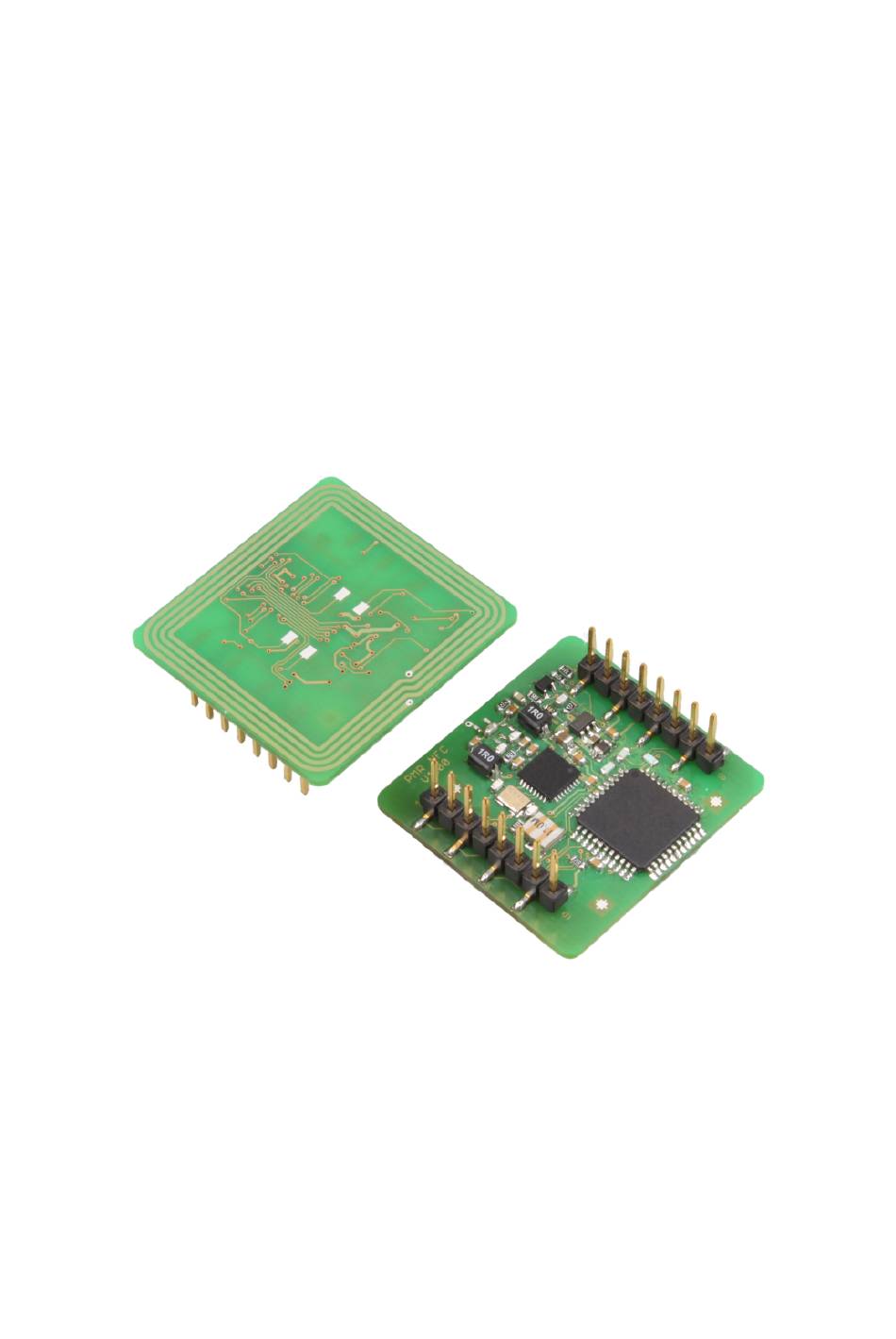

- Page 3 1 Introduction 1 Introduction TWN4 MultiTech Mini is a module to be integrated on custom PCB. It has a built-in HF antenna and subset of IOs compared to TWN4 Core Module. TWN4 Mini Reader is currently available as version TWN4 Mini Reader MIFARE NFC.
- Page 4 2 Dimensions 2 Dimensions Below are the dimensions of the TWN4 MultiTech Mini. All dimensions in mm unless otherwise stated. Page 4 of 7...
- Page 5 3 Connectors 3 Connectors The TWN4 Mini Reader has two on-board single row headers with 8 positions each. The pins of these two connectors are together enumerated from 1 to 16. • Single row header • Pitch 2.54mm • Pin shape square 0.635mm Pin Name Function RESET-...
- Page 6 4 Using PI Option 4 Using PI Option To use the PI Option, e.g. to read the PAC bits from an iCLASS transponder, a SIO processor is needed. This can be either a SIO chip which is soldered directly on a PCB or a SAM card incorporating the SIO processor.
- Page 7 5 Disclaimer 5 Disclaimer Elatec reserves the right to change any information or data in this document without prior notice. The distribution and the update of this document is not controlled. Elatec declines all responsibility for the use of product with any other specifications but the ones mentioned above. Any additional requirement for a specific custom application has to be validated by the customer himself at his own responsibility.
