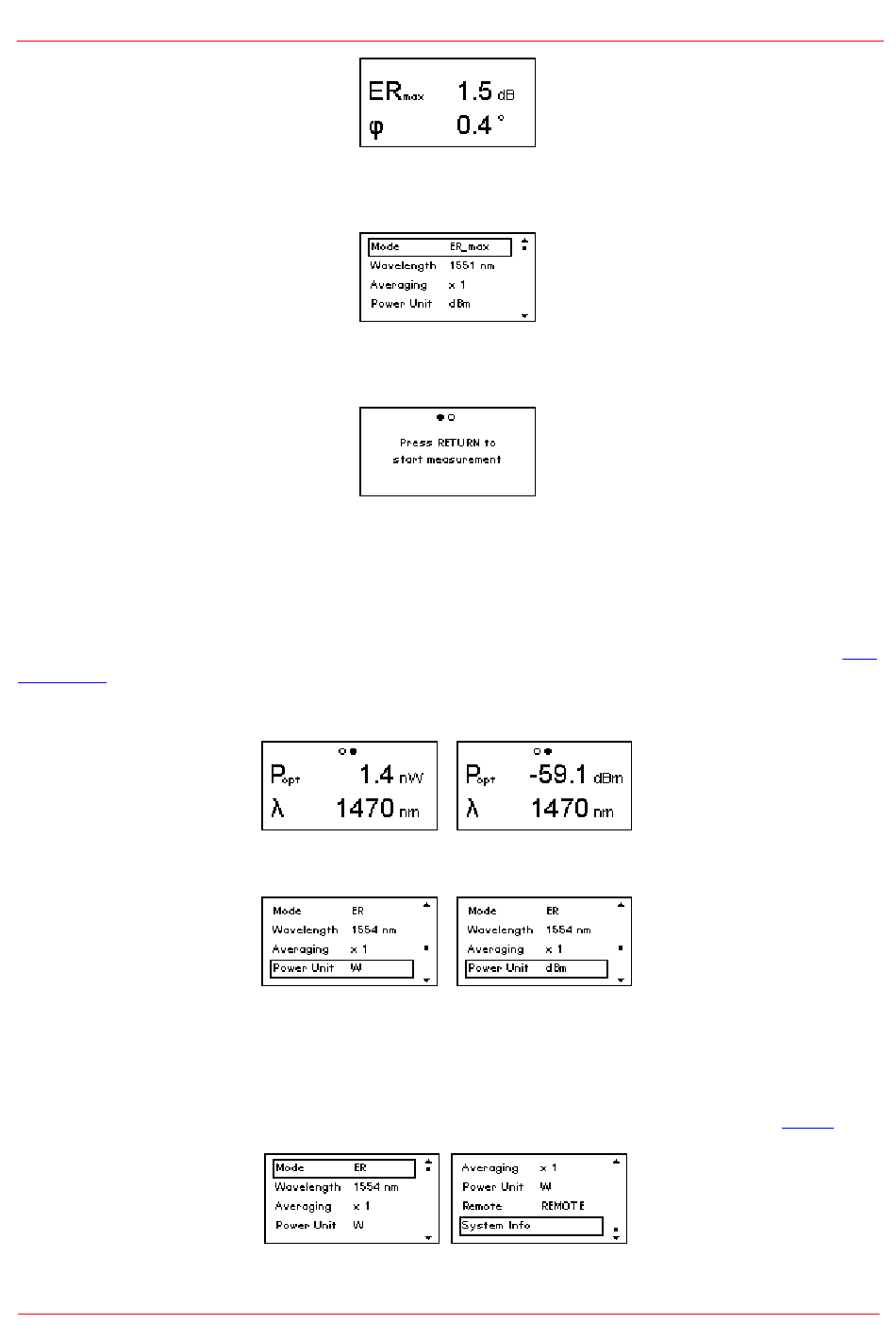

To get to the ERmax mode, go to the Settings View and select ER_max from the mode parameter as
described above.
To redetermine the maximum extinction ratio, press the MENU button after selecting the ERmax
mode:
Then press RETURN. The maximum ER value measured at that moment is then displayed in the
ERmax display.

5.4.2 Power View

The Power View shows the optical input power in Watt or dBm for the wavelength selected in the
tings View.
To go to the Power View, turn the rotary knob from the ER Measurement View.
The units can be set in the Settings View under Power Unit.
Press the MENU button to show the Settings View.

5.4.3 Settings View

Access the ERM2xx device settings via the menu in the Settings View by pressing the button MENU.
Page 8
Chapter 5 Operating Instructions
MTN033660-D02
Set-
