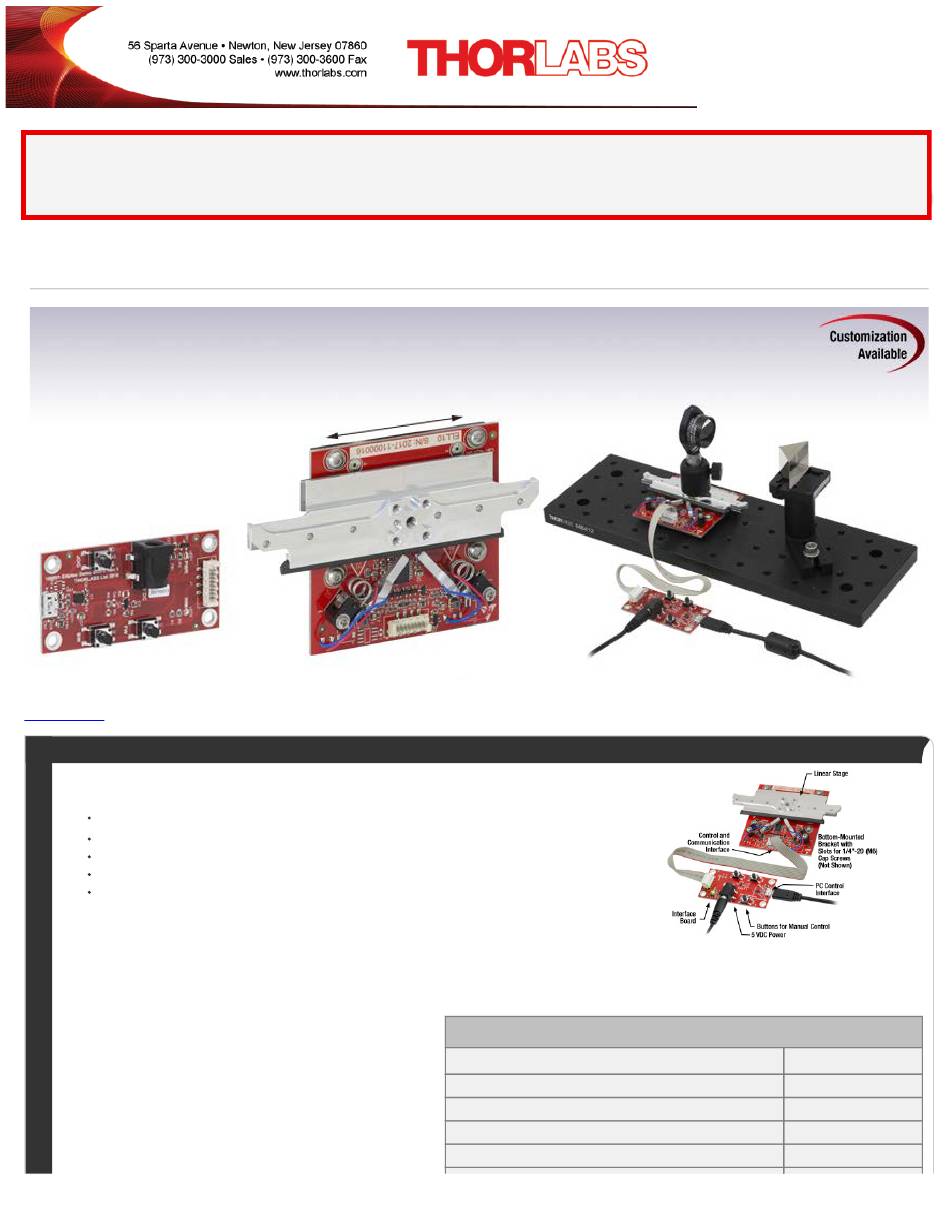

6 0 M M L I N E A R S T A G E W I T H R E S O N A N T P I E Z O E L E C T R I C M O T O R S
►
Linear Stage with Closed-Loop Positioning
►
Open Frame Design for OEM Applications
►
Control via Interface Board, GUI, or ASCII Message Calls
►
Fully Integrated Drive Electronics
Interface Board
Hide Overview
O V E R V I E W
Features
Ideal for OEMs and Applications Requiring Rapid and Precise Positioning
Micro-B USB and Picoflex
Multi-Drop Serial Communication Protocol Supported
Linear Stage with One 8-32 (M4) and Four 4-40 (M3) Tapped Holes
Magnetic Incremental Linear Encoder Used to Position Stage and Find Absolute Home
Position
Driven by Thorlabs' Elliptec™ piezoelectric resonant motor technology, these linear stages are
available in kits that include a stage and interface board (Item # ELL10K(/M)). The imperial stage is
also offered as a standalone option (Item # ELL10). With a mass of 0.104 kg and maximum
dimensions of 102.3 mm x 67.0 mm x 15.3 mm (without the mounting bracket), the stage is lightweight
and compact. They are also designed for closed-loop operation, which allows the translating platform
be positioned with an accuracy of 50 µm and a repeatability of
±20 µm. When power is not applied to the motors, the stage is held
in place by an approximately 1 N combined force exerted by the
stationary arms of the motors. The assembled components of the
ELL10K are shown in the image to the right, with key features
labeled. The motor is highly dynamic and has no gearing. As the
motor includes no magnets, it is compatible with EM-sensitive
environments. Please see The Elliptec™ Motor tab for more
ELL10K/M - August 6, 2018
website content at that time and is valid only for the stated product.
Direction of Travel
ELL10K
®
Connectors for Control Signals
Linear Stage
(Also Available Individually)
b
Travel
Homing/Positioning Accuracy
Repeatability (100 g Load)
Velocity (Maximum, No Load)
Minimum Incremental Motion (Measured, No Load)
Application Idea

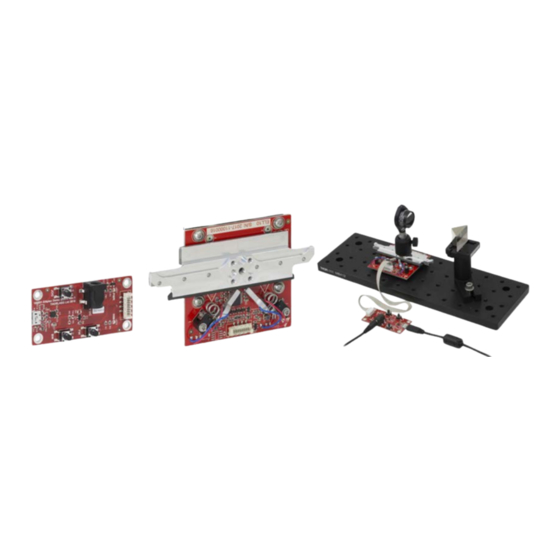

The ELL10K positions a hollow roof prism
in this optical delay line.
Click to Enlarge
The components of the ELL10K linear stage bundle
are shown connected and with key features
labeled.
a
Key Specifications
60.0 mm (2.36")
50 µm
±20 µm
90 mm/s
8 µm
Advertisement
Related Manuals for THORLABS ELL10K
Summary of Contents for THORLABS ELL10K
- Page 1 Thorlabs.com - 60 mm Linear Stage with Resonant Piezoelectric Motors ELL10K/M - August 6, 2018 Item # ELL10K/M was discontinued on August 6, 2018. For informational purposes, this is a copy of the website content at that time and is valid only for the stated product.
- Page 2 Stage section of the Operation tab. Each stage possesses a 3.3 V serial bus and is designed to be operated with or without the interface board; the Pin Diagram tab provides pin assignments. Thorlabs offers software for our Elliptec products capable of providing full and independent control of the stage. When the interface board is used as an accessory to change the position of the stage, its status in the software is automatically updated.
- Page 3 As shown in the drawing above, a mounting bracket Typical Current Consumption, During Standby 34 mA included with the ELL10K(/M) fastens to the Communications underside of the linear stage's PCB with the included four 4-40 (M3) screws. Two slots in the bracket align Multi-Drop 3.3 V/5 V TTL RS232...
- Page 4 e. Applies when the stage is mounted with the top surface in the horizontal plane, or when the stage is mounted vertically such that the load translates side to side. The stage is not designed to move a load up and down. f.
- Page 5 The electronics on the interface board convert the applied DC signal to a sinusoidal signal oscillating at the required resonance frequency. The ELL10K(/M) bundles include a 5 VDC power supply whose connector mates with the power socket on the interface board. Delivering power through this socket also leaves the Micro-B USB connector available to accept a USB cable connection to a computer, which can be used to control the stage remotely.
- Page 6 Operation of the Motors The motion of the ELL10 stage is controlled by forcing the piezoelectric elements to vibrate at specific ultrasonic frequencies. For each motor, there is an ultrasonic resonant frequency that will push the stage forward, and another that will pull the stage backward. Operating a motor at one of its resonance frequencies causes the tip of the motor to continuously cycle in a tight clockwise elliptical path.
- Page 7 Thorlabs' Elliptec™ piezo resonant motor, shown at right, is lightweight, with a mass of 1.2 g, and compact: the dimensions of the resonator housing, excluding the spring, are 8 mm x 4 Click to Enlarge mm x 20 mm. The Elliptec Piezoelectric...
- Page 8 Bundle used to position a hollow roof mirror in an Note: The ELL10 stage included in the imperial kit is also offered standalone below. optical delay line. Included in the ELL10K Bundle ELL10 Linear Stage 5 V Power Supply 8-Conductor 28 AWG Ribbon Cable...
- Page 9 The imperial version of the linear stage is offered individually to meet the needs of applications whose designs require multiple networked Elliptec resonant motor products, or applications that do not require the other components included in the ELL10K bundle. The ELL10 Linear Stage possesses a 60.0 mm (2.36") travel range and a mounting surface functionalized with a center 8-32 tapped hole and four surrounding 4- 40 tapped holes.
