- Page 1 ENC Series Digital Position Readout Module ENCXR25 and ENCXR50 Digital Position Readout Module for XR Series Translation Stages User Guide Original Instructions HA0427T...
- Page 2 Specifications ......................11 Chapter 7 Safety........................... 12 Chapter 8 Regulatory ........................13 8.1. Declarations Of Conformity ..................13 8.1.1. For Customers in Europe ....................13 8.1.2. For Customers in the USA .................... 13 Chapter 9 Thorlabs Worldwide Contacts .................. 15 HA0427T...

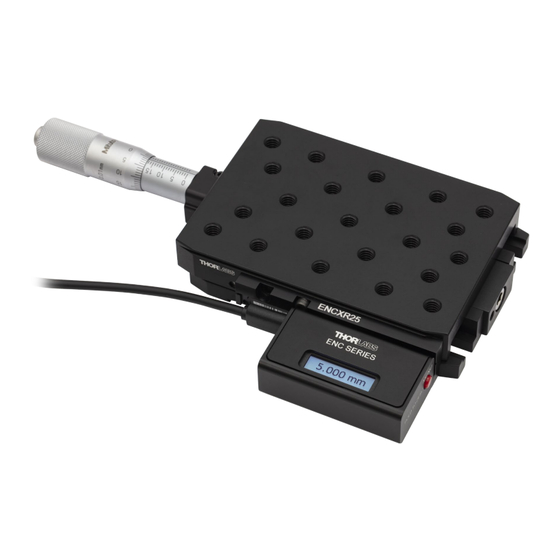

- Page 3 Chapter 1: Introduction and Overview ENC Series Digital Position Readout Module Chapter 1 Introduction and Overview 1.1. Introduction The ENC Series Digital Position Readout Module is a bolt on accessory compatible with our existing XR25 and XR50 stages. The module comprises a bolt on optical encoder scale assembly and a digital display. The module is powered via a USB mini-B connection.
- Page 4 Chapter 2: Installation ENC Series Digital Position Readout Module Chapter 2 Installation 2.1. Mechanical Installation Warning Operation outside the following environmental limits may adversely affect operator safety. 2.1.1. Environmental Conditions Location Indoor use only Temperature range 5°C to 40°C Maximum Humidity Less than 80% RH (non-condensing) at 31°C To ensure reliable operation the unit should not be exposed to corrosive agents or excessive moisture, heat or dust.
- Page 5 Chapter 2: Installation ENC Series Digital Position Readout Module 2.2. Mounting to an XR25 Series Translation Stage Caution The encoder scale is made of glass and is very fragile. Handle the scale holder like eggs and take care to avoid scratching the scale surface. Perform the below steps: 1.
- Page 6 Chapter 2: Installation ENC Series Digital Position Readout Module 2.3. Mounting to an XR50 Series Translation Stage Caution The encoder scale is made of glass and is very fragile. Handle the scale holder like eggs and take care to avoid scratching the scale surface. Perform the below steps: 1.
- Page 7 Chapter 3: Manual Operation ENC Series Digital Position Readout Module Chapter 3 Manual Operation 3.1. Introduction When the stage is operated, the position is shown on the digital display in either inches or millimetres. The display also shows the operating menu. 3.2.
- Page 8 Chapter 3: Manual Operation ENC Series Digital Position Readout Module For example, to change from inches to millimetres: 1. Use short presses to scroll through the menu until the UNITS screen is displayed 2. Use a long press to toggle to mm. 3.
- Page 9 Chapter 4: Software Operation ENC Series Digital Position Readout Module Chapter 4 Software Operation 4.1. Introduction The following brief tutorial guides the user through a typical set up procedure. 4.2. Connect The Hardware Perform the mechanical installation as detailed in Chapter 2. Install the Kinesis Software (V1.14.34 or higher).
- Page 10 Chapter 5: Software Reference ENC Series Digital Position Readout Module Chapter 5 Software Reference 5.1. GUI Panel Position window - shows the position (in inches or mm) of the stage. The position will not be meaningful until after the stage is zeroed. After zeroing, the stage's position is reported relative to the zero-reference point.
- Page 11 Chapter 5: Software Reference ENC Series Digital Position Readout Module 5.2. Settings Panel 5.2.1. Display Tab Backlight – Select whether the backlight is ON or OFF Directional Sense – Changes the direction of positive (increasing) travel. Select whether the positive direction sense is Normal (away from the actuator) or Inverted (towards the actuator).
- Page 12 Chapter 5: Software Reference ENC Series Digital Position Readout Module 5.2.2. Defaults Tab If adjustment of the parameter values previously described has resulted in unstable or unsatisfactory system response, this tab can be used to reset all parameter values to the factory default settings. To restore the default values, click the ‘Reset Stage to Factory Defaults’...
- Page 13 Chapter 6: Specifications ENC Series Digital Position Readout Module Chapter 6 Specifications Parameter ENCXR25 ENCXR50 ENC Encoder Typical On-Axis Accuracy 5.0 µm 10.0 µm 4.0 µm Typical Repeatability 2.0 µm 2.0 µm 1.0 µm Resolution 1.0 µm 1.0 µm 1.0 µm Input Voltage 5 V Regulated DC Note: The ENC encoder data refers to the encoder unit when not mounted to a stage.
- Page 14 Chapter 7: Safety ENC Series Digital Position Readout Module Chapter 7 Safety For the continuing safety of the operators of this equipment, and the protection of the equipment itself, the operator should take note of the Warnings, Cautions and Notes throughout this handbook and, where visible, on the product itself.
- Page 15 Chapter 8: Regulatory ENC Series Digital Position Readout Module Chapter 8 Regulatory 8.1. Declarations Of Conformity 8.1.1. For Customers in Europe 8.1.2. For Customers in the USA This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules.
- Page 16 Chapter 8: Regulatory ENC Series Digital Position Readout Module when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
- Page 17 Chapter 9: Thorlabs Worldwide Contacts ENC Series Digital Position Readout Module Chapter 9 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at for our most up-to-date www.thorlabs.com/contact contact information. Rev. A, December 9, 2022 Page 15...
- Page 18 www.thorlabs.com...
