Summary of Contents for THORLABS EVOA800F

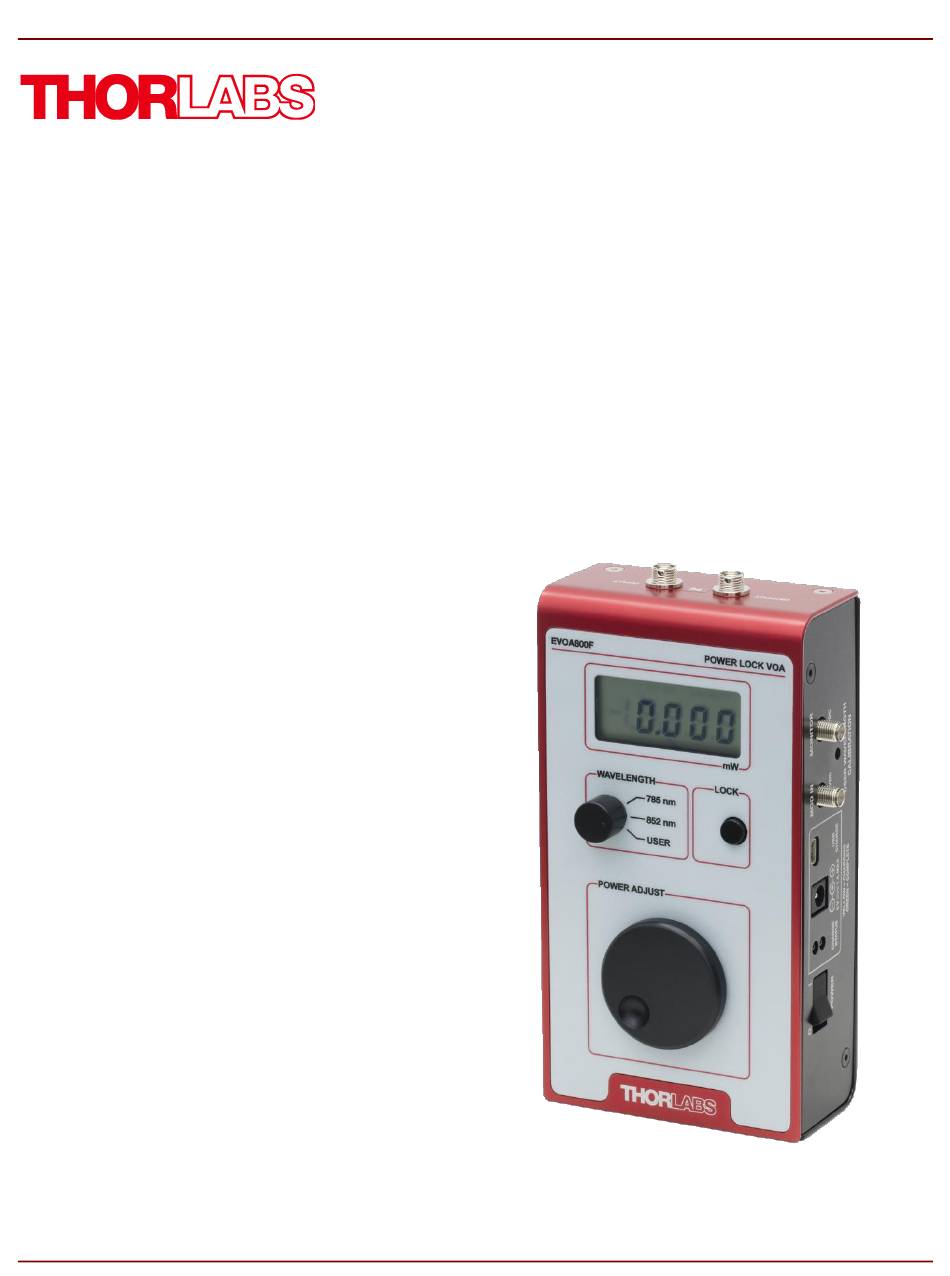

  • Page 1 EVOA800F & EVOA800A Electronic Variable Optical Attenuators User Guide...
  • Page 3: Table Of Contents

    4.6 Digital Output Power Display ....................11 4.7 Modulation Input & Monitor Output Connections ..............12 4.8 Power Lock .......................... 12 Chapter 5 Maintenance and Cleaning ..................12 Chapter 6 Disposal ........................14 Chapter 7 Thorlabs Worldwide Contacts ................... 15...
  • Page 4: Chapter 1 Introduction

    Optical fibers coupled to these EVOAs should be single mode over the operating range of the EVOA (e.g. 780HP), and either FC/PC connectors (Item # EVOA800F) or FC/APC connectors (Item # EVOA800A) are accepted. The wavelength selector switch accesses calibrated settings for 785 nm and 852 nm, and also provides a position which the user can calibrate for any wavelength from 780 nm to 980 nm.
  • Page 5: Technical Data

    Electronic Variable Optical Attenuators Chapter 1: Introduction Technical Data 1.4.1 Specifications Item # EVOA800F EVOA800A 2.0 mm Narrow Key 2.0 mm Narrow Key Fiber Interfaces FC/PC FC/APC Wavelength Range 780 to 980 nm 200 mW (Max) Input Power Absolute Maximum: 250 mW Attenuation Minimum: 1.5 dB (Typ.)
  • Page 6: Mechanical Drawing

    Electronic Variable Optical Attenuators Chapter 1: Introduction 1.4.2 Mechanical Drawing Figure 1 Mechanical Drawing for EVOA800F(A) Rev. B, November 22, 2024 Page 3...
  • Page 7: Components

    Electronic Variable Optical Attenuators Chapter 1: Introduction Components 1.5.1 Features Fiber Bulkhead (2 Places) Utility 2.0 mm Narrow Key Panel Label Indicates PC or APC Compatibility Digital Display Wavelength Selector: 785 nm, 852 nm, or User Bi-Stable Lock Button Power Adjustment Rocker Knob Power...
  • Page 8 Electronic Variable Optical Attenuators Chapter 1: Introduction Charging Indicators Green: Fully Charged 2.1 mm Charging Jack for Yellow: Charging Included Power Supply USB Mini-B Rocker Power Switch Charging Jack SMA Modulation Input SMA Monitor User Wavelength Output Calibration Pot Figure 4 Utility Panel (Side View) Rev.
  • Page 9: Simplified Declaration Of Conformity

    Electronic Variable Optical Attenuators Chapter 1: Introduction Simplified Declaration of Conformity FCC Designation Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 10: Warranty Information

    Thorlabs warrants material and production of the EVOA800F and EVOA800A for a period of one year starting with the date of shipment in accordance with and subject to the terms and conditions set forth in Thorlabs’ General Terms and Conditions of Sale which can be found at https://www.thorlabs.com/Images/PDF/LG-PO-001_Thorlabs_terms_and_%20agreements.pdf...
  • Page 11: Chapter 2 Safety

    Inputs and outputs must only be connected with shielded connection cables. Only with written consent from Thorlabs may changes to single components be carried out or components not supplied by Thorlabs be used. These products have been tested and found to comply with the limits according to IEC 61326-1 for using connection cables shorter than 3 meters (9.8 feet).
  • Page 12: Chapter 3 Quick Start Guide

    Electronic Variable Optical Attenuators Chapter 3: Quick Start Guide Chapter 3 Quick Start Guide The components inside these products are sensitive to electrostatic discharge (ESD). Take all appropriate precautions, including grounding personnel and equipment, before making any connections to the unit. In the box, you should find the EVOA and its power supply with a 2.1 mm coaxial plug that matches the power input jack on the side of the unit.
  • Page 13: Powering & Charging The Unit

    LED indicates that charging is complete. If both LEDs are lit, there is a battery fault. If this occurs, unplug the charger and try again. Please contact Thorlabs’ tech support (techsupport@thorlabs.com) if this occurs repeatedly.
  • Page 14: Wavelength Selection & Calibration

    Electronic Variable Optical Attenuators Chapter 4: Operating Instructions and Details • Item # EVOA800F has FC/PC connectors. • Item # EVOA800A has FC/APC connectors. The fiber patch cable and connectors should be cleaned whenever a connection is made. Note that the insertion loss when coupling these types of smaller core, single mode fibers can be well over 1 dB.
  • Page 15: Modulation Input & Monitor Output Connections

    Electronic Variable Optical Attenuators Chapter 5: Maintenance and Cleaning resolution (the leftmost digit has a maximum value of 1). The display range will auto-scale for low or high input power, and changes over at about 15 mW. The digital display also has a Low Battery warning that indicates when the battery needs to be charged. The warning appears while there is still sufficient charge remaining for the Li-ion battery not to degrade.
  • Page 16 The end faces of any fiber patch cables being connected to the EVOA should be cleaned every time a connection is made. Use, for example, Thorlabs’ FCC-7020 Fiber Connector Cleaner (sold separately). The end faces of the EVOA’s internal connectors can be easily damaged by dirty fiber ends, and if damage occurs, the unit will need to be returned to Thorlabs for repair.
  • Page 17: Chapter 6 Disposal

    Contact Thorlabs for more information. Waste treatment is your own responsibility. “End of life” units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. It is the user’s responsibility to delete all private data stored on the device prior to disposal.
  • Page 18: Chapter 7 Thorlabs Worldwide Contacts

    Electronic Variable Optical Attenuators Chapter 7: Thorlabs Worldwide Contacts Chapter 7 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to-date contact information. Corporate Headquarters Product Manufacturer Thorlabs, Inc. Thorlabs, Inc. 43 Sparta Ave...
  • Page 20 www.thorlabs.com...
