Safety tested
according to ANSI Z21.88-2017
and CSA 2.33-2017 standards
by an accredited laboratory.
FIRE OR EXPLOSION HAZARD
• Failure to follow safety warnings exactly could result in
serious injury, death or property damage.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
READ AND KEEP THIS MANUAL FOR REFERENCE
Printed in Canada
HOT GLASS WILL CAUSE BURNS. DO NOT TOUCH GLASS UNTIL
COOLED. NEVER ALLOW CHILDREN TO TOUCH GLASS. A barrier
designed to reduce the risk of burns from the hot viewing glass is provided
with this appliance and shall be installed for the protection of children and
other at-risk individuals. NOTE : Barrier required, may be sold separately.
WARNING
GAS FIREPLACE HEATER
MULTIFUNCTION REMOTE (MF)
DANGER
WARNING
• If not installed, operated and maintained in accordance
with the manufacturer's instructions, this product could
expose you to substances in fuel or from fuel combustion
which can cause death or serious illness.
• This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
• This appliance is only for use with the type of gas
indicated on the rating plate.
• This appliance is not convertible for use with other
gases, unless a certified kit is used.
• Fuels used in gas, wood-burning or oil fired appliances, and
the products of combustion of such fuels, contain chemicals
known to the State of California to cause cancer, birth defects
or other reproductive harm. For more information go to
www.P65warnings.ca.gov/

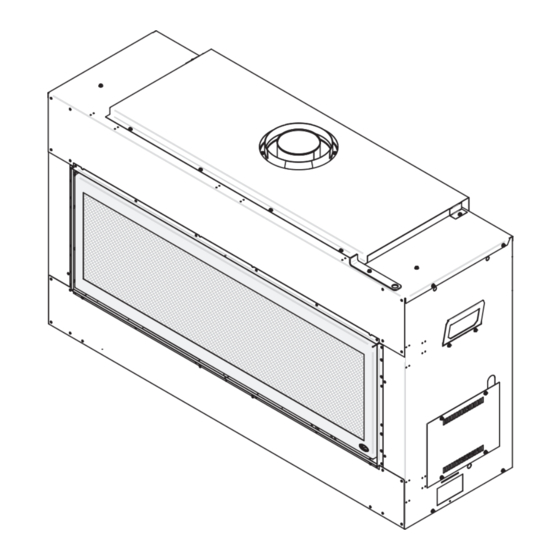

OWNER'S
MANUAL
MODEL
L48
(FG00001 & FG00010)
DIRECT VENT
ZERO CLEARANCE
46139_UA
2022-01-24
Advertisement
Table of Contents
Related Manuals for Valcourt FG00010
Summary of Contents for Valcourt FG00010
- Page 1 OWNER’S MANUAL MODEL (FG00001 & FG00010) DIRECT VENT ZERO CLEARANCE GAS FIREPLACE HEATER MULTIFUNCTION REMOTE (MF) Safety tested according to ANSI Z21.88-2017 and CSA 2.33-2017 standards by an accredited laboratory. DANGER HOT GLASS WILL CAUSE BURNS. DO NOT TOUCH GLASS UNTIL COOLED.
