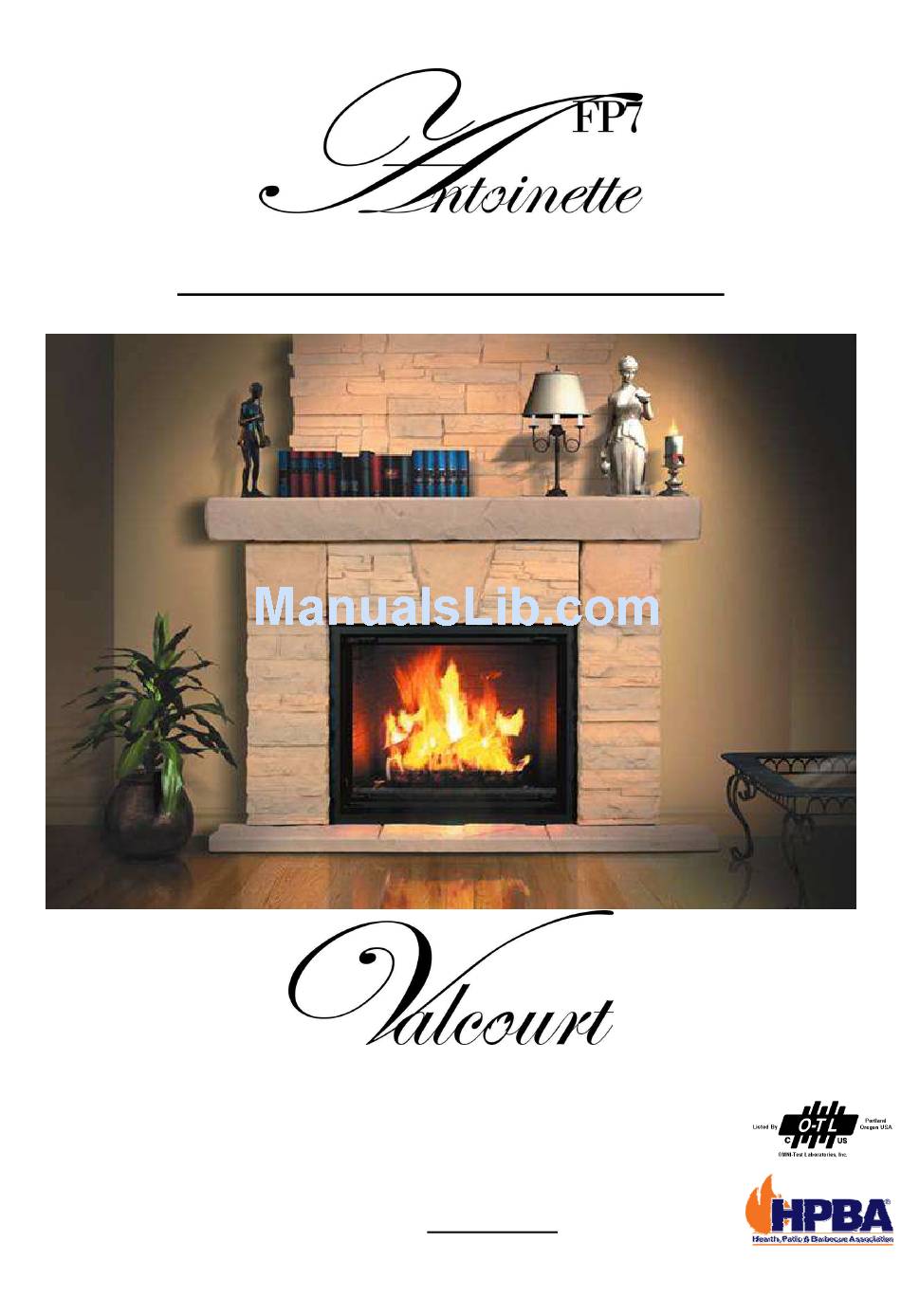

- Page 1 PREFABRICATED WOOD-BURNING FIREPLACE INSTALLATION AND OPERATION MANUAL Keep this manual for future reference Standards: ULC-S610 UL-127 E.P.A. Standards Exempt Revised: January 2008 Web Site: valcourtinc.com...
-
Page 3: Table Of Contents
Chimney Fire Safety Procedures .................... 19 MAINTENANCE ........................20 Replacing Glass ........................20 Replacing Firestone ....................... 21 TROUBLESHOOTING ......................22 VALCOURT LIMITED LIFETIME WARRANTY ..............23 APPENDIX A........................... 24 Exploded View ........................25 Parts List ..........................26 Warranty Registration Cardd ....................27... -
Page 4: Introduction
INTRODUCTION This manual contains all the information required for safe, efficient installation and use of your Valcourt fireplace. Read carefully all the instructions contained herein and keep this manual handy so you may refer to it whenever necessary. Before starting to install the fireplace, consult local authorities to obtain a building permit and learn about all applicable regulatory requirements. -
Page 5: Installation
ATTENTION: Do not modify or adapt the fireplace’s construction or components. This would void the warranty. In this event, VALCOURT would not be held responsible for any damages which may occur. - Page 6 Figure #2: Various Fireplace Locations Figure #3: Possible Chimney Configurations...
- Page 7 The table below shows the minimum chimney height requirements, fireplace included, according to the number of elbows: Chimney Number of Elbows Minimum Height Straight installation --------------- 15’ (4.6 m) 1 - 15° offset 2 - 15° elbows 15’ (4.6 m) 2 - 15°...
-
Page 8: Fireplace Installation
FIREPLACE INSTALLATION 1. Before beginning installation, remove the fireplace trim to protect it from damage. The fastening screws are located on each side of the fireplace trim. Make sure no masonry products or acids come into contact with the trim as these may discolor the finish which is not under warranty. 2. - Page 9 Figure #4: Hearth Extension Installation...
-
Page 10: Chimney Installation
CHIMNEY INSTALLATION 1. Assemble the first chimney section with the adaptor (provided by the chimney manufacturer) using three ¾” (19 mm) screws. 2. Screw this assembly to the fireplace using four ¾” (19 mm) screws, taking care not to block the rotation of the flue damper key. - Page 11 To make the hole through the masonry chimney and make the connection to the fireplace, we recommend that you follow these steps: 1. Sight-in and mark the outline of where the EXCEL chimney will penetrate the masonry chimney. 2. Using a large (3/4”-2”) masonry drill bit, drill a hole exactly in the center of the oval outline. With a masonry hammer and drill, slowly enlarge the hole to the size required.
- Page 12 Figure #6: Straight Chimney Installation Figure #7: Chimney with Elbows Installation Figure #8: Exterior Chimney Installation Figure #9: Insulated Chase Installation...
-
Page 13: Fireplace Finish
Figure #10: Minimum Chimney Height FIREPLACE FINISH 1. Combustible materials can be used to finish the fireplace. The framing can be built directly on the sides and back of the appliance. (Figure #11) 2. Non combustible materials must be used to finish the fireplace’s face. Ex: durock (Figure #14) 3. - Page 14 Figure #11: Fireplace Finishing...
- Page 15 Figure #12: Chimney Enclosure...
- Page 16 Figure #13a: Mantel Positioning Figure 13b : Combustible material positioning A : 48 po. B : Radius of 84 in. C : 84 in. Min.
- Page 17 Figure #14: Installation of Fireplace Facing with Chimney Elbow...
-
Page 18: Use And Safety
DO NOT OVERHEAT 8. Use the Andiron made by VALCOURT Burn only the quantity of combustible it can contain. Do not burn garbage, painted wood or wood that has been exposed to salt water. 9. Always have minimum of 1” accumulation of ashes at the bottom of the fireplace. -
Page 19: Creosote
CREOSOTE When wood burns slowly, it produces tar and other organic vapors which combine with humidity to produce creosote. Creosote vapor condenses in the chimney left relatively cool by the slow fire and coats the inside of the flue with residue. When creosote ignites, it produces a red-hot, extremely dangerous fire. It is therefore recommended to make small, brightly burning fires rather than lazy, smoldering fires. -
Page 20: Maintenance
4. Use only 3/16” (5 mm) ceramic glass. 5. Slide the new window into the frame and fasten it in place with 1/8 Pop rivet. 6. Handle the glass with care to avoid injury. NOTE: Never use substitute parts. Use only Valcourt brand parts. -
Page 21: Replacing Firestone
REPLACING FIRESTONE Do not use the fireplace with a broken or missing firestone. Here are the steps to replace the firestones of an Antoinette fireplace: 1. Remove the Andirons (VA7-070) by unscrewing the anchoring bolts. 2. Remove the front refractory brick (VA7-071-5). 3. -
Page 22: Troubleshooting
TROUBLESHOOTING Expansion and contraction noises during the heating and cooling cycle are normal. Prevent smoke flow reversal by positioning air intake lever to the maximum, slowly open the fireplace doors before lighting the kindling, make a torch by lighting rolled up newspaper and hold it up to the smoke chamber until you feel the chimney begin to draw. -
Page 23: Valcourt Limited Lifetime Warranty
1 year *Pictures required Shall your unit or a components be defective, contact immediately your VALCOURT dealer. Prior to your call make sure you have the following information necessary to your warranty claim treatment: Your name, address and telephone number;... -
Page 24: Appendix A
APPENDIX A... -
Page 26: Parts List
REGISTER YOUR WARRANTY ONLINE To receive full warranty coverage, you will need to show evidence of the date you purchased your unit. Keep your sales invoice. We also recommended that you register your warranty online at: www.valcourtinc.com/ Registering your warranty online will help us track rapidly the information we need on your unit.
