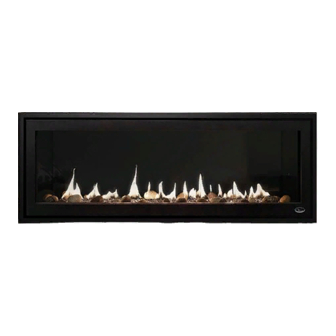

Direct vent zero clearance gas fireplace heater, multifunction remote (mf).

Advertisement

Quick Links

FIRE OR EXPLOSION HAZARD
• Failure to follow safety warnings exactly could result in
serious injury, death or property damage.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
READ AND KEEP THIS MANUAL FOR REFERENCE
Printed in Canada
HOT GLASS WILL CAUSE BURNS. DO NOT TOUCH GLASS UNTIL
COOLED. NEVER ALLOW CHILDREN TO TOUCH GLASS. A barrier
designed to reduce the risk of burns from the hot viewing glass is provided
with this appliance and shall be installed for the protection of children and
other at-risk individuals. NOTE : Barrier required, may be sold separately.
WARNING
L48 (FG00001)
GAS FIREPLACE HEATER
MULTIFUNCTION REMOTE (MF)
We suggest that our gas hearth products
be installed and serviced by professionals
who are certified in the U.S. by the
National Fireplace Institute (NFI) as NFI
Gas Specialist.
DANGER
WARNING
• If not installed, operated and maintained in accordance
with the manufacturer's instructions, this product could
expose you to substances in fuel or from fuel combustion
which can cause death or serious illness.
• This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA only) or
mobile home, where not prohibited by local codes.
• This appliance is only for use with the type of gas
indicated on the rating plate.
• This appliance is not convertible for use with other
gases, unless a certified kit is used.
• Fuels used in gas, wood-burning or oil fired appliances, and
the products of combustion of such fuels, contain chemicals
known to the State of California to cause cancer, birth defects
or other reproductive harm. For more information go to
www.P65warnings.ca.gov/
OWNER'S
MANUAL
MODEL
DIRECT VENT
ZERO CLEARANCE
46139A
2020-05-21

Advertisement

Table of Contents
loading

Summary of Contents for Valcourt L48

  • Page 1 OWNER’S MANUAL MODEL L48 (FG00001) DIRECT VENT ZERO CLEARANCE GAS FIREPLACE HEATER MULTIFUNCTION REMOTE (MF) We suggest that our gas hearth products be installed and serviced by professionals who are certified in the U.S. by the National Fireplace Institute (NFI) as NFI Gas Specialist.
  • Page 2 Dealer: Installer: Phone Number: Serial Number:...
  • Page 3 If it cannot be provided, the warranty period will be determined by the date of manufacture of the product. It is also highly recommended to register the warranty online at https://www.valcourtinc.com/en/warranty/warranty-registration/ Registering the warranty will help to quickly find the information needed on the unit. Owner’s Manual - L48 Page 3...
  • Page 4 Page 4 Owner’s Manual - L48...
  • Page 5: Table Of Contents

    Light Bulbs replacement ....................28 Gas valve ........................29 Maintenance Frequency ....................31 Maintenance venting ......................32 Control System Troubleshooting ..................33 8. Parts View ans Parts List ...................... 35 Appendix 1: Accessories ......................39 Waranty ............................ 42 Owner’s Manual - L48 Page 5...
  • Page 6: Certification Plate

    • • • • THIS VENTED GAS FIREPLACE HEATER IS NOT FOR USE WITH AIR FILTERS. Made in St-Augustin-de-Desmaures (Qc), Canada Fabriqué à St-Augustin-de-Desmaures (Qc), Canada 28/10/2019 ( # 888888 ) 28/10/2019 ( # 888888 ) 27793 Page 6 Owner’s Manual - L48...
  • Page 7: Safety Information

    Do not abuse the glass by striking or hitting it. WARNING Do not use ammonia based or abrasive cleaners on glass. Do not attempt to clean glass when glass is hot. Owner’s Manual - L48 Page 7...
  • Page 8: Carbon Monoxide Poisoning Hazard

    After it has been determined that each appliance connected to the venting system properly vents when tested as outlined above, return doors, windows, exhaust fans, fireplace dampers and any other gas-fired burning appliance to their previous conditions of use. Page 8 Owner’s Manual - L48...
  • Page 9: Safety Information For Users Of Propane Gas

    Odorants in Propane Gas also are subject to oxidation. This fading can occur if there is rust inside the storage tank or in iron gas pipes. Owner’s Manual - L48 Page 9...
  • Page 10 Always be sure your container is under vapor pressure by turning it off at the container before it goes completely empty or having it refilled before it is completely empty. Page 10 Owner’s Manual - L48...
  • Page 11: General Information

    Do not put furniture or any other combustible hosehold Be careful not to put any decorating objects objects within 36" of the fireplace front. sensitive to heat too close above or around the fireplace was it gets very hot when operating. Owner’s Manual - L48 Page 11...
  • Page 12: Fuel

    Odor risk with polymer materials Do not install any cement boards of other materials that contain polymer based fibers or other polymer materials. Page 12 Owner’s Manual - L48...
  • Page 13: Lighting Instructions

    TO TURN OFF GAS TO APPLIANCE Turn off all electric power to the appliance Locate On/Off gas shut-off and turn if service is to be performed (if applicable). clockwise to OFF. Do not force. Owner’s Manual - L48 Page 13...
  • Page 14: Operating Instructions

    NOTICE: The variable halogen lighting and blower features will not operate during a power outage. NOTICE: Replace all batteries at least once each year, preferably before at the beginning of the season. Page 14 Owner’s Manual - L48...
  • Page 15: Noise Coming From The Fireplace

    The wall control switch should be turned OFF when the fireplace is not being used for extended periods of time. Turned on For use of the multifonction remote REMOTE Turned off Program (Pairing) Owner’s Manual - L48 Page 15...
  • Page 16 2- With a multifunction thermostatic Remote (Transmitter) ON/OFF/SMART Button Technical Data - Remote Control Supply voltage 4.5 V (three 1.5 V AAA batteries) Ambient temp. ratings 0-50°C (32 - 122°F) Radio frequency 315 MHz Page 16 Owner’s Manual - L48...
  • Page 17 With the batteries already installed in the transmitter, push the ON/OFF button. The receiver will beep four times to indicate the transmitter’s command is accepted and sets to the particular code of that transmitter. The system is now initialized. Owner’s Manual - L48 Page 17...
  • Page 18 With the system ON, press the ON/OFF button on the transmitter. The transmitter LCD display will only show the room temperature. At the same time, the receiver will turn off the fireplace. A single beep from the receiver confirms reception of the command. Page 18 Owner’s Manual - L48...
  • Page 19 A single beep will confirm reception of the command. Flame OFF Flame Level 1 Flame Level 5 Flame Level Maximum Owner’s Manual - L48 Page 19...
  • Page 20 Controls»). To adjust the set temperature, press the up or down arrow buttons until the desired set temperature is displayed on the LCD screen of the transmitter. Note: When Smart Thermostat is activated, manual flame height adjustment is disabled. Page 20 Owner’s Manual - L48...
  • Page 21 IPI (Intermittent pilot). A single beep will confirm the reception of the command.   Note: In CPI mode, the pilot will shut off after 7 days if the fireplace has not been lighted once during this period. Owner’s Manual - L48 Page 21...
  • Page 22 When the backup batteries are low, a double-beep will be emitted when the module receives an ON/OFF command. No commands will be accepted until the batteries are replaced or the A/C power is restored. Page 22 Owner’s Manual - L48...
  • Page 23 • Turn the system power supplies (to the wall control or remote control) OFF for two or three seconds and then restoring a power supply back on. The return of the system to normal operation must be checked under safe conditions by the user and/ or service personnel. Owner’s Manual - L48 Page 23...
  • Page 24: Maintenance And Service

    Sharp objects. Gloves are strongly recommended. 3. Locate the glass door tool (secured to the top of the fireplace for shipping). Use the tool as a lever to release the bottom of the glass door as shown. DETAIL C Page 24 Owner’s Manual - L48...
  • Page 25: Glass Cleaning

    • The gas control is a safety device. It must be replaced in case of any physical damage such as bent terminals, missing parts, stripped threads, or evidence of exposure to excessive heat. Owner’s Manual - L48 Page 25...
  • Page 26: Fireplace Cleaning

    • The vent cap, located on the outside of your home, will also become very hot. Alert everyone, adults and children, to stay clear and avoid touching the vent cap. Keep the area around the vent cap clear of combustibles, including shrubs and trees. Page 26 Owner’s Manual - L48...
  • Page 27 It must de-energize the safety shut-off in no more than 30 seconds. - Vacuum and clean any foreign debris in the firebox that is not supposed to be there. Owner’s Manual - L48 Page 27...
  • Page 28: Light Bulbs Replacement

    Use gloves to avoid touching the bulb with bare hands. Remove the barrier and the glass door assemblies. Lift the light access cover up and out of Remove the bulb(s) to be replaced. the firebox. Page 28 Owner’s Manual - L48...
  • Page 29: Gas Valve

    5/16" 12 X DETAIL E The gas valve is now accessible for checking inlet and outlet gas pressures, flex line connections, and wiring to the valve. 5/16" 5/16" DETAIL F Owner’s Manual - L48 Page 29...
  • Page 30 The 120V power cord is routed through the lower right side opening and plugged into the Junction Box receptacle. 5/16" DETAIL H DETAIL G Page 30 Owner’s Manual - L48...
  • Page 31: Maintenance Frequency

    • Any control should be replaced if it does not perform properly on checkout or service. In addition, replace any module if it is wet or looks like it has been wet. Owner’s Manual - L48 Page 31...
  • Page 32: Maintenance Venting

    Venting termination shall not be recessed into a wall or siding. Slide the vertical vent cap over the ends of the vent pipe and secure. Slide the vertical vent cap over the ends of the vent pipe and secure Page 32 Owner’s Manual - L48...
  • Page 33: Control System Troubleshooting

    Clogged or dirty burner ports Clean burner ports Blocked orifice Check orifice opening Burner does not light but Loose wire connections Check valve/control module connections pilot remains on Faulty pilot Replace pilot Faulty valve Replace valve Owner’s Manual - L48 Page 33...
  • Page 34 Whistle noise from fireplace Open control knob to full position position Spiral gas flex line pinched or Straighten flex line where pinched or replace too small diameter line gas feed line with larger diameter Page 34 Owner’s Manual - L48...
  • Page 35: Parts View Ans Parts List

    DETAIL C DETAIL A WARNING Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this fireplace may result in property damage or personal injury. Owner’s Manual - L48 Page 35...
  • Page 36 PL71028 REAR BAFFLE SE71280 BLOWER KIT (2 X 130 CFM 115V-60Hz-50W) 44239 CROSSFLOW BLOWER SINGLE CAGE 130 CFM 115V-60Hz-50W (CLASS H) 60415 BLOWERS HARNESS PL71020 STIFFENING RAIL AC04382 BLACK CRUSHED GLASS MEDIA SET (L48) Page 36 Owner’s Manual - L48...
  • Page 37 AC04338 LP TO NG CONVERSION KIT 46139 L48 INSTRUCTION MANUAL SE46139 L48 OWNER'S MANUEL KIT AC04334 DRIFTWOOD SET AND PEBBLES 22370 ROCK F - L48 KIT 22369 ROCK A - L48 KIT 22371 ROCK J - L48 KIT 22365 ROCK B - L48 KIT...
  • Page 38 INVISIMESH SCREEN BARRIER - 49.625 X 14.437 31054 METAL SCREW #8-18 X 1/2" TRUSS QUADREX BLACK OXYDE PLATED 99999 BUILD TO ORDER AC04333 LARGE BLACK FINISHING TRIM AC04332 REGULAR BLACK FINISHING TRIM PL71043 BAFFLE NS - Not Shown Page 38 Owner’s Manual - L48...
  • Page 39: Appendix 1: Accessories

    APPENDIx 1: ACCESSORIES The following accessories must be purchased separately. Their installation instructions are included in their kit and can be found on Valcourt website, in the options/Accessories section of this fireplace’s page. Description Color Code REQUIRED ACCESSORIES Steel Panels...
  • Page 40 Page 40 Owner’s Manual - L48...
  • Page 41 Owner’s Manual - L48 Page 41...
  • Page 42: Waranty

    **Exclusion refer to statement above. ***Labour based on predetermined chart. Shall your unit or a component be defective, contact immediately your dealer or VALCOURT customer service. Prior to your call make sure you have the following information necessary to your warranty claim treatment: Your name, address and telephone number.
  • Page 44 This document is available for free download on the Stove Builder International inc. manufacturer’s website. It is a copyrighted document. 250, rue de Copenhague, Resale is strictly prohibited. The manufacturer may update St-Augustin-de-Desmaures (Québec) Canada this document from time to time and cannot be responsible G3A 2H3 for problems, injuries, or damages arising out of the use 418-908-8002...
