Savant WIF S104 Series Quick Reference Manual

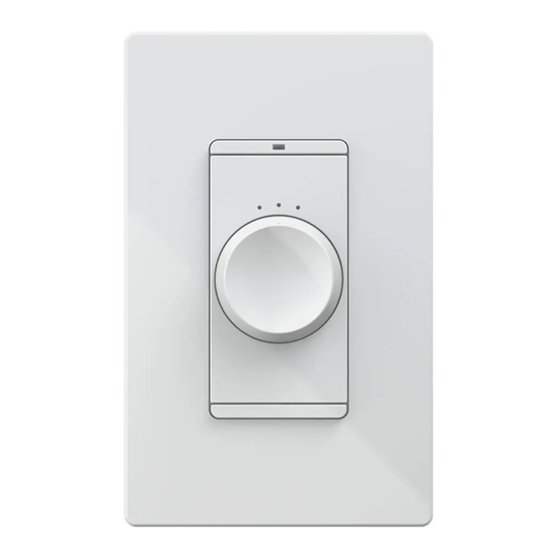

Wireless Fan Controller - WIF-xxS104
Quick Reference Guide
Box Contents
(1) Fan Controller without faceplate (WIF-xxS104)
(4) Wire Nuts (045-0177)
3/4
(2) 6-32 x inch mounting screws.(Installed in controller)
(1) Product Information and Regulatory Insert (009-1950)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
10% to 90% Relative Humidity
Humidity
(non-condensing)
Location Indoor Use Only
Pollution Degree 2
Dimensions and Weights
Length
4.13 inch
WIF-xxS104
(10.50 cm)
7.0 inch
Shipping
(17.78 cm)
Recommended Back Box Depth
All Metropolitan Style Fan Controllers require a standard U.S.
electrical back box.
– Recommended - 3.5 in (8.89 cm) deep
– Minimum - 2.25 in (5.72 cm) deep
–
Type 1 enclosure for control
Installation
Operating Control Type 1.B action
Software Class A
Power
Input 120V AC at 60 Hz
Power:
240W (2A) @ 120V AC
Load (Max)
Standards
Wireless 802.11 b/g/n (2.4GHz only)
Security WPA™, WPA2™, WPA1™ +WPA2™, WEP
Regulatory
FCC Part 15
Safety and
Emissions
Contains FCC ID: TLZ-CU277B
Contains IC: 6100A-CU277B
RoHS Compliant
Supported Loads
Celling Fan (120V AC)
Minimum Supported Release
da Vinci Blueprint 7.2.2
Wireless Fan Controller - QRG | 009-1345-05
Copyright© 2022 Savant Systems, Inc | 220328
Width Depth
1.81 inch 2.1 inch
(4.60 cm) (5.33 cm)
4.5 inch 3.0 inch
(11.43 cm) (7.62 cm)
UL

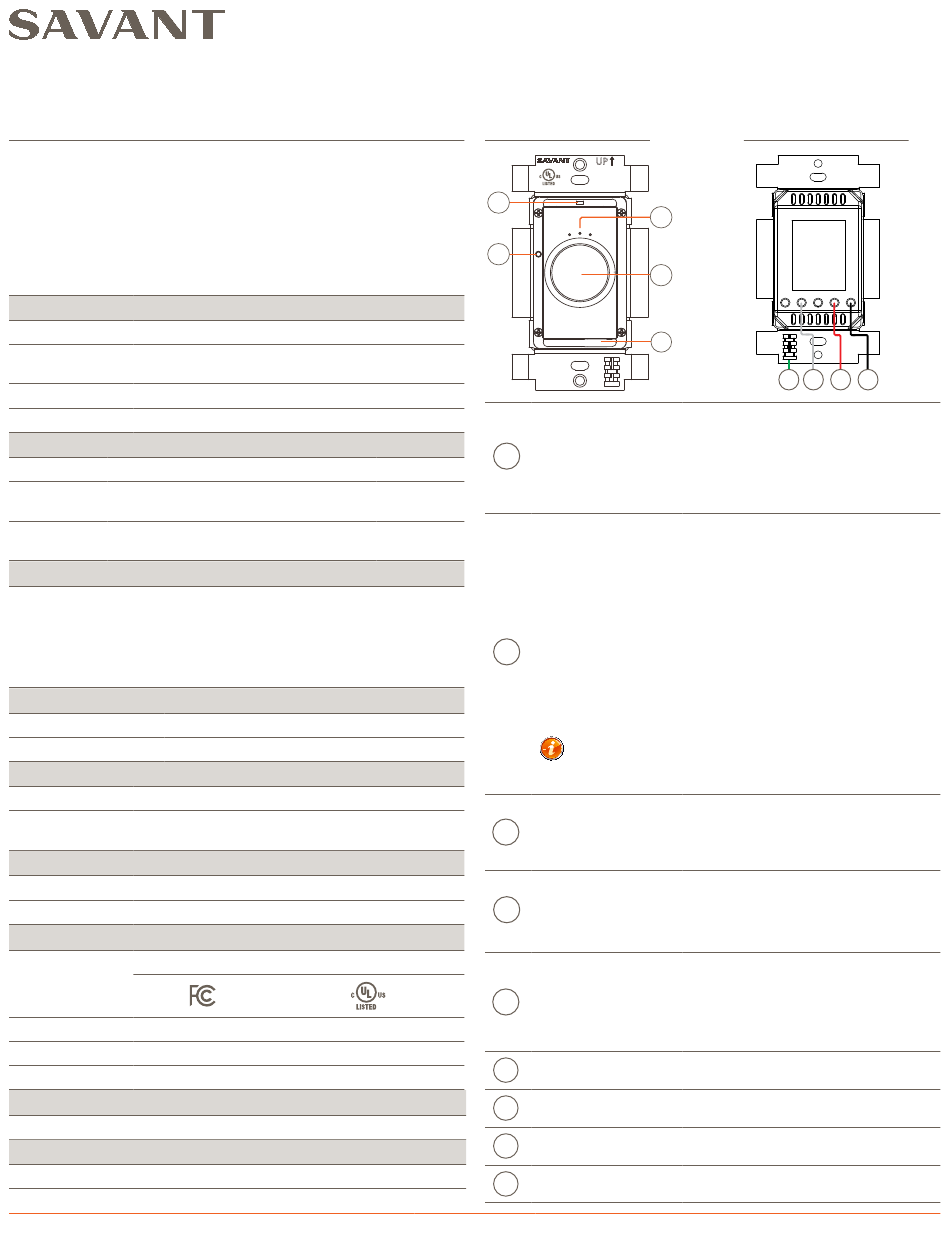

Front Panel
A
B
RESET
120V 60Hz
Ambient Light Sensor - Detects the level of ambient light in
the room and adjusts the brightness of the dimming LED's.
– As the room brightens, the LED's brightness increases.
A
– As the room dims, the LED's brightness decreases.
Weight
The sensor is enabled and disabled from within the Lighting
0.30 lbs
and Shades Manager in Blueprint.
(.136 kg)
Reset Button - The reset button has two functions:
0.60 lb
–
(0.272 kg)
–
B
Dimming LEDs - The dimming LEDs have two functions:
–
C
–
Rotary Dial/Button - Press and release the rotary button/dial
to switch the load (fan) On and Off. Once switched On, turn
D
the dial clockwise to increase the fan speed and turn the dial
counterclockwise to decrease the fan speed. The three LEDs
above the dial indicate the speed of the fan.
Service Switch - Toggle the switch to apply or remove power
from the fan controller. When changing the controller's
load, Savant recommends toggling the service switch Off,
E
replacing the load, then toggling back On. The service switch
can also be used to power cycle the controller, which is
similar to the press and release action of the reset button.
F
Ground Wire (Green)
G
Neutral Wire (White)
H
Load Wire (Red)
I
Hot (Black)
1 of 4
Rear Panel
UP
C
D
E
Press and release - Reboots the controller keeping all
programming and network settings intact. After the
reboot, the sequence of blinks from the dimming LEDs
indicates the state of the fan. See the
section.
Press and hold - Press and hold the reset button for
five seconds until all LEDs on the front panel illuminate,
then release. The fan controller reboots and reverts
to provisioning mode. All programming and network
settings are lost, and the controller should be re-
provisioned. Refer to the Wireless Keypad Provisioning
Guide on the
Savant Community
HELPFUL! Press and release the reset button just after
connecting a new load or when experiencing a lack of
control of the existing load.
Indicates the fan speed during normal operation -or-
Indicates for the state of the controller for provisioning
and troubleshooting. See the
Connect to gnd in the circuit.
Return path for voltage. Connect to
the neutral wires.
Connect to one side of the load.
Connect to incoming hot wire from
the AC power source.
45 Perseverance Way, Hyannis MA 02601
F G H I
LED Sequencing
for information on this.
LED Sequencing section.
Savant.com | 508.683.2500
