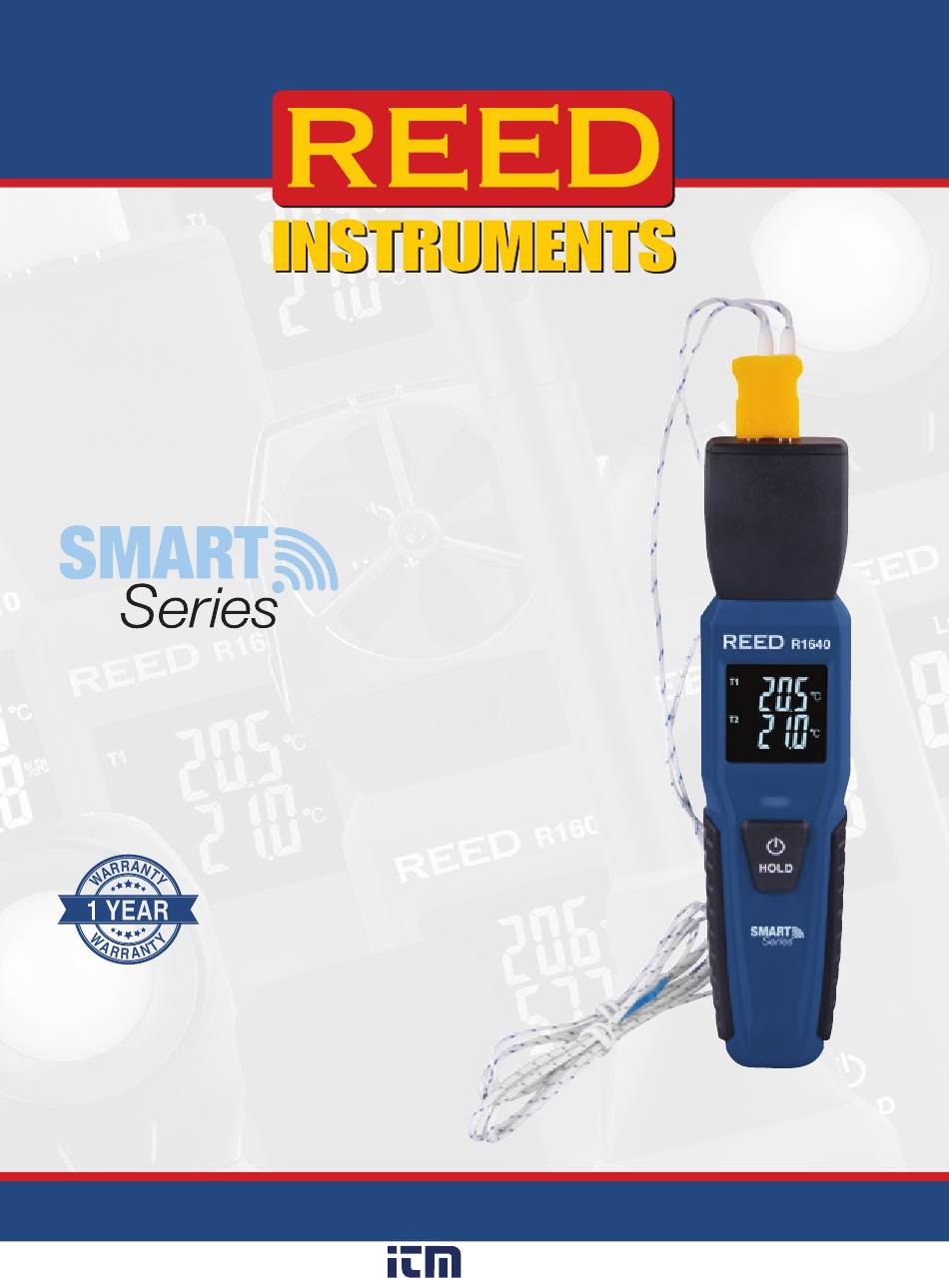

- Page 1 R1640 Thermocouple Thermometer 1 YEAR 1 AN 1 AN 1 YEAR Instruction Manual www.REEDInstruments.com 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
IC RF Exposure Statement ..............5 Features .......................6 Included .......................6 Specifications ..................7-8 Instrument Description ................9 Display Description ...................10 REED Smart Series App ................11 Operating Instructions ................12-13 Power ON/OFF .................. 12 Backlight ................... 12 Establishing Bluetooth Connection ..........12 ®... -
Page 3: Introduction
Introduction Thank you for purchasing your REED R1640 Thermocouple Thermometer, Bluetooth Smart Series. Please read the following instructions carefully ® before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 4: Fcc Statement
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Ic Statement
IC statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 6: Features
• User selectable °F , or °C • Low battery indicator and auto shut off • Tripod mount for long-term monitoring When used with REED Smart Series App: • Real-time data logger • User selectable sampling rate from 1 to 120 seconds •... -
Page 7: Specifications
Nematic (EBTN) LCD Display Size: 1.3" (34mm) Backlit Display: Data Hold: Datalogging Capabilities: Yes (with Smart Series App) Real-Time Clock and Date Stamp: Yes (with Smart Series App) Customizable Sampling Rate: Overrange Indicator: Auto Shut-off: Yes (adjustable) Tripod Mountable: Magnetic Backing:... - Page 8 Software: REED Smart Series App (iOS and Android) App Supported Languages: English, French Product Certifications: CE, UKCA, FCC, IC ID Maximum Operating Altitude: 6561' (2000m) Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: 14 to 122°F (-10 to 50°C)
-
Page 9: Instrument Description
Instrument Description 1. Thermocouple Input Jacks 5. Tripod Mounting Screw 2. LCD Display 6. Battery Cover Lock 3. POWER/HOLD Button 7. Battery Cover 4. Bluetooth Status ® Indicator Light 1.800.561.8187 information@itm.com www. .com... -
Page 10: Display Description
Display Description 1. T1 (Channel 1) & T2 4. Temperature Measurement (Channel 2) Thermocouple Value for T1 Thermocouple Input Indicators 5. Data Hold Indicator 2. Temperature Measurement 6. Thermocouple Value for T2 Thermocouple Type Indicator 3. Temperature Unit 7. Bluetooth Indicator ®... -
Page 11: Reed Smart Series App
REED Smart Series instruments can be connected wirelessly to your smartphone or tablet. All measurement data is transmitted via Bluetooth ® to the free REED Smart Series app. The app allows users to analyze data, generate reports and send information by email directly from a mobile device. -
Page 12: Operating Instructions
® remains blue and the the current readings are automatically displayed in the App. REED Smart Series meters feature Bluetooth 5.0 connectivity which ® does not require meters to be paired with the device. If the App is open and the meter is powered on, a connection will automatically be established. -
Page 13: Measuring Temperature Procedure
Note: The Auto Power OFF feature can be disabled through the App. (See REED Smart Series Software Guide located in the "Menu" section of the App for additional details.) For additional information on App features including sampling rate... -
Page 14: Battery Replacement
Battery Replacement When the low battery icon appears on the LCD display, the batteries will need to be replaced. In order to replace the batteries, proceed with the following steps: Turn off the meter. Unlock the battery compartment located at the back of the meter. Remove the battery cover. -
Page 15: Accessories And Replacement Parts
Accessories and Replacement Parts R2920 Type K Surface Probe R2930 Type K Right Angle Surface Probe R2940 Type K Air/Gas Probe R2950 Type K Immersion Probe R2960 Type K Needle Tip Probe R2970 Type K Pipe Clamp Thermocouple Probe R2980 Type K Air Oven/Freezer Thermocouple Probe TP-01 Type K Beaded Wire Probe CA-52A Small Soft Carrying Case R8888 Medium Hard Carrying Case... -
Page 16: Product Warranty
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. - Page 17 Thermo-Hygrometer Sound Level Meter Thermocouple Thermometer Light Meter Connect wirelessly to your smartphone or tablet via the REED Smart Series App Bluetooth 5.0 provides connectivity to ® instruments up to 246' (75m) away Analyze data and create custom reports that can...
- Page 18 TEST & MEASURE WITH CONFIDENCE Access our Product Catalog Over 200 portable test and measurement instruments www.REEDInstruments.com 1.800.561.8187 information@itm.com www. .com...
- Page 19 www.REEDInstruments.com 1.800.561.8187 information@itm.com www. .com...
- Page 20 NOTES 1.800.561.8187 information@itm.com www. .com...
