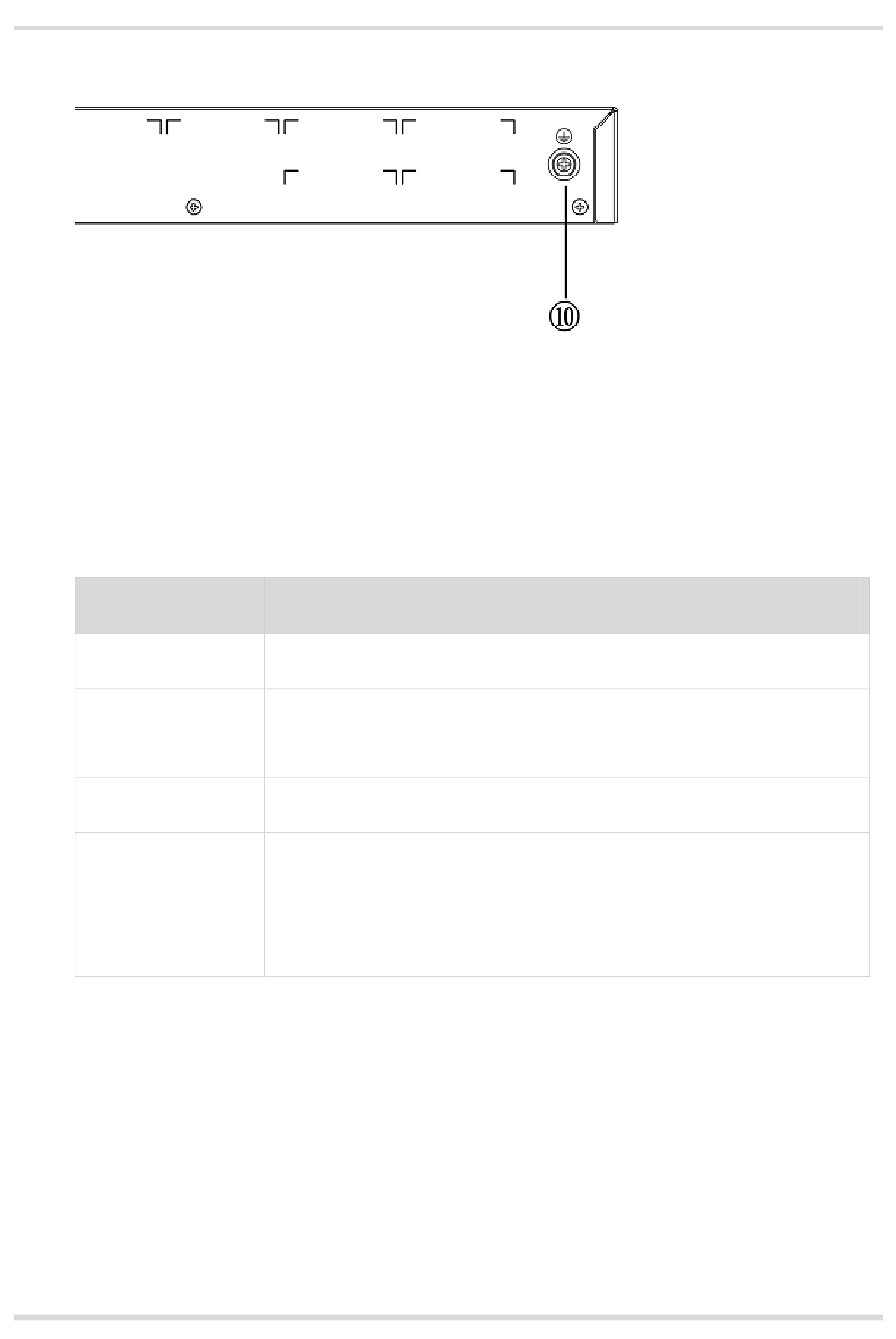

Figure 3-1 Grounding
3.5

Connecting to the Console

The RG-WS6512 has an EIA/TIA-232 asynchronous serial console port, which allows users
to complete the local configuration of the RG-WS6512. The following table provides the
details about the console port. If the RG-WS6512 is configured by using the web, there is
no need to connect to the console.
Parameter
Connector
Interface
Standard
Baud Rate
Supported
Services
Users can connect to the console port of the RG-WS6512 based on the following
procedure:
Connect one end of the RJ45 serial cable delivered with the RG-WS6512 to the console
port, and the other end to the DB-9 male connector of the microcomputer that is used to
configure the AC.
Description
RJ-45
Asynchronous EIA/TIA-232
9600 bps (default), 57600 bps, and 115200 bps
1. CLI
2. Connection to character terminals
3. Asynchronous interface for terminal access
