Ruijie RG-WS6816 Series Wireless
Controllers
Hardware Installation and Reference Guide
Document version: V1.2
Date: December 12, 2023
Copyright © 2023 Ruijie Networks

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-WS6816 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Ruijie RG-WS6816 Series

Summary of Contents for Ruijie RG-WS6816 Series

  • Page 1 Ruijie RG-WS6816 Series Wireless Controllers Hardware Installation and Reference Guide Document version: V1.2 Date: December 12, 2023 Copyright © 2023 Ruijie Networks...
  • Page 2 The content of this document is subject to constant change due to product version upgrades or other reasons. Thus, Ruijie Networks reserves the right to modify the content of the document without prior notice or prompt.

  • Page 3: Preface

    Preface Intended Audience This document is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Technical Support  Ruijie Networks website: https://www.ruijienetworks.com/  Online support center: https://ruijienetworks.com/support  Case portal: https://caseportal.ruijienetworks.com  Community: https://community.ruijienetworks.com ...
  • Page 4 Specification An alert that contains a description of product or version support. 2. Notes The manual provides configuration information, including models, port types, and command line interfaces, for reference purposes only. In the event of any discrepancy or inconsistency between the manual and the actual version, the actual version shall take precedence.

  • Page 5: Table Of Contents

    Contents Preface ..............................I 1 Product Overview ..........................1 1.1 Product Appearance ........................1 1.2 LED Indicators ........................... 1 1.3 Technical Specifications ......................2 1.3.1 Dimensions and Weight ....................2 1.3.2 Port Specifications ......................2 1.3.3 Power Supply and Consumption ................... 3 1.3.4 Environment and Reliability ...................
  • Page 6 2.2 Preparing Installation Site ......................9 2.2.1 Temperature and Humidity Requirements ..............10 2.2.2 Cleanness Requirements .................... 10 2.2.3 Static Discharge Damage Prevention ................. 11 2.2.4 Anti-Interference Requirements ................... 11 2.2.5 Installation Site Requirements ..................12 2.3 Installation Tools ........................12 3 Installing Wireless Controller ......................
  • Page 7 4.2.3 Verification After Power-on ..................- 19 - 4.2.4 Startup Process ...................... - 19 - 5 Troubleshooting ..........................21 5.1 Power Troubleshooting ......................21 5.2 System Troubleshooting ......................21...

  • Page 8: Product Overview

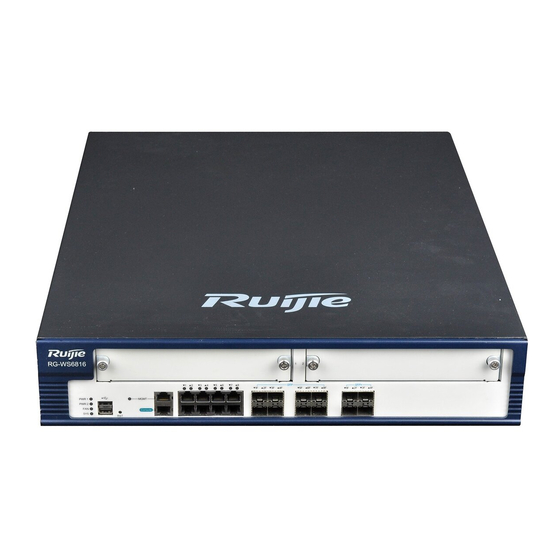

    Hardware Installation and Reference Guide Product Overview Product Overview The RG-WS6816 wireless LAN controller is introduced by Ruijie Networks to provide powerful WLAN access control for medium-large-sized wireless networks. Product Appearance Figure 1-1 Front Panel of RG-WS6816 Figure 1-2 Rear Panel of RG-WS6816 Note The nameplate is at the bottom of the wireless controllers.

  • Page 9: Technical Specifications

    Hardware Installation and Reference Guide Product Overview Solid red The system sends out an alarm. The fan module is NOT in the position. Solid green The fan module is operational. Solid red/ Blinking The fan module fails. green Link Solid green The management port is connected.

  • Page 10: Power Supply And Consumption

    Hardware Installation and Reference Guide Product Overview Fixed service port 1 x 10/100/1000Base-T management port with auto-negotiation 8 x GE combo ports (When the combo port is used as an electrical port, it supports 10/100/1000Base-T auto-negotiation.) 4 x 10G SFP+ ports. Port 3 is multiplexed with GE ports 1 to 4, and port 4 is with GE ports 5 to 8.

  • Page 11: Rg-Pa300I

    Hardware Installation and Reference Guide Product Overview Operating temperature: 0° C to +50° C (32° F to 122° F) Storage temperature: –40° C to +70° C (–40° F to +158° F) Temperature At a height between 3000 m (9842.52 ft.) to 5000 m (16404.20 ft.) above the sea level, every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1°...

  • Page 12: Specifications

    Hardware Installation and Reference Guide Product Overview The power input fails. Solid green The power input is operational. The power output fails. Solid green The power output is operational. The power module fails. FAIL Solid red The power module is operational. 1.4.3 Specifications Model...

  • Page 13: Wnm-4Ge-S

    Hardware Installation and Reference Guide Product Overview WNM-4GE-S 1.5.1 Module Appearance Figure 1-4 Appearance of WNM-4GE-S Note The WNM-4GE-S module applies to only RG-WS6816. 1.5.2 Indicator State Meaning Solid green The system is being initialized. Blinking green The initialization process is complete. Solid red The system sends out an alarm.
  • Page 14 Hardware Installation and Reference Guide Product Overview Four 1000M combo Ethernet ports are provided. The copper port supports 10/100/1000Mbps auto-negotiation and Fixed Service network cable/cross-over cable auto-identification. Port The optical port supports the 1000BASE-SX/LX/ZX mini GBIC optical transceiver. Max Power 15 W Consumption Voltage...
  • Page 15 Hardware Installation and Reference Guide Product Overview 0F-1F Gigabit fiber Blinking green The port is receiving or transmitting data. ports 1.6.3 Specifications Model WNM-4GE-S Dimensions 176 mm x 213 mm x 32 mm (W x D x H) 4-1000M combo Ethernet ports are provided. The copper port supports 10/100/1000Mbps auto-negotiation and Fixed Service network cable/cross-over cable auto-identification.

  • Page 16: Preparation For Installation

     Misuse of battery may cause damage to the device or hurt to people. Do not replace battery by yourself. Instead, contact Ruijie Service Center for the replacement of battery.  This device is not suitable for use in locations where children are likely to be present.

  • Page 17: Temperature And Humidity Requirements

    Hardware Installation and Reference Guide Preparation for Installation 2.2.1 Temperature and Humidity Requirements To ensure normal operation and service life of the device, maintain appropriate temperature and humidity levels in your equipment room. See Table 2-1. Improper room temperature and humidity can cause damages to the device.

  • Page 18: Static Discharge Damage Prevention

    Hardware Installation and Reference Guide Preparation for Installation Maximum Content (Number of Particles 1.4x10 7x10 2.4x10 1.3x10 in one Cubic Meter) Besides, the contents of salts, acids and sulfides in the air are also strictly limited for the equipment room. These substances can accelerate metal corrosion and the aging of some parts.

  • Page 19: Installation Site Requirements

    Hardware Installation and Reference Guide Preparation for Installation  Provide the power system with effective anti-interference measures.  It is recommended that the wireless controller be installed far away from the grounding device.  Keep the wireless controller away from high-power radio stations, radar stations, and high- frequency high-current devices.

  • Page 20: Installing Wireless Controller

    Hardware Installation and Reference Guide Installing Wireless Controller Installing Wireless Controller Installation Flowchart Please follow the following procedure to install the wireless controller to ensure the smooth installation and avoid any damage to the device. Begi Read Chapter 2 Ensure Requirements are Met Mount Wireless Controller [[!100!]]CONNECT Cables...

  • Page 21: Mounting Rg-Ws6816 On Workbench

    Hardware Installation and Reference Guide Installing Wireless Controller 3.2.2 Mounting RG-WS6816 on Workbench In the absence of a 19-inch standard cabinet, install the wireless controller on a clean workbench. During the operation, pay attention to the following items:  The workbench is firm and well-grounded. ...

  • Page 22: Connecting Console

    Hardware Installation and Reference Guide Installing Wireless Controller Connecting Console RG-WS6816 supplies an EIA/TIA-232 configuration console for local configuration. If you configure RG-WS6816 through Web, skip this part. Table 3-1 Console Attributes Parameter Description Connector RJ-45 Interface Standard Asynchronous EIA/TIA-232 Baud Rate 57,600 bps, 115,200 bps, 9,600 bps (default) Command line interface...
  • Page 23 Hardware Installation and Reference Guide Installing Wireless Controller  Check the wireless controller is connected correctly to other devices such as the configuration terminal.

  • Page 24: Configuration Guide

    Hardware Installation and Reference Guide Configuration Guide Configuration Guide Setting up Configuration Environment When you use the wireless controller for the very first time, you will need to configure it through a console port as follows:  As shown in the following figure, connect the serial port of a character terminal or microcomputer to the console port through an RS232 cable.

  • Page 25: Powering On Wireless Controller

    Hardware Installation and Reference Guide Configuration Guide Figure 4-3 Setting Communication Parameters for Serial Port. After building the configuration environment, you may power on the wireless controller Powering on Wireless Controller 4.2.1 Verification Before Power-on Before powering on the wireless controller, please check the following items: - 18 -...

  • Page 26: Power-On

    Hardware Installation and Reference Guide Configuration Guide  If the power cable and the grounding cable are connected correctly.  If the power supply voltage meets the requirement.  If the configuration cable is connected correctly, the microcomputer or terminal is turned on, and the setting is complete.
  • Page 27 Starting sntp.elf... [ OK ] Press RETURN to get started *May 15 11:08:01: %CAPWAP-4-NO_IP_ADDR: Please config the IP address for capwap. Ruijie> . Now the wireless controller is ready for configuration. Note  Such information may vary with hardware configuration or software version.
  • Page 28 System Troubleshooting Fault Possible Cause Solution Forgot login Contact Ruijie Technical password Assistance Center for help Verify that the power outlet The wireless controller is not functions correctly. Status LED is off receiving power.
  • Page 29 Hardware Installation and Reference Guide Troubleshooting The connected twisted pairs are faulty. The cable length exceeds Replace twisted pairs. RJ45 Ethernet port 100 meters. cannot be Check speed and duplex settings The Ethernet port is connected or on the port. Make sure it shares configured for other receives/sends the same operation mode with...
