Preparing For Installation - Ruijie RG-WS6512 Installation And Reference Manual

Hardware Installation and Reference Guide

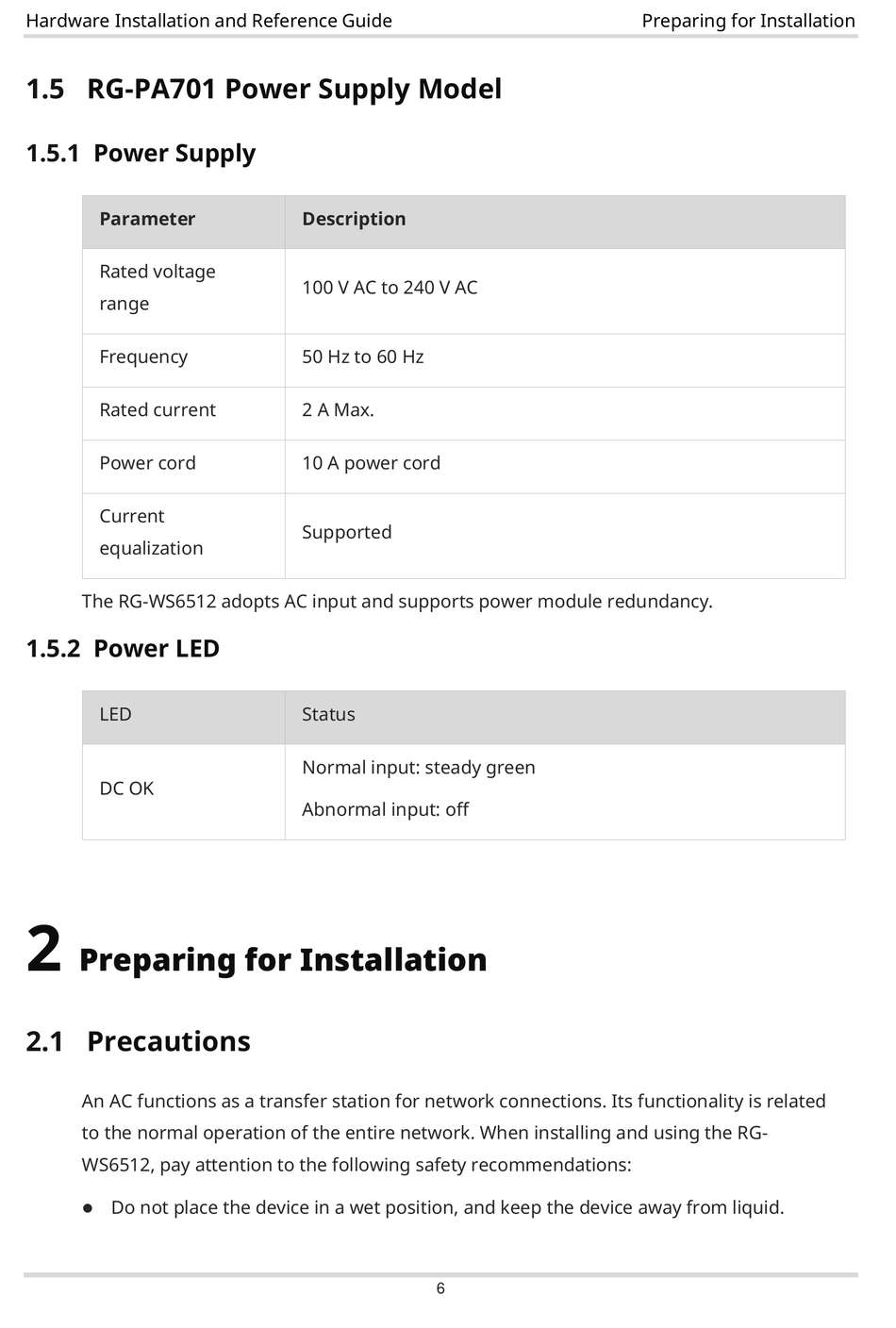

1.5 RG-PA701 Power Supply Model
1.5.1 Power Supply
Parameter
Rated voltage
range
Frequency
Rated current
Power cord
Current
equalization
The RG-WS6512 adopts AC input and supports power module redundancy.
1.5.2 Power LED
LED
DC OK
2

Preparing for Installation

2.1 Precautions
An AC functions as a transfer station for network connections. Its functionality is related
to the normal operation of the entire network. When installing and using the RG-
WS6512, pay attention to the following safety recommendations:
Do not place the device in a wet position, and keep the device away from liquid.

Description
100 V AC to 240 V AC
50 Hz to 60 Hz
2 A Max.
10 A power cord
Supported
Status
Normal input: steady green
Abnormal input: off
6
Preparing for Installation
