4 Connections

4.1 Preparation

Normal testing conditions
 Turn on the vehicle power supply.
 Vehicle battery voltage range should be 11-14 volts or 18~30 volts.
 Throttle should be closed at its close position.
 Find DLC location.

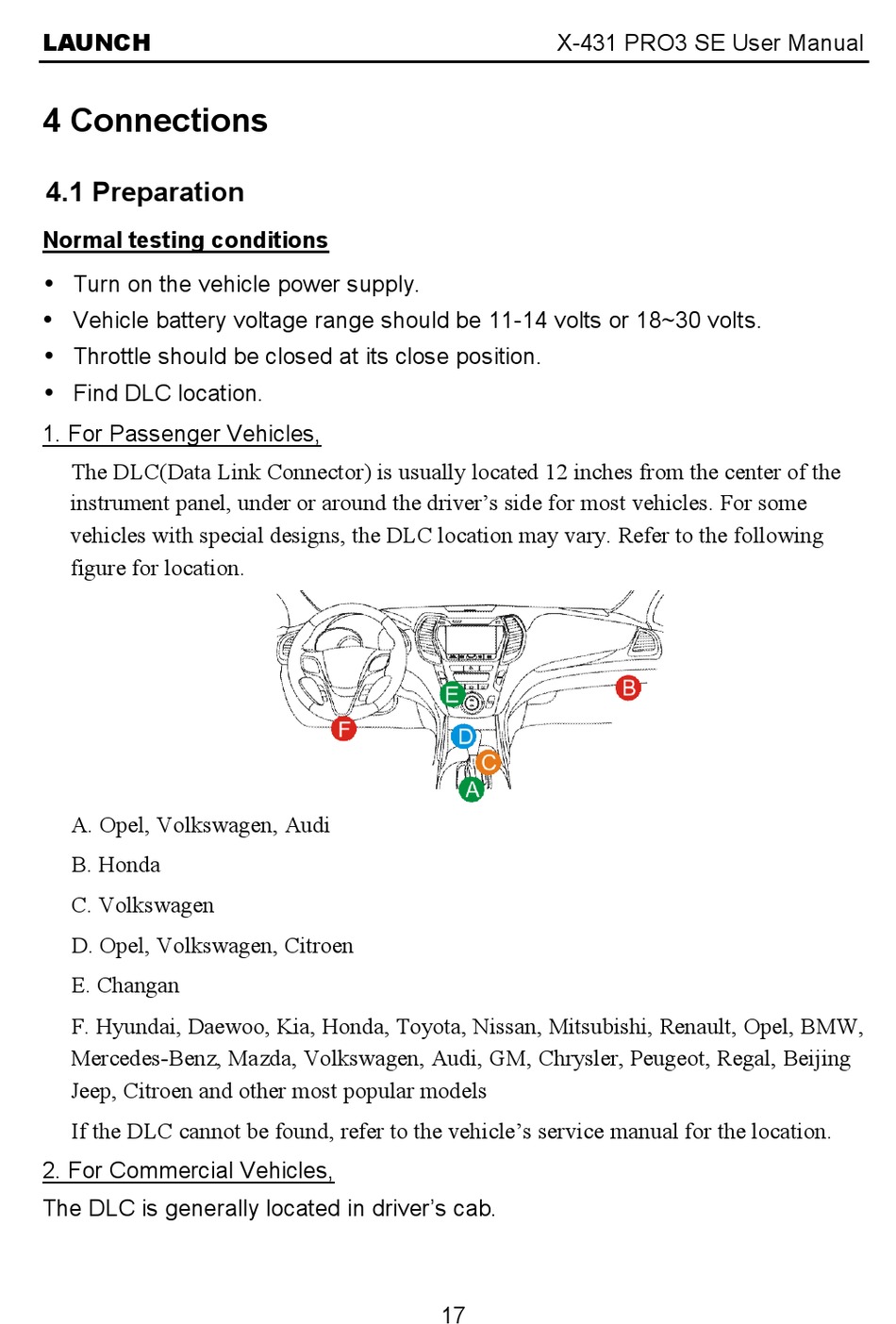

1. For Passenger Vehicles,
The DLC(Data Link Connector) is usually located 12 inches from the center of the
instrument panel, under or around the driver's side for most vehicles. For some
vehicles with special designs, the DLC location may vary. Refer to the following
figure for location.
A. Opel, Volkswagen, Audi
B. Honda
C. Volkswagen
D. Opel, Volkswagen, Citroen
E. Changan
F. Hyundai, Daewoo, Kia, Honda, Toyota, Nissan, Mitsubishi, Renault, Opel, BMW,
Mercedes-Benz, Mazda, Volkswagen, Audi, GM, Chrysler, Peugeot, Regal, Beijing
Jeep, Citroen and other most popular models
If the DLC cannot be found, refer to the vehicle's service manual for the location.
2. For Commercial Vehicles,
The DLC is generally located in driver's cab.
