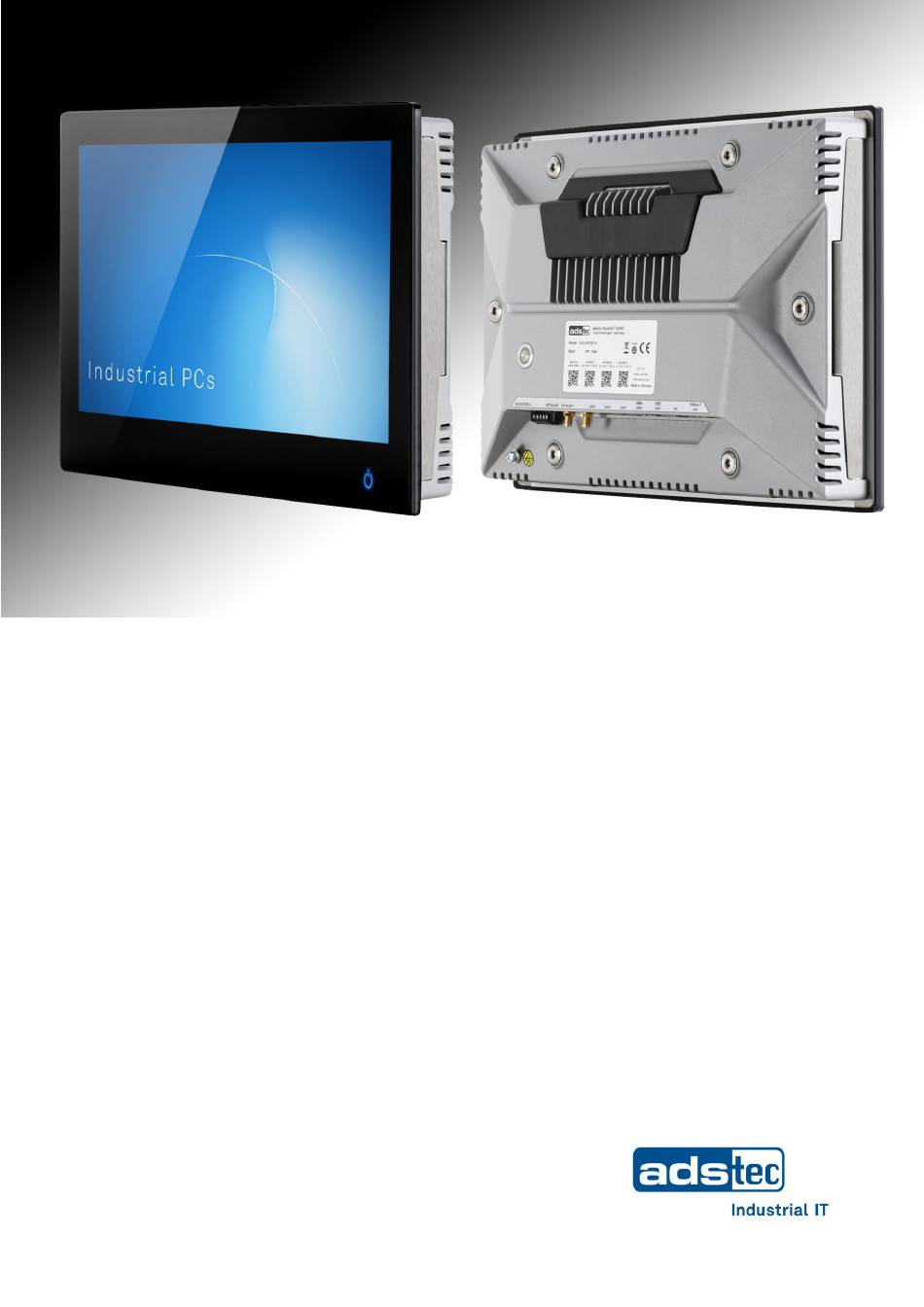

- Page 1 Translation of the original instruction manual Version 1.5 Instruction manual Industrial PCs OPC9000 series Last changed: 2023-06-13...
- Page 2 These instructions can be downloaded from: www.ads-tec.com in the download area. Publisher ads-tec Industrial IT GmbH Heinrich-Hertz-Straße 1 72622 Nürtingen Phone: +49 7022 2522-0 Internet: www.ads-tec.com E-mail: mailbox@ads-tec.de © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany...
-
Page 3: Table Of Contents
5.5.2 Windows Display Se�ngs 5.5.3 Screen resolu�on for cloned displays 5.5.4 Display of a start screen Commissioning ........................29 Requirements Switching the device on Configuring the device © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... - Page 4 11 Dimensional drawings ......................49 11.1 OPC9016 11.2 OPC9019 11.3 OPC9024 12 Technical data ........................52 13 Service & support ........................54 13.1 ADS-TEC support 13.2 Company address © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany...
-
Page 5: General Informa�On About Documenta�On
Information on how to avoid the hazard is indicated by an arrow (). DANGER Type and source of the hazard! Possible consequences if the hazard is disregarded Measures for avoiding the hazard © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 6: Explana�On Of Signal Words
Indicates terms and/or conditions that strictly need to be observed to ensure optimised and/or zero-defect operation. Tips and suggestions for the efficient use of the device and software optimisation are also provided. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 7: Relevant Device Documenta�On
All data, text and figures were prepared to the best of our knowledge. They do not represent any assurance for the properties themselves. Despite taking utmost care, no liability can be assumed for accuracy, completeness and actuality of the information. Subject to changes. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 8: Trademarks
Any modified use or exploitation of the provided content, particularly duplication, modification or publishing in whatever form is permitted only with the prior consent of ADS-TEC. In the case of copyright infringement, ADS-TEC reserves the right to exercise all rights. -
Page 9: General Device Informa�On
OPC9000 series − Instruc�on manual v1.5 2 General device information 2.1 Manufacturer and contact details The manufacturer of the device is ads-tec Industrial IT GmbH. The company is referred to in the following as ADS-TEC. ads-tec Industrial IT GmbH Heinrich-Hertz-Str.1 72622 Nürtingen... -
Page 10: Improper Use
In the case of improper use, ADS-TEC shall not accept responsibility or liability for injury or damage that is directly or indirectly attributable to the handling of the device. -
Page 11: Environmental Condi�Ons
The device must be operated under the environmental conditions specified in the technical data. Failure to observe any one of these conditions will invalidate the warranty of the device. ADS-TEC cannot be held liable for any damages arising from improper use and handling. -
Page 12: Vibra�On/Shock Resistance
Test duration: 10 shocks per direction and axis DUT status: DUT electrically in operation − − Test criterion: Visual inspection after the test and functionality of the DUT during and after the test © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 13: Conformity
It is therefore necessary to employ BUS and LAN cables with shielded connectors and these must be installed as per the instructions contained in the respective instruction manuals. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 14: Warranty / Repairs
2.7 Limitation of liability ADS-TEC shall not be liable for personal injury, property damage or damage caused to the device as well as consequential damage that is/was the result of non-compliance with this instruction manual, improper use of the device, repairs and other actions on the device by unqualified electricians and electricians not certified by ADS-TEC, or that is/was the result of using unapproved replacement parts. -
Page 15: Treatment And Disposal Of Lithium Bateries
Lithium batteries should not be exposed to fire, soldered, recharged, opened, short-circuited, reversed or heated above 100 °C and they should be disposed of properly as well as protected against sunlight, humidity and condensation! © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 16: Scope Of Delivery
Check that the contents of the package are complete and match your order: 1 x device − 1 x 5-pin connector for power supply − Accessories according to order/delivery note − © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 17: Mechanical Installa�On
The operating company must ensure that the wall can support the weight of the device. • The external device dimensions are given in Sec�on 11 Dimensional drawings. 4.2 Installation recess OPC9016 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 18: Installa�On Recess Opc9019
OPC9000 series − Instruc�on manual v1.5 4.3 Installation recess OPC9019 4.4 Installation recess OPC9024 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 19: Device Installa�On - Sequence
If the clamps protrude more than 5 mm (e.g. 15 mm), they are disengaged and can no longer bear mechanical loads. • Make sure that the clamps do not protrude more than 5 mm. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... - Page 20 5. Make sure that all clamps are fully in contact with the rear side of the recess. 6. Tighten the clamping screws, turning alternately by uniform increments in a clockwise direction (max. 4 Nm). © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany...
-
Page 21: Electrical Connec�Ons
), optimal: AWG 13 (≙ 2.5 mm ). The cable colour must be green-yellow. • FE: AWG 18 (≙ 0.75 mm ). The cable colour must not be green-yellow. • © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 22: Interfaces
4 x USB 3.1 gen. 2 DisplayPort++™ (1.2) Option at this position: − HDBaseT (RJ45), see section 7.2 Slot for Big-LinX smart card, see section 7.3 ® © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 23: Power Supply
Conductor cross sections: V+ / FE / 0V: AWG 18 (≙ 0.75 mm The permissible voltage ranges and the maximum values for the power consumption can be found in Section 12 Technical Data. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 24: Digital Input And Output
(ads-tec External User Library) in order to integrate them in user programs. For this purpose, please contact the support of ADS-TEC. • © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 25: Can Interface
Each CAN bus must be terminated at both ends with a 120 Ω terminating resistor. If the OPC9000 is on one bus end, the corresponding resistors must be integrated in the customer’s connector. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 26: Maximum Cable Lengths
− For long distances between the display and the computer, you will need the HDBaseT version: HDBaseT™ up to max. 100 m, see also Section 7.2 − © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 27: Opera�On Of Mul�Ple Monitors On One Opc9
The arrangement of the screens can be adjusted to the requirements by dragging and dropping. Switching from one clone mode to the other (b->c or c->b) is done in a roundabout way via the triple extended display. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 28: Screen Resolu�On For Cloned Displays
The login screen is only displayed on the integrated display of the OPC9 and on an additional monitor configured as a clone. Monitors configured as extended desktop are supplied with an image signal by the operating • system only after successful login. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 29: Commissioning
Alternatively, the device can be started using the capacitive button on the front side of the device: This button can be activated and deactivated in the Configuration Center. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 30: Configuring The Device
Important: To be able to configure settings, you will need to start the Configuration Center with administrator rights (right-click with mouse and select "Run as administrator" from the context menu). The Configuration Center from ADS-TEC can be used to make a number of settings, e.g.: Behaviour of the ON/OFF pushbutton −... -
Page 31: Features (Some Op�Onal)
To establish a connection to the Big-LinX cloud, insert the • Big-LinX smart card into the slot labelled SIM. To pull the drawer out: press the yellow button with a ballpoint pen or the like. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 32: Can Card
For other cases, and if special configuration or programming software is required for the fieldbus nodes, https://www.peak-system.com/ Connector pin assignment and termination information is available in section 5.3.4. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 33: Mass Storage Devices
By default, the operating system is then located on the mass storage device next to the CMOS battery. The second mass storage serves as a data partition. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 34: Wlan/Wi-Fi
(AUX). The device automatically uses the connection with the better signal. 7.7 Bluetooth™ Devices with WLAN also have Bluetooth. This function uses the resources provided by the operating system. EXT WLAN2 must be used as the connection. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 35: Netjack Plug-In Modules
Information on installing and removing the modules can be found in Section 10.5. Information on how to install the drivers can be found in sec. 8.3. Detailed information, manuals and software for the individual modules are available at www.hilscher.com © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... - Page 36 Applications should not wait for an event. Instead, they can directly poll or receive the data via Read operations. Detailed instructions for the "WhlHsUart" driver are available on request from ADS-TEC support. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany...
-
Page 37: Wake On Lan (Wol)
If the network stack has been ac�vated, the following se�ngs are also required: − ads-tec Se�ngs / Intel® I210 Gigabit Network Connec�on [MAC1] / NIC Configura�on / Wake on LAN: Enabled ads-tec Se�ngs / Intel® I210 Gigabit Network Connec�on [MAC2] / NIC Configura�on / −... -
Page 38: Se�Ngs In The Opera�Ng System (Windows 10)
LAN connector being used (the example here is for LAN1): Make the following settings on the "Advanced" tab: 1. Enable "PME" ("Power Management Events"): 2. Enable "Magic Packet": © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... - Page 39 OPC9000 series − Instruc�on manual v1.5 3. Disable "Wake on Link Settings": 4. On the Power Management tab: "Allow the device to wake the computer": © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany...
-
Page 40: So�Ware / Driver Installa�On
After successful installation, the device appears in the device manager as cifX Communication Interface. 9 Cleaning Clean the device using some glass cleaner on a soft cloth. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 41: Maintenance
Damage to the device due to electrostatic discharges Always adhere to the safety measures applicable when handling components at risk of being damaged by electrostatic discharges in accordance with EN 61340-5-1/-2. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 42: Removing The Device
4. Remove device from the wall recess. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 43: Opening And Closing The Service Slot
• damaged by electrostatic discharge. To open the service slot, prise the cover open on the bottom, and to close it again, simply press on the cover: © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 44: Replacing The Cmos Batery
Lithium battery CR2032 • • ADS-TEC part number: DZ-SONS-04075-1 Pay attention to the polarity when inserting the battery. Please also note the general information on batteries in section 2.8. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 45: Installing Or Removing Ssd Cards
1. Insert the new card into the slot from above at a slanting angle. 2. Press the card down and fix it with the screw (M3x6) provided. SATA / NVMe SATA © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 46: Removing And Installing The Hilscher Netjack Module
Then, lift the module a bit to lift the metal brackets out of the circuit board. FYI: Section 10.5.3 shows how the metal brackets are inserted into the circuit board. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 47: Installa�On
FYI: Section 10.5.3 shows how the metal brackets are inserted into the circuit board. • Push the module in all the way with a slight pressure. © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 48: Fyi: Fixing The Module To The Circuit Board
... and finally, pushed onto the circuit board, where they will click into place with a slight pressure. For the purposes of illustration, this image shows the back of the circuit board (usually not visible) with the metal brackets fully inserted: © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 49: Dimensional Drawings
OPC9000 series − Instruc�on manual v1.5 11 Dimensional drawings The dimensions of the wall recesses for installation can be found in Section 4 Mechanical installation. 11.1 OPC9016 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 50: Opc9019
OPC9000 series − Instruc�on manual v1.5 11.2 OPC9019 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 51: Opc9024
OPC9000 series − Instruc�on manual v1.5 11.3 OPC9024 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... -
Page 52: Technical Data
150 W max. 140 W max. 7 A max. 7.5 A max. 7A Permiss. ambient In operation: 0 to +45°C temperature For storage: -25 to +70°C © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany... - Page 53 Class A (industrial sector) as per EN 61000-6-2/4 Dimensions See section 11 "Dimensional drawings" Operating system Windows Enterprise 2021 LTSC Weight Approx. 5.0 kg Approx. 5.8 kg Approx. 8.1 kg © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nür�ngen • Germany...
-
Page 54: Service & Support
ADS-TEC does not provide support services for any device that was not purchased directly from ADS- TEC. In this case, maintenance and support is provided by the partner company.
