Summary of Contents for Newstripe RollMaster 5000

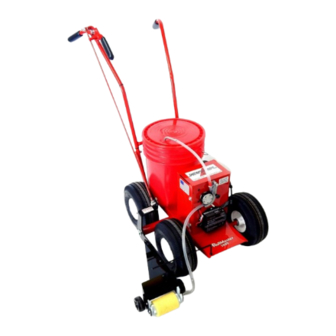

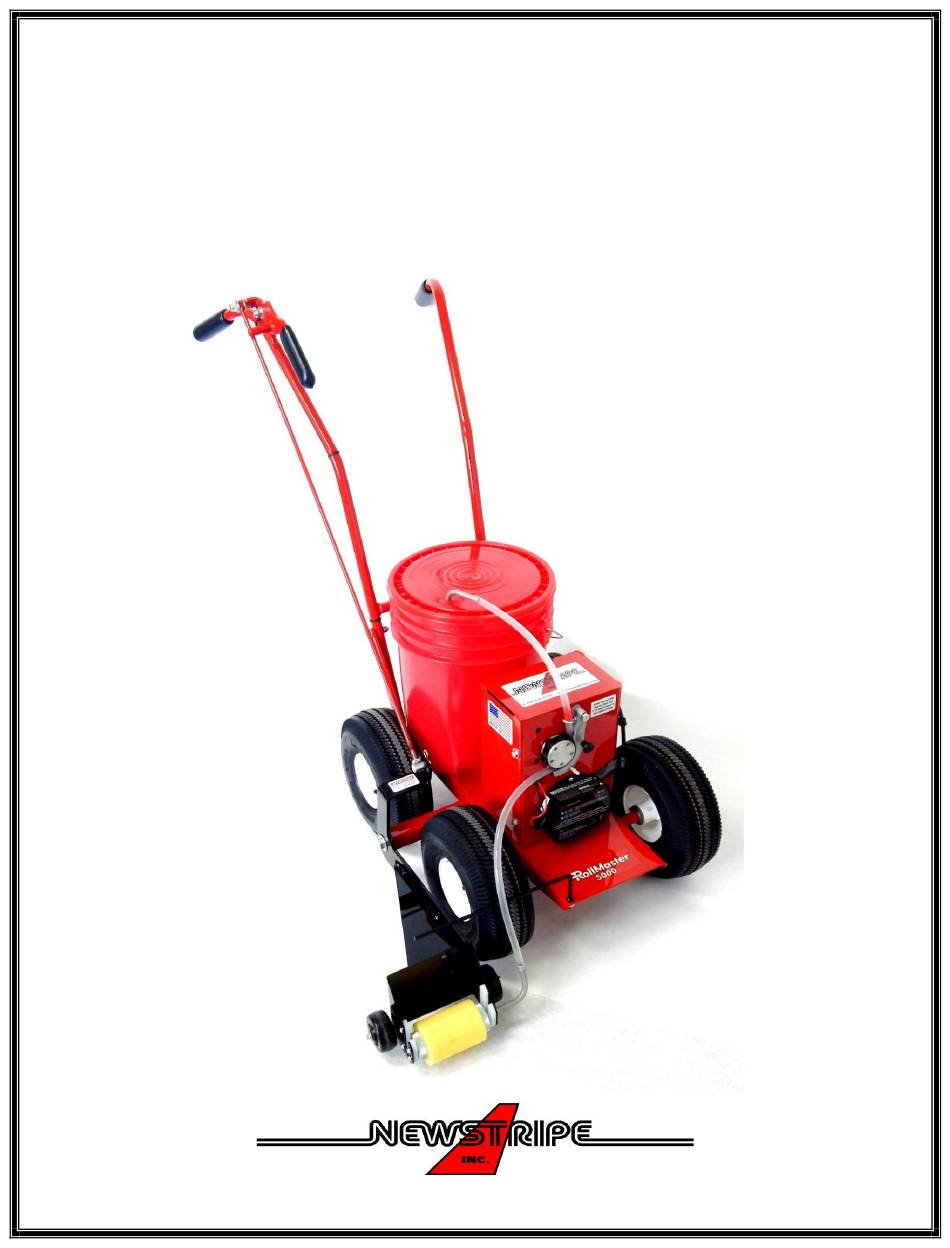

- Page 1 RollMaster™ 5000 Product Manual 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 5000 Manual / 3068.0822...
-
Page 2: Table Of Contents
ALWAYS wear safety goggles or protective eye-wear when operating the unit! TABLE OF CONTENTS Thank you! For your purchase Precautionary Warning …………….Page 1 of the Newstripe RollMaster™ 5000 Striper. Required Items………………………….Page 2 Please read over the Assembly ………………………………….Page 3-6 instructions and make sure you understand operating Operating Instructions………..Page 7... -
Page 3: Precautionary Warning
NOTE: These parts must be cleaned after every use and are not supplied with the Roller Hose Replacement Kits. 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 5000 Manual / 3068.0822 Page 1... -
Page 4: Required Items
One 3/4” wrench, or two adjustable crescent wrenches One #2 Phillips screwdriver 18ah SLA Batteries for RollMaster 5000 These are high performance factory activated permanently sealed spill proof 18 amp hour SLA deep cycle motorcycle batteries .The battery dimensions are: 6-7/8" L X 3-7/16" W X 6-1/8" H. -
Page 5: Assembly
(with red tape marker) from the paint trigger harness to the bottom post of the pump motor. (Marked with a dot) 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 5000 Manual / 3068.0822 Page 3... - Page 6 This keeps the hose from being damaged from the right front wheel. 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 5000 Manual / 3068.0822 Page 4...
- Page 7 J-Yoke. The open end of the mandrel tube will be toward the machine chassis. The mandrel should slide up and down in the J-Yokes freely. 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 5000 Manual / 3068.0822 Page 5...
- Page 8 6. Push the long end of the hose onto the open end of the mandrel tube. (Pic 7) Pic 6 Pic 7 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 5000 Manual / 3068.0822 Page 6...
-
Page 9: Operating Instructions
Push the trigger button again when the roller cover requires additional paint. This practice called feathering, will be required when the operator is striping a 2" or a 3" line. 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 5000 Manual / 3068.0822 Page 7... -
Page 10: Cleaning Procedure
Helpful Hint: Release the paint trigger 2’- 3’ from the end of the line and let the paint in the roller ‘run out’. This will give a clean end to the line and prevent dripping when the roller is raised. 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 5000 Manual / 3068.0822 Page 8... -
Page 11: Troubleshooting Guide
The mandrel, tube assemblies, and the roller then can be washed out in a solvent, paint thinner or soapy water for future use. If you desire, the hose and roller cover may be tossed away and a fresh, inexpensive, replacement kit can be purchased from your dealer or Newstripe. TROUBLESHOOTING GUIDE... -
Page 12: Parts List
4” Replacement Roller covers only (Package of 12 covers & 24 discs) 10000728 3” Replacement Roller covers only please specify concrete or asphalt 10001461 2” Replacement Roller covers only 10000729 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 5000 Manual / 3068.0822 Page 10... -
Page 13: Parts Images
Hose Guide 17 J-Yoke 24 Pic 11 Pic 12 Trigger Harness 9 Pump Motor 23 Mandrel Tube 15 O-Ring 16 Mandrel Kit 14 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 5000 Manual / 3068.0822 Page 11... -
Page 14: Warranty
The CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc. will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by placing his signature on the documents. - Page 15 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 • Newstripe.com RollMaster™ 5000 Manual / 3068.1116...
