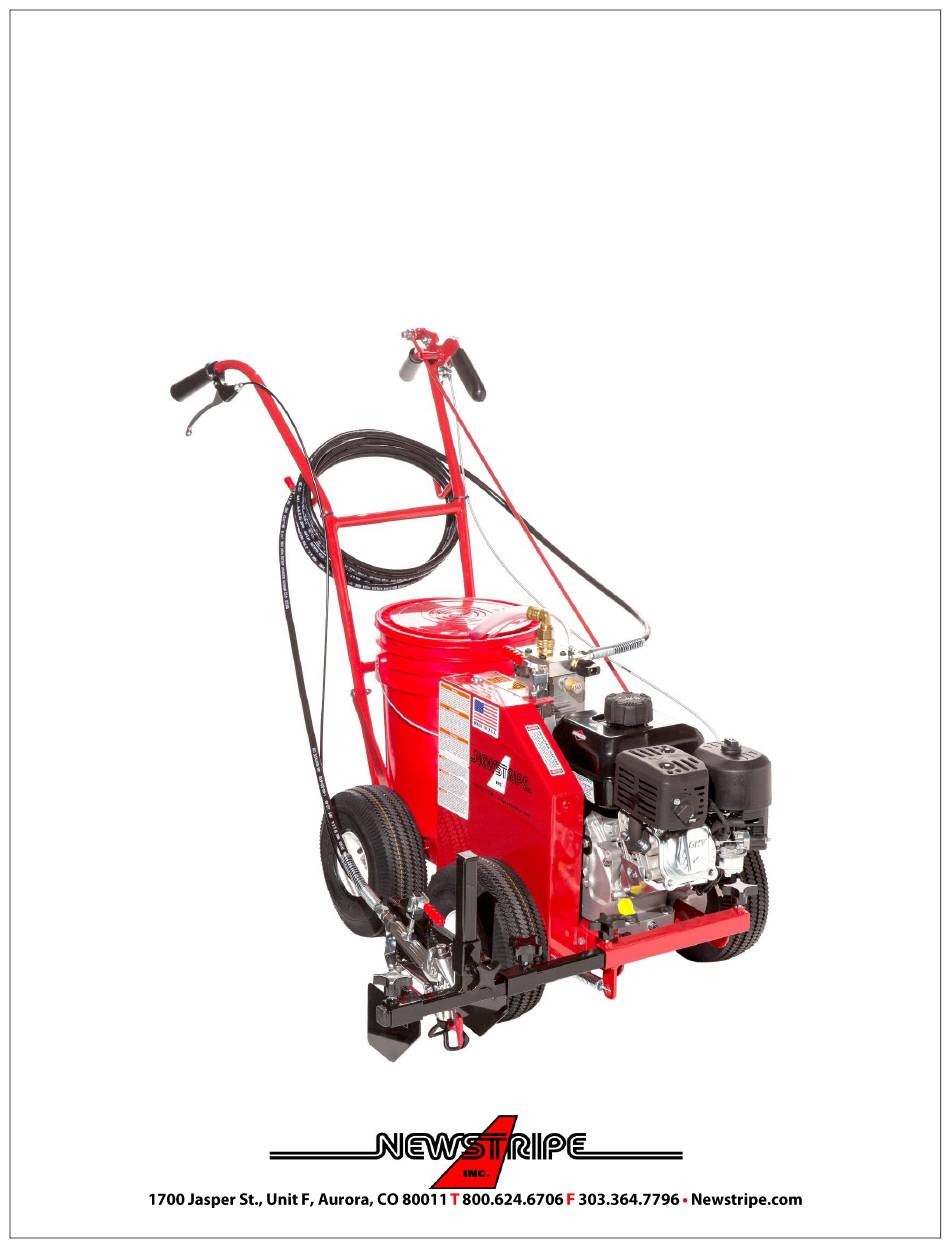

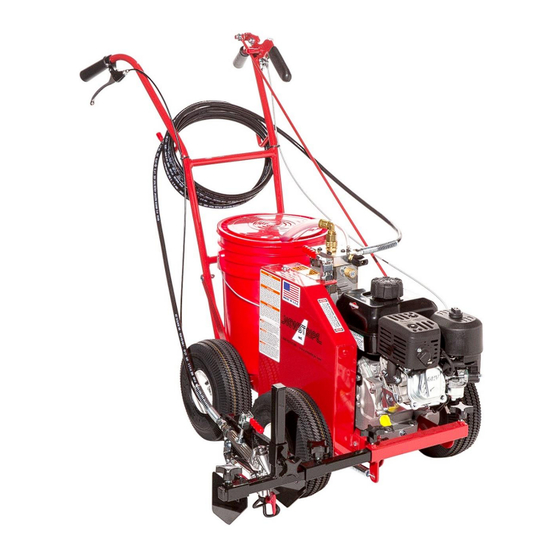

- Page 1 4600™ SP Airless Product Manual 4600™ SP Manual / 3031.0623...
-
Page 2: Table Of Contents
Engine Lubricant & Parts ......Page 6 Airless Pump Parts ........Page 7 Airless Pump Detail ......... Page 7 Airless Spray Gun Detail ......Page 8 Troubleshooting Guide ......Page 9 Warranty……………………....Page 10 4600™ SP Manual / 3031.0623 Page 1 of 2... -
Page 3: Precautionary Warning
NEVER use pliers to tighten or loosen high pressure fittings on the outlet side of pump. Use only in a well-ventilated area. Always consult your Facility Safety and/or Personnel Department for specified safety protocols prior to operating this equipment. 4600™ SP Manual / 3031.0623 Page 1 of 10... -
Page 4: Assembly
You will need two wrenches (3/4” and 9/16” or two adjustable wrenches) to secure the hose on the spray gun as it has a swivel fitting. Tighten both connections. (Pic 1) 4600™ SP Manual / 3031.0623 Page 2 of 10... -
Page 5: Operation
You may have to snug it additionally with pliers if you continue to get air bubbles in the return hose. Start the engine and repeat the first steps for operation. 4600™ SP Manual / 3031.0623 Page 3 of 10... -
Page 6: Spray Tip Cleaning
DO NOT attempt to clean a clogged gun filter. You must replace it. DO NOT use brushes with metal bristles or any metal object to clean the spray tip of dried paint. Replace the tip if it cannot be cleaned! 4600™ SP Manual / 3031.0623 Page 4 of 10... -
Page 7: Cleaning Procedure (Extended Periods)
Replace every 500-1000 gallons. Inlet Valve If pump does not prime Replace Every 500-1000 gallons. Prime/Spray Valve If pump will not toggle Replace every 1000-1500 gallons or if it stops between Prime/Spray working. 4600™ SP Manual / 3031.0623 Page 5 of 10... -
Page 8: Parts List
Briggs & Stratton 550XR, Model 083132 (Part Number 10004707) Oil Capacity 20 Ounces (0.59 Liters) Full Synthetic SAE 5W30 Spark Plug Briggs & Stratton Part# 797235 Air Filter Briggs & Stratton Part# 796970 (Part Number 10005153) 4600™ SP Manual / 3031.0623 Page 6 of 10... -
Page 9: Airless Pump Parts
Before each use check for nicks or cuts. As needed if damaged, or clogged. Bypass/Return Hose Before each use check for nicks or cuts. As needed if damaged, or clogged. *Interval ranges may vary due to the wide variety of paint types. 4600™ SP Manual / 3031.0623 Page 7 of 10... -
Page 10: Airless Spray Gun Detail
50 MESH GUN FILTER - STANDARD FILTER FOR STRIPERS 10004384 OPTIONAL 30 MESH COARSE GUN FILTER 10005135 SWIVEL FITTING KIT AIRLESS SPRAY GUN REPAIR 10005117 (Includes Item Numbers 4, 5, and 6) 4600™ SP Manual / 3031.0623 Page 8 of 10... -
Page 11: Troubleshooting Guide
Call the factory for assistance if needed. Your machine is designed to be simple and safe to operate: Please call us at 1-800-624-6700! If you have any questions during setup, painting or cleaning. 4600™ SP Manual / 3031.0623 Page 9 of 10... -
Page 12: Warranty
CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc. will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by placing his signature on the documents.
