Summary of Contents for Newstripe SCOTSMAN

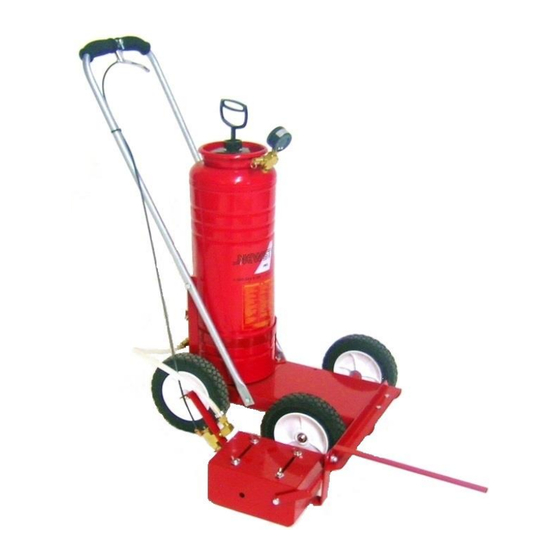

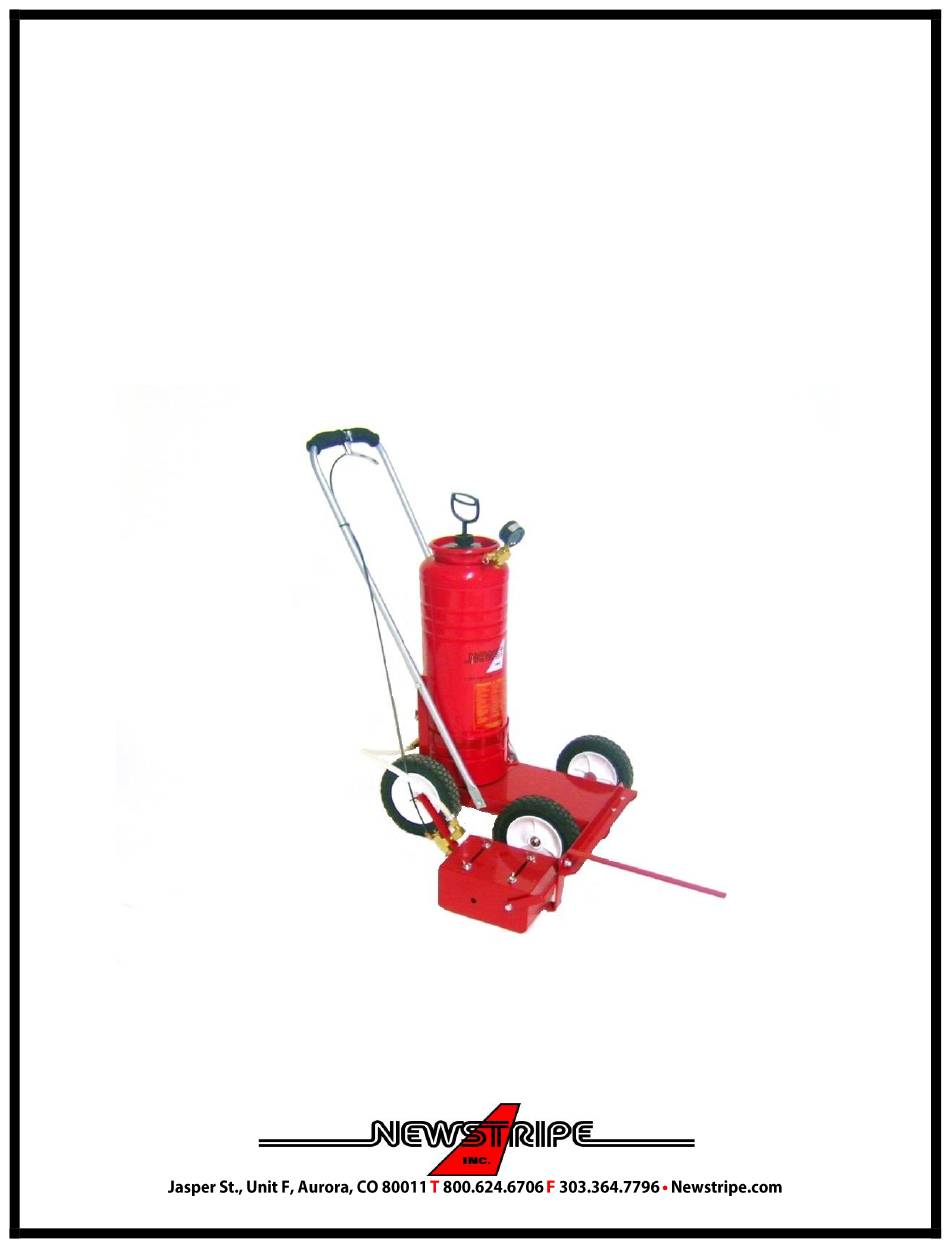

- Page 1 SCOTSMAN™ Product Manual Scotsman™ Manual / 0960.0416...
-
Page 3: Table Of Contents
Parts List……………………. Page 8 unit. This Manual is for units with serial number 1008896 and above Nozzle and spray assembly …Page 9 only. For units with serial numbers below 1008896, please contact Newstripe for the correct manual. Table of Contents / 0960.0416... -
Page 4: Precautionary Warning
NEVER use tools or excessive force to close pump lid. NEVER pressurize above 35 psi. Use only in well-ventilated area. Always consult your Facility Safety and/or Personnel Department for specified safety protocols prior to operating this equipment. Scotsman™ Manual / 0960.0416 Page 1 of 11... -
Page 5: Assembly
(See picture 6 & 7, page7) IMPORTANT: If you are going to use your Scotsman to mark pavement, the spray box will drag directly on the pavement. DO NOT use the “Turf wheel” supplied in the parts bag. -
Page 6: Operation
NEVER PRESSURIZE ABOVE 35 psi. Never use any kind of tool to tighten the pump lid. Lubricate gasket with petroleum jelly NEVER try to open tank when pressurized. ALWAYS strain the paint. Page 3 of 11 Scotsman™ Manual / 0960.0416... -
Page 7: Surface And Floor Prep
There are many good traffic marking paints on the market. Although these paints can vary greatly, with proper thinning they will all work in your Newstripe paint striper. Some will require little thinning, others a great deal. For best results, thin the paint using the included viscometer. -
Page 8: Paint Thinning Guide
Do not paint below 50°. Nozzle Selection: See ‘Spray Head Adjustment’ to choose the correct nozzle for the line width you wish to produce and ‘Surface & Paint Preparation to diagnose the spray pattern. Page 5 of 11 Scotsman™ Manual / 0960.0416... -
Page 9: Cleaning Procedure
NEVER perform maintenance on the machine while pressurized. DO NOT use brushes with metal bristles or any metal object to clean the spray nozzle of dried paint. Replace the nozzle if it cannot be cleaned. Page 6 of 11 Scotsman™ Manual / 0960.0416... -
Page 10: Parts List
Spray Valve Assembly # 12 See pg 8 for detail Spray Box #10 Nozzle Assembly #11 See pg 8 for detail Picture 5 Picture 7 (Pavement set up shown) ¼” Brass Tee #30 Scotsman™ Manual / 0960.0416 Page 7 of 11... -
Page 11: Nozzle And Spray Assembly
Nozzle Body 10000028 Spray Valve Assembly (Includes 12a-12e) 10000148 Lower Valve Bushing 10000025 Valve Seal (2 required) 10001127 Valve Body 10000116 Valve Stem 10000026 Upper Valve Bushing 10000024 SPRAY VALVE ASSEMBLY 12 Scotsman™ Manual / 0960.0416 Page 8 of 11... -
Page 12: Pump Assembly
Triangle #6, must fit in bottom most notches of the tank lid to seal. Then, use handle #15 to tighten Pump nut #5. Pump nut needs only to be snug to seal. Scotsman™ Manual / 0960.0416 Page 9 of 11... -
Page 13: Troubleshooting Guide
3. Check and adjust shut off valve linkage. Replace if faulty. Please call us! If you have any questions during setup, painting or cleaning. Your machine is designed to be simple and safe to operate: 1-800-624-6706 Scotsman™ Manual / 0960.0416 Page 10 of 11... - Page 15 The CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc. will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by placing his signature on the documents.
