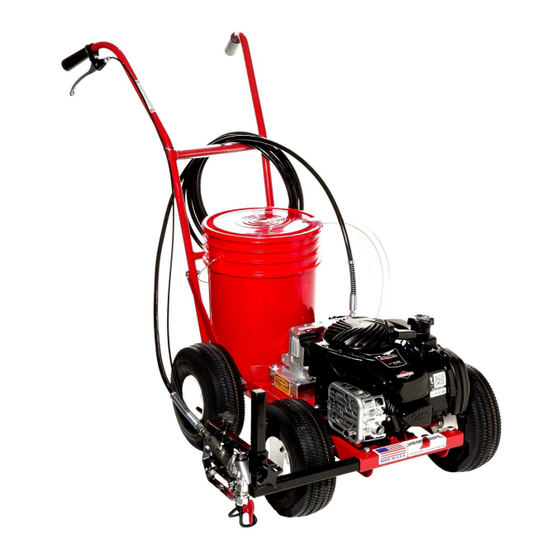

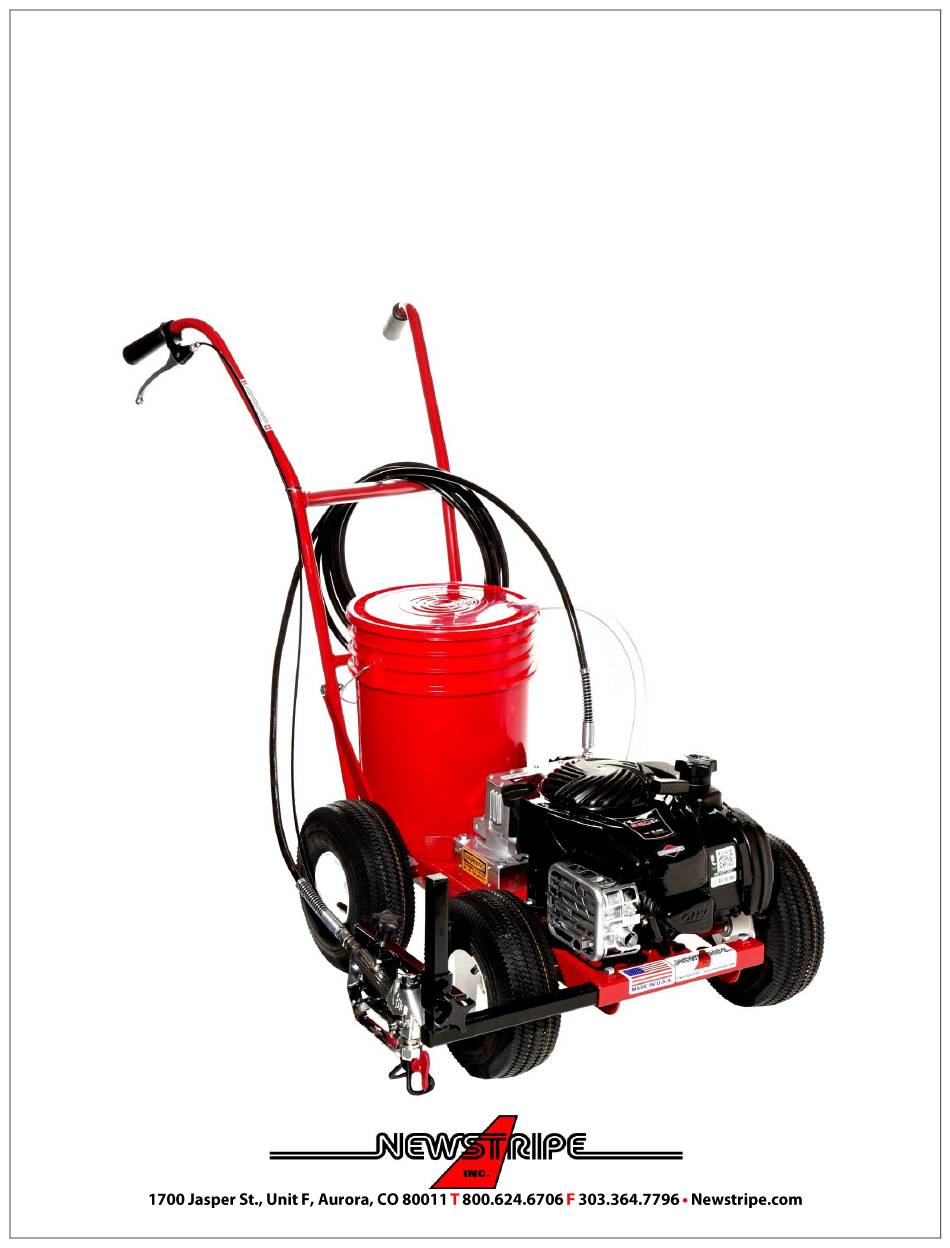

- Page 1 4250™ Airless Product Manual 4250 Manual /3947.0123...
-
Page 2: Table Of Contents
4250™ Airless Sprayer TABLE OF CONTENTS Precautionary Warning ..... Page 1 Thank you! For your purchase of the Newstripe 4250™ Airless Sprayer. Assembly ........Page 2 Please read over the instructions and make sure you understand the operating Operation ........Page 3 procedures before using the unit. -
Page 3: Precautionary Warning
4250™ Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! PRECAUTIONARY WARNING! Please read and understand all operation instructions as detailed in this manual. Failure to follow specified instructions may result in equipment damage or serious injury to personnel, up to and including death! ... -
Page 4: Assembly
4250™ Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! ASSEMBLY Remove the unit from the crate and open the packing cartons. There should also be enough room to push the trigger lock Check for any damage that may have occurred during sideways. -
Page 5: Operation
4250™ Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! OPERATION We recommend practicing with water to learn the controls and machine operation. Note: If you are going to use an oil-based paint, you will have to flush out the water with paint thinner or mineral spirits prior to using the oil-based paint. -
Page 6: Spray Tip Cleaning
4250™ Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! SPRAY TIP CLEANING DURING USE 1. Place the Spray Control Knob in the re-circulating 5. Turn the Prime/Spray knob to the spray position and position, and then squeeze the spray trigger lever resume spraying. -
Page 7: Cleaning Procedure
4250™ Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! CLEANING PROCEDURE FOR EXTENDED PERIODS OF NON-USE 1. Clean the machine as instructed in the cleaning procedure. 2. Pick up suction filter and hold it with the bottom facing up. -
Page 8: Parts List
4250™ Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! PARTS LIST Item Description Part Item Description Part Number Number 25’ Airless Paint Hose 10000458 Handle Braces (2) 10004570 Airless Spray Gun with 517 Tip 10005114... -
Page 9: Airless Pump Parts
4250™ Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! AIRLESS PUMP PARTS Item# Description Part# Item# Description Part# *Outlet Valve 10005102 Suction Hose Filter (Inside Pail) 10001760 *Outlet Push Button 10005102 Suction Hose Sleeve (Inside Pail) 10003932 *#22 &... -
Page 10: Airless Spray Gun Detail
4250™ Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! AIRLESS SPRAY GUN DETAIL Part Number Description 10005116 SPRAY TIP GUARD 10002103 319 SPRAY TIP - STANDARD FOR GPS AND SKID MOUNTED STRIPERS 10000508 517 SPRAY TIP - STANDARD FOR WALK BEHIND STRIPERS... -
Page 11: Troubleshooting Guide
4250™ Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! TROUBLESHOOTING GUIDE NEVER REMOVE THE FRONT COVER, PRESSURE ADJUSTING VALVE OR THE PUMP HEAD BLOCK. THIS WILL VOID THE WARRANTY. CALL THE FACTORY FOR SERVICE LOCATIONS IF THESE ITEMS REQUIRE SERVICE. -
Page 12: Warranty
CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc. will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by placing his signature on the documents.
