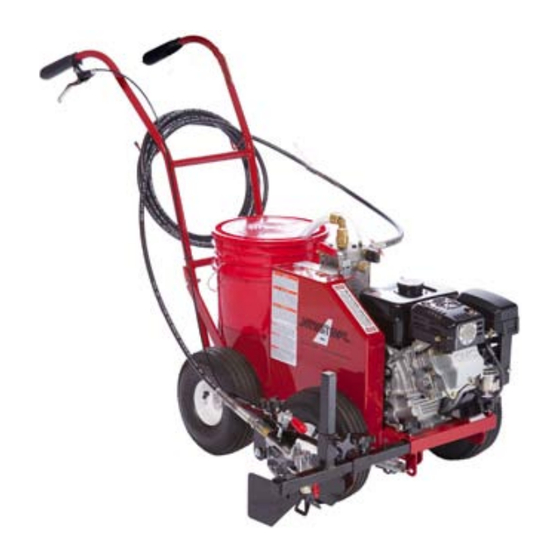

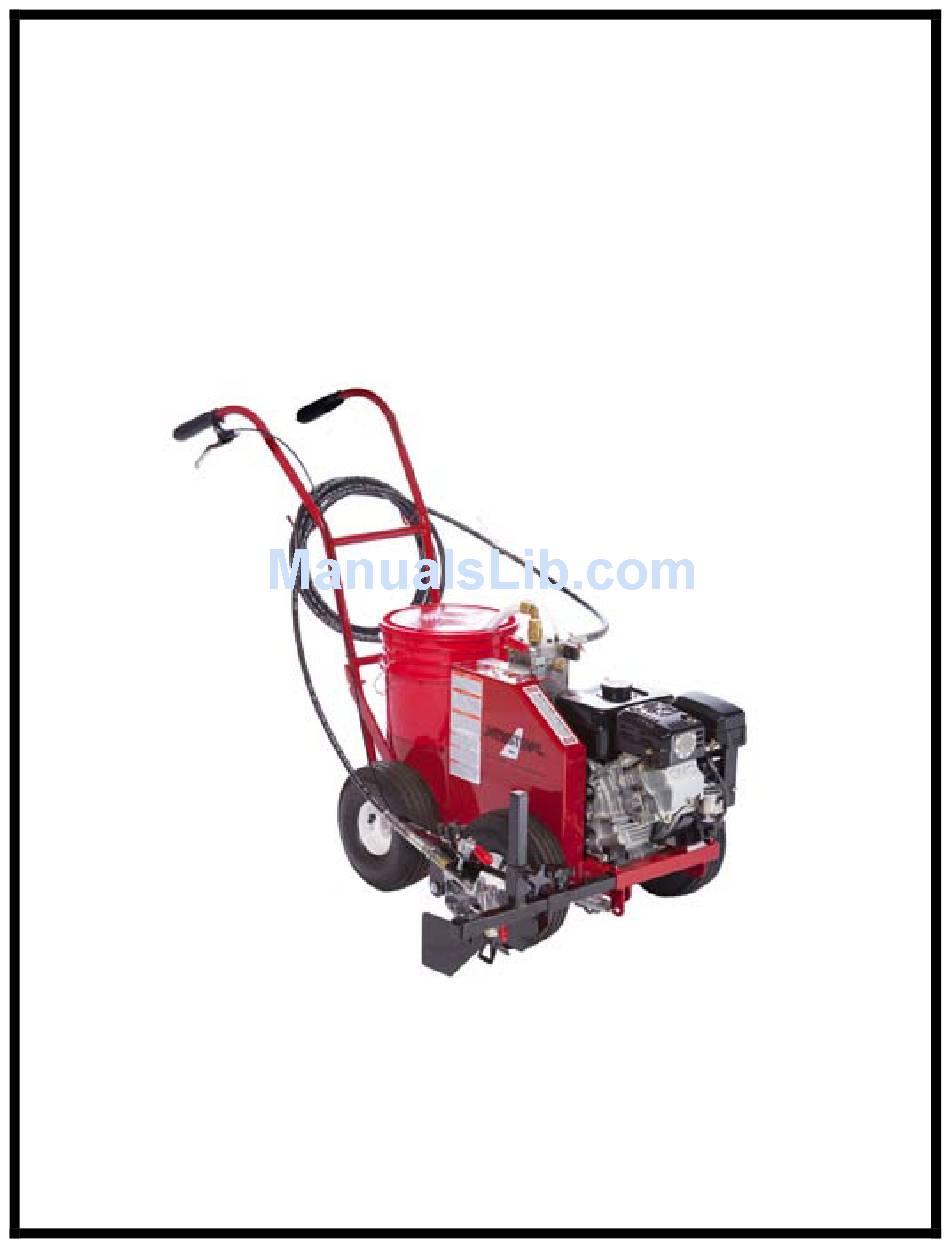

- Page 1 4400 Airless Product Manual...
-
Page 2: Table Of Contents
Please check the serial number on (Winter Storage) your unit. T his Manual is for units with serial number 1008253 and Maintenance………………… Page 5 above only. F or units with serial numbers below 1008253, please Parts List…………………….. Page 6 contact Newstripe for the correct manual. -
Page 3: Precautionary Warning
4400 Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! PRECAUTIONARY WARNING! • Please read and understand all operation instructions as detailed in this manual. Failure to follow specified instructions may result in equipment damage or serious injury to personnel up to and including death! •... -
Page 4: Assembly
4400 Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! ASSEMBLY 12. Make sure that the static chain is contacting 1. Remove the unit from the crate and open packing cartons. Check for any damage that... -
Page 5: Operation
4400 Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! OPERATION We recommend spraying with water first to become familiar with pump operation. 1. Turn spray control (black knob) to the Prime/ 6. Adjust pressure by turning pressure control... - Page 6 4400 Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! SPRAY TIP CLEANING DURING USE 1. Place the Spray Control Knob in the re- spray control knob to prime position and trigger circulating position. gun to release pressure.
-
Page 7: Spray Tip Cleaning
4400 Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! CLEANING PROCEDURE FOR EXTENDED PERIODS OF NON-USE 1. Clean as instructed in cleaning procedure. 4. Leave engine off and pull recoil start until you 2. Pick up suction filter and hold with bottom see fluid in return hose. -
Page 8: Parts List
4400 Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! PARTS LIST Item Part Item Number Description Number Number Description Number Paint hose, 25’ with fittings 10000458 Cable Adjuster 10000018 Spray gun, airless 10000457 Foam Grips, (2 required) -
Page 9: Airless Pump Detail
4400 Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! AIRLESS PUMP PARTS Item Part Item Number Description Number Number Description Number #27** Inlet Valve 10000694 Suction hose filter 10001760 #28** Outlet Valve 10000694 Suction hose sleeve... -
Page 10: Troubleshooting Guide
4400 Airless Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! TROUBLESHOOTING GUIDE PROBLEM REMEDY Engine will not start Check that the fuel shutoff and ignition switch are in the on position, choke lever is in Choke position and throttle lever is in run position. Fuel tank has adequate new fuel.
