Summary of Contents for Newstripe 4250 TM

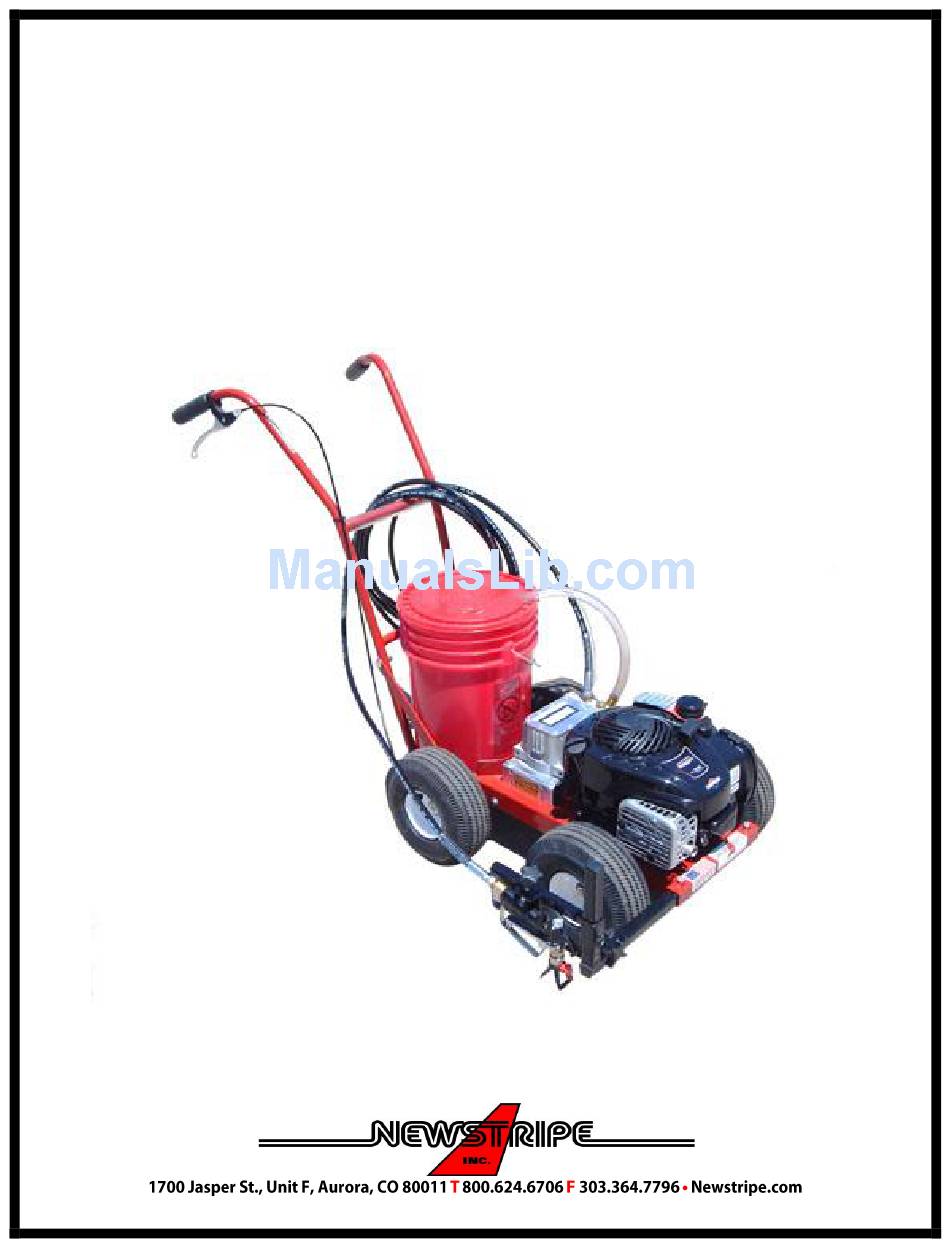

- Page 1 4250™ Airless Product Manual 4250™ Manual / 3947.0816...
-
Page 3: Table Of Contents
1015159 and above only. For units with serial numbers Parts List…………………….. Page 6 below 1015159, please contact Newstripe for the correct manual. Engine Lubricant & Parts…… Page 6 • 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 Newstripe.com... -
Page 4: Precautionary Warning
4250 Airless Sprayer™ ALWAYS wear safety goggles or protective eye-wear when operating the unit! PRECAUTIONARY WARNING! • Please read and understand all operation instructions as detailed in this manual. Failure to follow specified instructions may result in equipment damage or serious injury to personnel up to and including death! •... -
Page 5: Assembly
4250 Airless Sprayer™ ALWAYS wear safety goggles or protective eye-wear when operating the unit! ASSEMBLY 1. Remove the unit from the crate. Check for any damage 9. There should also be enough room to push the trigger that may have occurred during shipment. Advise factory lock sideways. -
Page 6: Operation
4250 Airless Sprayer™ ALWAYS wear safety goggles or protective eye-wear when operating the unit! OPERATION We recommend spraying with water first to become familiar with pump operation. 1. Turn spray control (black knob) to the Prime/ 6. Activate trigger and paint (or water) will spray re-circulating position (arrows in a circle) in line from the gun. -
Page 7: Spray Tip Cleaning
4250 Airless Sprayer™ ALWAYS wear safety goggles or protective eye-wear when operating the unit! SPRAY TIP CLEANING DURING USE 1. Place the Spray Control Knob in the re- spray control knob to prime position and trigger circulating position to release pressure. gun to release pressure. -
Page 8: Cleaning Procedure
4250 Airless Sprayer™ ALWAYS wear safety goggles or protective eye-wear when operating the unit! CLEANING PROCEDURE FOR EXTENDED PERIODS OF NON-USE 1. Clean as instructed in cleaning procedure. 4. Leave engine off and pull recoil start until you 2. Pick up suction filter and hold with bottom see fluid in return hose. -
Page 9: Parts List
4250 Airless Sprayer™ ALWAYS wear safety goggles or protective eye-wear when operating the unit! PARTS LIST Item Part Item Part Number Description Number Number Description Number Paint hose, 25’ with fittings 10000458 Hand Grips, (2 required) 10004281 Spray gun, airless 10005114 Dual Handle 10003949... -
Page 10: Airless Pump Parts
4250 Airless Sprayer™ ALWAYS wear safety goggles or protective eye-wear when operating the unit! AIRLESS PUMP PARTS Item Part Item Number Description Number Number Description Number #23** Inlet Valve 10000694 Suction hose filter 10001760 #24** Outlet Valve 10000694 Suction hose sleeve 10003932 ** Both #22 and 23 available in kit #10000694 only Suction Hose... -
Page 11: Troubleshooting Guide
4250 Airless Sprayer™ ALWAYS wear safety goggles or protective eye-wear when operating the unit! TROUBLESHOOTING GUIDE PROBLEM REMEDY Engine will not start Check that the fuel shutoff and ignition switch are in the on position, choke lever is in Choke position and throttle lever is in run position. Fuel tank has adequate new fuel. -
Page 13: Warranty
18 (EIGHTEEN) months from the date of purchase. In no event shall Newstripe, Inc. be liable for incidental or consequential damages and no person had any authority to bind it to any representation or warranty, not be responsible for work done, materials furnished or repairs made by others without its' specific written authorization.
