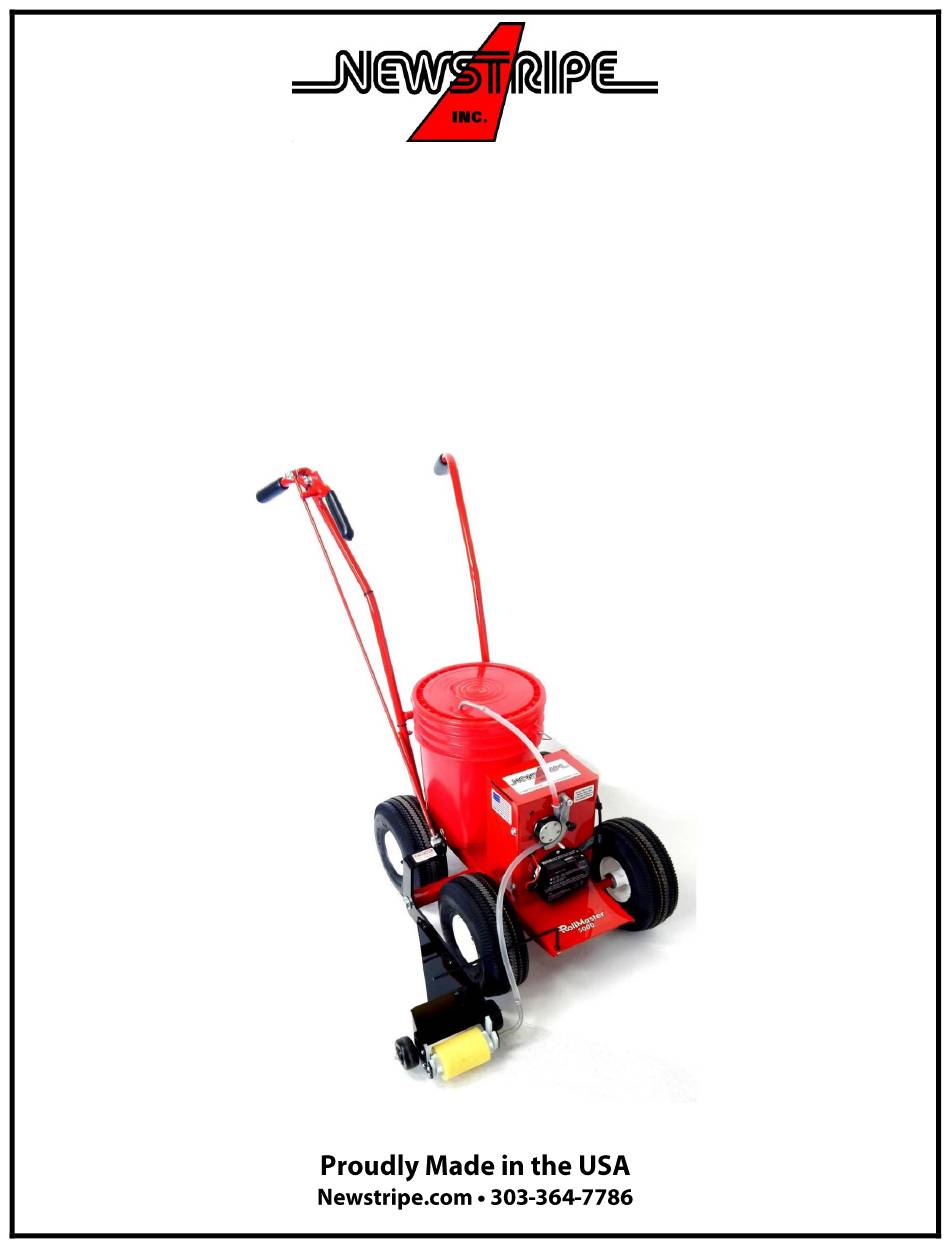

  • Page 1 Product Manual RollMaster™ 5000 Line Painting Machine 10003068 3068.0724...

  • Page 2: Table Of Contents

    RollMaster™ 5000 Line Painting Machine TABLE OF CONTENTS Precautionary Warnings....Page 1 Thank you for purchasing the Newstripe RollMaster 5000 Line Painting Machine. Required Items ....... Page 2 Assembly ........Page 3-6 Please read over the instructions and make Operation ........Page 7 sure you understand the operating procedures before using the unit.

  • Page 3: Precautionary Warnings

    NOTE: Pressure washing is not recommended. • DO NOT use brushes with metal bristles or any metal object to clean any part of the RollMaster 5000. • DO NOT dispose of the Paint Pail Dip Tube (metal tube used for pulling the paint from the pail), Mandrel Tube (metal tube that inserts into the mandrel), Mandrel, and Knurled Nuts.

  • Page 4: Required Items

    • One 3/4” wrench, or two adjustable crescent wrenches • One #2 Phillips screwdriver 18ah SLA Battery for RollMaster 5000 (Not Included): These are high performance factory activated permanently sealed spill proof 18 amp hour SLA deep cycle motorcycle batteries available at most auto parts stores or online. The battery dimensions are: 6-7/8"...

  • Page 5: Assembly

    RollMaster™ 5000 Line Painting Machine ASSEMBLY 1. Unpack the RollMaster™ 5000 chassis assembly, Pictures for wiring are shown in Pic 2. roller carrier, handle assembly, pail, and parts box. Note: Install the positive side first when installing The major components are held together with 1/4” connections.
  • Page 6 Please call Newstripe if the allow the roller carrier to pivot up and down motor does not rotate the roller pump.
  • Page 7 RollMaster™ 5000 Line Painting Machine ROLLER AND MANDREL ASSEMBLY 1. Remove the mandrel nuts from each end of the 5. If you are using a 4” roller, ignore this step. 2” mandrel. and 3” roller kits have included bushings and different discs than 4”...
  • Page 8 RollMaster™ 5000 Line Painting Machine PAINT HOSE INSTALLATION 1. Place the provided paint pail lid onto the 5 gallon 3. The paint hose has a short end and a long end, pail, and then place the pail on the back of the which are measured from the red bead.

  • Page 9: Operation

    This practice called feathering, will be required when the operator is striping a 2" or a 3" wide line. Your machine is designed to be simple and safe to operate. Please call Newstripe at 303-364-7786 if you have any questions during setup, painting or cleaning.

  • Page 10: Operational Notes

    1 hour may be used. All other epoxy paint should be avoided. NOTE: Paints that dry faster than 10 minutes are not recommended. Newstripe Fast Dry Paint is suitable for use in this machine. We recommend only using water-based traffic paints, as they are easier to clean up and do not “lift”...

  • Page 11: Cleaning Procedure

    RollMaster™ 5000 Line Painting Machine CLEANING PROCEDURE 1. When you are finished striping, open the trough 5. Remove one knurled nut and regulating disc from and then roll the machine forward with the the mandrel and then slide the roller cover off and roller contacting a dry painted line to transfer discard it.

  • Page 12: Parts List

    RollMaster™ 5000 Line Painting Machine PARTS LIST Part Part Item Description Item Description Number Number Battery Cover 10004657 Roller Carrier Lifting Rod 10003586 Chassis 10004656 Roller Carrier 10004191 Flat Free Wheel Assembly (4) 10004705 Mandrel w/ Nuts Kit 10004642 Handle Support Braces (2) 10004659 Mandrel Tube 10000648...
  • Page 13 RollMaster™ 5000 Line Painting Machine #10 & #11 #12 Roller Carrier Paint Trigger Lifting Lever Switch & Boot #5 Handle #13 Roller Carrier Lifting Rod #6 Paint #7 Paint Pail Pail Lid Dip Tube #8 Paint Hose #1 Battery Cover Under Battery Cover #23 Pump Motor...

  • Page 14: Warranty

    Return Materials Authorization (RMA) from Newstripe and then ship the defective part or parts of the equipment, transportation prepaid by the purchaser, to Newstripe together with a written description of any claimed defect and proof of purchase date of the materials being returned.
