Newstripe 4600 Product Manual

Newstripe 4600 Product Manual

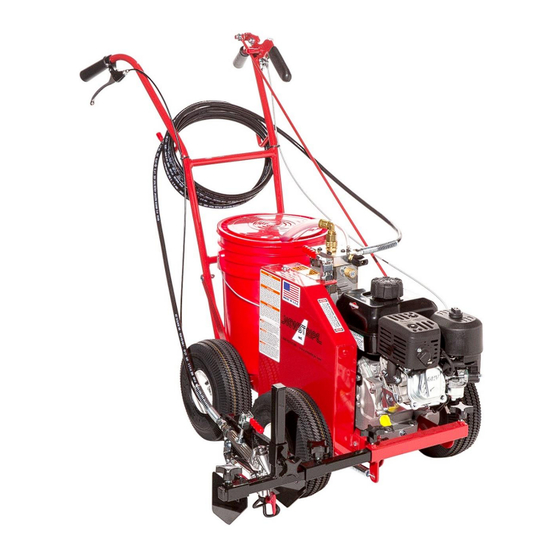

Sp airless self-propelled striping machine
Hide thumbs Also See for 4600:

Advertisement

Quick Links

Product Manual
4600 SP Airless
Self-Propelled Striping Machine
10003031
3031.0324

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Newstripe 4600

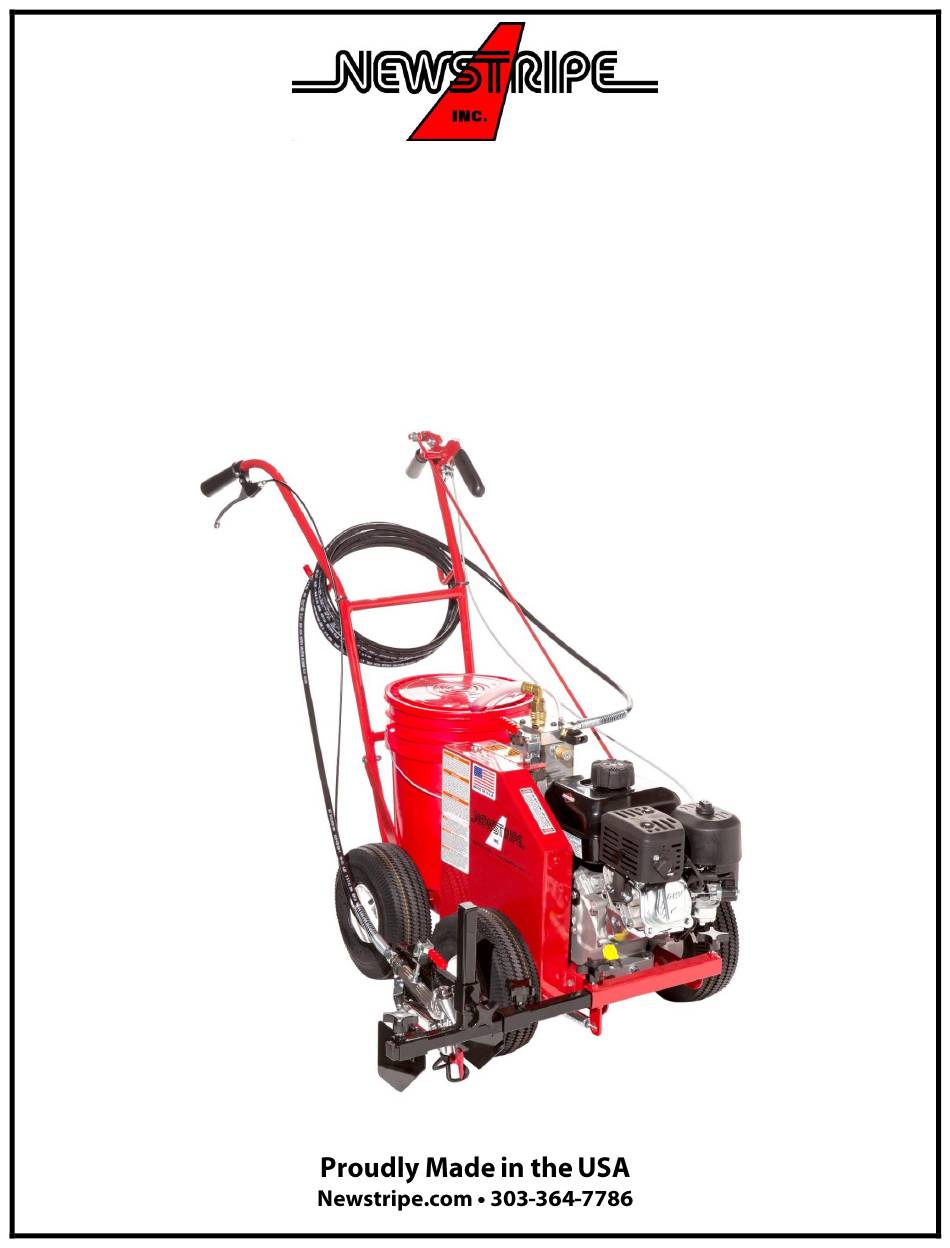

  • Page 1 Product Manual 4600 SP Airless Self-Propelled Striping Machine 10003031 3031.0324...
  • Page 2: Table Of Contents

    1016773 and above only. For units with serial Maintenance .......... Page 5 numbers below 1016773, please contact Newstripe for the correct Parts List ..........Page 6 manual. Engine Lubricant & Parts ......Page 6 Airless Pump Parts ......... Page 7 Airless Pump Detail ........
  • Page 3: Precautionary Warning

    • CAUTION: This system is capable of producing 3000 psi. Use only Newstripe Airless replacement parts rated at 3000 psi or higher. • DO NOT remove the spray tip from the gun while cleaning the pump, or while the system in under pressure.
  • Page 4: Assembly

    4600™ Self-Propelled Airless Sprayer ASSEMBLY Remove the unit from the crate and open the Make sure that the static ground chain on the packing cartons. Check for any damage that may bottom side of the chassis is contacting the have occurred during shipment. If you see any ground.
  • Page 5: Operation

    4600™ Self-Propelled Airless Sprayer OPERATION We recommend practicing with water to learn the controls and machine operation. If you are going to use oil-based paint, you will have to flush out the water with paint thinner or mineral spirits prior to using the oil-based paint.
  • Page 6: Spray Tip Cleaning

    4600™ Self-Propelled Airless Sprayer SPRAY TIP CLEANING DURING USE 1. Place the Spray Control Knob in the re-circulating 6. Turn the prime/spray knob to the prime position. position, and then squeeze the spray trigger lever Turn off the machine. Remove the paint to release the pressure from the system.
  • Page 7: Cleaning Procedure (Extended Periods)

    4600™ Self-Propelled Airless Sprayer CLEANING PROCEDURE FOR EXTENDED PERIODS OF NON-USE 1. Clean the machine as instructed in the cleaning 3. Leave the engine off and pull the recoil starter procedure. until you see Pump Defender in the return hose.
  • Page 8: Parts List

    4600™ Self-Propelled Airless Sprayer PARTS LIST Item Description Part Item Description Part Number Number 25’ Airless Paint Hose 10000458 Chassis 10004028 Airless Spray Gun with 517 Tip 10005114 Belt Guard 10004029 Spray Gun Clamp 10005152 Belt, Drive (Gates 4L310) 10002891 517 Reversible Spray Tip (2”-4”...
  • Page 9: Airless Pump Parts

    4600™ Self-Propelled Airless Sprayer AIRLESS PUMP PARTS Item Description Part Item Description Part Number Number #35* Outlet Valve Pump Engaging Lever 10001817 #36* Outlet Valve Push Button 10005102 Suction Hose Filter 10001760 (Kit) *#35 & #36 Available in Kit Suction Hose Sleeve...
  • Page 10: Airless Spray Gun Detail

    4600™ Self-Propelled Airless Sprayer *Interval ranges may vary due to the wide variety of paint types. AIRLESS SPRAY GUN DETAIL Part Number Description 10005116 SPRAY TIP GUARD 10002103 319 SPRAY TIP - STANDARD FOR GPS AND SKID MOUNTED STRIPERS 10000508...
  • Page 11: Troubleshooting Guide

    4600™ Self-Propelled Airless Sprayer TROUBLESHOOTING GUIDE NEVER REMOVE THE FRONT COVER, PRESSURE ADJUSTING VALVE OR THE PUMP HEAD BLOCK. THIS WILL VOID THE WARRANTY. CALL THE FACTORY FOR SERVICE LOCATIONS IF THESE ITEMS REQUIRE SERVICE. PROBLEM REMEDY The engine will not start.
  • Page 12: Warranty

    36 (Thirty Six) Months from the date of original purchase. In no event shall Newstripe be liable for incidental or consequential damages and no person had any authority to bind it to any representation or warranty. Newstripe is not responsible for work done, materials furnished, or repairs made by others without its specific written authorization.
