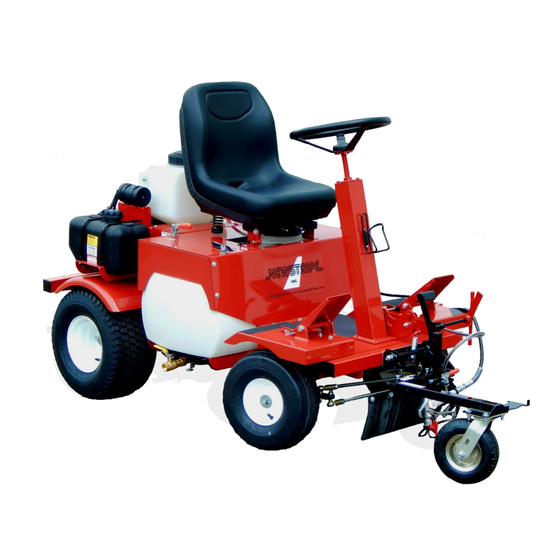

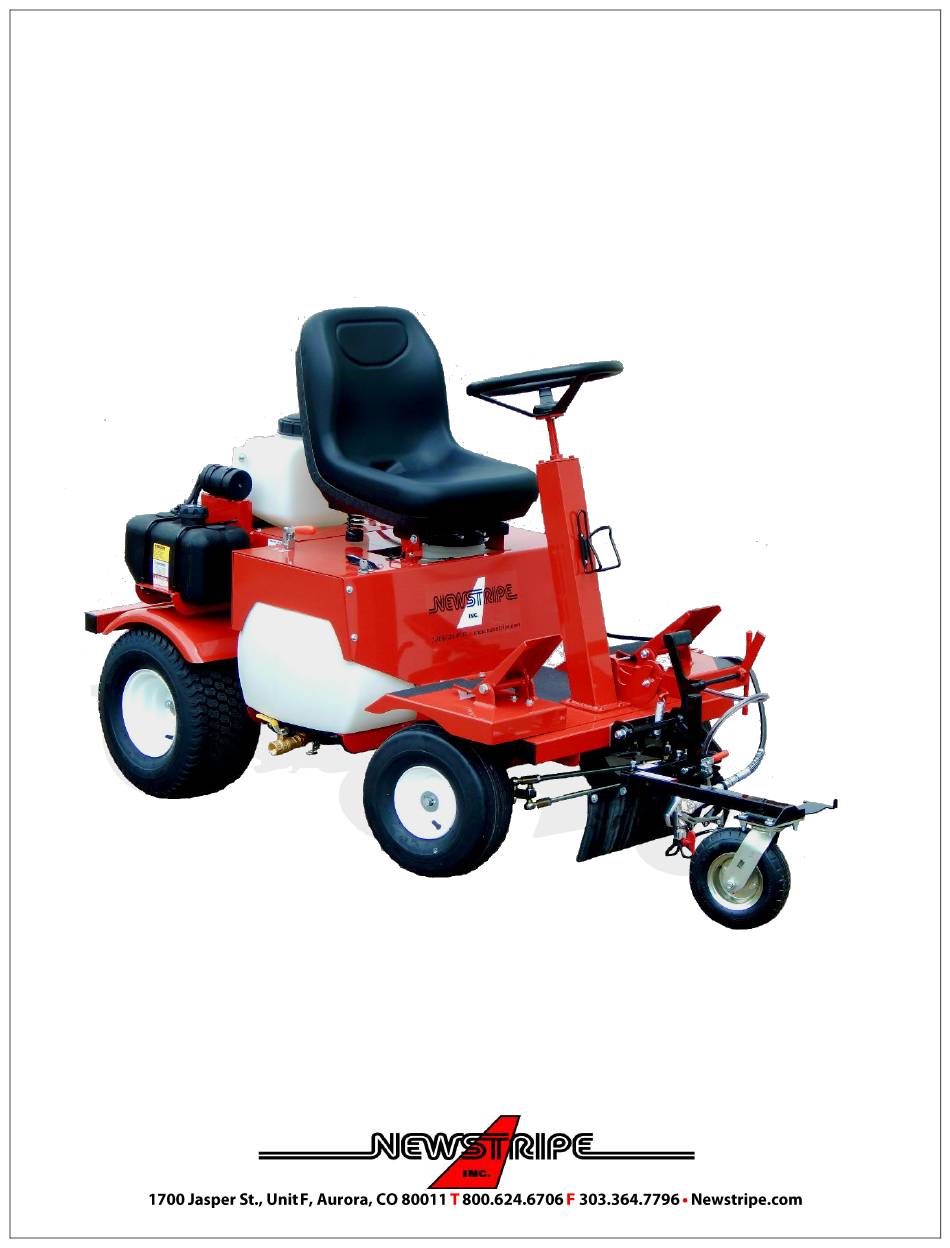

- Page 1 NewRider™ 1700 HPA Airless Ride-on Sprayer NOT FOR SALE IN CALIFORNIA NewRider™ 1700 HPA Manual / 4026.0123...
- Page 2 NewRider™ 1700 HPA Airless Ride-on Sprayer NewRider™ 1700 HPA Manual / 4026.0123...
-
Page 3: Table Of Contents
1026931 and above only. For units with Cleaning Procedure ......Page 7 serial numbers below 1026931, please (Extended Periods or Winter Storage) contact Newstripe for the correct manual. Maintenance ........Page 9 Parts List ........Page 10-11 Airless Pump Detail ......Page 12 Detailed Parts Pictures .... -
Page 4: Precautionary Warning
NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! PRECAUTIONARY WARNING! Please read and understand all operation instructions as detailed in this manual. Failure to follow specified instructions may result in equipment damage or serious injury to personnel up to and including death! ... -
Page 5: Assembly
NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! ASSEMBLY Check for any damage that may have occurred Place the spray gun in the holder without the hose during shipment. Advise factory immediately if you attached and secure with the clamp. - Page 6 NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! HOUR METER & TACHOMETER OPERATION TO SET THE TACHOMETER (SPARK PLUG FIRING REVOULTION) Press and hold the S1 button for 4 seconds. The LCD will display 01(spark plug fires twice per revolution), 02 (once per revolution), 03 (every other revolution), 04 (hours only, will not display RPM).
- Page 7 NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! VIEWING MAINTENANCE INTERVAL Press and hold the S2 button for 4 seconds to view remaining time of your maintenance interval. To continue current maintenance do nothing.
-
Page 8: Operation
NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! DRIVING OPERATIONS Before starting, set the brake with the hand lever NOTE: If machine does not move set parking brake nearest the seat. and move to the rear of the machine. - Page 9 NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! OPERATIONAL NOTE! NOTE: If the pump primes and air bubbles continue to appear in the hose after one minute, the suction hose fitting may not be tight enough or the rubber washer may be worn.
- Page 10 NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! SPRAY TIP CLEANING DURING USE 1. Place the prime/spray valve in the prime position 5. Turn the prime/spray valve to spray and resume and press spray trigger pedal to release the spraying.
- Page 11 NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! CLEANING FOR EXTENDED PERIODS OF NON-USE OR IN FREEZING CONDITIONS 1. Clean as indicated in the Cleaning Procedures and 5. Return the prime/spray valve to the prime drain the purge tank completely of water.
-
Page 12: Spray Tip Cleaning
75-100 hours then every 400 hours Transaxle oil Check if performance is off or Open oil level check port, if no oil runs Warning: Use ONLY Newstripe Filter transaxle is noisy out, top off with Mobil 1 Full Synthetic 10003778. Failure to use this filter will 15W50 Motor Oil ONLY. -
Page 13: Parts List
NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! PARTS LIST Item Description Part Number Number Battery, YTX20H 10003163 Transaxle Release/Engage Lever 10004101 Parking Brake Lever 10001817 Spring, (Seat Lift) 10001756 Empty Seat Safety Switch 10002437 Not Shown Neutral Switch (Under Right Front Fender on Shift Linkage) - Page 14 NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! PARTS LIST CONTINUED Item Description Part Number Number Spray Head Support 10003751 Spray Head Latch 10003725 Pump Engaging Lever 10004066 Purge Feed Hose 10004039 Not shown Purge Outlet Hose (Purge Tank to Shut Off)
- Page 15 NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! Transaxle release lever (2) Picture 8 Picture 7 Free wheel position shown. Pull up and back to engage. Fuel Shutoff Note: Transaxle Oil Filter Grounding Chain (47) Located Behind Guard Transaxle Oil Filter Guard...
- Page 16 NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! Spray Head Mounting Gun Mounting Picture 11 Picture 12 Spray Gun (16) Spray Head Support (32) Spray Head (12) Caster (13) Lever Lock Mounting Bolts Spring (36) &...
- Page 17 NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! Picture 15 Picture 16 Valves in Tank Feed Position Valves in Purge Position Purge Feed Valve (28) Purge Hose (41) Transaxle Filter (47) In-line Filter (29) Tank Feed Valve Tank Drain Valve (26)
- Page 18 NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! AIRLESS PUMP PARTS Item Description Part Item Description Part Number Number Number Number Return/Bypass Hose 10004040 Pressure Control Valve 10000380 Spray Pump 10000407 Gauge, 0-5000 PSI 10003883 Pump Inlet Hose...
-
Page 19: Airless Spray Gun Detail
NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! AIRLESS SPRAY GUN DETAIL Part Number Description 10005116 SPRAY TIP GUARD 10002103 319 SPRAY TIP - STANDARD FOR GPS AND SKID MOUNTED STRIPERS 10000508 517 SPRAY TIP - STANDARD FOR WALK BEHIND STRIPERS 10004860... -
Page 20: Transaxle Service
11. Proceed to the purge procedure. 12. Check oil level. Top off if necessary. **Warning: Use ONLY Mobil 1 Full Synthetic 15W50 Motor Oil and Newstripe Filter Part Number 10003778 in the transaxle of this machine. Failure to use the correct filter and oil will cause damage to the transaxle and void the warranty. - Page 21 NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! TRANSAXLE SERVICE AND MAINTENANCE External Maintenance 1. Check oil level at oil level check port if performance is off or transaxle is noisy. 2.
-
Page 22: Troubleshooting Guide
NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! TROUBLESHOOTING GUIDE PROBLEM REMEDY Engine will not turn over Check that the battery is connected and charged. Operator out of seat and brake not set. Engine turns over but will not Check that there is fuel in the tank and fuel is turned on. - Page 23 NewRider™ 1700 HPA Airless Ride-on Sprayer ALWAYS wear safety goggles or protective eye-wear when operating the unit! TROUBLESHOOTING GUIDE (CONTINUED) PROBLEM REMEDY All of above correct, gun will Turn prime/spray valve to prime position, turn off engine, pull trigger to still not spray release pressure.
-
Page 24: Epa And Newstripe Inc. Evaporative Emission Control Warranty Statement
As the small off-road engine line painter owner, you should be aware that Newstripe, Inc. may deny you warranty coverage if your line painter or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications. - Page 25 (b)(2). If any such part fails during the period of warranty coverage, it must be repaired or replaced by Newstripe, Inc. Any such part repaired or replaced under the warranty must be warranted for a time not less than the remaining warranty period.
- Page 26 The CUSTOMER MUST NOTE DAMAGES on the Bill of Lading of Trucking Company or Railroad; and Newstripe, Inc. will furnish to the customer the cost or parts and labor. The customer can then bill the common carrier for the damages by placing his signature on the documents.
