SJ30 Powermatic Scissor 17ft Telescopic Video

Camera Jib

(JB-SCSR-30)

A s s e m b l y M a n u a l

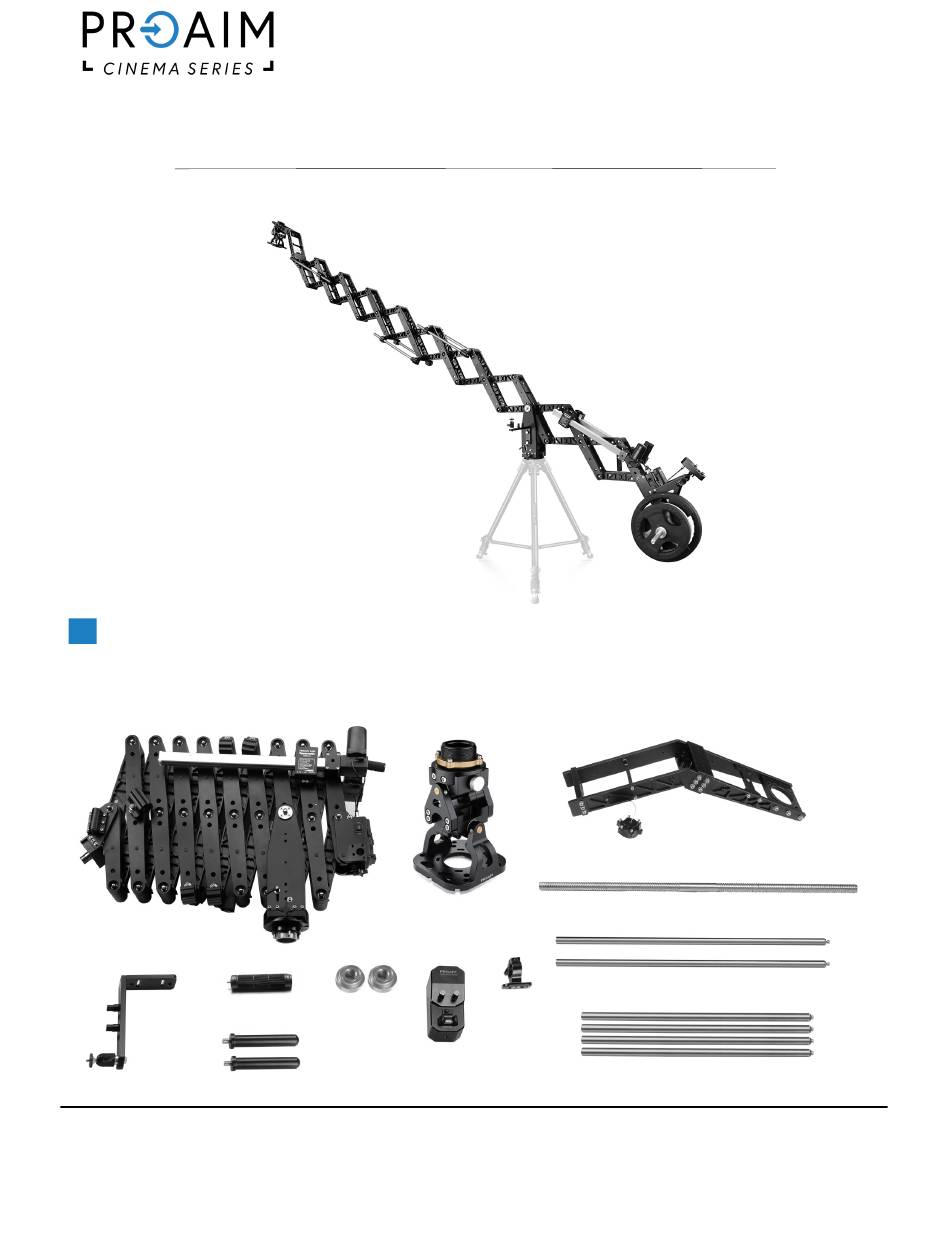

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Camera Mount Plate

Sway Mitchell

Counter Weight Rod

Dampening Head

SJ30 Powermatic Scissor Jib

2 x Guide Rods

Clamp for

2 x Weight

Handel

remote

Closers

Speed Controller

Remote

4 x Guide Rods

Monitor Arm

Remote holding bar
