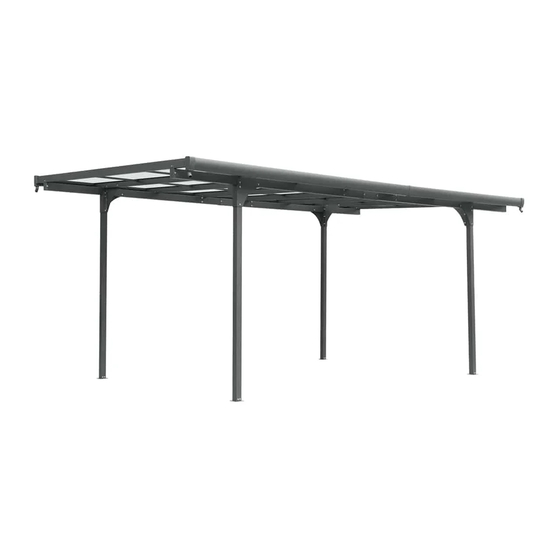

10'x16' aluminum clear carport
Hide thumbs

Advertisement

Quick Links

Download this manual

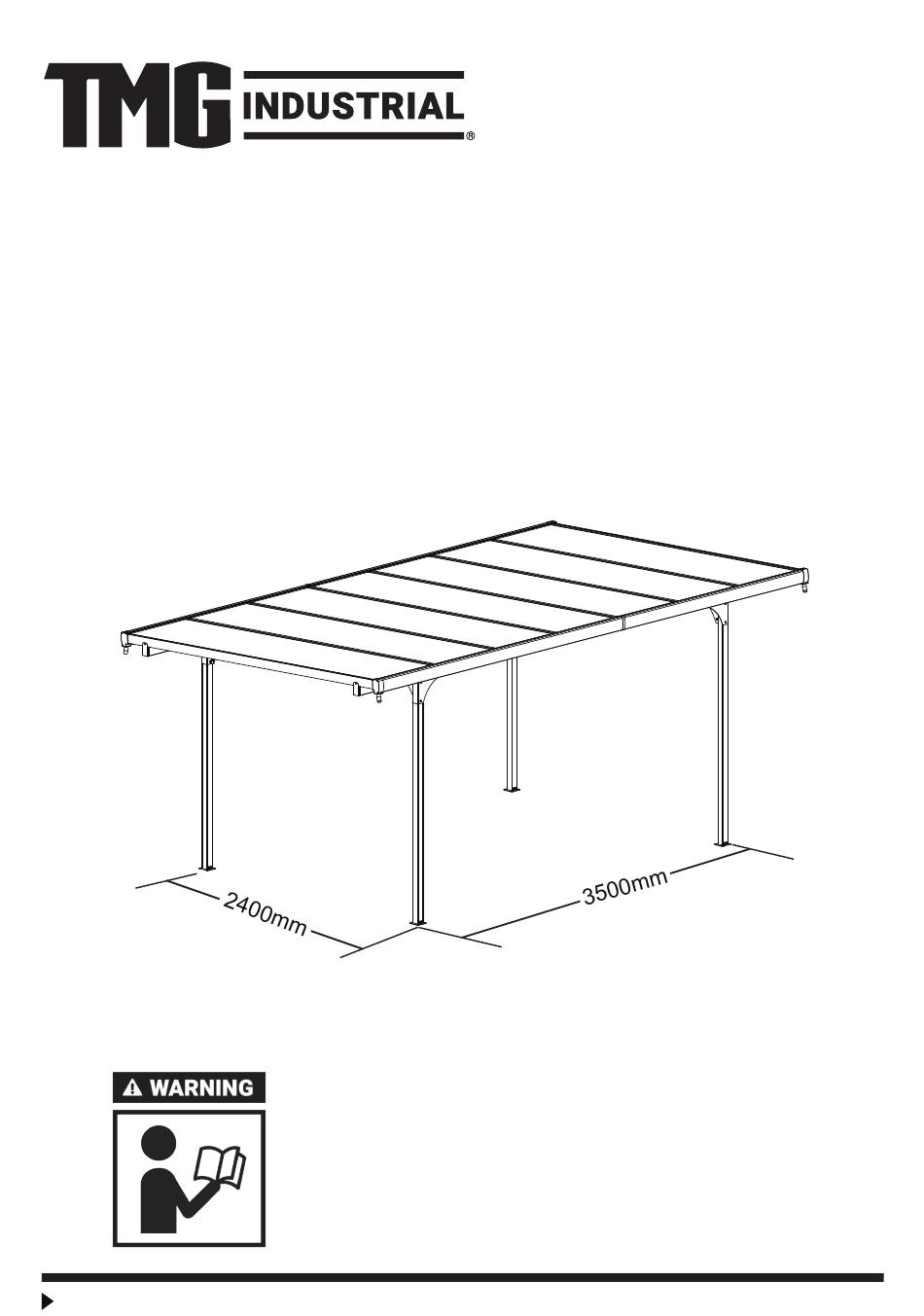

10 x 16 ALUMINUM
CLEAR CARPORT
www.tmgindustrial.com
'
'
• Please read and understand the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
• Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or have questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
TMG-LCP16
PRODUCT MANUAL
v.2023.3.24
