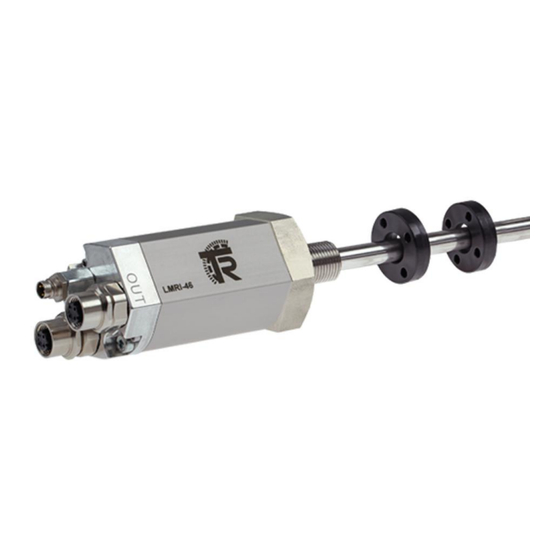

TR-Electronic LMPI-46 User Manual

Linear encoder magnetostrictive
Hide thumbs Also See for LMPI-46:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Gesamtbedienungsanleitung
Für
LMRI_46*1280 PB
Material Nr.
339-00496
Generiert am
19.08.2023
Enthält Originalbedienungsanleitung
Dokumentationsabschnitte
Montageanleitung de/en Montage, Magnetostriktion - linear Encod
Betriebsanleitung
de/en L_46(K);LM_I46;LMP30;LMRB27 PB 3/30 Magn
Konformitätserklärung de/en EU-Konformitätserklärung ELA (EMV+RoHS)
Konformitätserklärung de/en UKCA, Konformitätserkl. ELA (EMV+RoHS)
Technische Daten
Seite 1/1
TR-ELA-BA-DGB-0004-16.pdf
TR-ELA-BA-DGB-0012-11.pdf
TR-ELA-KE-DGB-0079-02.pdf
TR-ELA-KE-GB-0080-02.pdf
Änderungen vorbehalten.
TR-Electronic GmbH
Eglishalde 6
78647 Trossingen
Tel. +49 (0) 7425 228-0
info@tr-electronic.de
www.tr-electronic.de

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMPI-46 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TR-Electronic LMPI-46

Summary of Contents for TR-Electronic LMPI-46

  • Page 1 TR-ELA-BA-DGB-0004-16.pdf Betriebsanleitung de/en L_46(K);LM_I46;LMP30;LMRB27 PB 3/30 Magn TR-ELA-BA-DGB-0012-11.pdf Konformitätserklärung de/en EU-Konformitätserklärung ELA (EMV+RoHS) TR-ELA-KE-DGB-0079-02.pdf Konformitätserklärung de/en UKCA, Konformitätserkl. ELA (EMV+RoHS) TR-ELA-KE-GB-0080-02.pdf Technische Daten Änderungen vorbehalten. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Seite 1/1 info@tr-electronic.de www.tr-electronic.de...
  • Page 2 Seite 2 - 26 Page 27 - 51 Linear Encoder magnetostriktiv _Grundlegende Sicherheitshinweise _Verwendungszweck _Allgemeine Funktionsbeschreibung _Montagehinweise Montageanleitung...
  • Page 3 Courier-Schrift zeigt Text an, der auf dem Display bzw. Bildschirm sichtbar ist und Menüauswahlen von Software.  < >  weist auf Tasten der Tastatur Ihres Computers hin (wie etwa <RETURN>).  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 2 of 51 TR-ELA-BA-DGB-0004 v16...
  • Page 4 5.4 Erforderliches Anzugsdrehmoment ..................23 5.4.1 Berechnungsbeispiel Axialabdichtung ..............23 5.4.2 Berechnungsbeispiel Radialabdichtung ..............24 6 Zubehör ............................25  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 3 of 51...
  • Page 5 LMR-70 und Hinweise für mehrfach redundante Mess-Systeme ergänzt 15.07.2019 Kap. „Mechanik Profil-Gehäuseausführung“, Magnetabstand: 18.03.2020 allgemeingültiges Bild eingefügt Montagehinweis Rohr-Gehäuseausführung 30.11.2020 Magnet T2-S5520 durch T2-S5520N ersetzen 17.03.2021  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 4 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 6 Normen und Richtlinien entwickelt, konstruiert und gefertigt. Eine entsprechende Konformitätserklärung kann bei der Firma TR-Electronic GmbH angefordert werden. Der Hersteller der Produkte, die TR-Electronic GmbH in D-78647 Trossingen, besitzt ein zertifiziertes Qualitätssicherungssystem gemäß ISO 9001.  TR-Electronic GmbH 2007, All Rights Reserved...
  • Page 7 Europäische Union Elektro-Magnetische-Verträglichkeit Elektrostatische Entladung (Electro Static Discharge) Internationale Elektrotechnische Kommission National Electrical Code Verband der Elektrotechnik, Elektronik und Informationstechnik  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 6 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 8 Positionssensor (Magnet) ❺ Magnetfeld, erzeugt durch einen Stromimpuls ❻ Resultierendes Magnetfeld am Positionssensor ❼ Antwortsignal des Torsionsimpulses ❽ Messwertaufnehmer Empfangsspule  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 7 of 51...
  • Page 9 Anlage/Maschine in die das Mess-System eingebaut werden soll, den Bestimmungen der EU-EMV-Richtlinie, den harmonisierten Normen, Europanormen oder den entsprechenden nationalen Normen entspricht.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 8 of 51...
  • Page 10 Das Mess-System ist vom Betreiber zwingend mit in das eigene Sicherheitskonzept einzubinden.  Insbesondere ist folgende Verwendung untersagt: In Umgebungen mit explosiver Atmosphäre zu medizinischen Zwecken  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 9 of 51...
  • Page 11 Dokumentationen ausdrücklich beschriebenen, vornehmen.  Reparaturen dürfen nur vom Hersteller, oder einer vom Hersteller autorisierten Stelle bzw. Person vorgenommen werden.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 10 of 51 TR-ELA-BA-DGB-0004 v16...
  • Page 12 VDE-Verlag GmbH).  Klare Regelung Verantwortlichkeiten für Montage, Installation, Inbetriebnahme und Bedienung festlegen. Beaufsichtigungspflicht bei zu schulendem oder anzulernendem Personal!  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 11 of 51...
  • Page 13 Entsorgung Muss nach der Lebensdauer des Gerätes eine Entsorgung vorgenommen werden, sind die jeweils geltenden landesspezifischen Vorschriften zu beachten.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 12 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 14 Nur Original Verpackung verwenden! Unsachgemäßes Verpackungsmaterial kann beim Transport Schäden am Gerät verursachen. Lagerung Lagertemperatur: siehe Produktdatenblatt Trocken lagern  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 13 of 51...
  • Page 15 LMP-Systeme Magnet: Artikel-Nr.: Magnetabstand: T1-S5520 49-155-009 X = 3 T2-S5520N 49-155-032 X = 8 T1-S3818 49-155-015 X = 3  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 14 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 16 Umfang des Positionssensors vorgesehen werden. Der Abstandshalter ist zwischen dem Positionssensor und dessen Befestigung zu montieren. Die Befestigungsschrauben müssen aus nicht magnetisierbarem Werkstoff sein.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021...
  • Page 17 Die in den Produktdatenblättern angegebenen Maximalwerte für Vibration und Schock werden nur erreicht, wenn das Mess-System beidseitig fest montiert bzw. dämpfend gelagert ist, nicht „frei schwingend“.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 16 of 51...
  • Page 18 LMR-70 Radialdichtung Hydraulikzylinder montierbar Beim Einbau der Linear-Mess-Systeme in die Hydraulikzylinder müssen die gerätespezifischen Daten und Spezifikationen berücksichtigt werden.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 17 of 51...
  • Page 19 O-Ring / 23.47x2.62 LA-66 nicht angegebene Maße sind aus der kundenspezifischen Zeichnung zu entnehmen!  Bohrungen 4 tief (8x45°)  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 18 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 20 5.1.2 Radialabdichtung LA-41 / LA-46 / LMRI-46 / LMR-70 nicht angegebene Maße sind aus der kundenspezifischen Zeichnung zu entnehmen! kundenseitige Anforderung, Gewindeaufnahme M18x1.5  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16...
  • Page 21 Abdichtung erfolgt Flansch-seitig entweder radial oder axial über einen O-Ring (kein Lieferumfang !). 5.2.1 Einbaubeispiel LA-66 Beispiel LA-66 Hydraulikzylinder Kolbenstange Abstandshalter aus nicht magnetisierbarem Material Magnet (Positionssensor) Mess-System Anschluss-Stecker  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 20 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 22 Stecker-Hülse eingesteckt werden. Die Hülse mit gestecktem Stecker muss nun mit vier M4 Zylinderkopf-Schrauben an den Hydraulik- zylinder montiert werden.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 21 of 51...
  • Page 23 Das Druckrohr verbleibt daher beim Sensortausch im Hydraulikzylinder. Das Hydrauliksystem bleibt weiterhin unter Druck und langwierige Leer- und Füllzeiten entfallen daher. Beispiel LA-65-H Beispiel LA-46-H  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 22 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 24 "Maschinenelemente", Roloff/Matek, Tabelle A8-11 (II) aus "Maschinenelemente", Roloff/Matek, Tabelle A8-9 (III) aus "Maschinenelemente", Roloff/Matek, Tabelle A8-12a (IV) aus "Maschinenelemente", Roloff/Matek, Gleichung 8.20  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 23 of 51...
  • Page 25 "Maschinenelemente", Roloff/Matek, Tabelle A8-11 (II) aus "Maschinenelemente", Roloff/Matek, Tabelle A8-9 (III) aus "Maschinenelemente", Roloff/Matek, Tabelle A8-12a (IV) aus "Maschinenelemente", Roloff/Matek, Gleichung 8.20  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 24 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 26 6 Zubehör www.tr-electronic.de/produkte/lineargeber/zubehoer.html  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 25 of 51...
  • Page 27 Zubehör  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 26 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 28 Linear Encoder magnetostrictive _Basic safety instructions _Intended use Assembly _General functional description Instructions _Instructions for mounting  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 27 of 51...
  • Page 29 Courier font displays text, which is visible on the display or screen and software menu selections.  < >  indicates keys on your computer keyboard (such as <RETURN>).  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 28 of 51 TR-ELA-BA-DGB-0004 v16...
  • Page 30 5.4 Required torque ........................49 5.4.1 Calculation example axial sealing ................49 5.4.2 Calculation example radial sealing ................. 50 6 Accessories ............................. 51  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16...
  • Page 31 Chapter “Mechanics profile- housing design”, Magnet distance: 03/18/2020 Universal image inserted Instructions for mounting, rod housing design 11/30/2020 Magnet T2-S5520 replaced with T2-S5520N 03/17/2021  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 30 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 32 The measuring systems have been developed, designed and manufactured under observation of the applicable international and European standards and directives. A corresponding declaration of conformity can be requested from TR-Electronic GmbH. The manufacturer of the product, TR-Electronic GmbH in D-78647 Trossingen, operates a certified quality assurance system in accordance with ISO 9001.
  • Page 33 Electro Magnetic Compatibility Electro Static Discharge International Electrotechnical Commission National Electrical Code Association for Electrical, Electronic & Information Technologies  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 32 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 34 Resulting magnetic field at the position sensor ❼ Answer signal of the torsion impulse ❽ Measuring sensor Receipt coil  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 33 of 51...
  • Page 35 EU EMC Directive, the harmonized standards, European standards or the corresponding national standards.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 34 of 51...
  • Page 36  The following area of use is especially forbidden: In environments where there is an explosive atmosphere for medical purposes  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 35 of 51...
  • Page 37 2.6 Warranty and liability The General Terms and Conditions ("Allgemeine Geschäftsbedingungen") of TR-Electronic GmbH always apply. These are available to the operator with the Order Confirmation or when the contract is concluded at the latest. Warranty and liability claims in the case of personal injury or damage to property are excluded if they result from one or more of the following causes: ...
  • Page 38 Verlag GmbH).  Define clear rules of responsibilities for the assembly, installation, start-up and operation. The obligation exists to provide supervision for trainee personnel !  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021...
  • Page 39 If disposal has to be undertaken after the life span of the device, the respective applicable country-specific regulations are to be observed.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 38 of 51...
  • Page 40 The wrong packaging material can cause damage to the device during transportation. Storage Storage temperature: see product data sheet Store in a dry place  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 39 of 51...
  • Page 41 Magnet: Art.-No.: Magnet distance: T1-S5520 49-155-009 X = 3 T2-S5520N 49-155-032 X = 8 T1-S3818 49-155-015 X = 3  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 40 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 42 The spacer is to be installed between the position sensor and its attachment. The screws must be from not magnetizable material.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany...
  • Page 43 The maximum values for Vibration and Shock specified in the product data sheets are only achieved if the measuring system is firmly mounted or damped on both sides. Not "freely vibrating".  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 42 of 51...
  • Page 44 At the installation of the measuring system into the hydraulic cylinders the device specific data and specifications must be taken into account.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16...
  • Page 45 Steel Tube O-Ring / 23.47x2.62 LA-66 not specified dimensions see customized drawing!  Borehole 4 deep (8x45°) Steel Tube  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 44 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 46 5.1.2 Radial sealing LA-41 / LA-46 / LMRI-46 / LMR-70 not specified dimensions see customized drawing! User requirements, thread M18x1.5 (mating part)  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 45 of 51...
  • Page 47 Example LA-66 Hydraulic cylinder Piston rod Spacer, consisting of not magnetizable material Magnet (Position sensor) Measuring system Connector plug  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 46 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 48 The plug holder with the connected plug must be mounted now with four M4 cylinder head screws to the hydraulic cylinder.  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16...
  • Page 49 Furthermore the hydraulics system remains under pressure and long emptying times or filling times are therefore dropped. Example LA-65-H Example LA-46-H  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 48 of 51 TR-ELA-BA-DGB-0004 v16...
  • Page 50 "Maschinenelemente" (Machine elements), Roloff/Matek, table A8-9 (III) see "Maschinenelemente" (Machine elements), Roloff/Matek, table A8-12a (IV) see "Maschinenelemente" (Machine elements), Roloff/Matek, equation 8.20 "oiled easily"  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 49 of 51...
  • Page 51 "Maschinenelemente" (Machine elements), Roloff/Matek, table A8-9 (III) see "Maschinenelemente" (Machine elements), Roloff/Matek, table A8-12a (IV) see "Maschinenelemente" (Machine elements), Roloff/Matek, equation 8.20 "oiled easily"  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany Page 50 of 51 TR-ELA-BA-DGB-0004 v16 03/17/2021...
  • Page 52 6 Accessories www.tr-electronic.com/products/linear-encoders/accessories.html  TR-Electronic GmbH 2007, All Rights Reserved Printed in the Federal Republic of Germany 03/17/2021 TR-ELA-BA-DGB-0004 v16 Page 51 of 51...
  • Page 53 Seite 2 - 52 Page 53 - 103 +Multi sensor Absolut linear Encoder magnetostriktiv LA-46-K / LP-46-K / LMRI-46 LMPI-46 LA-46 LP-46 LMP-30 LMRB-27 _Zusätzliche Sicherheitshinweise _Installation _Inbetriebnahme _Konfiguration / Parametrierung _Störungsbeseitigung und Diagnosemöglichkeiten Benutzerhandbuch Schnittstelle 3M: 5832; 5844 30M: 5838; 5852...
  • Page 54 PROFIBUS-DP und das PROFIBUS-Logo sind eingetragene Warenzeichen der Profibus Nutzerorganisation e.V. (PNO) SIMATIC ist ein eingetragenes Warenzeichen der SIEMENS AG.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 2 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 55 6.9 TR-Modes 2–20 Magnets + Speed ..................30 6.10 Preset-Justage-Funktion ....................... 32 6.10.1 Wirkungsweise Preset / interner Positions-Offset ..........34  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...

  • Page 56: Table Of Contents

    7.2.2.17 Seriennummer ......................... 50 7.2.2.18 Herstellerspezifische Diagnosen ..................... 51 7.3 Sonstige Störungen ........................ 51  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 4 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 57 LMRB-27 hinzugefügt 10.03.17 LMRB-27 Warnhinweis ergänzt 16.03.18 LMRB-27 Warnhinweis entfernt 07.06.18  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 5 of 103...
  • Page 58 Dieses Benutzerhandbuch gilt ausschließlich für folgende Mess-System-Baureihen mit PROFIBUS-DP Schnittstelle: Mess-Systeme mit ≤ 3 Magnete ● - LA-46, LP-46 Soft.-Nr.: 5844 - LA-46-K, LP-46-K, LMRI-46, LMPI-46, LMP-30, LMRB-27 Soft.-Nr.: 5832 Mess-Systeme mit ≤ 30 Magnete ● - LA-46, LP-46 Soft.-Nr.: 5852 - LA-46-K, LP-46-K, LMRI-46, LMPI-46, LMP-30, LMRB-27 Soft.-Nr.: 5838...
  • Page 59 Dezentralized Periphery (Dezentrale Peripherie) Elektro-Magnetische-Verträglichkeit Geräte-Stammdaten-Datei PROFIBUS Nutzerorganisation e.V. PROFIBUS herstellerunabhängiger, offener Feldbusstandard  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 7 of 103...
  • Page 60 Beachten der Montageanleitung, insbesondere das dort enthaltene Kapitel "Grundlegende Sicherheitshinweise" muss vor Arbeitsbeginn gelesen und verstanden worden sein  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 8 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 61 Datenaustausch in der Feldebene konzipiert ist. Die Grundfunktionalität wird durch die Leistungsstufe V0 festgelegt. Dazu gehören der zyklische Datenaustausch sowie die stations-, modul- und kanalspezifische Diagnose.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018...
  • Page 62 Richtlinien und sonstige einschlägige Normen und Richtlinien zu beachten! Insbesondere sind die EMV-Richtlinie sowie die Schirmungs- und Erdungsrichtlinien in den jeweils gültigen Fassungen zu beachten!  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 10 of 103...
  • Page 63 4.2 Bus-Terminierung Wenn das Mess-System die letzte Station im PROFIBUS-Segment ist, muss der Bus entsprechend der PROFIBUS-Norm abgeschlossen werden. LA-46-K / LP-46-K / LMRI-46 / LMPI-46 / LMP-30 / LMRB-27: Terminierung über Bus-Abschluss-Stecker. Der Bus-Abschluss kann auch von TR- Electronic bezogen werden, Art.-Nr.: 40803- 40005 (M12-Stecker, B-kodiert, 220 Ω).
  • Page 64 6. Dichteinsatz / Kontakthülse (2) + (3) in Einschraubstutzen (5) bündig zusammen stecken. 7. Überwurfmutter (1) mit Einschraubstutzen (5) verschrauben.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 12 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 65 Einschraubstutzen vorgesehenen Längsnuten passen. 7. Überwurfmutter (1) mit Einschraubstutzen (4) verschrauben.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 13 of 103...
  • Page 66 (www.tr-electronic.de/service/downloads/steckerbelegungen.html). Die Steckerbelegungsnummer ist auf dem Typenschild des Mess-Systems vermerkt.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 14 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 67 Projektierungsfehlern erreicht. Das Mess-System hat die PNO-Identnummer AAAC (Hex). Diese Nummer ist reserviert und bei der PNO hinterlegt.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...
  • Page 68 WCFG = Wait Configuration DXCHG = Data Exchange Abbildung 2: DP-Slave Initialisierung  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 16 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 69 Mess-System befindet sich im Data Exchange und hat keinen Magneten erkannt. Entsprechende Maßnahmen im Fehlerfall siehe Kapitel „Störungsbeseitigung und Diagnosemöglichkeiten“, Seite 43.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...
  • Page 70 0 = Konsistenz über ein Byte oder Wort Konsistenz: 1 = Konsistenz über das ganze Modul  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 18 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 71 Einstellungsmöglichkeiten für Geschwindigkeit aus Sicht des Bus-Masters X = Anzahl der Magnete – 1, 1…29 bei den TR-Modes, 1…19 bei den TR-Modes + Speed  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...
  • Page 72 - Geschwindigkeitsausgabe Einstellungsmöglichkeiten für Geschwindigkeit X = Anzahl der Magnete – 1, 1…29 bei den TR-Modes, 1…19 bei den TR-Modes + Speed  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 20 of 103...
  • Page 73 0: steigende Werte Code sequence Unsigned8 Bit 0 1: fallende Werte  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 21 of 103...
  • Page 74 Total measuring Gesamtmesslänge in Schritten Unsigned16 1000 range  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 22 of 103 TR - ELA - BA - DGB - 0012 - 11 06/07/2018...
  • Page 75 Total measuring Gesamtmesslänge in Schritten Unsigned32 10 000 range  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 23 of 103...
  • Page 76 Preset-Justagewert für adressierten Magneten Preset-Justagewert für adressierten Magneten Preset-Justagewert für adressierten Magneten  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 24 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 77 Unsigned8 0: Kein Status Status Bit 2 1: Mit Status  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 25 of 103...
  • Page 78 Preset-Justagewert für adressierten Magneten Preset-Justagewert für adressierten Magneten Z = Anzahl der Magnete – 1, 1…29  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 26 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 79 Unsigned8 0: Kein Status Status Bit 2 1: Mit Status  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 27 of 103...
  • Page 80 Preset-Justagewert für adressierten Magneten Preset-Justagewert für adressierten Magneten Preset-Justagewert für adressierten Magneten  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 28 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 81 23-24 Unsigned16 Min: - Auflösung Max: 10 000 (1 m/s)  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 29 of 103...
  • Page 82 Preset-Justagewert für adressierten Magneten Preset-Justagewert für adressierten Magneten Z = Anzahl der Magnete – 1, 1…19  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 30 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 83 23-24 Unsigned16 Min: - Auflösung Max: 10 000 (1 m/s)  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 31 of 103...
  • Page 84 … … … … … … … … … –  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 32 of 103 TR - ELA - BA - DGB - 0012 - 11 06/07/2018...
  • Page 85 –8388608: CLASS 2 32 Bit, TR-Modes 32767: CLASS 2 16 Bit Obergrenze +8388607: CLASS 2 32 Bit, TR-Modes  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...
  • Page 86 Parametrierung und Konfiguration 6.10.1 Wirkungsweise Preset / interner Positions-Offset  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 34 of 103 TR - ELA - BA - DGB - 0012 - 11 06/07/2018...

  • Page 87: Beschreibung Der Betriebsparameter

    Auflösung des Mess-Systems verändert werden. Der ausgegebene Positionswert wird binär dekodiert und mit einer Nullpunktskorrektur und der eingestellten Zählrichtung verrechnet.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...

  • Page 88: Messlänge In Schritten

    Anzahl der Magnete stimmt nicht mit der betriebenen Anzahl überein – Konfigurationsfehler  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 36 of 103 TR - ELA - BA - DGB - 0012 - 11...

  • Page 89: Status

    – Complement: Zweierkomplementdarstellung – Signed: Darstellung mit Vorzeichen und Betrag  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 37 of 103...

  • Page 90: Geschwindigkeit - Auflösung [0.1Mm/S]

    = 0,1 mm/s 10 = 1,0 mm/s Untergrenze Obergrenze 10 000 Default  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 38 of 103 TR - ELA - BA - DGB - 0012 - 11 06/07/2018...

  • Page 91: Konfigurationsbeispiel, Simatic  Manager V5.1

    Dateinamen und Einträge in den nachfolgenden Masken sind nur als Beispiele für die Vorgehensweise zu betrachten. Zur Aufnahme der GSD-Datei in den Katalog, muss diese zuerst installiert werden:  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018...
  • Page 92 TR-Modes 2-20 magnets+speed, siehe Seite 30 Der Eintrag Universalmodul wird irrtümlicherweise automatisch von manchen Systemen bereitgestellt, darf jedoch nicht verwendet werden!  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 40 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 93 Netzeinstellungen vorgenommen werden (Klick mit rechter Maustaste auf das Mess- System-Symbol --> Objekteigenschaften):  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...
  • Page 94 Gewünschte Konfiguration aus dem Katalog auf den Steckplatz übertragen (Drag&Drop). Das Mess-System-Symbol muss aktiv sein. Parametrierung vornehmen mit Doppelklick auf die Steckplatznummer:  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 42 of 103...

  • Page 95: Störungsbeseitigung Und Diagnosemöglichkeiten

    Magnet erkannt. - Sicherstellen, dass die konfigurierte Anzahl Magnete mit der betriebenen Anzahl übereinstimmt.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...

  • Page 96: Verwendung Der Profibus Diagnose

    Byte 8 gerätespezifische weitere gerätespezifische Diagnose Erweiterungen Byte 241 (max.)  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 44 of 103 TR - ELA - BA - DGB - 0012 - 11 06/07/2018...

  • Page 97: Stationsstatus 1

    Überlauf bei erweiterter Bit 7 Ext_Diag_Overflow Diagnose Bit 6-0 Reserviert  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 45 of 103...

  • Page 98: Masteradresse

    Stehen zusätzliche Diagnoseinformationen zur Verfügung, so trägt der Slave an dieser Stelle die Anzahl der Bytes ein, die außer der Normdiagnose noch folgen.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 46 of 103...

  • Page 99: Erweiterte Diagnose

    Bit 6 nicht benutzt Bit 7 nicht benutzt  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 47 of 103...

  • Page 100: Betriebsstatus

    Für zusätzliche Alarme ist das Byte 17 reserviert, jedoch sind keine weiteren Alarme implementiert. Erweiterte Diagnose, Byte 17 Bedeutung Bit 0-7 reserviert  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 48 of 103 TR - ELA - BA - DGB - 0012 - 11 06/07/2018...

  • Page 101: Unterstützte Alarme

    Erweiterte Diagnose, Byte 24-25 Byte 24 Revisions-Nummer Byte 25 Revisions-Index  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 49 of 103...

  • Page 102: Software Version

    Erweiterte Diagnose, Byte 48-57 Die Diagnosebytes zeigen Seriennummer des Encoders an. Wird diese Funktion nicht unterstützt, werden Sterne angezeigt (Hex-Code 0x2A) **********.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 50 of 103...

  • Page 103: Herstellerspezifische Diagnosen

    Adern für Daten und Versorgung. Die Schirmung und die Leitungsführung müssen nach den Aufbaurichtlinien für PROFIBUS ausgeführt sein.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...
  • Page 104 Störungsbeseitigung und Diagnosemöglichkeiten  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 52 of 103 TR - ELA - BA - DGB - 0012 - 11 06/07/2018...
  • Page 105 User Manual _Commissioning Interface _Configuration / Parameterization _Troubleshooting / Diagnostic options  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 53 of 103...
  • Page 106 PROFIBUS-DP and the PROFIBUS logo are registered trademarks of the Profibus User Organization (PNO) SIMATIC is a registered trademark of SIEMENS AG.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 54 of 103...

  • Page 107: Contents

    6.9 TR-Modes 2–20 Magnets + Speed ..................82 6.10 Preset adjustment function ....................84 6.10.1 Operating method Preset / internal position offset ..........86  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...
  • Page 108 7.2.2.17 Serial number .......................... 102 7.2.2.18 Manufacturer's diagnoses ....................... 103 7.3 Other faults ..........................103  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 56 of 103 TR - ELA - BA - DGB - 0012 - 11...

  • Page 109: Revision Index

    LMRB-27 added 03/10/17 LMRB-27 warning added 03/16/18 LMRB-27 warning removed 06/07/18  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 57 of 103...

  • Page 110: General Information

    This User Manual applies exclusively to the following measuring system models with PROFIBUS-DP interface: Measuring systems with ≤ 3 magnets ● - LA-46, LP-46 Soft. No.: 5844 - LA-46-K, LP-46-K, LMRI-46, LMPI-46, LMP-30, LMRB-27 Soft. No.: 5832 Measuring systems with ≤ 30 magnets ● - LA-46, LP-46 Soft. No.: 5852 - LA-46-K, LP-46-K, LMRI-46, LMPI-46, LMP-30, LMRB-27 Soft.

  • Page 111: Abbreviations Used / Terminology

    Device Master File PROFIBUS User Organization (PROFIBUS Nutzerorganisation) PROFIBUS Manufacturer independent, open field bus standard  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...

  • Page 112: Additional Safety Instructions

    Assembly Instructions, particularly the chapter "Basic Safety Instructions" contained therein, must have been read and understood prior to commencement of work  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 60 of 103...

  • Page 113: Profibus Information

    The basic functionality is defined by the performance level V0. This includes cyclic data exchange, as well as the station, module and channel-specific diagnosis.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018...

  • Page 114: Installation / Preparation For Commissioning

    In particular, the applicable EMC directive and the shielding and grounding guidelines must be observed!  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 62 of 103...

  • Page 115: Bus Termination

    4.2 Bus termination If the measuring system is the last station in the PROFIBUS segment, the bus must be terminated according to the PROFIBUS-standard. LA-46-K / LP-46-K / LMRI-46 / LMPI-46 / LMP-30 / LMRB-27: Termination with bus termination plug.

  • Page 116: Shield Cover, Version With Cable Outlet

    6. Push seal / contact bush (2) + (3) flush into the screw socket (5). 7. Screw the nut (1) to the screw socket (5).  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 64 of 103...
  • Page 117 6. Insert the clamping ring (2) in the screw socket (4) such that the torque supports fit in the slots in the screw socket (4). 7. Screw the nut (1) to the screw socket (4).  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018...

  • Page 118: Connection - Notes

    (www.tr-electronic.com/service/downloads/pin-assignments.html). The connector number is noted on the nameplate of the measuring system.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 66 of 103...

  • Page 119: Commissioning

    The measuring system has the PNO ID number AAAC (hex). This number is reserved and is stored at the PNO.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...

  • Page 120: Starting Up On The Profibus

    WCFG = Wait Configuration DXCHG = Data Exchange Figure 2: DP slave initialization  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 68 of 103 TR - ELA - BA - DGB - 0012 - 11...

  • Page 121: Bus Status Display

    Measuring system in Data Exchange, but no magnet was detected. Corresponding measures in case of an error see chapter “Troubleshooting and diagnosis options”, page 95.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018...

  • Page 122: Parameterization And Configuration

    0 = Consistency about one byte or word Consistency: 1 = Consistency about the complete module  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 70 of 103 TR - ELA - BA - DGB - 0012 - 11...

  • Page 123: Overview

    Diverse parameters for the speed output from the bus master perspective X = number of magnets – 1, 1…29 at the TR-Modes, 1…19 at the TR-Modes + Speed  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018...
  • Page 124 Diverse parameters for the speed output X = number of magnets – 1, 1…29 at the TR-Modes, 1…19 at the TR-Modes + Speed  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 72 of 103...

  • Page 125: Pno Class 1 16-Bit

    0: increasing values Code sequence Unsigned8 Bit 0 1: decreasing values  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 73 of 103...

  • Page 126: Pno Class 2 16-Bit

    Total measuring Total measuring length in steps Unsigned16 1000 range  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 74 of 103 TR - ELA - BA - DGB - 0012 - 11 06/07/2018...

  • Page 127: Pno Class 2 32-Bit

    Total measuring Total measuring length in steps Unsigned32 1000 range  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 75 of 103...

  • Page 128: Tr-Mode 1 Magnet

    Preset adjustment value, addressed magnet Preset adjustment value, addressed magnet Preset adjustment value, addressed magnet  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 76 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 129 0: Status disabled Ready status Bit 2 1: Status enabled  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 77 of 103...

  • Page 130: Tr-Modes 2-30 Magnets

    Preset adjustment value, addressed magnet Preset adjustment value, addressed magnet Z = number of magnets – 1, 1…29  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 78 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 131 0: Status disabled Ready status Bit 2 1: Status enabled  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 79 of 103...

  • Page 132: Tr-Mode 1 Magnet + Speed

    Preset adjustment value, addressed magnet Preset adjustment value, addressed magnet Preset adjustment value, addressed magnet  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 80 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 133 23-24 Unsigned16 Min: - Resolution Max: 10 000 (1 m/s)  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 81 of 103...

  • Page 134: Tr-Modes 2-20 Magnets + Speed

    Preset adjustment value, addressed magnet Preset adjustment value, addressed magnet Z = number of magnets – 1, 1…19  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 82 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 135 Min: 23-24 Unsigned16 - Resolution Max: 10 000 (1 m/s)  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 83 of 103...

  • Page 136: Preset Adjustment Function

    … … … … … … … … … –  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 84 of 103 TR - ELA - BA - DGB - 0012 - 11 06/07/2018...
  • Page 137 –8388608: CLASS 2 32 Bit, TR-Modes 32767: CLASS 2 16 Bit Upper limit +8388607: CLASS 2 32 Bit, TR-Modes  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...

  • Page 138: Operating Method Preset / Internal Position Offset

    Parameterization and configuration 6.10.1 Operating method Preset / internal position offset  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 86 of 103 TR - ELA - BA - DGB - 0012 - 11...

  • Page 139: Description Of The Operating Parameters

    The position value output is binary decoded and is calculated with a zero point correction and the code sequence set.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018...

  • Page 140: Total Measuring Range

    Configured number of magnets does not agree with the operated number – Configuration error  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 88 of 103 TR - ELA - BA - DGB - 0012 - 11...

  • Page 141: Ready Status

    Defines the format for the speed output. – Complement: Two's complement – Signed: Sign + value  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 89 of 103...

  • Page 142: Velocity - Units [0.1Mm/S]

    10 = 1.0 mm/s Lower limit Upper limit 10 000 Default  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 90 of 103 TR - ELA - BA - DGB - 0012 - 11 06/07/2018...

  • Page 143: Configuration Example, Simatic  Manager V5.3

    File names and entries in the following masks are to be regarded only as examples of the procedure. For the GSD file to be transferred to the catalogue, it must first be installed:  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018...
  • Page 144 TR-Modes 2-20 magnets+speed, see page 82 The entry Universal module is erroneously available for some systems, but must not be used!  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 92 of 103 TR - ELA - BA - DGB - 0012 - 11...
  • Page 145 Connect measuring system to the master system (drag&drop): Once the measuring system is connected to the master system, the network settings can be undertaken --> Object Properties... --> PROFIBUS... button):  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018...
  • Page 146 Transfer the required configuration from the catalogue to the slot (drag&drop). The measuring system symbol must be active. Perform parameterization with a double click on the slot number:  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 94 of 103...

  • Page 147: Troubleshooting And Diagnosis Options

    - Guarantee that the configured number of magnets agrees with the operated number.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...

  • Page 148: Use Of The Profibus Diagnosis

    8 device-specific further device-specific diagnosis extensions byte 241 (max)  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 96 of 103 TR - ELA - BA - DGB - 0012 - 11 06/07/2018...

  • Page 149: Station Status 1

    7 Ext_Diag_Overflow Overrun for extended diagnosis bit 6-0 Reserved  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 97 of 103...

  • Page 150: Master Address

    If further diagnosis informations are available, the slave enters the number of bytes at this location, which follow in addition to the standard diagnosis.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 98 of 103...

  • Page 151: Extended Diagnosis

    6 not used bit 7 not used  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 99 of 103...

  • Page 152: Operating Status

    Byte 17 is reserved for additional alarms, however no further alarms are implemented. Extended diagnosis, byte 17 Significance bit 0-7 reserved  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 100 of 103 TR - ELA - BA - DGB - 0012 - 11 06/07/2018...

  • Page 153: Alarms Supported

    Extended diagnosis, bytes 24-25 byte 24 Revision number byte 25 Revision index  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11 Page 101 of 103...

  • Page 154: Software Version

    The diagnosis bytes show the serial number of the encoder. If this function is not supported, asterisks ********** (hex code 0x2A) are displayed.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany Page 102 of 103...

  • Page 155: Manufacturer's Diagnoses

    Shielding and wire routing must be performed according to the PROFIBUS construction guidelines.  TR-Electronic GmbH 2009, All Rights Reserved Printed in the Federal Republic of Germany 06/07/2018 TR - ELA - BA - DGB - 0012 - 11...
  • Page 156 Elektro- und Elektronikgeräten (RoHS) 2011/65/EU (L 174/88) Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) in alleiniger Verantwortung von / under the sole responsibility of: TR-Electronic GmbH Eglishalde 6 D - 78647 Trossingen Tel.: 07425/228-0...
  • Page 157 Gültigkeitsliste / List of validity Baureihe / Series: LMRB 27 Order No.: 341-xxxxx, 343-xxxxx Type: LMRB-27 Baureihe / Series: LMP 30 Order No.: 322-xxxxx Type: LMP-30 Baureihe / Series: LMRS 34 Order No.: 344-xxxxx Type: LMRS-34 Baureihe / Series: LMPS 34 Order No.: 345-xxxxx Type: LMPS-34...
  • Page 158 Baureihe / Series: LMRI 46 Order No.: 339-xxxxx Type: LMRI-46 Baureihe / Series: LMPI 46 Order No.: 340-xxxxx Type: LMPI-46 Baureihe / Series: LA 47 Order No.: 328-xxxxx, 338-xxxxx Type: LA-47 Baureihe / Series: LMR 48 Order No.: 327-xxxxx Type:...
  • Page 159 Baureihe / Series: LA 66 Order No.: 312-xxxxx Type: LA-66, LA-66K Baureihe / Series: LMR 70 Order No.: 335-xxxxx Type: LMR-70 Baureihe / Series: LA 80 Order No.: 314-xxxxx Type: LA-80 Baureihe / Series: LAK01 Order No.: 315-xxxxx Type: LAK01 TR-ELA-KE-DGB-0079-02.docx 4 / 4...
  • Page 160 The Restriction of the Use of Certain Hazardous Substances in S.I. 2012 No. 3032 Electrical and Electronic Equipment Regulations 2012 under the sole responsibility of the manufacturer: Name and address of authorised representative: TR-Electronic GmbH TR-Electronic Ltd. Eglishalde 6 4 William House D - 78647 Trossingen Old St.
  • Page 161 List of validity Series: LMRB 27 Order No.: 341-xxxxx, 343-xxxxx Type: LMRB-27 Series: LMP 30 Order No.: 322-xxxxx Type: LMP-30 Series: LMRS 34 Order No.: 344-xxxxx Type: LMRS-34 Series: LMPS 34 Order No.: 345-xxxxx Type: LMPS-34 Series: LP 38 Order No.: 307-xxxxx Type: LP-38 Series: LA 41...
  • Page 162 Order No.: 320-xxxxx Type: LP-46, LP-46K Series: LMRI 46 Order No.: 339-xxxxx Type: LMRI-46 Series: LMPI 46 Order No.: 340-xxxxx Type: LMPI-46 Series: LA 47 Order No.: 328-xxxxx, 338-xxxxx Type: LA-47 Series: LMR 48 Order No.: 327-xxxxx Type: LMR-48 Series: LMP 48 Order No.: 333-xxxxx...
  • Page 163 Series: LA 66 Order No.: 312-xxxxx Type: LA-66, LA-66K Series: LMR 70 Order No.: 335-xxxxx Type: LMR-70 Series: LA 80 Order No.: 314-xxxxx Type: LA-80 Series: LAK01 Order No.: 315-xxxxx Type: LAK01 TR-ELA-KE-GB-0080-02.docx 4 / 4...
  • Page 164 Technische Daten zu 339-00496 AUFLOESUNG 0,001 MM MESSLAENGE 1.280,00 mm SCHNITTSTELLE PROFIBUS DP AUSGANGSPEGEL RS485 VERSORGUNGSSPANNUNG 19-27V ANSCHLUSSART 1X4P.M8-STECKER 2X5P.M12-ST./BU. (B-COD.) ANSCHLUSSRICHTUNG AXIAL GEGENSTECKER NEIN Änderungen vorbehalten. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Seite 1/4 info@tr-electronic.de www.tr-electronic.de...
  • Page 165 < 0,15 mm > 1500 mm Kenndaten - Gültigkeit bei Einsatz von TR Magneten Temperaturkoeffizient < 8 µm/°C <= 500 mm < 15 ppm/°C FS > 500 mm Änderungen vorbehalten. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Seite 2/4 info@tr-electronic.de www.tr-electronic.de...
  • Page 166 <= 100 m/s² - Sinus 50…2000 Hz - Sinus Resonanzfrequenzen ausgenommen Schock DIN EN 60068-2-27 - Kennwert <= 1000 m/s² - Halbsinus 11 ms Änderungen vorbehalten. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Seite 3/4 info@tr-electronic.de www.tr-electronic.de...
  • Page 167 98 %, keine Betauung Schutzart - Standard IP65 Magnetisches Störfeld DIN EN 61000-4-8 Schärfegrad 4 Mess-Referenz Messebene Druckfestigkeit - Statisch PN = 600 bar Änderungen vorbehalten. TR-Electronic GmbH Eglishalde 6 78647 Trossingen Tel. +49 (0) 7425 228-0 Seite 4/4 info@tr-electronic.de www.tr-electronic.de...
  • Page 169 Um die ankommenden und abgehenden Signale separat verdrahten zu können, sind die Profibus-Stecker zweifach ausgeführt. TR-Electronic empfiehlt für den Betrieb die Verwendung der von der Profibus-Nutzer-Organisation (PNO) vorgeschriebenen Buskabel. Die Schirmung ist großflächig auf das Gegensteckergehäuse aufzulegen! Mit den BCD-Adressschaltern S1 (10 ) und S2 (10 ) wird die Stationsadresse für den Profibus von 1...
  • Page 170 In order to enable a separate wiring of incoming and outgoing signals the Profibus connectors have two connection possibilities. TR-Electronic recommends for the operation to use only bus cables certified by the Profibus User Organization (PNO). The shielding is to be connected with large surface on the mating connector housing!

This manual is also suitable for:

Lmri-46Lp-46-kLa-46-kLa-46Lp-46Lmp-30 ... Show all

Table of Contents
