Explosion protection enclosure with integrated measuring system
Hide thumbs Also See for LP-46-K:

Advertisement

Explosion Protection Enclosure
with integrated measuring system
Explosion Protection Enclosure - Type
_LP-46 (K)
A*V70
II 3 G Ex nAc IIB T5 X
II 3 D Ex tc IIIB T95°C IP64 X
Date of manufacture: DD.MM.YYYY
_Basic safety instructions
_Intended use
_Product description
_Technical data
_Explosion protection characteristics
_Assembly
TR-Explosionsschutzgehäuse
A*W70

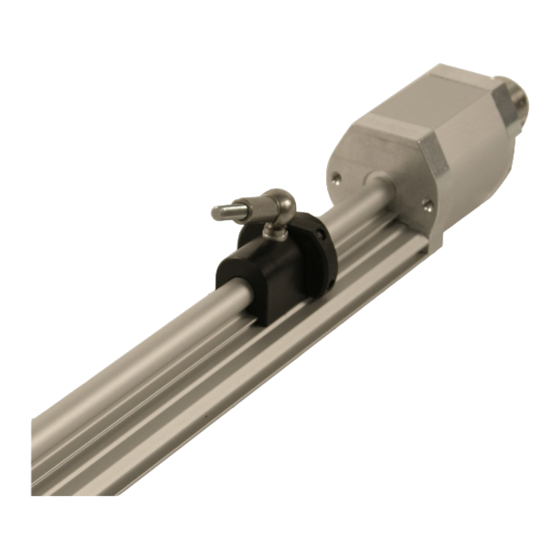

Stock photo
II 3 G Ex nAc IIC T5 X
II 3 D Ex tc IIIC T95°C IP64 X
Date of manufacture: DD.MM.YYYY
Translation of the original manual
A**88
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP-46-K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TR-Electronic LP-46-K

  • Page 1 Translation of the original manual Explosion Protection Enclosure TR-Explosionsschutzgehäuse with integrated measuring system A*W70 Explosion Protection Enclosure - Type _LP-46 (K) Stock photo A*V70 A**88 II 3 G Ex nAc IIC T5 X II 3 G Ex nAc IIB T5 X II 3 D Ex tc IIIB T95°C IP64 X II 3 D Ex tc IIIC T95°C IP64 X Date of manufacture: DD.MM.YYYY...
