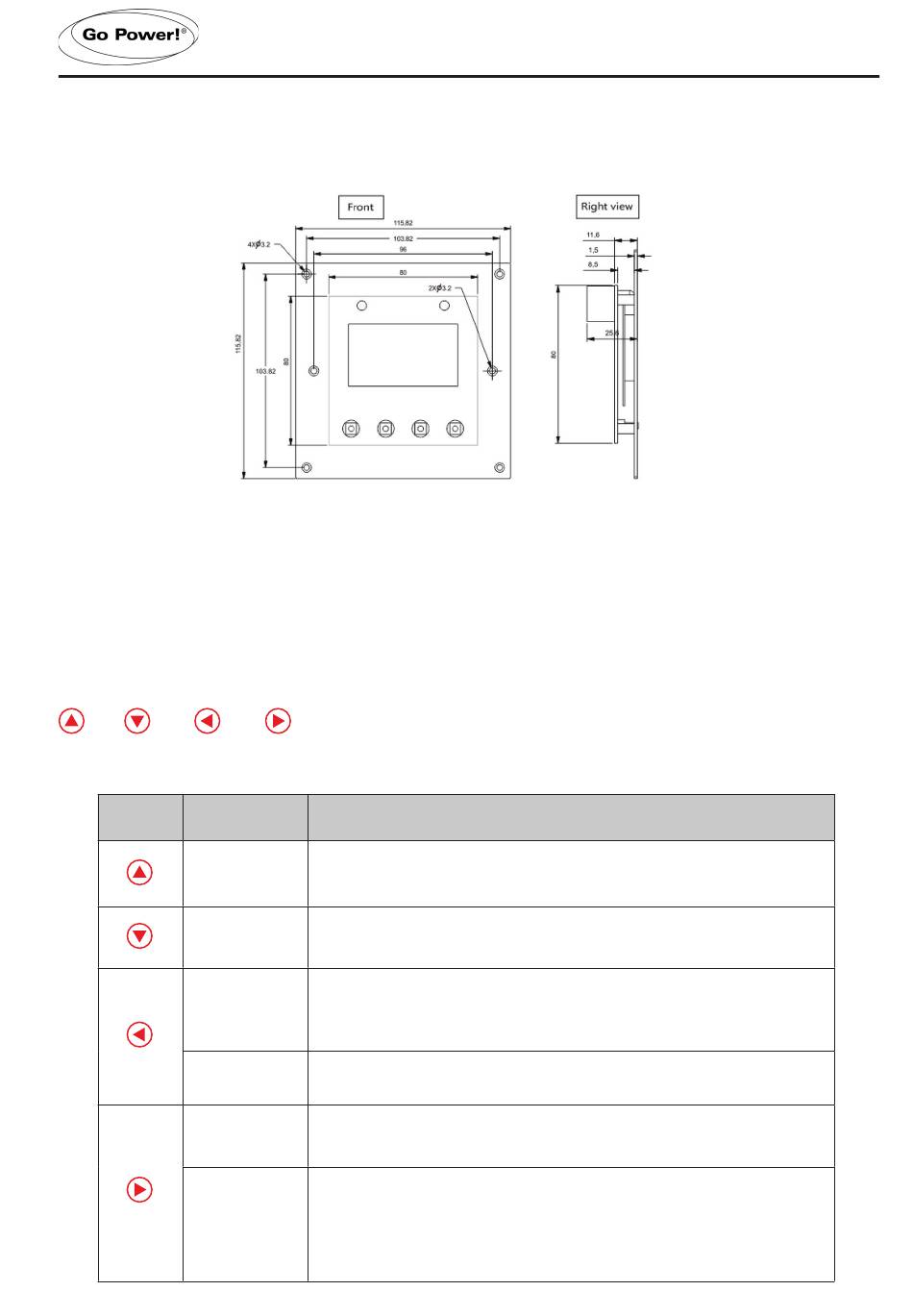

9.3 INSTALLATION DIMENSIONS

Product dimensions: 96*103.82*103.82mm
Installation dimensions: ø3.5mm
9.4 USAGE OF NAVIGATION KEYS
The product design features 4 keys which, from left to right, are:
They equal to ("Up", "Down", "ESC", "OK")
KEY OPERATION
Tap, press and
hold
Tap, press and
hold
Tap
Press and hold
Tap
Press and hold
DISCRIPTION
1) When browsing a menu , tap the key for a page up,
2) In parameter setting, tap the key to increase the value by a minimum unit;
3) Press and hold the key for quick page -up movement or value increasing.
1) When browsing a menu, tap the key for a page down;
2) In parameter setting, tap the key to decrease the value by a minimum unit;
3) Press and hold the key for quick page-down movement or value decreasing.
1) When browsing a menu, tap the key to return to the previous level, until the
main menu is reached;
2) In the setting mode, a tap on this key can cancel the data modification in
process and exit the setting mode.
In any menu, press and hold the key to immediately skip to the "error code
page for convenient checkup.
1) In a menu which contains submenus, tap the key to enter into a submenu;
2) In a menu with settable or adjustable parameters, tap the key to enter into or confirm
parameter setting.
If "manual mode" is selected as the load mode, a press-and-hold on the key
to switch on/ off the load
If it's not in the manual mode, a press-and-hold will cause the display to
skipto the load mode setting interface as a reminder.
(Note: if no load is connected to the controller, this function and related load parameters
wil become inoperative.) l
REMOTE
