3.5 SYSTEM PARAMETER SETTINGS

Under any interface other than load modes, press and hold the Set key to enter into the parameter setting interface.
BATTERY TYPE

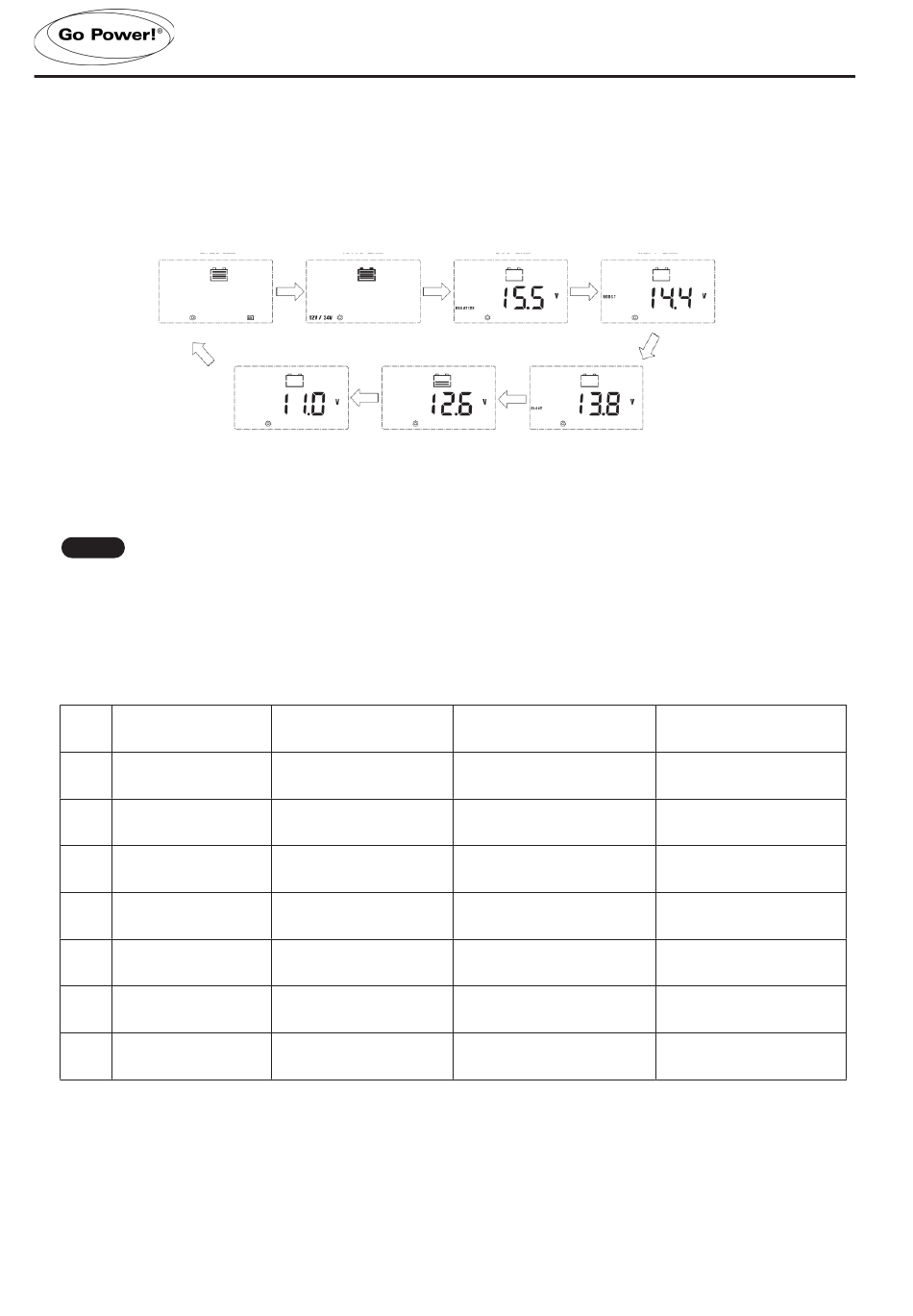

After entering into the setting interface, tap the Set key to switch the menu for setting, and tap the Up or Down key to increase
or decrease the parameter value in the menu. Then tap the Return key to exit (without saving parameter setting) or press
and hold the Set key to save setting and exit.
Note
The controller enables users to customize the parameters according to the actual conditions, but parameter setting must
be done under the guidance of a professional person, or else faulty parameter settings may render the system not able to
function normally. For details about parameter settings, see table 3.
No. Display Item
1 TYPE OF BAT
2 VOLT OF SYS
3 EQUALIZ CHG
4 BOOST CHG
5 FLOAT CHG
6 LOW VOL RECT
7 LOW VOL DISC
[page 18] | gpelectric.com
PRODUCT OPERATION AND DISPLAY
SYSTEM VOLTAGE
OVER-DISCHARGE
After system voltage setting, power supply has to be switch off and then on again, otherwise
the system may work under an abnormal system voltage.
Description
Battery type
System voltage
Equalizing charging
voltage
Boost charging voltage
Floating charging voltage
Over-discharge recovery
voltage
Over-discharge voltage
EQUALIZING VOLTAGE
OVER-DISCHARGE FLOATING CHARGING
RETURN VOLTAGE
Parameter Range
User/flooded/Sealed/Gel/Li
12V/ 24V
9.0 to 17.0V
9.0 to 17.0V
9.0 to 17.0V
9.0 to 17.0V
9.0 to 17.0V
Table 3
BOOST VOLTAGE
Default Setting
Sealed
AUTO
14.6V
14.4V
13.8V
12.6V
11.0V
