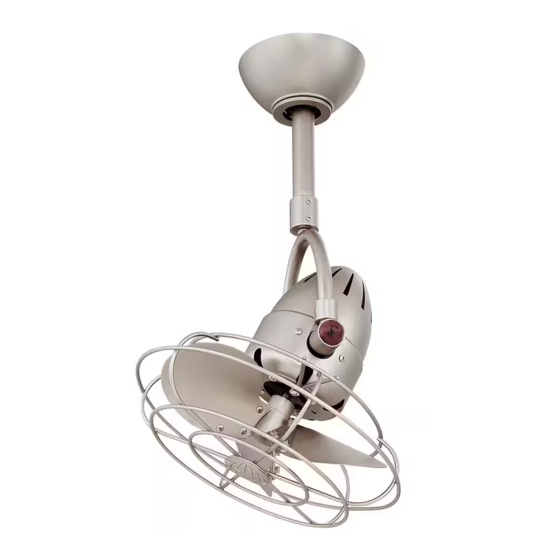

Atlas fan company Diane Installation Manual
Ceiling mounted oscillating directional fan
Hide thumbs
Also See for Diane:
- Instructions manual (10 pages) ,
- Owner's manual (4 pages) ,
- User manual (2 pages)
Advertisement
READ AND SAVE THESE INSTRUCTIONS
QUICK ASSEMBLY NOTES:
* Do not wire in fan while house wires are Live. Turn power off at breaker before installation
begins.
* Do not use any controls, wall or remote, other than those provided by Matthews Fan Company.
* Please do not use any electric or battery powered tools in the assembly and installation of this
or any other Matthews Fan Company product.

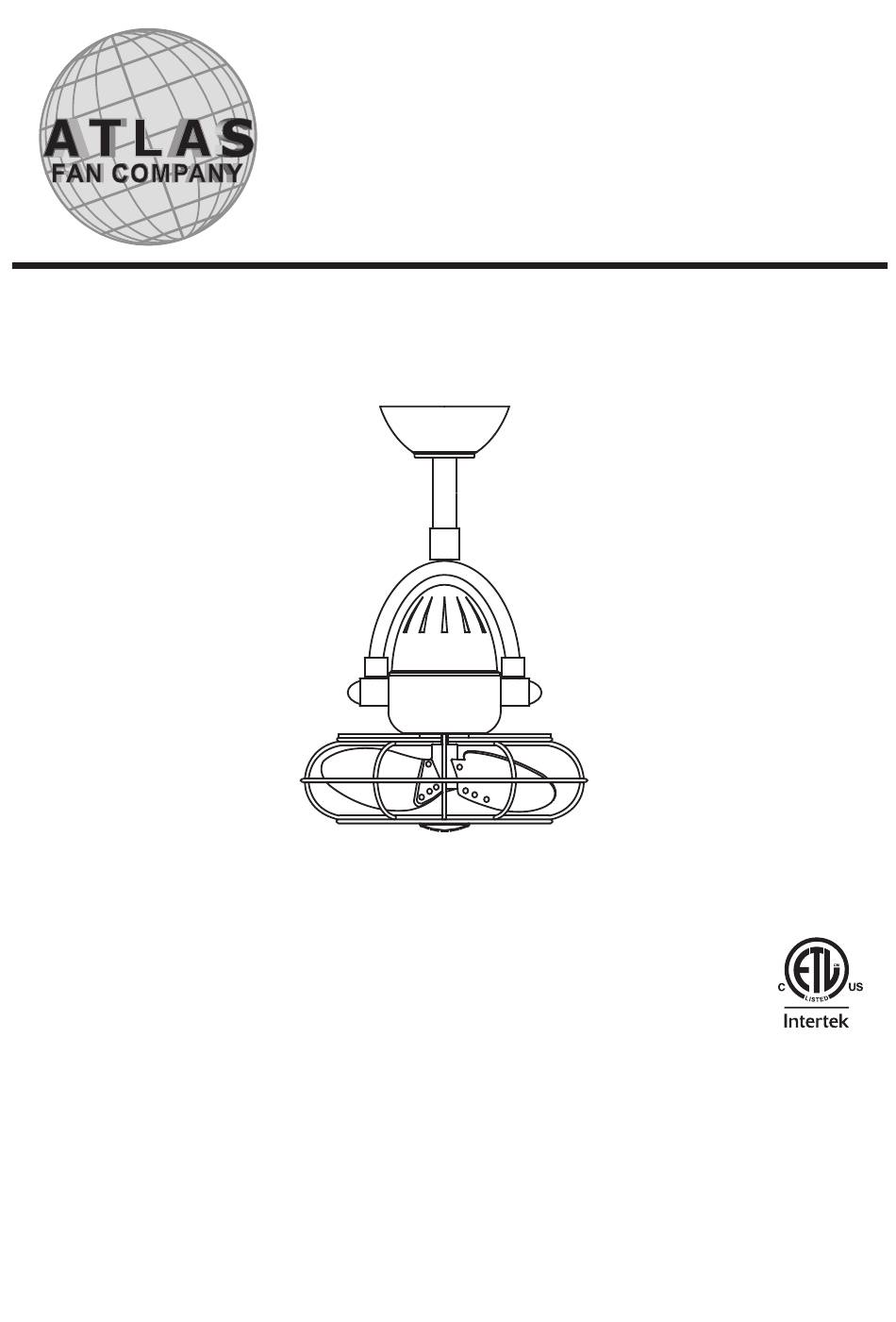

Diane
Ceiling Mounted
Oscillating Directional Fan
FAN RATING AC 120V. 60Hz
For Damp Location
Advertisement
Table of Contents
Related Manuals for Atlas fan company Diane
Summary of Contents for Atlas fan company Diane
- Page 1 Diane Ceiling Mounted Oscillating Directional Fan READ AND SAVE THESE INSTRUCTIONS FAN RATING AC 120V. 60Hz For Damp Location QUICK ASSEMBLY NOTES: * Do not wire in fan while house wires are Live. Turn power off at breaker before installation begins.
-
Page 2: Tools And Materials Required
TOOLS AND MATERIALS REQUIRED Philips screw driver Standard, flat-head screw driver 11 mm wrench Step ladder Wire cutters PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Hanger bracket assembly Ball / down rod assembly Fan motor assembly Metal blade with cage (decorative* or safety**) or Wood blade... - Page 3 READ AND SAVE THESE SAFETY AND INSTALLATION INSTRUCTIONS. Consult a licensed electrician if unsure of any point below mentioned. DANGER/WARNING/CAUTION 1. High voltage and moving parts around motors and motor driven equipment can cause serious or fatal injuries. Always disconnect power source at main switch before wiring, servicing or cleaning unit.
- Page 4 11. To reduce the risk of personal injury, install the supplementary mounting means and use only the hardware provided with the fan. 12. Warning: TO REDUCE THE RISKS OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: A. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
- Page 5 MOUNTING/INSTALLATION Ceiling OF THE FAN hanger bracket Before touching a screw driver thoroughly Ceiling read these instructions. canopy Warning/Caution: Before installing fan, turn off power at service panel and check all visible Canopy screws and bolts for tightness. cover Figure 5 1.
-
Page 6: Making The Electrical Connections
5. Loosen the two allen set screws and remove the threaded pin from the top coupling of the motor assembly. (Fig. 7) 6. Route wires exiting from the top of the fan Registration motor through the canopy cover and canopy and slot then through the ball/downrod. - Page 7 2. Motor to Receiver Electrical Connections: OUTLET BOX A. Connect the WHITE wire from the fan to the WHITE wire marked "TO MOTOR N" from the WHITE (NEUTRAL) BLACK (HOT) Receiver. GREEN OR BARE COPPER (GROUND) BLACK ("AC IN L") WHITE ("AC IN N") B.
-
Page 8: Operating The Remote Control
OPERATING THE REMOTE CONTROL Install 12V MN21/A23 battery (included). To prevent damage to transmitter, remove the battery if not used for long periods. (Fig. 13) Restore Power to Ceiling Fan. A. H, M, L Buttons: These buttons are used to set the fan speeds as follows;... - Page 9 CARE OF AND TROUBLESHOOTING YOUR FAN 1. Check hardware bi-yearly. Because of the fan's natural movement some connections may become loose over time. Check the support connections, brackets and blade attachments twice a year. Make sure they are secure. It is not necessary to remove fan from the wall. 2.
-
Page 10: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY MATTHEWS-GERBAR, LTD. DBA MATTHEWS FAN COMPANY LIFETIME LIMITED WARRANTY. warranted by Matthews-Gerbar, Ltd. to the original user against defects in workmanship or materials under normal use and inside or outside damp location installation for: Motors: Lifetime of original purchaser: Labor &...
