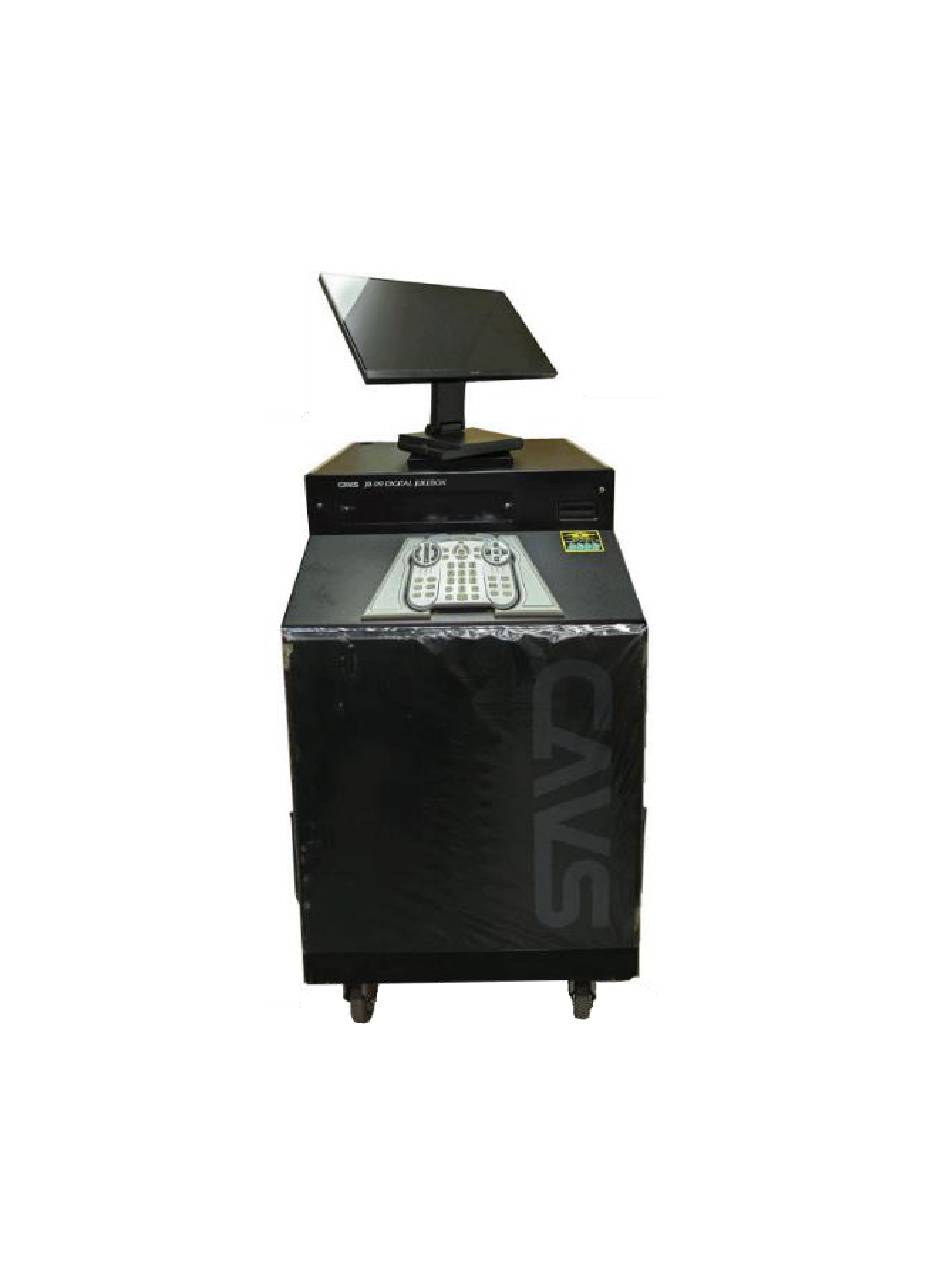

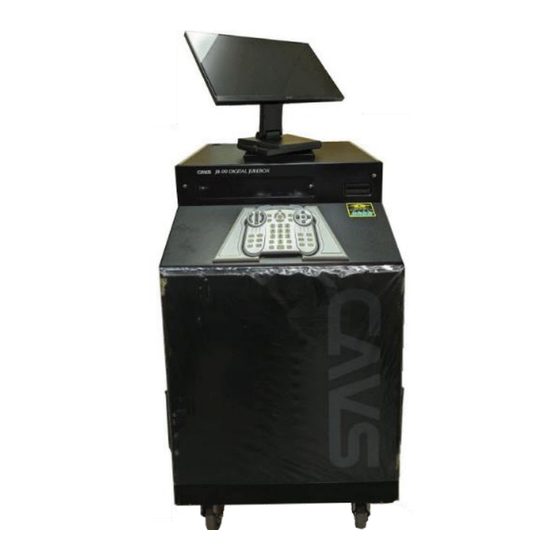

- Page 1 Quick Setup Guide CAVS JB-99 RS Karaoke System 20220108 CAVS USA Inc.
- Page 2 1. Unpacking The JB-99 RS will arrive in two pieces, one box at the top containing an LCD monitor and one wooden crate containing the JB-99 RS kiosk. A. Box: 20” x 20” x 10”, 15 lbs 19” – 21” LCD monitor (size may vary depending on shipment) B.
- Page 3 Remove the four sides after the top. Next remove the bubble wrap around the kiosk. • Lift the JB-99 RS gently up from the bottom wooden pallet. This will require two people using the side handles of the JB-99 RS.
- Page 4 • Take out the microphones from plastic bags and place them in the holders. • On the top of the JB-99 RS kiosk, you will find a set of four screws in a plastic bag. Take out the screws. •...
- Page 5 • Using the power cord found in a side pocket, connect the JB-99 RS kiosk to a wall outlet of 110V. The plug for the power cord is located on the lower back side of the kiosk. • Turn on the monitor with its power switch located on the bottom right side of the monitor.
- Page 6 4. Playing songs • Wireless Microphone: Take a microphone from its holder. Press the Power button (shown below) for 2 – 3 seconds and release. The microphone will turn on with Channel display. Adjust the control levels of 4.VOL, 1.ECHO, 2.TREBLE, and 3.BASS. Recommended settings: 1.
- Page 7 You can scroll, sort, and search the song list for a song. After finding the song, remember the song number (INDEX) and input it into the JB-99 RS Karaoke player using the numeric buttons in the front control. For example, we input the number 3126 for the song ‘Always On My Mind’.
- Page 8 The song list will appear on the monitor as follows. Depending on your preference, you can sort the song list by Title or Artist by pressing the SORT button. Next press the Line Up and Line Dn buttons to move between the pages. Remember there are over 8 thousand songs consisting of over 1,000 pages.
- Page 9 MENU button to return to the initial page of the JB-99 RS and input the song number using the numeric buttons. Here for example, we input the number 03126 for the song ‘Always On My Mind’. Press Play to being the song.
- Page 10 A.2 External TV Setting On the top of the JB-99 RS kiosk, there is a HDMI cable with female connector, coming out of the corner as shown below. The HDMI connector can connect to any wall TV via a standard HDMI...
- Page 11 Be sure to have a HDMI cable that is long enough to reach the wall TV from the JB-99 RS Karaoke player. A.3 Microphone howling Common trouble when singing karaoke is the howling noise caused by the feedback between the microphones and the speakers.
