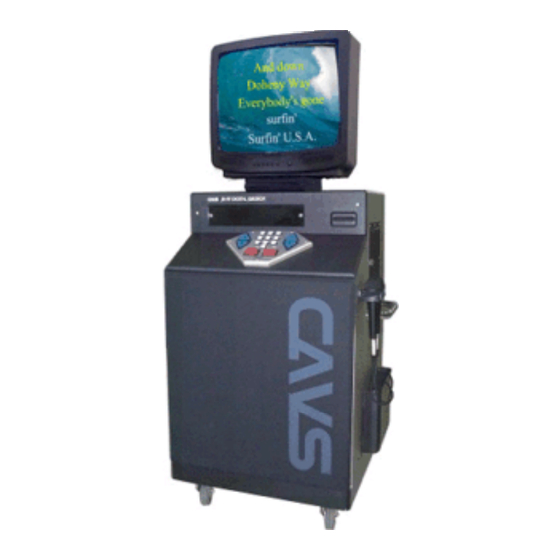

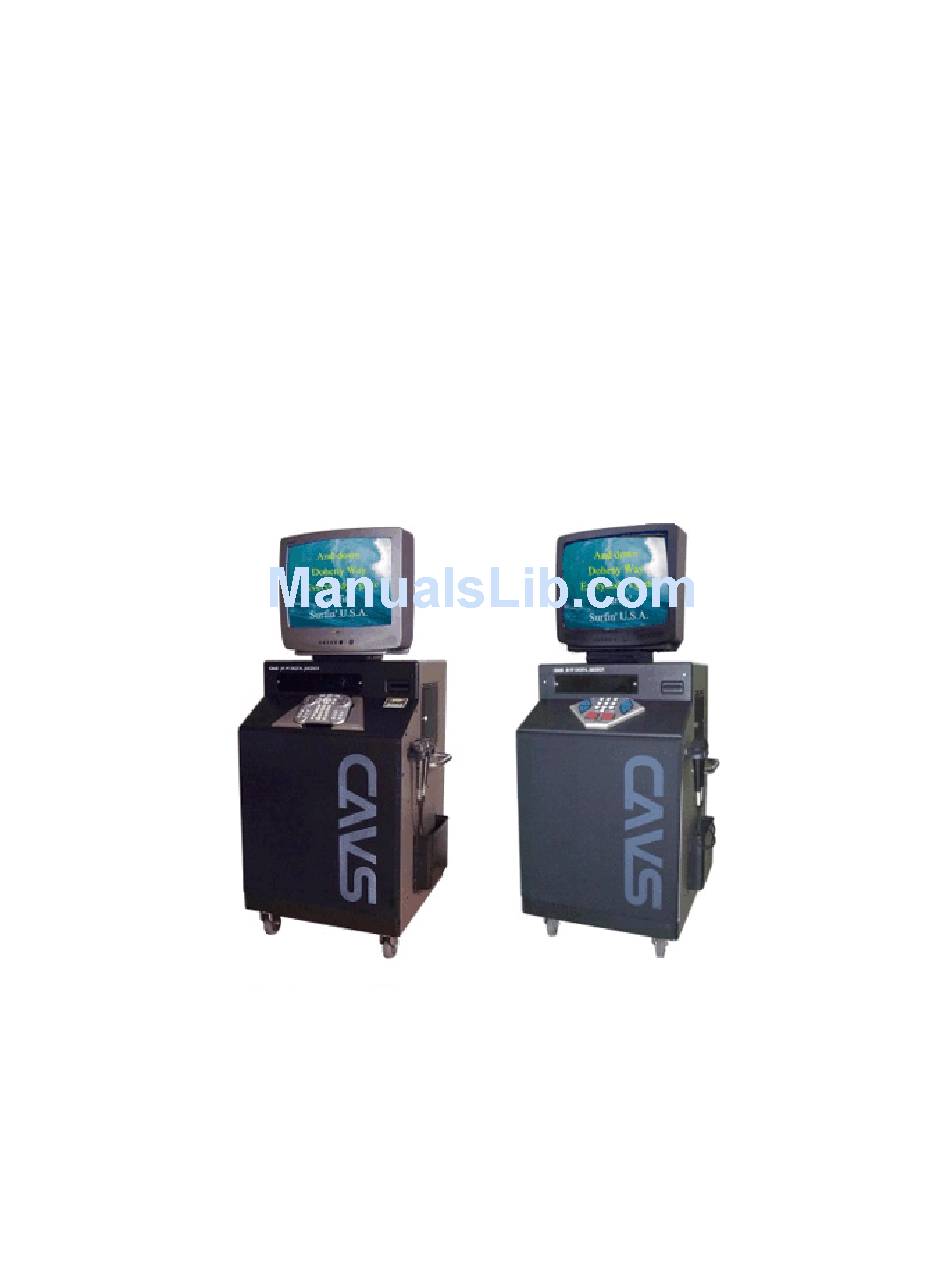

- Page 1 CAVS USA INC Quickstart Manual CAVS JB-99RG I, II Karaoke Jukebox Type I Type II Version 00.73RG and above...
-
Page 2: Table Of Contents
CAVS USA INC Contents Page 1. Unpacking 2. Installation 2.1 TV monitor 2.2 Mixer-Amplifier 2.3 Microphone 2.4 Remote control 2.5 Instruction sticker 3. Booting up 4. Operating JB-99RG 4.1 Quickstart operation 4.2 Basic functions 4.3 Password 5. Setting the button controls 6. -
Page 3: Unpacking
CAVS USA INC 1. Unpacking The unit will come in two pieces, one carton box and one wooden crate. The carton box includes: TV monitor with a steel plate attached at the bottom The wooden crate includes: JB-99RG In the side pockets of JB-99RG:... -
Page 4: Installation
CAVS USA INC place it on the floor. Unlock the wheels on the bottom of JB-99RG and roll the unit into its place. When transporting the unit without its wooden crate, it is best to do so in its upright position. If a height restriction does not allow the upright positioning, then lay down the unit on its backside, preferably on top of a soft carpet for easy sliding and protection. -
Page 5: Mixer-Amplifier
Also set the power button on. WARNING: To avoid any damage to the mixer-amplifier and the speakers, please consult with CAVS Tech Support before attaching any additional speakers to the mixer-amplifier. o There is a steel cover for the mixer-amplifier in the back bottom compartment of JB-99RG. -
Page 6: Remote Control
CAVS USA INC WARNING: To prevent a possible damage to the mixer-amplifier from sudden pull on the microphones, tie the cords of the microphones to the steel handle on the back of JB-99RG before connecting to the mixer-amplifier. 2.4 Remote Control o Locate the remote control and batteries from its box. -
Page 7: Operating Jb-99Rg
CAVS USA INC o Confirm that the green power light of the TV monitor becomes lit. Press the Power button on the TV monitor to turn it on. Change the channel to 1 for Video. Press the Power button on the front panel of JB-99RG to begin the boot up process. -
Page 8: Basic Functions
CAVS USA INC 4.2 Basic Functions On Screen Songlist - Press any of LineDn, LineUp, PgUp, or PgDn button to display the songlist on the TV monitor. o Select a category within which you wish to search for a song and press Play to enter. -
Page 9: Password
CAVS USA INC Cancel – Cancel the programmed songs by pressing the CANCEL button. (For Type II, use the Remote Control.) To delete a particular song in the queue, press the song code first and then press the CANCEL button. - Page 10 CAVS USA INC such access, you can impose a variety of restrictions on the buttons as shown below. Using the password, enter the <<SYSTEM CONTROL>> screen. (For Type II, use the Remote Control.) Press 6 to select “Button Control”. A new screen <<BUTTON CONTROL>>...
-
Page 11: Programming Bill Acceptor
CAVS USA INC T y p e I M o d e l T y p e I I M o d e l R e m o t e C o n t r o l E n a b l e... -
Page 12: Operating With Bill Acceptor
CAVS USA INC o Press 2 to select “Credits per $1”. Then use the LineDn and LineUp buttons to select the amount you wish. o Press 3 to select “Debits per Karaoke”. Then use the LineDn and LineUp buttons to select the amount you wish for a Karaoke song. -
Page 13: Setting Karaoke Play / Jukebox Play
CAVS USA INC o Type II model - Press the START/ENTER button to begin playing. With remaining credit, you can continue to enter the song codes and press the START/ENTER button to place the songs into the reservation queue. The STOP/RETURN button will not stop a song in play nor cancel a song in the queue at any time. -
Page 14: Setting Initial Welcome Screen
Step.4 will also work as usual. NOTE: To change the wording in the initial welcome screen, for example, to put in your own company name and message, please inquire to CAVS Tech Support. 10. Setting Song Count Using the password, enter the <<SYSTEM CONTROL>> screen. (For Type II, use the Remote Control.) -
Page 15: Collecting Bills
Slide the bills out and reattach the box to the bill acceptor. 12. Loading Song Updates Monthly song updates will arrive in a Data CD (of CD-ROM format) from CAVS. To download the songs into JB-99RG: 12.1 Enter the password to open <<SYSTEM CONTROL>> screen. (For Type II,... - Page 16 CAVS USA INC 12.2 Select 6.Button Control to display the <<BUTTON CONTROL>> screen. Select 2 and use the LineDn and LineUp buttons to set the Button set #01 as “Enable”. 12.3 Press the Stop button twice to return to the welcome screen. Then press the Menu button to enter into <<<FUNCTION>>>...
-
Page 17: Upgrading Operating System
Data CD to avoid any unwanted overwriting of songs. If the instruction given with the song update Data CD is not clear, contact CAVS Tech Support for assistance. 12.8 Having changed the settings as instructed, press Play button to begin downloading. - Page 18 CAVS USA INC 13.3 Press the Stop button twice to return to the welcome screen. Then press the Menu button to enter into <<<FUNCTION>>> screen. (For Type II, use the Remote Control.) 13.4 Select 4.System Setup to display <<SYSTEM SETUP>> screen. Select 1.Download from CD-ROM to display the following <<<DOWNLOAD>>>...
-
Page 19: Internal Background Video
CAVS USA INC the upgraded operating system. The system will then continue to boot itself to the Welcome screen. 13.8 Enter the password to return to <<SYSTEM CONTROL>> screen. (For Type II, use the Remote Control.) 13.9 Select 6.Button Control. Then select 2 and set the Button set #01 as “Disable”. - Page 20 CAVS USA INC 14.5 Press the Open/Close button to open the disc tray. Then press the Disc Change button to bring out the disc tray #1 to the front and place the Video CD into the slot. (For Type II, use the Remote Control.) 14.6 Press the Open/Close button to close the disc tray.
-
Page 21: External Background Video
CAVS USA INC 15. External Background Video A background picture playing behind the lyrics on the TV monitor can be imported from an external source such a DVD player or a camcorder. 15.1 Remove the top back panel on the back of the JB-99RG by unscrewing 6 bolts. -
Page 22: Mixer-Amplifier
BGV button for BGV ON / BGV OFF (For Type II, use the Remote Control.). 16. Mixer-Amplifier CAVS CA-242RA mixer-amplifier located in the back of the JB-99RG comes with many individual controls for Mic1, Mic2, Echo, Music, and Master. CONTROLS... -
Page 23: Vocal Volume Control
CAVS USA INC decrease by pressing the down ( ) button. You may also go directly to the back of the JB-99RG and turn the master volume control knob of the mixer-amplifier. 16.2 Vocal Volume Control Increase or decrease the vocal volume level by adjusting the volume controls of Mic1 and Mic 2 located on the back of JB-99RG. -
Page 24: Frequently Asked Questions (Faq)
Answer: Yes, using a video distributor, the video cable coming out from the top of the JB-99RG can be connected to 2 or more TV monitors simultaneously. A video distributor can be purchased from CAVS or any electronic stores such as Radio Shack. -
Page 25: Technical Support
CAVS USA INC Answer: The main engine of the JB-99RG karaoke jukebox is the JB-99 digital jukebox designed and manufactured by CAVS. To understand all features of the JB-99 jukebox, please refer to the User’s Manual of JB-99 Digital Jukebox enclosed in your JB-99RG unit.
