9/9/24, 12:02 PM
0. Unpacking

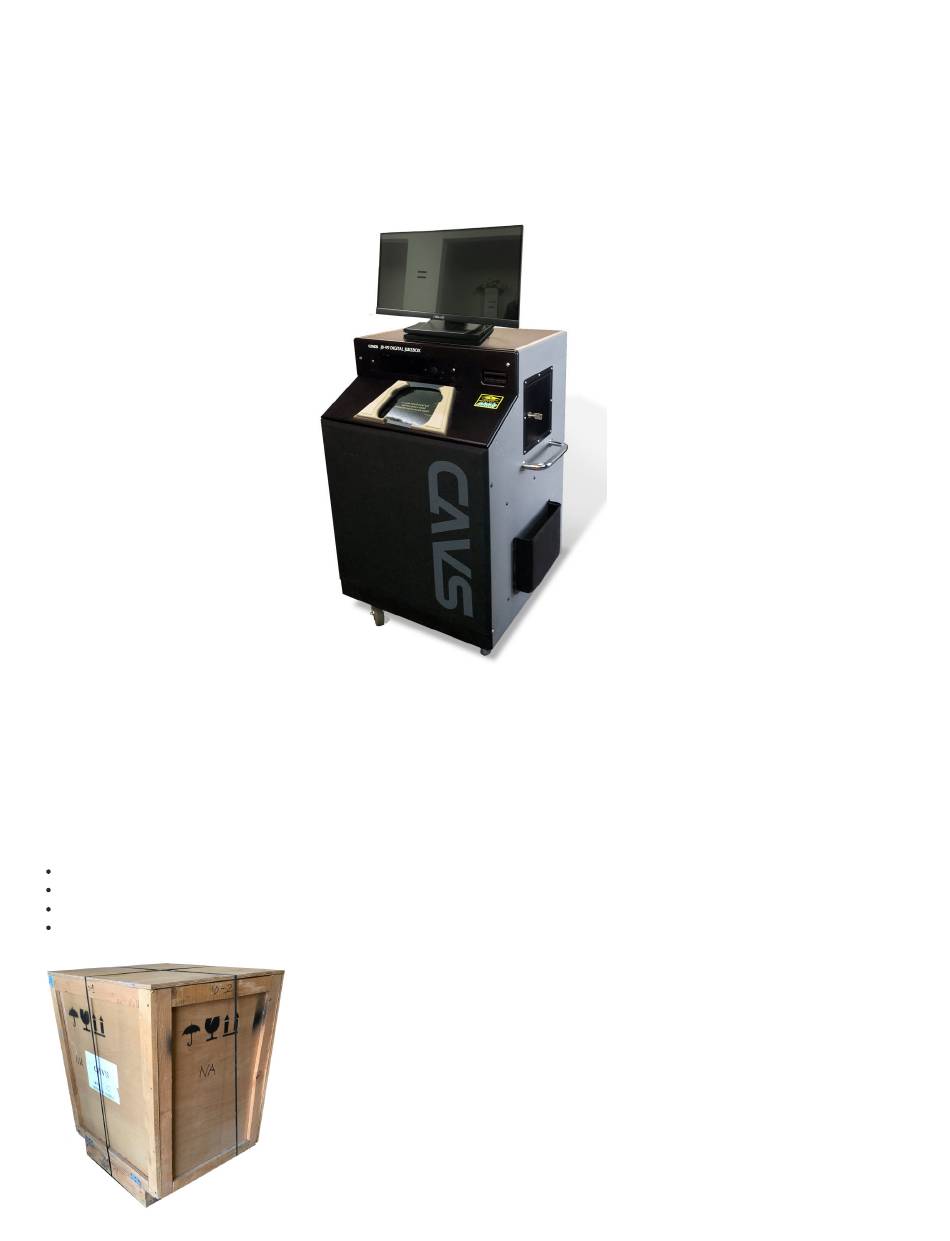

CAVS JB-99 RS II karaoke system will arrive in a pallet carrying 3 items (1 wooden crate and 2 boxes).
1. Wooden Crate (1/3)
Remove the straps.
Open the wooden boards by removing the screws holding the crate.
With the top and sides removed, two adults can lift the kiosk using the two side bars to take the kiosk out of the base block.
Set the kiok down on its wheels and be sure to unlock the wheels before rolling.
localhost:56584/userManual_jb-99_rs_ii_karaoke_jukebox_un1290_v3_2.htm
CAVS JB-99 RS II Karaoke Jukebox
Version 3.0 UN1290
Untitled Document
1/15
Advertisement
Related Manuals for CAVS JB-99 RS II
Summary of Contents for CAVS JB-99 RS II
- Page 1 CAVS JB-99 RS II Karaoke Jukebox Version 3.0 UN1290 0. Unpacking CAVS JB-99 RS II karaoke system will arrive in a pallet carrying 3 items (1 wooden crate and 2 boxes). 1. Wooden Crate (1/3) Remove the straps. Open the wooden boards by removing the screws holding the crate.
- Page 2 Wireless handheld microphone x 2 Wireless microphone x 2 (spare) 3. Box 3/3 21.5" Touch Screen Monitor for JB-99 RS II 1. How to assemble the touch screen monitor From the boxes 2 and 3, find the following parts. localhost:56584/userManual_jb-99_rs_ii_karaoke_jukebox_un1290_v3_2.htm...
- Page 3 9/9/24, 12:02 PM Untitled Document Touch screen monitor Monitor Stand Mount bracket with JB-199 mini II mount plate attached Swivel plate Screw x 4 for monitor stand, Screw x 4 for Swivel plate Assembly 1. Unfold the Monitor Stand. The arm is generally stiff and requires firm but gentle pulling. 2.
- Page 4 9/9/24, 12:02 PM Untitled Document The Movable plate has the JB-199 mini II mount plate attached. 3. Place the touch screen monitor in the styroform case as shown. Watch for the orientation of the monitor and the case. 4. Attach the monitor stand and L-base plate onto the touch screen monitor as shown using the 4 screws. Be sure the monitor stand is in-between the touch screen monitor and the L-base plate.
- Page 5 5. Standing the monitor and the monitor stand upright, attach the Movable plate onto the L-base plate. Watch for the orientation. 6. Place the swivel plate on top of the JB-99 RS II kiosk using 4 screws. Watch for the orientation.
- Page 6 9/9/24, 12:02 PM Untitled Document 2. How to connect the karaoke player From the box 2, find the JB-199 mini II karaoke player. Depending on the shipment, the JB-199 mini II karaoke player may already have USB dongles connected. Remove and set aside the dongles for now as they will be reconnected later.
- Page 7 9/9/24, 12:02 PM Untitled Document Connection 1. Attach the JB-199 mini II karaoke player onto the back of the touch screen monitor, onto the back plate of the JB-199 mini II. Watch for the orientation. 2. There are four cables (AC Power plug, 3.5mm jack, USB-A, and DC power plug) at the top of the kiosk as shown in the picture. localhost:56584/userManual_jb-99_rs_ii_karaoke_jukebox_un1290_v3_2.htm 7/15...
- Page 8 9/9/24, 12:02 PM Untitled Document Connect the AC power plug to the touch screen monitor, DC power plug to the JB-199 mini II player, and USB plug to the JB-199 mini II player as shown in the picture. Connect the 3.5mm jack to the JB-199 mini II as shonw in the picture. 3.
- Page 9 9/9/24, 12:02 PM Untitled Document 4. The connections you need to further consider are a LAN cable for Internet, a HDMI cable for an external TV, and a dummy HDMI plug. For song subscription services, the LAN cable with Internet access must be connected to the RJ45 port on the JB-199 mini II player. For an external TV, the HDMI cable from the TV must be connected to the HDMI port of the JB-199 mini II player.
- Page 10 Since there is no more USB port on the JB-199 mini II, a USB hub or switch is needed to connect additional USB drives. The black dongle of the remote controller can also be replaced by the blue dongle of the wireless keyboard and mouse. 3. How to connect the karaoke kiosk From the work above, the JB-99 RS II karaoke player will appear as shown. localhost:56584/userManual_jb-99_rs_ii_karaoke_jukebox_un1290_v3_2.htm 10/15...
- Page 11 9/9/24, 12:02 PM Untitled Document There are now a few things left to tidy up around the kiosk. Standing in front of the kiosk, search the right side pouch. You will find Microphone holder x 2 AC power cable Key x 2 1.
- Page 12 9/9/24, 12:02 PM Untitled Document 2. Connect the AC power cable to the power plug at the back side bottom of the kiosk. 3. Use the key to open the bill acceptor compartment on the right side and the speaker compartment on the back side of the kiosk. localhost:56584/userManual_jb-99_rs_ii_karaoke_jukebox_un1290_v3_2.htm 12/15...
- Page 13 9/9/24, 12:02 PM Untitled Document 4. How to operate the karaoke kiosk 1. Power on Connect the AC power cable of the kiosk to a wall outlet. The LED lights for the amplifier, the bill acceptor, and the microphone receivers will turn on. Next turn on the touch screen monitor and the external TV, if connected.
- Page 14 Test the music playing and adjust the sound using the amplifier located on the back of the kios. 5. Audio Ouput An award winning CA-242RA amplifier provides professional karaoke sound in JB-99 RS II system. The controls are located at the back of the kiosk as shown above, away from the customer's reach.
- Page 15 9/9/24, 12:02 PM Untitled Document To connect to an external audio system, find an output RCA (red and white) cable at the back of the kiosk. Connecting additional speakers directly onto the CA-242RA amplifier is not recommended as it will more likely cause blow-out of amplifier or the speakers when playing aloud.
