Summary of Contents for Blizzard Lighting Motif Risplendi 150

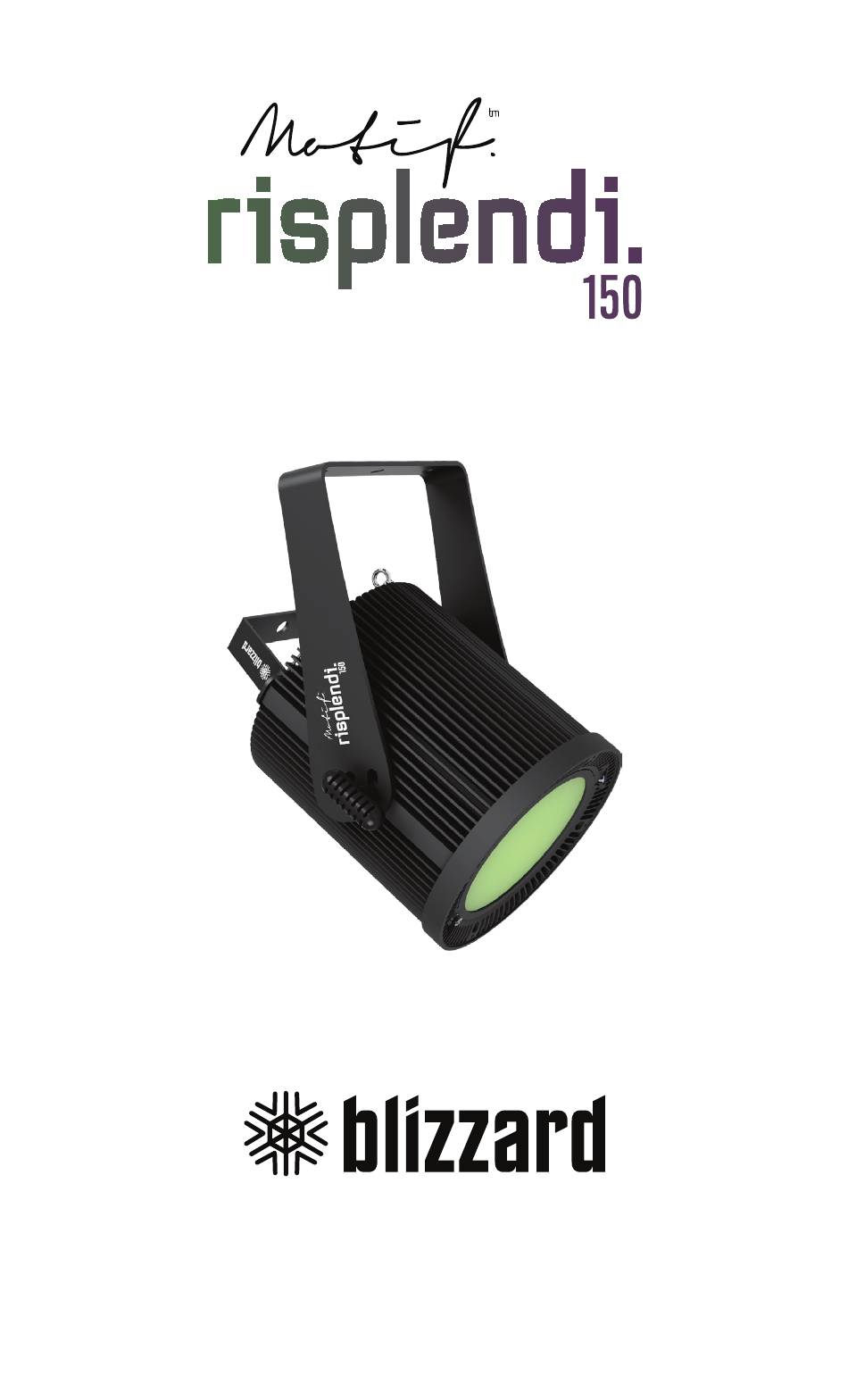

- Page 1 Blizzard Lighting, LLC http://www.blizzardpro.com Waukesha, WI USA Copyright (c) 2023...
-
Page 2: Table Of Contents
Data Sync Feature Fixture Information DMX Values In-Depth Troubleshooting 5. Appendix Keeping Your Motif™ Risplendi As Good As New Returns (Gasp!) Shipping Issues Tech Specs! Dimensional Drawings Page 2 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 3: Getting Started
Disclaimer: The information contained in this document are subject to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. We reserve the right to update the existing, or create a new document to correct any errors or omissions at any time. -
Page 4: Safety Instructions
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www.blizzardpro.com/support. Page 4 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 5: Meet The Motif™ Risplendi 150
Blue Intensity (0 <--> 100%) Amber Intensity (0 <--> 100%) Lime Intensity (0 <--> 100%) Strobe (Slow <--> Fast) Built-In Programs Auto Speed (Slow <--> Fast) Virtual Color Wheel 32-Bit Dimming Page 5 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 6: Motif™ Risplendi 150 Pin-Up Picture
POWER IN AC:100 240V 50Hz 60Hz FUSE POWER SWITCH Ext./Int. Int. Power In Power Switch POWER IN DMX OUT DMX IN SAFETY Ext. Power In DMX In/Out Page 6 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 7: Setup
• Maximum capacitance between conductors – 30 pF/ft. • Maximum capacitance between conductor & shield – 55 pF/ft. • Maximum resistance of 20 ohms / 1000 ft. • Nominal impedance 100 – 140 ohms Page 7 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 8: Cable Connectors
Place a DMX Next terminator on the output of the final fixture to Fixture ensure best communication. in Chain DMX IN DMX OUT Page 8 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 9: Changing The Lenses
The clamp should be rated to hold at least 10x the fixture’s weight to ensure structural stability. Do not mount to surfaces of unknown strength, ensure properly rated rigging is used, and always secure your fixtures with a safety cable. Page 9 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
<ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 10 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
<ENTER> RDM Unique ID (UID) LOAD ST L <ENTER> Restore factory settings PR L <ENTER> Restore factory program settings SEND YES/NO Sync settings between fixtures via DMX Page 11 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 12: Dmx Mode
2.) Now use the <UP/DOWN> buttons to highlight either LIN (Linear), SQR (Square), ISQR (Inverse Square), SCUR (S-Curve), LIN. (Smooth Linear), SQR. (Smooth Square), ISQR. (Smooth Inverse Square), or SCUR. (Smooth S-Curve), then hit <ENTER>. Page 12 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 13: Custom Programs
<UP/DOWN> buttons navigate to ATSP, and press the <ENTER> button. 2.) Make a selection from 0-255, and press <ENTER> to choose a speed (slow <--> fast). Page 13 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 14: Color Calibration Settings
4.) These 10 custom colors can be accessed and edited to your liking at any time, and will be saved even after powering off the fixture. 5.) Your custom colors and programs are also directly accessible from the built-in program channel in DMX mode. Page 14 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 15: Fixture Reset Functions
POW displays the fixtures current power level setting. Under normal conditions, it will be at 100%... but this fixture has built-in overheat protection that may automatically reduce the output level to 80%, or 50% in high temperature situations. Page 15 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 16: Dmx Values In-Depth
Custom program 1 (CH01 in menu settings) 226 <--> 230 Custom program 2 (CH02 in menu settings) 231 <--> 235 Custom program 3 (CH03 in menu settings) 236 <--> 255 No Function Page 16 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 17: Troubleshooting
Make sure all connectors are seated properly and securely. Responding / Use only DMX cables and/or check cables for defects. Responding Errati- Install a DMX signal terminator. cally Reset fixture(s). Page 17 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 18: Appendix
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 18 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 19: Tech Specs
Neutrik AG, Neutrik USA, or any related entity. Neutrik® and power- CON® are registered trademarks of Neutrik AG. 7.9" (200 mm) 10.5" (266 mm) Page 19 Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC... -
Page 20: Dimensional Drawings
Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
