Johnson Controls FT-04A Quick Start Manual page 2

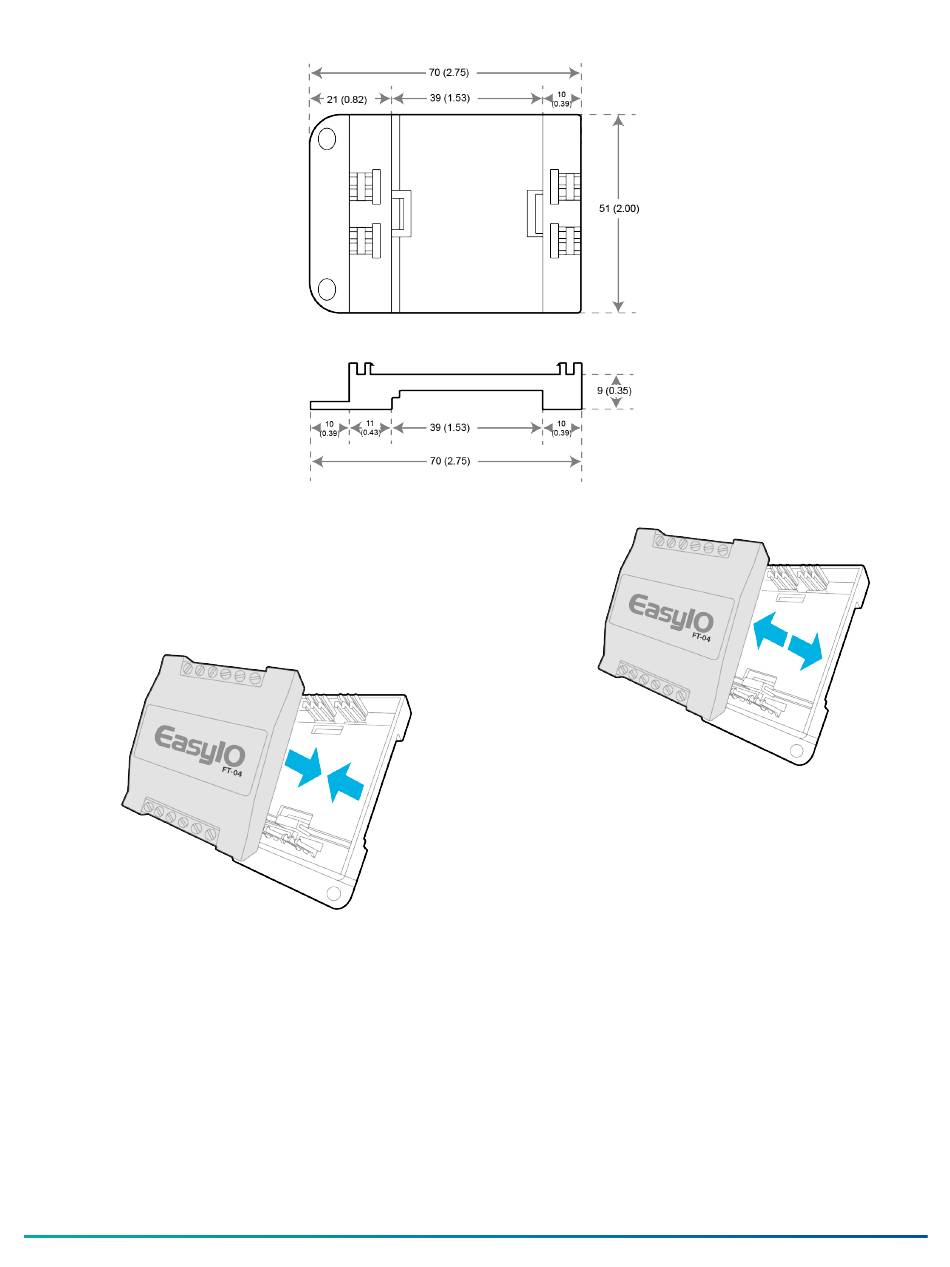

Figure 3: EIO-FT-Clip dimensions, mm (in.)
Attaching the FT Clip to any FTseries
controller
1. Align the FT-04A controller unit slots with the FT
Clip mounting bracket.
2. Lock the mounting bracket into position.
Figure 4: Attaching the mounting bracket
Detaching the FT Clip from any FT series
controller
1. Hold the FT-04A controller in one hand and the FT
Clip in the other hand.
2. Pull apart the FT-04A controller from the FT clip.
2 FT-04A Quick Start Guide
Figure 5: Detaching the FT Clip
Removing the FT-04A cover
1. To unlatch the casing, hold the sides of the cover
firmly between your thumb and finger and squeeze
gently.
