Application
The FX-PCX47 controller is part of the Facility Explorer
family. FX-PCX controllers expand the number of points connected to an FX-PCA, FX-PCG, or FX-PCV
programmable controller or to a supervisory controller.
FX-PCX47 controllers operate on an RS-485 BACnet
Controllers (B-ASCs) and integrate into Johnson Controls
Note: At CCT Release 10.1 and later, a new capability was introduced allowing FX-PCVs, FX-
PCGs, and FX-PCAs to communicate by using either the BACnet or the N2 field bus networking
protocol. The I/O can be connected through the SA bus to a host controller that is using
either the BACnet or the N2 protocol. Only the BACnet protocol is supported when the I/O is
connected directly to the trunk using the FC bus.
North American Emissions Compliance
Canada
This Class (A) digital apparatus meets all the requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
United States
This equipment has been tested and found to comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when this equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area may cause harmful
interference, in which case the users will be required to correct the interference at their own
expense.
Installation
Observe these guidelines when installing a controller:
• Transport the controller in the original container to minimize vibration and shock damage.
• Verify that all parts shipped with the controller.
• Do not drop the controller or subject it to physical shock.
Parts included
• One controller with removable terminal blocks (Power and SA/FC bus are removable)
• One installation instructions sheet
Part No. 24-10144-122 Rev. F
2019-03-22
FX-PCX47 Expansion Input/Output Module
Installation Instructions
FX-PC Series Programmable Controller
®
MS/TP Bus as BACnet Application Specific
®
and third-party BACnet systems.
®
*2410144122F*
(barcode for factory use only)
FX-PCX4711-x

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX-PCX47 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnson Controls FX-PCX47

Summary of Contents for Johnson Controls FX-PCX47

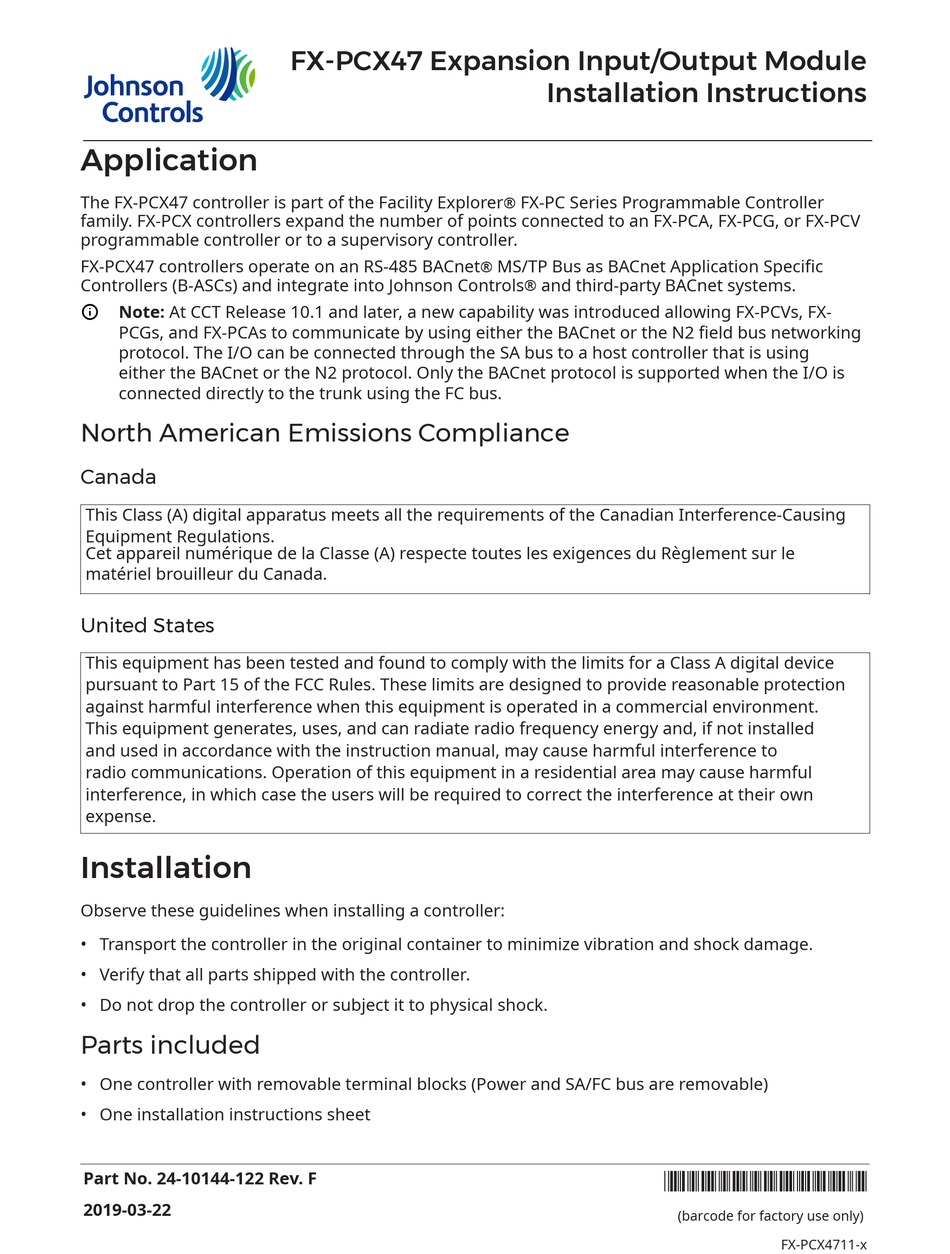

  • Page 1 FX-PCX47 Expansion Input/Output Module Installation Instructions Application The FX-PCX47 controller is part of the Facility Explorer FX-PC Series Programmable Controller ® family. FX-PCX controllers expand the number of points connected to an FX-PCA, FX-PCG, or FX-PCV programmable controller or to a supervisory controller.

  • Page 2: Materials And Special Tools Needed

    • Do not mount the controller in areas where electromagnetic emissions from other devices or wiring can interfere with controller communication. Observe these additional guidelines when mounting an FX-PCX47 controller in a panel or enclosure: • Mount the controller so that the enclosure walls do not obstruct cover removal or ventilation through the controller.

  • Page 3: Din Rail Mount Applications

    Mounting the controller horizontal on 35 mm DIN rail is the preferred mounting method. To mount an FX-PCX47 controller on 35 mm DIN rail: Securely mount a 20 cm (8 in.) or longer section of 35 mm DIN rail horizontal and centered in the desired space so that the controller mounts in the horizontal position shown in Figure 1.
  • Page 4 (or anchors). Carefully tighten all of the screws. Important: Do not overtighten the mounting screws. Overtightening the screws may damage the mounting clips. Figure 2: Back of Controller showing extended mounting clips, DIN rail channel, and mounting dimensions, mm (in.) FX-PCX47 Expansion Input/Output Module Installation Instructions...

  • Page 5: Iom47 Physical Features

    IOM47 physical features Figure 3: FX-PCX47 physical features Table 1: FX-PCX47 physical features callouts and descriptions Callout Physical feature description Binary Output (BO) Source Power Selection Jumper Pin Blocks, 3 – BO Jumper Pin Blocks. (See Table 3.) Device Address DIP Switch Block. (See Setting the device addresses.)
  • Page 6 For detailed information on configuring and wiring an MS/TP Bus, FC bus, and SA bus, refer to the FX-PC Series Controllers MS/TP Communications Bus Technical Bulletin (LIT-12011670) or MS/TP Communications Bus for BCPro System Technical Bulletin (LIT-12011908). FX-PCX47 Expansion Input/Output Module Installation Instructions...
  • Page 7 When connecting the FX-PCX to an SA bus, wire the bus terminal block plugs on the controller and other SA bus devices in a daisy-chain configuration using 4-wire twisted, shielded cable as shown in Figure 5. See I/O wiring ratings and requirements table for more information. FX-PCX47 Expansion Input/Output Module Installation Instructions...
  • Page 8 Figure 6: Pin number assignments for sensor, SA bus and FC bus ports on Controllers Supply power terminal block The 24 VAC supply power terminal block is a gray, removable, 3-terminal plug that fits into a board- mounted jack on the top right of the controller. FX-PCX47 Expansion Input/Output Module Installation Instructions...

  • Page 9: Wireless Network Applications

    ZFR1811 Wireless Field Bus Router Installation Instructions (Part No. 24-10325-29). Termination details A set of Johnson Controls termination diagrams provides details for wiring inputs and outputs to the controllers. See the figures in this section for the applicable termination diagrams.
  • Page 10 Type of Termination diagrams Input/ Output Temperature Sensor Voltage Input - External Source Voltage Input - Internal Source Voltage Input (Self- Powered) Current Input - External Source (Isolated) Current Input - Internal Source (2- wire) FX-PCX47 Expansion Input/Output Module Installation Instructions...
  • Page 11 External Source (in Loop) Feedback from EPP-1000 Dry Contact (Binary UI or BI Input) 0–10 VDC Output to CO or AO Actuator (External Source) 0–10 VDC Output to CO or AO Actuator (Internal Source) FX-PCX47 Expansion Input/Output Module Installation Instructions...
  • Page 12 4–20 mA Output to CO or AO Actuator Voltage (Analog Output) Analog Output (Current) 24 VAC Triac Output CO or AO (Switch Low, External Source) Incremental Control to CO or AO Actuator (Switch Low, Externally Sourced) FX-PCX47 Expansion Input/Output Module Installation Instructions...
  • Page 13 Incremental Control to CO or AO Actuator (Switch High, Externally Sourced) Incremental Control to Actuator (Switch Low, Externally Sourced) 24 VAC Binary Output (Switch Low, Externally Sourced) 24 VAC Binary Output (Switch High, Externally Sourced) FX-PCX47 Expansion Input/Output Module Installation Instructions...
  • Page 14 Incremental Control to Actuator (Switch High, Externally Sourced) Network Stat with SA Bus Phone Jack (Fixed Address = 199) Network Stat with SA Bus Terminals Addressable Network Stat with SA Bus Terminals (Fixed Address = 199) FX-PCX47 Expansion Input/Output Module Installation Instructions...

  • Page 15: Terminal Wiring Guidelines, Functions, Ratings, And Requirements

    • Shielded cable is recommended for input and output cables that are exposed to high electromagnetic or radio frequency noise. I/O wiring ratings and requirements table Table 3: FX-PCX47 terminal blocks, functions, ratings, requirements, and cables Terminal block Terminal Function, ratings, requirements...
  • Page 16 Table 3: FX-PCX47 terminal blocks, functions, ratings, requirements, and cables Terminal block Terminal Function, ratings, requirements Determine wire size label label and maximum cable length Analog Input - Resistive Mode (0–600k See Guideline A in ohm) Table 4. Internal 12 V. 15k ohm pull up...
  • Page 17 Table 3: FX-PCX47 terminal blocks, functions, ratings, requirements, and cables Terminal block Terminal Function, ratings, requirements Determine wire size label label and maximum cable length ANALOG OUTn Analog Output - Voltage Mode (0–10 See Guideline C in VDC) Table 4.
  • Page 18 Table 3: FX-PCX47 terminal blocks, functions, ratings, requirements, and cables Terminal block Terminal Function, ratings, requirements Determine wire size label label and maximum cable length OCOMn Binary Output Common (for OUTn terminal) Note: Each Binary Output Common terminal (OCOMn) is isolated from all other commons, including other Binary Output Common terminals.

  • Page 19: Cable And Wire Length Guidelines

    Table 3: FX-PCX47 terminal blocks, functions, ratings, requirements, and cables Terminal block Terminal Function, ratings, requirements Determine wire size label label and maximum cable length OCOMn Analog Output Signal Common All Same as (Configurable) Configurable Outputs (COs) defined as OUTn.

  • Page 20: Maximum Cable Length Versus Load Current

    • Refer to the FX-PC Series Controllers MS/TP Communications Bus Technical Bulletin (LIT-12011670) or MS/TP Communications Bus for BCPro System Technical Bulletin (LIT-12011908) for detailed information regarding wire size and cable length requirements for the SA and FC buses. FX-PCX47 Expansion Input/Output Module Installation Instructions...
  • Page 21 • The SA Bus and FC Bus wiring recommendations in this table are for MS/TP bus communications at 38,400 baud. For more information, refer to the FX-PC Series Controllers MS/TP Communications Bus Technical Bulletin (LIT-12011670) or MS/TP Communications Bus for BCPro System Technical Bulletin (LIT-12011908). FX-PCX47 Expansion Input/Output Module Installation Instructions...

  • Page 22: Setup And Adjustments

    (LIT-12012356) or the FX-ZFR Series Wireless Field Bus System Technical Bulletin (LIT-12011660) for more information on device addresses in wireless applications. Set a unique and sequential device address for each of the controllers connected on the SA or FC bus starting with device address 4. FX-PCX47 Expansion Input/Output Module Installation Instructions...

  • Page 23: Removing The Controller Cover

    Write each controller's device address on the white label below the DIP switch block on the controller's cover. Table 6 describes the FC bus and SA bus devices addresses for Johnson Controls MS/TP com- munications bus applications. Refer to the FX-PC Series Controllers MS/TP Communications Bus Technical Bulletin (LIT-12011670) or MS/TP Communications Bus for BCPro System Technical Bulletin (LIT-12011908) for more infor- mation on controller device addresses and how to set them on MS/TP buses.

  • Page 24: Setting The End-Of-Line (Eol) Switch

    Replace the cover by placing it squarely over the base, and then gently and evenly push the cover on to the latches until they snap into the latched position. Figure 10: FX-PCX47 with cover removed showing EOL switch and jumper positions Setting the End-of-Line (EOL) switch Each controller has an EOL switch, which, when set to ON, sets the controller as a terminating device on the bus.

  • Page 25: Input/Output Jumper Settings

    Figure 12 shows an example of a controller BOs and the associated power selection jumpers to the right of the BOs terminal block. Figure 12: Example binary Outputs and the associated source power jumper positions FX-PCX47 Expansion Input/Output Module Installation Instructions...

  • Page 26: Ui Current Loop Jumpers

    Important: Current Loop jumpers must be in the Disabled (default) position for all UIs that are not set up to operate as 4-20 mA analog inputs. Current loop jumper ID table The following table identifies the current loop jumpers associated with each UI on the FX-PCX47 controller. Table 7: FX-PCX47 UI Inputs and jumper labels...

  • Page 27: Troubleshooting The Controllers

    Table 9: Accessories ordering information Product code number Description FX-BTCVT-1 Bluetooth Commissioning Converter, with Bluetooth Technology ® FX-ZFR1811-0 Wireless Field Bus Router TP-2420 Transformer, 120 VAC Primary to 24 VAC secondary, 20 VA, Wall Plug FX-PCX47 Expansion Input/Output Module Installation Instructions...

  • Page 28: Technical Specifications

    Binary Outputs (BOs) or Configurable Outputs (COs), which can consume up to 12 VA for each BO or CO; for a possible total consumption of an additional 84 VA (maximum). FX-PCX47 Expansion Input/Output Module Installation Instructions...
  • Page 29 Horizontal on single 35 mm DIN rail mount (preferred), or screw mount on flat surface with three integral mounting clips on controller Housing Enclosure material: ABS and polycarbonate UL94 5VB; Self- extinguishing, Plenum Rated Protection Class: IP20 (IEC 60529) FX-PCX47 Expansion Input/Output Module Installation Instructions...
  • Page 30 NO. 32 CHANGJIJANG RD NEW DISTRICT 45143 ESSEN MILWAUKEE WI 53202 WUXI JIANGSU PROVINCE 214028 GERMANY CHINA © 2019 Johnson Controls. All rights reserved. All specifications and other information shown were current as of document revision and are subject to change without notice. www.johnsoncontrols.com...
