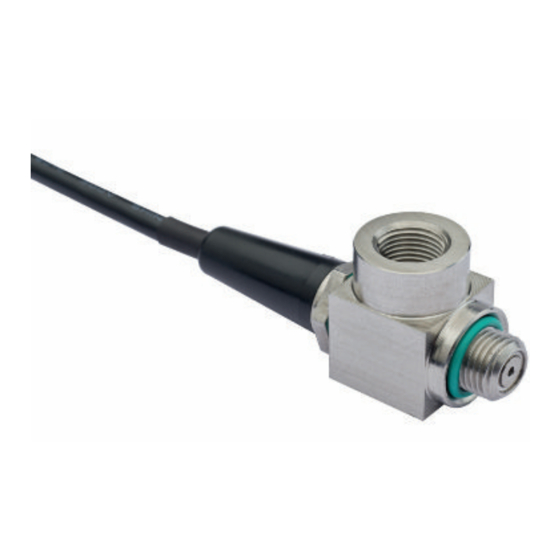

- Page 1 OPERATING INSTRUCTIONS Translation of the Original ACCESSORIES Venting valve...
- Page 2 These operating instructions describe all models and variants of your product. Note that your product may not be equipped with all features described in this document. Pfeiffer Vacuum constantly adapts its products to the latest state of the art without prior notice. Please take into account that online operating instructions can deviate from the printed operating instructions supplied with your product.
-
Page 3: Table Of Contents
Table of contents Table of contents About this manual Validity 1.1.1 Applicable documents 1.1.2 Variants Target group Conventions 1.3.1 Instructions in the text 1.3.2 Pictographs 1.3.3 Labeling on the product 1.3.4 Abbreviations Safety General safety information Safety instructions Safety precautions Proper use Foreseeable improper use Personnel qualification... -
Page 4: About This Manual
Keep the manual for future consultation. 1.1 Validity These operating instructions are a customer document of Pfeiffer Vacuum. The operating instructions describe the functions of the named product and provide the most important information for the safe use of the device. The description is written in accordance with the valid directives. The information in these operating instructions refers to the product's current development status. -
Page 5: Labeling On The Product
This section describes all existing labeling on the product along with its meaning. Rating plate (example) The rating plate is laser-marked on the bottom side of the housing. D-35614 Asslar Mod. Venting Valve 24 V DC, G1/8 PM Z01 295 Made in Germany JJJJ/MM XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX VVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVV Tbl. 2: Labeling on the product 1.3.4 Abbreviations... -
Page 6: Safety
Safety 2 Safety 2.1 General safety information The following 4 risk levels and 1 information level are taken into account in this document. DANGER Immediately pending danger Indicates an immediately pending danger that will result in death or serious injury if not observed. ►... -
Page 7: Proper Use
► Do not carry out your own conversions or modifications on the unit. 2.4 Proper use ► Use the venting valve only for controlled venting on the designated Pfeiffer Vacuum turbopumps. 2.5 Foreseeable improper use Improper use of the product invalidates all warranty and liability claims. Any use that is counter to the purpose of the product, whether intentional or unintentional, is regarded as improper use;... -
Page 8: Product Description
Product description 3 Product description 3.1 Function The Pfeiffer Vacuum venting valve ensures automatic venting of a turbopump after shutting down or in the event of a power failure. Fig. 1: Layout of venting valve 1 Control cable with connecting plug Protective plug... -
Page 9: Installation And Operation
Using unfiltered media for the gas inlet of a vacuum pump may result in particle contamination. There is a risk of damage to, and even destruction of, vacuum components. ► Install suitable filters from the Pfeiffer Vacuum accessories range upstream of the gas inlet, be- fore you use ambient air or other unclean media. -
Page 10: Operating Venting Valve
► Observe the prescribed maximum pressure rise speed of 15 hPa/s. ► Avoid manual and uncontrolled venting of very low volumes. ► Where necessary, use a venting valve from the Pfeiffer Vacuum range of accessories. Parameter Name... -
Page 11: Recycling And Disposal
● Help to reduce the wastage of natural resources. ● Prevent contamination. Pfeiffer Vacuum products contain materials that you must recycle. ► Observe the special precautionary measures when disposing of: – Fluoroelastomers (FKM) –... -
Page 12: Accessories, Technical Data And Dimensions
Filter element | silencer G1/8" P 0988 060 Tbl. 6: Optional accessories 6.2 Technical data Type designation Venting valve, shielded, with AccessLink Part number PM Z01 295 Connection flange (in) G 1/8" Connection flange (out) G 1/8" Weight 45 g Inlet pressure max. -
Page 13: Eu Declaration Of Conformity
Harmonized standards and applied national standards and specifications: DIN EN 61000-3-2: 2019 DIN EN 61000-3-3: 2020 DIN EN 61326-1: 2022 DIN VDE 0580: 2011 Signature: Pfeiffer Vacuum GmbH Berliner Straße 43 35614 Asslar Germany (Daniel Sälzer) Aßlar, 2022-11-23 Managing Director... -
Page 14: Declaration Of Conformity
EN IEC 61000-3-3: 2013 EN IEC 61326-1: 2021 The manufacturer's authorized representative in the United Kingdom and the authorized agent for compiling the technical documentation is Pfeiffer Vacuum Ltd, 16 Plover Close, In- terchange Park, MK169PS Newport Pagnell. Signature: Pfeiffer Vacuum GmbH Berliner Straße 43... - Page 15 15/16...
