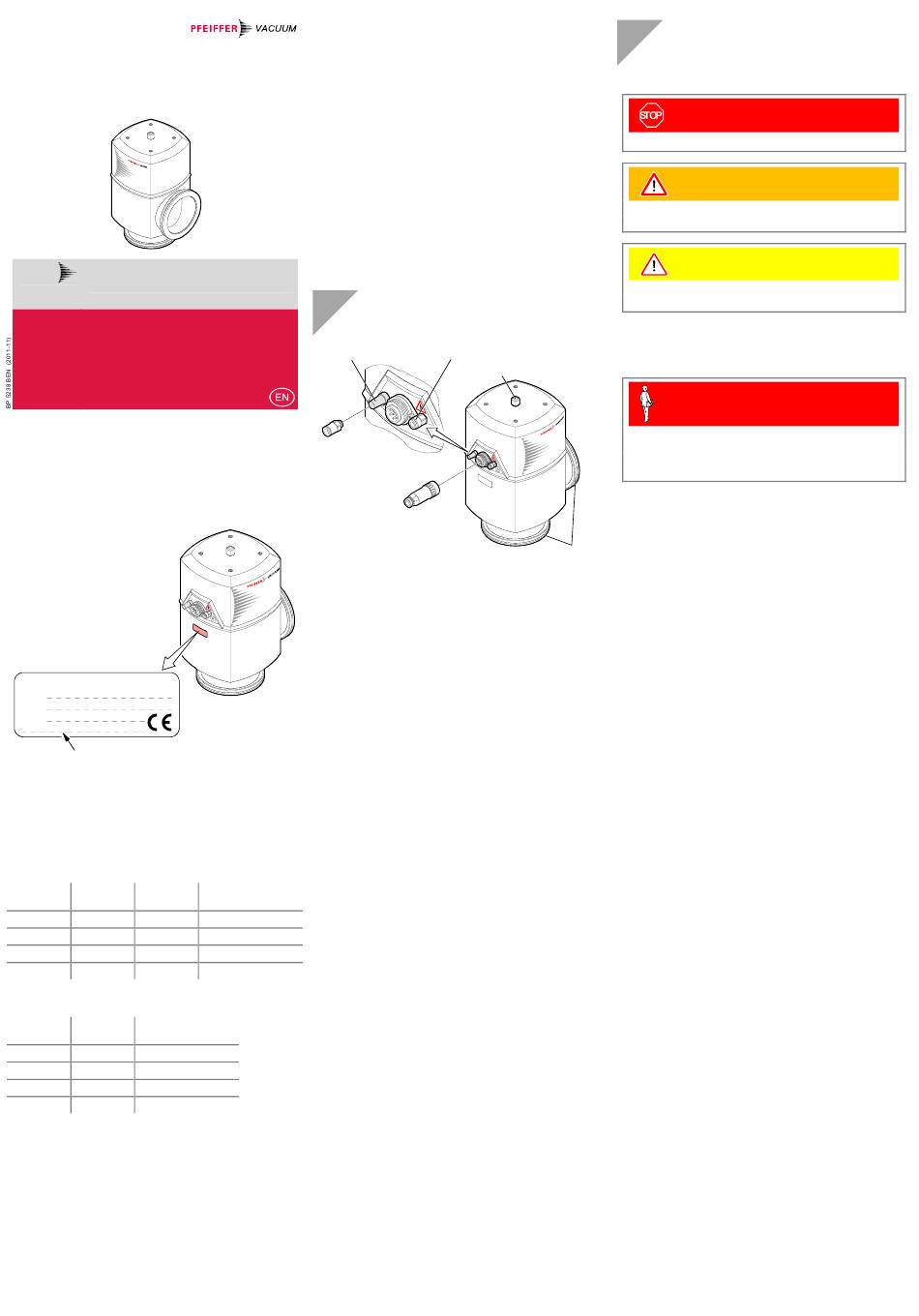

Pfeiffer Vacuum EVB 063 PA/X Series Instruction Sheet

A P A S S I O N
F O R P E R F E C T I O N

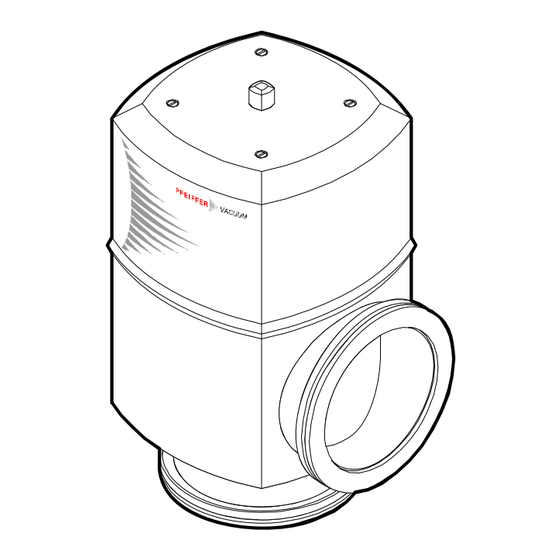

EVB 063 ... 160 PA/X
Angle Valve, pneumatically actuated, bellows
sealed, with position indicator and pilot valve
Instruction Sheet
Product Identification
In all communications with Pfeiffer Vacuum, please specify
the information on the product nameplate. For convenient
reference copy that information into the space provided
below.
Pfeiffer Vacuum, D-35614 Asslar
Typ:
No:
F-No:
Nominal voltage
Validity
This document applies to products with the following part
numbers:
Aluminum housing:
DN 63 DN 100 DN 160
ISO-K ISO-K ISO-K
PFB18201 PFB28201 PFB38201
PFB18101 PFB28101 PFB38101
PFB18401 PFB28401 PFB38401
PFB18501 PFB28501 PFB38501
Stainless steel housing:
DN 63 DN 100 Nominal voltage
ISO-K ISO-K (pilot valve)
PFB18231 PFB28231
24 VDC (=)
PFB18131 PFB28131
24 VAC (∼)
PFB18431 PFB28431
100 ... 115 VAC (∼)
PFB18531 PFB28531
200 ... 240 VAC (∼)
The part number (No) can be taken from the product
nameplate.
If not indicated otherwise in the legends, the illustrations in
this document correspond to valves with the DN 100 ISO-K
vacuum connection. They apply to valves with the
DN 63 ISO–K and DN 160 ISO–K vacuum connection by
analogy.
We reserve the right to make technical changes without prior
notice.
All dimensions in mm.
Intended Use
The Angle Valves are used as shut-off and venting devices
for vacuum applications.
Scope of Delivery
1× valve
1× instant push-in fitting ø6 mm
1× connector
1× Instruction Sheet German
1× Instruction Sheet English
1× Safety Guide
Description
Compressed air
outlet with silencer
Instant push-in
fitting for educting
the compressed air
(enclosed)
Connector for electrical
position indicator and
pilot valve (enclosed)
Functional Principle
When the pilot valve is activated, the pneumatic actuator
opens the angle valve. The visual position indicator becomes
visible, and the electrical position indicator "valve open" is
activated.
When the pilot valve is de-energized, the pneumatic actuator
is vented, and the angle valve is closed by the pressure
spring. The visual position indicator is no longer visible, and
the electrical position indicator "valve closed" is activated.
Nominal voltage
(pilot valve)
24 VDC (=)
24 VAC (∼)
100 ... 115 VAC (∼)
200 ... 240 VAC (∼)
Compressed air inlet
Visual position indicator
Vacuum connection
DN 63 ... 160 ISO-K
Safety
Symbols Used
DANGER
Information on preventing any kind of physical injury.
WARNING
Information on preventing extensive equipment and en-
vironmental damage.
Caution
Information on correct handling or use. Disregard can lead
to malfunctions or minor equipment damage.
Personnel Qualifications
Skilled personnel
All work described in this document may only be carried
out by persons who have suitable technical training and
the necessary experience or who have been instructed by
the end-user of the product.
General Safety Instructions
• Adhere to the applicable regulations and take the neces-
sary precautions for the process media used.
Consider possible reactions between the materials and
the process media.
• Adhere to the applicable regulations and take the neces-
sary precautions for all work you are going to do and con-
sider the safety instructions in this document.
• Before beginning to work, find out whether any vacuum
components are contaminated. Adhere to the relevant re-
gulations and take the necessary precautions when hand-
ling contaminated parts.
Communicate the safety instructions to all other users.
Liability and Warranty
Pfeiffer Vacuum assumes no liability and the warranty be-
comes null and void if end-users or third parties
• disregard the information in this document
• use the product in a non-conforming manner
• make any kind of changes (modifications, alterations etc.)
to the product
• use the product with accessories and options not listed in
the corresponding product documentation.
The end-user assumes the responsibility in conjunction with
the process media used.
Failures due to contamination or wear and tear, as well as
expendable parts (e.g. seals), are not covered by the
warranty.
