- Page 1 OPERATING INSTRUCTIONS Translation of the Original SEALING GAS VALVE...
- Page 2 These operating instructions describe all models and variants of your product. Note that your product may not be equipped with all features described in this document. Pfeiffer Vacuum constantly adapts its products to the latest state of the art without prior notice. Please take into account that online operating instructions can deviate from the printed operating instructions supplied with your product.
-
Page 3: Table Of Contents
Table of contents Table of contents About this manual Validity Variants Target group Conventions 1.4.1 Instructions in the text 1.4.2 Abbreviations Safety General safety information Proper use Foreseeable misuse Product description Shipment Functional description Installation Accessories Technical data and dimensions Technical data Dimensions Declaration of conformity... -
Page 4: About This Manual
Keep the manual for future consultation. 1.1 Validity This operating instructions is a customer document of Pfeiffer Vacuum. The operating instructions de- scribe the functions of the named product and provide the most important information for the safe use of the device. The description is written in accordance with the valid directives. The information in this op- erating instructions refers to the product's current development status. - Page 5 About this manual Illuminating diode Connector assembly with M8 thread Connector assembly with M12 thread Turbopump electronic drive unit (turbo controller) External electronic drive unit for the turbopump (turbo controller) with current supply Drive and magnetic bearing controller of the Turbopump width across flats Tbl.
-
Page 6: Safety
Notes, tips or examples indicate important information about the product or about this docu- ment. 2.2 Proper use ► Use the sealing gas valve only for controllable inlet of inert gases to Pfeiffer Vacuum turbopumps designated for this purpose. ► Use the sealing gas valve to protect against penetration by corrosive media. -
Page 7: Product Description

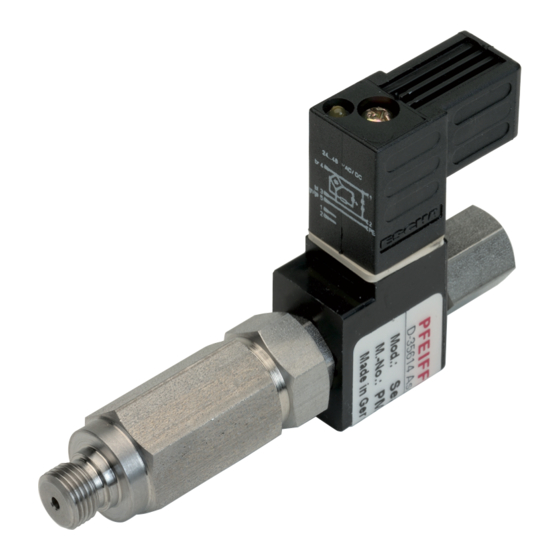

The use of sealing gas serves to protect the vacuum pump in dusty processes or with excessive gas throughputs. Sealing gas prevents the ingress of damaging substances into the motor and bearing area. The Pfeiffer Vacuum sealing gas valve supplies a vacuum pump with a suitable, constant flow rate with electric control. -
Page 8: Installation
Using unfiltered media for the gas inlet of a vacuum pump may result in particle contamination. There is a risk of damage to, and even destruction of, vacuum components. ► Install suitable filters from the Pfeiffer Vacuum accessories range upstream of the gas inlet, be- fore you use ambient air or other unclean media. - Page 9 Installation Fig. 3: Example: Connecting M12 sealing gas valve to TCP 350, TC 400 and TM 700 electron- ic drive units 1 Accessory connection Screw plug 2 Turbopump Locking screw 3 Control line Sealing ring 4 Protective plug Sealing gas connection 5 Sealing gas valve Electronic drive unit Fig.
- Page 10 1. Screw the filter (included in shipment) onto the valve inlet side by hand, if you wish to use dry am- bient air as sealing gas. 2. Alternatively: Connect an inert gas supply (e.g., nitrogen) to the inlet side. 3. If required, use a connection adapter from the Pfeiffer Vacuum accessories range (not included in shipment). 10/16...
-
Page 11: Accessories
Accessories 5 Accessories Description Order number Flange with Pipe Thread, DN 16 ISO-KF, G 1/8" PM 016 780 -T Centering ring with sintered metal filter, pore size 20 μm, FKM/stainless steel, PF 117 216 -T DN 16 ISO-KF Tbl. 3: Optional accessories 11/16... -
Page 12: Technical Data And Dimensions
24 V DC 24 V DC 24 V DC 24 V DC voltage Power consump- tion Weight 161 g 161 g 170 g 170 g 170 g 185 g Tbl. 5: Technical data for Pfeiffer Vacuum sealing gas valves 12/16... -
Page 13: Dimensions
Technical data and dimensions 6.2 Dimensions G1/8" 65.5 SW17 SW13 G1/8" 89.7 96.7 Fig. 5: Sealing gas valve with M8 connecting cable Fig. 6: Sealing gas valve with M12 connecting cable Dimensions in mm 13/16... -
Page 14: Declaration Of Conformity
Harmonized standards and applied national standards and specifications: DIN EN 61000-3-2 : 2014 DIN EN 61000-3-3 : 2013 DIN EN 61326-1 : 2013 DIN VDE 0580 : 2011 Signature: Pfeiffer Vacuum GmbH Berliner Straße 43 35614 Asslar Germany (Daniel Sälzer) Asslar, 2021-05-05... - Page 15 15/16...
