ELCOM REA1 Y Series Original Operating And Assembly Instructions page 2

Application 1: Door call
Outside on the door station the assigned call
push-button is pressed.
The indoor station signals a door call:
The ring tone melody sounds.
The LED flashes and the
i
Ring tone and LEDs signal the door call for a
max. of 90 seconds.
Accepting door call and establishing call
„ Press the speech button .
A call to the door station is established.
The LED lights up permanently. The call
connection is established (max. call duration
3 minutes).
„ To end the call, press the speech button
Call connection and video connection are
terminated.
or:
Open door
„ Press door opener button.
The door of the calling door station is unlocked
and can be opened. An active call is terminat-
ed automatically approx. 10 seconds after the
unlocking.
i
Direct door release: In systems with only one
door station, the door can be unlocked even
without a preceding door call if the door station
has been configured accordingly.
Switch-on lights
The light (e.g. stair light) can be switched on if the
associated automatic light is connected to the line
power supply with relay.
„ Press light button.
The light is switched on .
1)
requires a corresponding installation
1)
Mute ring tone
The ring tone can be muted if necessary.
The indoor station is in standby mode.
„ Press the mute button.
The LED flashes. The ring tone melody is
deactivated.
„ Press the mute button once again.
The LED goes out. The ring tone melody is
reactivated.
i
The mute function should only be used as
briefly as possible in order not to miss any door
calls.
2 Elcom Kommunikation GmbH - Gottfried-Leibniz-Str.1 - D-74172 Neckarsulm - www.elcom.de -
Application 2: Storey call
If the storey bell push-button connected to the
indoor station is pressed, a storey call is signalled:
The ring tone melody for the storey call sounds
on the indoor station.
lights up.
i
If, in the apartment or building unit (i.e. in the
same system branch), up to 2 further, identically
addressed indoor stations are installed, these
also signal the storey call (storey call forward-
ing ).
3)
3) requires the appropriate default setting by the installer
(see setting operating modes)
Application 3: Internal call
again.
In the door communication system, internal calls
from indoor station to indoor station are possible.
The internal call function uses the fixed addresses
F/E or F/F as call destination. The
tons are configured for this purpose (Table 1).
Initiating internal call
The indoor station is in standby mode (no call).
The internal call address F/E or F/F is set on the
indoor station to be called.
„ Press the speech button .
The dial tone for internal call sounds (recurring
tone sequence from 3 identical tones).
The LED
„ Press the
with address F/E.
or:
„ Press the
with address F.
After the button is pressed, an acknowledge
tone can be heard.
If the internal call on the indoor station receiving
the call is accepted, the call connection is
established.
„ Pressing the speech button
nates the connection on one of the two indoor
stations.
requires the appropriate default setting by the installer
3)
(see setting operating modes)
Active call
Device in standby mode
3)
and
lights up.
button to call the indoor station
button to call the indoor station
again termi-
3 s
3 s

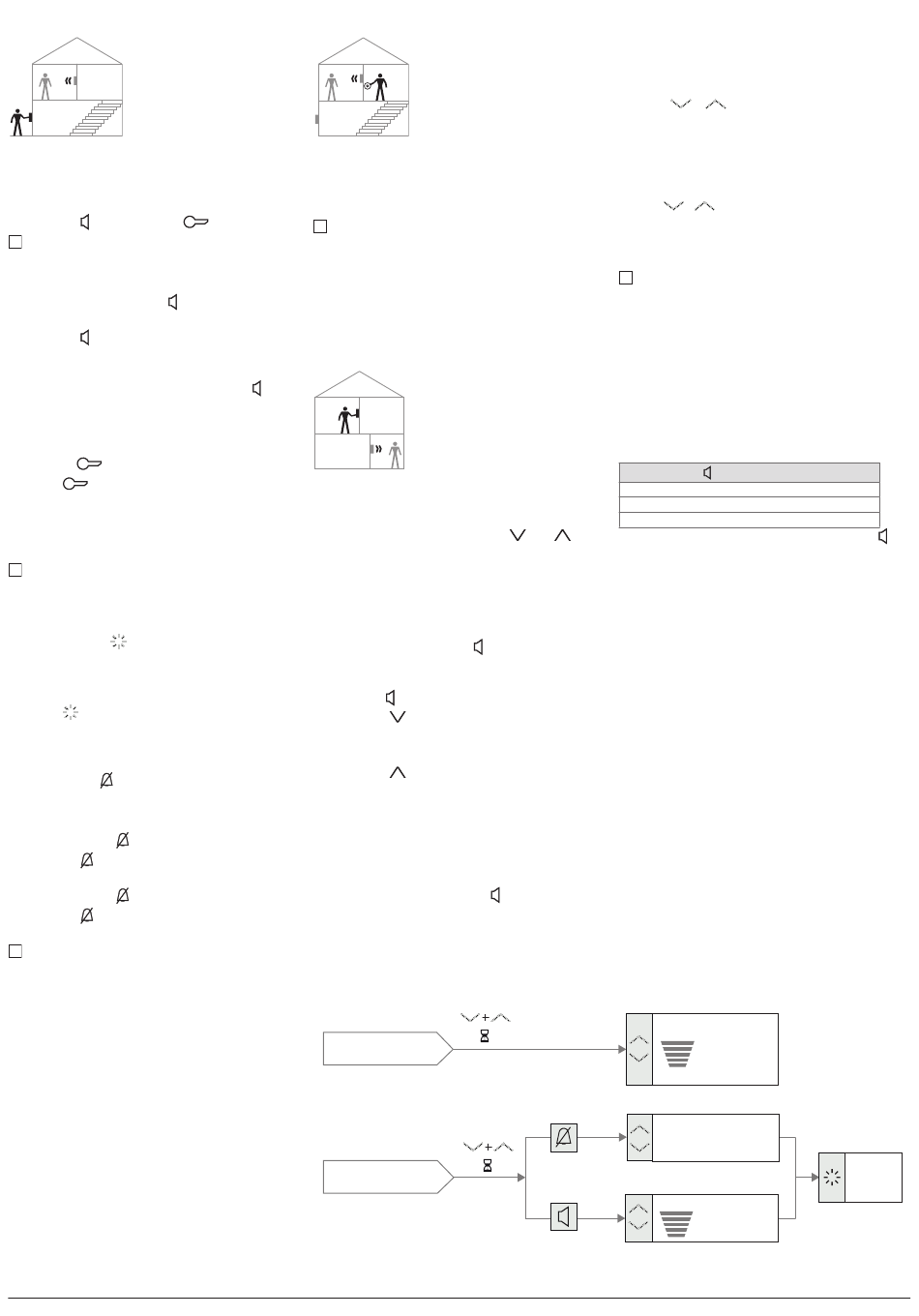

Figure 3: Audio settings
Audio settings (Figure 3)
Setting the microphone sensitivity
During an active call connection, the microphone
sensitivity is adjustable.
„ Keep + buttons pressed simultaneously
for 3 seconds.
The setting mode activates itself with an ac-
knowledge tone. The call connection remains
active.
„ Adjust the microphone sensitivity incrementally
/ .
with
Each of the 5 adjustment levels has its own ac-
knowledge tone. The higher the tone, the higher
the microphone sensitivity.
i
In hands-free mode, the changeover between
listening and speaking takes place automatical-
ly depending to the volume. The changeover
behaviour can be optimised by adjusting the
microphone sensitivity. As a result, the influence
of background noise in the area of the indoor
station can be reduced.
Activating Push-to-Talk
In Push-to-Talk mode the changeover between
listening and speaking takes place manually with
the speech button.
Speech button Function
keep pressed speak
release listen
short press end call
but- „ During an active call connection, keep the
button pressed for more than 2 seconds.
For the current call, hands-free mode is
changed to Push-to-Talk mode.
Microphone sensitivity
(high acknowledge tone)
(low acknowledge tone)
Ring tone melody
1 ... 16
Ring tone volume
Save
& quit
6LE000708B - 09/2015
