3.0 Power Test

3.1. Plug the CyberData device into the network and enable the power switch on
the back of the device. Monitor the LED and LCD activity on the front of the

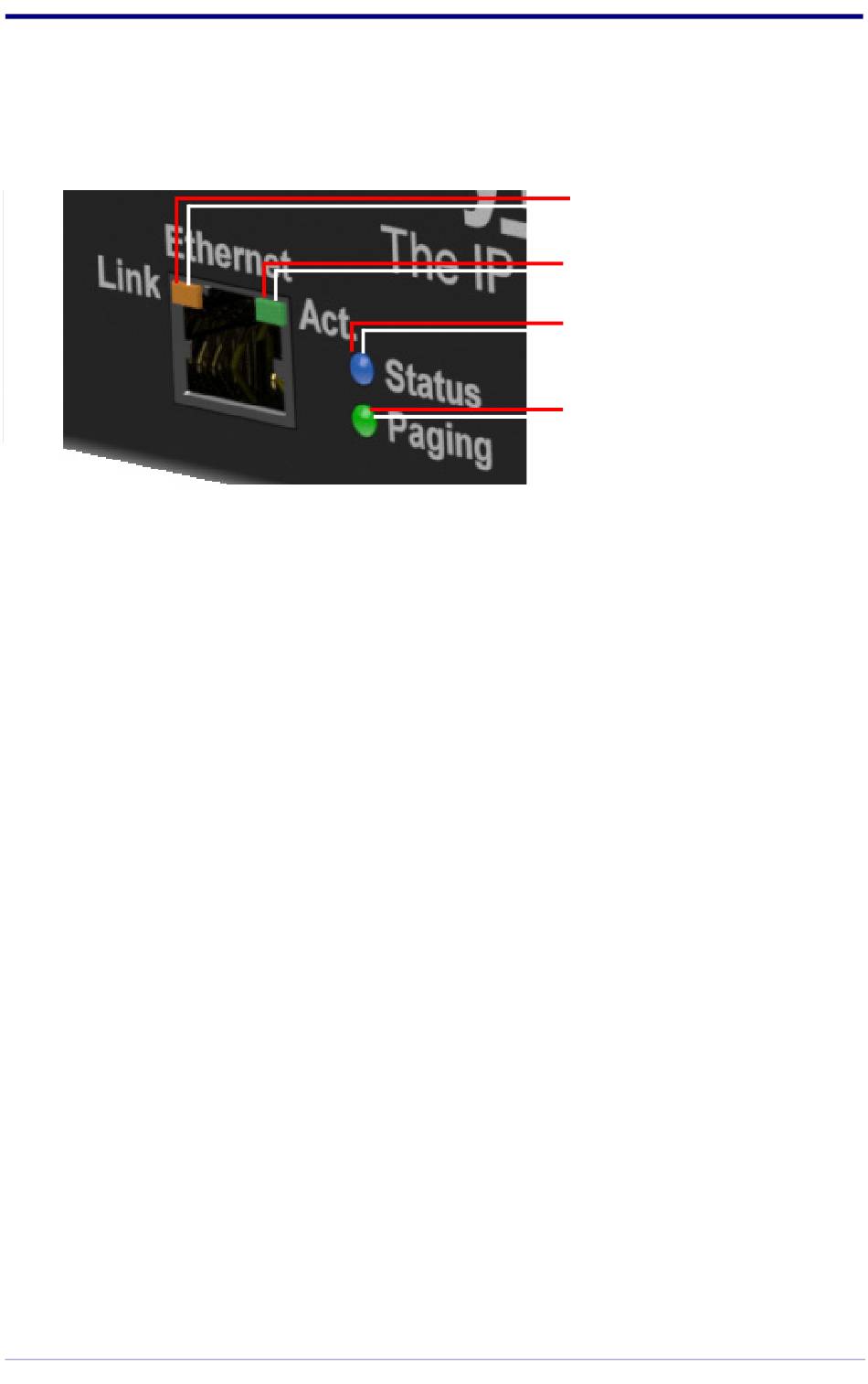

device. See the following figure:
3.2. The GREEN/BLUE Status LED will blink during the boot process. The
GREEN Paging LED will illuminate solid during initial network setup and
then turns off. After the initialization process the GREEN/BLUE Status LED
will blink twice a second.
The GREEN Power LED will illuminate when power is applied to the device.
The LCD Display is off during the initialization process and turns on shortly
after. The LCD Display will illuminate BLUE and show CYBERDATA SIP
PAGING 2570.
The square, YELLOW Link LED above the Ethernet port indicates that the
network connection has been established at 100 Mb. The Link LED
changes color to confirm the auto-negotiated connection speed:
• The Link LED is off at 10 Mbps.
• The Link LED is YELLOW at 100 Mbps.
You can disable Beep on Initialization on the Device Configuration page.
The GREEN Network Activity LED blinks when there is network traffic.
If there is no DHCP server available on the network, it will try 12 times with a
three second delay between tries and eventually fall back to the
programmed static IP address (by default 192.168.1.23). This process will
take approximately 80 seconds.
3.3. When the device has completed the initialization process, press the
TOGGLE button to find the device's IP Address. Another option is to briefly
press and then quickly release the RTFM switch to bring up the RTFM
screen and select Speak IP Address.
This concludes the power test. Go to
in a Test Environment"
Quick Start Guide
Link (YELLOW LED)
Network Activity
(GREEN LED)
Status
(GREEN/BLUE LED)
Paging (GREEN LED)
Section 4.0, "Connecting to a Network
