F&F LE-05d Quick Start Manual page 4

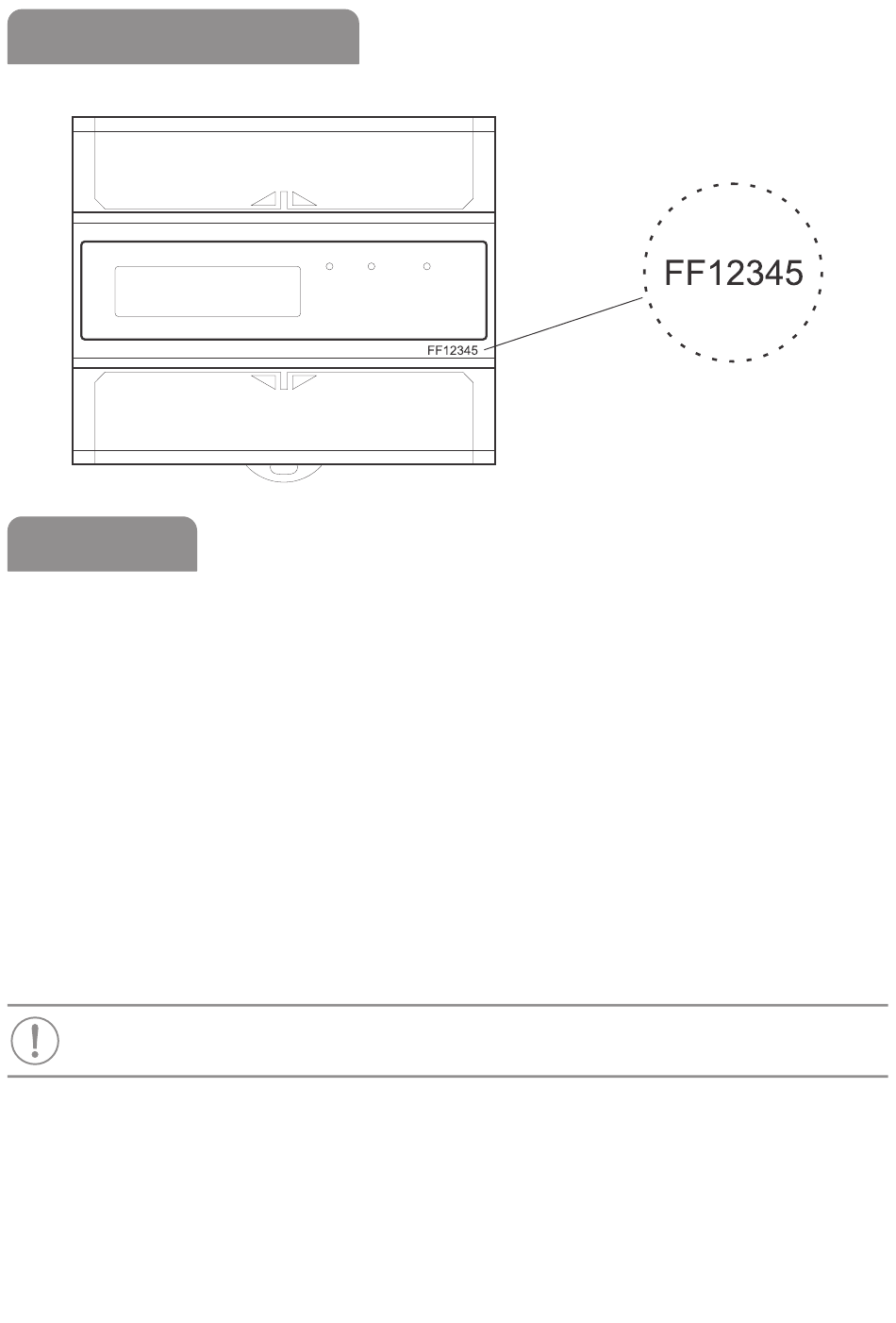

Meter number cont.
Mounting
1. Disconnect the power supply.
2. The indicator mounted on a rail in the distribution box.
3. Use a screwdriver to unscrew the screws and remove the front
counter terminal covers.
4. Connect the voltages of the phases to be monitored as indica-
ted to the terminals 1 (L1), 3 (L2), 5 (L3).
5. Connect the circuit to be measured or a single consumer to the
terminals 2 (L1), 4 (L2), 6 (L3).
6. Connect an additional pulse receiver (optionally) to the termi-
nals 9(+) and 8(–).
An additional pulse receiver is not required.
7. Fit the meter terminal covers.
- 4 -
