  • Page 1 Version 1.0 User's Manual Revision Date: Nov.11, 2011 XTR9145A PICMG 1.3 Full size CPU card User's Manual www.perfectron.com...
  • Page 2 PERFECTRON does not make any commitment to update the information in this manual. PERFECTRON reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval...
  • Page 3 Wear a wrist-grounding strap, available from most electronic Component stores, when handling boards and components. Trademarks Acknowledgments Perfectron is a trademark of Fastwel International Co., Ltd. ® Windows is a trademark of Microsoft Corporation. AMI are trademarks of American Megatrend Inc.

  • Page 4: Table Of Contents

    XTR9145A User’s Manual Table of Contents CHAPTER 1 INTRODUCTION ............1 Specifications .............. 2 Utilities Supported ............4 CHAPTER 2 JUMPERS AND CONNECTORS ......... 5 Board Dimension ............5 Board Layout ............... 6 Jumper Settings ............7 2.3.1 COM1 Mode Select Jumpers for RS232/422/485 (JP3, JP4, JP5) ..............
  • Page 5 XTR9145A User’s Manual Installing the Memory ..........32 CHAPTER 4 HARDWARE DESCRIPTION ........33 Microprocessors ............33 BIOS................33 System Memory ............33 I/O Port Address Map ..........34 Interrupt Controller (IRQ) Map ........35 CHAPTER 5 AMI BIOS UTILITY ............ 37 Starting ..............

  • Page 6: Chapter 1 Introduction

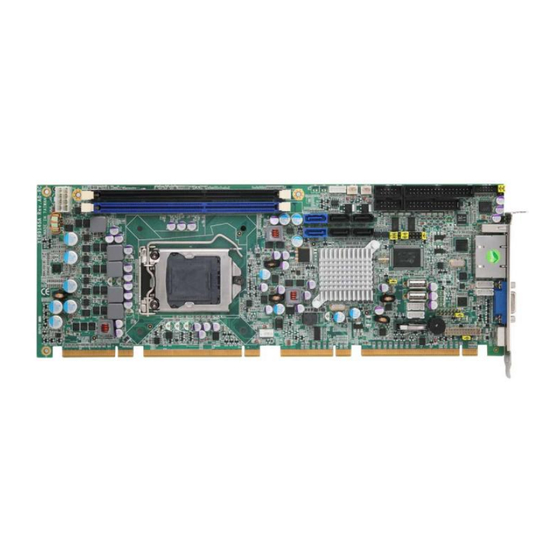

    XTR9145A User’s Manual CHAPTER 1 INTRODUCTION ® The XTR9145A PICMG 1.3 full-size Single Board Computer supports LAG1155 socket for Intel® Core™ i3 Desktop Processor, Intel® Core™ i5 Desktop Processor, Core™ i7 Desktop Processor with 32nm technology and Transfer Rate 1066/1333 MHz. The board integrates ®...

  • Page 7: Specifications

    XTR9145A User’s Manual 1.1 Specifications  CPU Intel® Core™ i3 Desktop Processor  Intel® Core™ i5 Desktop Processor  Intel® Core™ i7 Desktop Processor   System Chipset Intel® Q67   CPU Socket LAG1155 Socket   DRAM Transfer Rate 1066/1333 MHz ...
  • Page 8 XTR9145A User’s Manual  Onboard Graphic Intel® Arrandale integrated Graphic processing unit processors  which goes with Q67 chipset with,VGA,DisplayPort (co-lay with VGA) Memory Size --Intel® DVMT 5.0 supported; preallocated memory  for frame buffer option as OS option: Windows XP: * For Total System Memory <...

  • Page 9: Utilities Supported

    XTR9145A User’s Manual  Audio 10-pin 2.0 pin-header (Intel® HD Audio Digital Header)   PS/2 Keyboard/Mouse Slime type Mini-Din 6-pin connector   Hardware Monitoring Monitoring temperatures, voltages, and cooling fan status   Watchdog Timer Reset Supported (1-255 level) ...

  • Page 10: Chapter 2 Jumpers And Connectors

    XTR9145A User’s Manual CHAPTER 2 JUMPERS AND CONNECTORS 2.1 Board Dimension www.perfectron.com...

  • Page 11: Board Layout

    XTR9145A User’s Manual 2.2 Board Layout www.perfectron.com...

  • Page 12: Jumper Settings

    XTR9145A User’s Manual 2.3 Jumper Settings Proper jumper settings configure the XTR9145A to meet your application purpose. We are herewith listing a summary table of all jumpers and default settings for onboard devices, respectively. Jumper Description Jumper Setting COM1 Mode Selection : RS-232...

  • Page 13: Audio Ampliier Jumper (Jp1)

    XTR9145A User’s Manual 2.3.2 Audio Ampliier Jumper (JP1) Function Jumper Setting Disable (Default) Enable 2.3.3 Clear ME Jumper (JP7) You may need to use this jumper to clear the ME if incorrect ME settings. Function Jumper Setting Normal (Default) Clear ME 2.3.4 PS/2 Power Jumper (JP8)

  • Page 14: Connectors

    XTR9145A User’s Manual 2.4 Connectors Connectors connect this board with other parts of the system. Loose or improper connection might cause problems. Make sure all connectors are properly and firmly connected. Here is a summary table shows you all connectors on the board.

  • Page 15: Smbus Connector (Cn1)

    XTR9145A User’s Manual Connector Label SATA2 SATA 1 6.0Gb(SATA3) SATA Port 2 SATA3 SATA Port 5 SATA4 SATA5 SATA Port 3 SATA6 SATA Port 4 2.4.1 SMBUS Connector (CN1) Connector SMBUS CN1 is for SMBUS interface support. Signal CLOCK DATA...

  • Page 16: Floppy Disk Port Connector (Cn5)

    XTR9145A User’s Manual 2.4.2 Floppy Disk Port Connector (CN5) This board provides a 34-pin header type connector, CN5, supporting up to two floppy drives. The floppy drives may be any one following types: 5.25" 360KB/1.2MB 3.5" 720KB/1.44MB/2.88MB. Signal Signal Signal...

  • Page 17: Internal Usb Connectors (Cn13, Cn15)

    XTR9145A User’s Manual 2.4.3 Internal USB Connectors (CN13, CN15) The 10-pin standard Universal Serial Bus (USB) connectors, CN13, on this board are for installing versatile USB interface peripherals. Signal Signal CN13 USB_PWR USB_PWR USB6- USB7- USB6+ USB7+ 10 GND The 5-pin standard Universal Serial Bus (USB) connectors, CN15, on this board are for installing versatile USB interface peripherals.

  • Page 18: Lan2 Led Connectors (Cn9)

    XTR9145A User’s Manual 2.4.4 LAN2 LED Connectors (CN9) Signal + 3.3V LINK_ACT LED(-) 100, Low Active +3.3V 1000, Low Active 2.4.5 LAN1 LED Connectors (CN10) Signal + 3.3V LINK_ACT LED(-) 100, Low Active +3.3V 1000, Low Active 2.4.6 DB15 CRT Connector (CN12) CN12 is a DB15 connector commonly used for the CRT Monitor.

  • Page 19: Dvi-D Pin Header (Cn16)

    XTR9145A User’s Manual 2.4.7 DVI-D Pin Header (CN16) This board supports a 24 pin header(CN16) for DVI-D via “DVI-D cable”. Data2- Data2+ N.C. N.C. DDC CLK DDC Data N.C. Data1- Data1+ N.C. N.C. Data0- Data0+ N.C. N.C. Clock+ Clock- www.perfectron.com...

  • Page 20: Front Panel Connector (Cn14)

    XTR9145A User’s Manual 2.4.8 Front Panel Connector (CN14)  Power LED This 3-pin connector denoted as Pin 1,3 and 5 connects the system power LED indicator to such a switch on the case. Pin 1 is assigned as +, and Pin 5 as -. The Power LED lights up when the system is powered ON.

  • Page 21: Ps/2 Keyboard, Mouse Connectors (Cn17)

    XTR9145A User’s Manual 2.4.9 PS/2 Keyboard, Mouse Connectors (CN17) This board supports a PS/2 Keyboard and Mouse interface. Connector is a DIN connector for PS/2 keyboard Connection via “Y” Cable. Signal Keyboard Data Mouse Data Keyboard Clock 2.4.10 USB Port Connectors (CN4, CN6, CN11)

  • Page 22: Rs232/422/485 Pin Assignment (Com1)

    XTR9145A User’s Manual 2.4.11 RS232/422/485 Pin Assignment (COM1) The serial interface for the board consists of COM1 support for RS- 232 and COM1 for RS-232/RS-422/RS-485. Signal Name RS-232 RS-422 RS-485 DATA- Data Carrier Detect (DCD) No connector No connector Data Set Ready (DSR)

  • Page 23: Com Port Rs-232 Pin Assignment (Com2)

    XTR9145A User’s Manual 2.4.12 COM Port RS-232 Pin Assignment (COM2) COM2 Serial Port 10-pin (Box-header) Connector Pin Assignment list Signal Signal Data Carrier Detect (DCD) Data Set Ready (DSR) Receive Data (RXD) Request to Send (RTS) Transmit Data (TXD) Clear to Send (CTS)

  • Page 24: Atx 8 Pin 12V In Connector (Atx1)

    XTR9145A User’s Manual 2.4.14 ATX 8 Pin 12V IN Connector (ATX1) You can connect it to the ATX12V power supply for CPU Core Voltage. Signal +12V +12V +12V +12V 2.4.15 A CPU fan is always needed for cooling CPU heat (FAN1) The CPU fan connector FAN1 provides power to the CPU fan.

  • Page 25: Ethernet Rj-45 Connectors (Cn7)

    XTR9145A User’s Manual 2.4.17 Ethernet RJ-45 Connectors (CN7) The RJ-45 connectors are for Ethernet. To connect the board to 100- Base-T or 1000-Base-T hub, just plug one end of the cable into LAN1 and connect the other end (phone jack) to a 100-Base-T hub or 1000-Base-T hub.

  • Page 26: Parallel Port Connector (Print1) Print Port Connector

    XTR9145A User’s Manual 2.4.18 Parallel Port Connector (PRINT1) Print Port Connector This board has a multi-mode parallel port to support:  Standard Mode: IBM PC/XT, PC/AT and PS/2 are compatible with bi-directional parallel port.  Enhanced Mode: Enhance parallel port (EPP) is compatible with EPP 1.7 and EPP 1.9 (IEEE 1284 compliant).

  • Page 27: Sata Connectors

    XTR9145A User’s Manual 2.4.19 SATA Connectors (SATA1 ,SATA2 ,SATA3 ,SATA4 ,SATA5 , SATA6) These SATA connectors are for high-speed SATA interface ports and they can be connected to hard disk devices. Signal SATA_TX+ SATA_TX- SATA_RX- SATA_RX+ www.perfectron.com...

  • Page 28: Chapter 3 Hardware Installation

    XTR9145A User’s Manual CHAPTER 3 HARDWARE INSTALLATION ® Before installing the processor, please access Intel website for more detail information Processor Integration Video (LGA1155): http://www.intel.com/support/tw/processors/sb/CS-030860.htm . 3.1 Installing the Processor The LGA1155 processor socket comes with a cover to protect the processor.
  • Page 29 XTR9145A User’s Manual Step2 Removing the socket protective cover: Place thumb against the front edge of the protective cover and  rest index finger on the rear grip to maintain control of the cover. Lift the front edge of the protective cover to disengage from the ...
  • Page 30 XTR9145A User’s Manual Step3 Processor installation: Lift processor package from shipping media by grasping the  substrate edges. Scan the processor package gold pads for any presence of foreign material. If necessary, the gold pads can be wiped clean with a soft lint-free cloth and isopropyl alcohol.
  • Page 31 XTR9145A User’s Manual Grasp the processor with thumb and index finger along the top  and bottom edges. (Do not touch the Orientation Notches.) The socket will have cutouts for your fingers to fit into (see image below). Carefully place the processor into the socket body vertically (see ...
  • Page 32 XTR9145A User’s Manual Verify that package is within the socket body and properly  connected to orientation keys. Close the socket (see image below):  A. Gently lower the load plate. B. Make sure load plate's front edge slides under the shoulder screw cap as the lever is lowered.
  • Page 33 XTR9145A User’s Manual Close the socket (see image below):  A Gently lower the load plate. B Make sure load plate's front edge slides under the shoulder screw cap as the lever is lowered. C Catch the lever under the top plate's corner tab being cautious not to damage the motherboard with the tip of the lever.
  • Page 34 XTR9145A User’s Manual Step4 Fan heatsink handling: 1. Orientate the CPU cooling fan to fixing holes on the board. 2. Screw the CPU cooling fan onto the board. 3. Make sure the CPU fan is plugged to the CPU fan connector.
  • Page 35 XTR9145A User’s Manual Step5 Removing the processor: Open the socket:  A. Disengage the load lever. B. Open the load plate. Remove the Processor package, holding along the top and  bottom edges, or by using a vacuum pen. Maintain Processor horizontal and remove Processor with a ...
  • Page 36 XTR9145A User’s Manual i. Engage protective cover retention features to outside of LGA1155 Socket, AND align 2 cover corners to socket corners (This step is critical to avoid Bent Contact Damage!) ii. Lower protective cover to attach to the LGA1155 Socket on...

  • Page 37: Installing The Memory

    XTR9145A User’s Manual 3.2 Installing the Memory The board supports four 240-pin DDR3 DIMM memory sockets with maximum memory capacity up to 8GB. Please follow steps below to install the memory modules: Push down latches on each side of the DIMM socket.

  • Page 38: Chapter 4 Hardware Description

    Make sure all correct settings are arranged for your installed microprocessor to prevent the CPU from damages. 4.2 BIOS The XTR9145A Series uses AMI Plug and Play BIOS with a single 32Mbit SPI Flash. 4.3 System Memory The XTR9145A Series supports Two 240-pin DDR3 DIMM sockets for a maximum memory of 8GB DDR3 SDRAMs.

  • Page 39: I/O Port Address Map

    XTR9145A User’s Manual 4.4 I/O Port Address Map ® ™ ™ ™ The Intel Core i7 / Core i5 / Core i3 processors can communicate via I/O ports. There are total 1KB port addresses available for assignment to other devices via I/O expansion cards...

  • Page 40: Interrupt Controller (Irq) Map

    XTR9145A User’s Manual 4.5 Interrupt Controller (IRQ) Map The XTR9145A Series is a 100% PC compatible control board. It consists of 16 interrupt request lines, and four out of them can be programmable. The mapping list of the 16 interrupt request lines is shown as the following table.

  • Page 41: Chapter 5 Ami Bios Utility

    XTR9145A User’s Manual CHAPTER 5 AMI BIOS UTILITY This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. 5.1 Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <F2> key immediately.
  • Page 42 XTR9145A User’s Manual The Left <Arrow> keys allow you to select a setup  screen. Left/Right The Up and Down <Arrow> keys allow you to select a  setup screen or sub-screen. Up/Down The Plus and Minus <Arrow> keys allow you to +...

  • Page 43: Main Menu

    XTR9145A User’s Manual 5.3 Main Menu When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section.

  • Page 44: Advanced Menu

    XTR9145A User’s Manual 5.4 Advanced Menu  Launch PXE OpROM Use this item to enable or disable the Boot ROM function of the onboard LAN chip when the system boots up.  Launch Storage OpROM This item can set enable or disable the storage device option ROM with CF device.
  • Page 45 XTR9145A User’s Manual  ACPI Settings You can use this screen to select options for the ACPI Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 46 XTR9145A User’s Manual  Trusted Computing You can use this screen to select options for the Trusted Computing, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 47 XTR9145A User’s Manual  CPU Configuration This screen shows the CPU Configuration, and you can change the value of the selected option. Active Processor Cores  This feature controls the number of cores to enable in each processor package. Intel Virtualization Technology ...
  • Page 48 XTR9145A User’s Manual  SATA Configuration You can use this screen to select options for the SATA Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 49 XTR9145A User’s Manual  Intel IGD SWSCI OpRegion The Intel IGD SWSCI OpRegion allows users to change the integrated graphic device settings. DVMT/FIXED Memory  Allow you to allocate a fixed amount of system memory as graphics memory. Here are the options for your selection, 128MB, 256MB and Maximum DVMT.
  • Page 50 XTR9145A User’s Manual  USB Configuration You can use this screen to select options for the USB Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 51 XTR9145A User’s Manual  Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 52 XTR9145A User’s Manual  H/W Monitor This screen shows the Hardware Health Configuration, and a description of the selected item appears on the right side of the screen Smart Fan Function  This item can enable or disable the Smart Fan function.
  • Page 53 XTR9145A User’s Manual  AMT Configuration You can use this screen to select options for the Intel AMT Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.

  • Page 54: Chipset Menu

    XTR9145A User’s Manual 5.5 Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus:  North Bridge ...
  • Page 55 XTR9145A User’s Manual  North Bridge Initate Graphic Adapter  This is allows user to select which graphics controller to be the primary graphic device when booting up. IDG Memory  Allows user to slecet integrated graphic memory.  South Bridge...
  • Page 56 XTR9145A User’s Manual USB Configuration  You can use this item to set the USB Configuration.  Me Subsystem It is strongly recommended that you do not modify these options unless you are an advanced user. www.perfectron.com...

  • Page 57: Boot Menu

    XTR9145A User’s Manual 5.6 Boot Menu The Boot menu allows users to change boot options of the system. You can select any of the items in the left frame of the screen to go to the sub menus:  Setup Prompt Timeout ...

  • Page 58: Security Menu

    XTR9145A User’s Manual 5.7 Security Menu The Security menu allows users to change the security settings for the system. Administrator Password  This item indicates whether an administrator password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

  • Page 59: Save & Exit Menu

    XTR9145A User’s Manual 5.8 Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or failsafe default values. Save Changes and Exit  When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu. Select Save Changes and Exit from the Save &...
  • Page 60 XTR9145A User’s Manual Save Changes and Reset  When you have completed the system configuration changes, select this option to leave Setup and reboot the computer so the new system configuration parameters can take effect. Select Save Changes and Reset from the Save & Exit menu and press <Enter>.

  • Page 61: Appendix Awatchdog Timer

    XTR9145A User’s Manual APPENDIX A WATCHDOG TIMER Watchdog Timer Setting After the system stops working for a while, it can be auto-reset by the Watchdog Timer. The integrated Watchdog Timer can be set up in the system reset mode by program.
  • Page 62 XTR9145A User’s Manual Set base timer :O 2E F6 O 2F M=00, 01, 02 FF(Hex) ,Value=0 to 255  WDT counting re-set timer :O 2E F6 O 2F M ; M=00,01,02,…FF(See below table)  IF No re-set timer : WDT time-out, generate RESET...

  • Page 63: Appendix Bpci Irq Routing

    XTR9145A User’s Manual APPENDIX B PCI IRQ ROUTING ® PICMG PCI IRQ Routing Device Slot PCI Slot 0 BCDA PCI Slot 1 CDAB PCI Slot 2 DABC PCI Slot 3 ABCD www.perfectron.com...

  • Page 64: Appendix Cconfiguring Sata For Raid Function

    XTR9145A User’s Manual APPENDIX C CONFIGURING SATA FOR RAID FUNCTION Configuring SATA Hard Drive(s) for RAID Function ® (Controller: Intel Q67) Please follow up the steps below to configure SATA hard drive(s): Install SATA hard drive(s) in your system. Enter the BIOS Setup to configure SATA controller mode and boot sequence.
  • Page 65 XTR9145A User’s Manual Configuring SATA controller mode and boot sequence by the BIOS Setup You have to make sure whether the SATA controller is configured correctly by system BIOS Setup and set up BIOS boot sequence for the SATA hard drive(s) (2)-1-1 Turn on your system, and then press the Del button to enter BIOS Setup during running POST (Power-On Self Test).
  • Page 66 XTR9145A User’s Manual (2)-1-2 A list of options appears, please select RAID. www.perfectron.com...
  • Page 67 XTR9145A User’s Manual (2)-2 Set CDROM for First Boot Device under the Boot Settings menu to boot CD-ROM after system restarts. www.perfectron.com...
  • Page 68 XTR9145A User’s Manual (2)-3 Save and exit the BIOS Setup. (3) Configuring RAID by the RAID BIOS Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed to Section 4 if you do not want to create a RAID.
  • Page 69 XTR9145A User’s Manual (3)-2 After you press <CTRL+ I>, the Create RAID Volume screen will appear. If you want to create a RAID array, select the Create RAID Volume option in the Main Menu and press ENTER. www.perfectron.com...
  • Page 70 XTR9145A User’s Manual (3)-3-1 After entering the CREATE VOLUME MENU screen, you can type the disk array name with 1~16 letters (letters cannot be special characters) in the item “Name”. (3)-3-2 When finished, press ENTER to select a RAID level. There are three RAID levels, RAID0, RAID1 and RAID5 &...
  • Page 71 XTR9145A User’s Manual (3)-4 Set the stripe block size. The KB is the standard unit of stripe block size. The stripe block size can be 4KB to 128KB. After the setting, press ENTER for the array capacity. (3)-5 After setting all the items on the menu, select Create Volume and press ENTER to start creating the RAID array.
  • Page 72 XTR9145A User’s Manual (3)-6 When prompting the confirmation, press “Y“ to create this volume, or “N“ to cancel the creation. After the creation is completed, you can see detailed information about the RAID Array in the DISK/VOLUME INFORMATION section, including RAID mode, disk block size, disk name, and disk capacity, etc.
  • Page 73 XTR9145A User’s Manual  Delete RAID Volume If you want to delete a RAID volume, select the Delete RAID Volume option in Main Menu. Press ENTER and follow on-screen instructions. Please press [ESC] to exit the RAID BIOS utility. Now, you can proceed to install a SATA driver controller and the operating system.
  • Page 74 XTR9145A User’s Manual Installing the SATA controller driver during the OS installation Now, the SATA driver disk is ready, and BIOS settings configured, you can proceed to install Windows 2000/XP onto your SATA hard drive using the SATA driver. Here is an example for Windows XP installation.
  • Page 75 XTR9145A User’s Manual (5)-2 When you see the screen below, insert the floppy disk containing the SATA driver and press “S”. www.perfectron.com...
  • Page 76 XTR9145A User’s Manual (5)-3 If the Setup correctly recognizes the driver of the floppy disk, a controller menu will appear below. Use the ARROW keys to select Intel® DeskTOP /Workstation/Server/ Express Chipset SATA RAID Controller and press ENTER. Then it will begin to load the SATA driver from the floppy disk.

  • Page 77: Appendix D Iamt Settings

    XTR9145A User’s Manual APPENDIX D iAMT SETTINGS ® ® The Intel Active Management Technology (Intel iAMT) has decreased a major barrier to IT efficiency that uses built-in platform capabilities and popular third-party management and security applications to allow IT a better discovering, healing, and protection their networked computing assets.

  • Page 78: Set & Change Password

    XTR9145A User’s Manual D.2 Set & Change Password You will be asked to set a password when first log in. The default password is ‘admin’. Change Password You will be asked to change the password before setting ME www.perfectron.com...
  • Page 79 XTR9145A User’s Manual You must confirm your new password while revising. (as Remark The new password must contain: (example: !!11qqQQ) (default value)Eight characters  One upper case  One lower case  One number  One special symbol, such as ! 、 $ or ; ，...

  • Page 80: Intel® Iamt Settings

    XTR9145A User’s Manual D.3 Intel® iAMT Settings ® Select Intel iAMT Configuration and press <ENTER>. ® 1. Key in the Host Name. If Intel iAMT set to ‘DHCP‘, the Host name must be identical to the operating system mechanic. www.perfectron.com...
  • Page 81 XTR9145A User’s Manual 2. Select TCP/IP to get into Network interface, and set it to ‘ENABLED’; into DHCP Mode, and set it to ‘DISABLED’ (as Remark 2) ; into Domain name, and set the Intel Management Engine domain name, such as ‘AMT.intel.com’.
  • Page 82 XTR9145A User’s Manual you can make th Remark 2 DHCP Mode ‘DISABLED‘: if DHCP Mode is disabled, e following settings:  IP address  Subnet mask www.perfectron.com...
  • Page 83 XTR9145A User’s Manual  Default Gateway address  Preferred DNS address www.perfectron.com...
  • Page 84 XTR9145A User’s Manual  Alternate DNS address  Domain name Exit from MEBx after completing the iAMT settings. www.perfectron.com...

  • Page 85: Iamt Web Console

    XTR9145A User’s Manual D.4 iAMT Web Console From a web browser, please type http://(IP ADDRESS):16992, which connects to iAMT Web. Example: http://10.1.40.214:16992 To log on, you will be required to type in username and password for access to the Web. USER: admin (default value) PASS: (MEBx password) www.perfectron.com...
  • Page 86 XTR9145A User’s Manual 3. Enter the iAMT Web. 4 Click Remote Control, and select commands on the right side. 5. When you have finished using the iAMT Web console, close the Web browser www.perfectron.com...

  • Page 87: Appendix E Picmg

    XTR9145A User’s Manual APPENDIX E ® PICMG v1.3 INTERFACE DEFINITION x16 PCIe Connector A x16 PCIe Connector C Side B Side A Side B Side A USB0P USB0N USB1P USB1N WAKE# USB2P PWRBT# PME# USB2N PWRGD PSON# USB3P RST# PERST#...
  • Page 88 XTR9145A User’s Manual Mechanical Key 27 GND b_PERp3 27 GND 28 GND b_PERn3 28 GND 29 REFCLK0+ 29 N.C 30 REFCLK0- 30 N.C 31 GND REFCLK1+ 31 N.C 32 N.C 32 RSVD REFCLK1- 33 N.C 33 REFCLK2+ 34 N.C 34 REFCLK2- 35 N.C...
  • Page 89 XTR9145A User’s Manual Mechanical Key 58 a_PETn3 58 GND 59 GND a_PERp3 59 +5V 60 GND a_PERn3 60 +5V 61 a_PETp4 61 +5V 62 a_PETn4 62 +5V 63 GND a_PERp4 63 GND 64 GND a_PERn4 64 GND 65 a_PETp5 65 GND...
  • Page 90 XTR9145A User’s Manual X8 PCIe Connector B X8 PCIe Connector D Side B Side A Side B Side A +5Vaux +5Vaux 1 INTB# INTA# 2 INTD# INTC# a_PETp8 3 GND a_PETn8 4 REQ3# GNT3# a_PERp8 5 REQ2# GNT2# a_PERn8 6 PCI_RST#...
  • Page 91 XTR9145A User’s Manual Chanical Key 29 a_PETp14 29 C/BE2# 30 a_PETn14 30 PCI_PRST# FRAME# 31 GND a_PERp14 31 IRDY# TRDY# 32 GND a_PERn14 32 DEVSEL# 33 a_PETp15 33 LOCK# STOP# 34 a_PETn15 34 PERR# 35 GND a_PERp15 35 GND C/BE1#...
