PerfecTron OXY5741A User Manual

Rugged open-standard ebx sbc expansion, extend temperture -40 c -85 c
Hide thumbs Also See for OXY5741A:
Table of Contents

Advertisement

Quick Links

Download this manual
Version 1.3

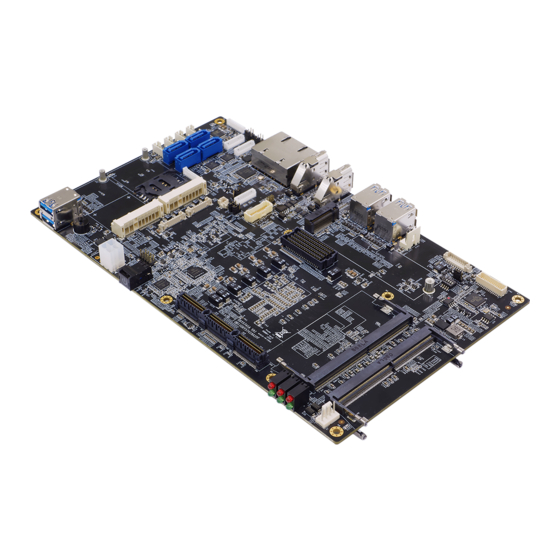

OXY5741A
Rugged Open-Standard EBX SBC Expansion,
Extend Temperture -40°C~85°C
www.perfectron.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OXY5741A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PerfecTron OXY5741A

Summary of Contents for PerfecTron OXY5741A

  • Page 1 Version 1.3 OXY5741A Rugged Open-Standard EBX SBC Expansion, Extend Temperture -40°C~85°C www.perfectron.com...

  • Page 2: Safety Information

    All rights reserved. No part of this publication may be reproduced in any form or by any means, without prior written permission from the publisher.  All trademarks are the properties of the respective owners.  All product specifications are subject to change without prior notice www.perfectron.com...

  • Page 3: Rohs Compliance

    The task force will ensure that we follow the standard Perfectron development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which Perfectron are renowned.

  • Page 4: Revision History

    Add Mechanical Dimensions V1.2 2021/9/10 Modify DIO Pin Define V1.3 2021/12/7 Typesetting modification Packing List Item Description Q’ty OXY5741A EBX SBC CD(Drivier + User’s manual) If any of the above items is damaged or missing, please contact your local distributor. www.perfectron.com...

  • Page 5: Table Of Contents

    3.4.6 IT8786 Super IO Configuration ..........................28 3.4.7 HardwareMonitor ..............................29 3.4.8 USB configuation ..............................30 3.4.9 CSM Configuration ..............................30 3.4.10 NVMe Configuration.............................. 31 3.4.11 Network Stack Configuration ..........................31 3.5 Chipset ..................................32 3.5.1 SA Configuration..............................32 www.perfectron.com...
  • Page 6 3.5.2 PCH-IO Configuration .............................. 34 3.6 Security ..................................34 3.7 Boot ..................................35 3.8 Save & Exit ................................. 36 www.perfectron.com...

  • Page 7: Chapter 1 : Product Introduction

    1 x M.2(M-key,Type : 2280, SATA/PCIe 3.0x4 NVMe) mPCIe 2 x Full size (USB / PCIe and 1 x micro SIM Card) PCIe/104 1 x TYPE2 Ethernet Chipset Intel®I210 & I219LM GbE LAN(10/100/1000 Mbps support) Boot from LAN Yes for PXE www.perfectron.com...
  • Page 8 Power LED, HD LED, Reset, Power Switch, Buzzer Mechanical and environmental Form Factor Dimension 146mm x 243mm Power Type 12V DC-IN Power Consumption 180W Operation -40 to 85°C Temperture Storage Temperture -40 to 85°C Relative Humidity 10% to 90%, non-condensing www.perfectron.com...
  • Page 9 (5) Ethernet NIC / 10GbE LAN switch (SK506 ; SK502 ) 4 x SATA controllers for SATA 3.0 and 1 x NVME SSD can support Data Storage function SATA LAN 0 Data Storage SATA LAN 1 SATA LAN 2 SATA LAN 3 M.2 2280 NVME SSD www.perfectron.com...

  • Page 10: Block Diagram

    1.2 Block Diagram www.perfectron.com...

  • Page 11: Board Placement

    1.3 Board Placement www.perfectron.com...

  • Page 12: Mechanical Dimensions

    1.4 Mechanical Dimensions www.perfectron.com...

  • Page 13: Chapter 2 : Jumpers And Connectors Loacation

    COM1 +12/+5V selection COM2 +12/+5V selection AT/ATX Mode LED2 LAN1 LED STATUS LED3 LAN2 LED STATUS LED4 Power/HDD LED MCARD1 Mini PCIE Card Slot<Full size Co-lay mSATA> MCARD2 Mini PCIE Card Slot<Full size Co-lay mSATA> SIM_CARD1 SIM card socket www.perfectron.com...

  • Page 14: Jumper Settings

    LVDS_A2 LVDS_B1# LVDS_A2# LVDS_B0 LVDS_A1 LVDS_B0# LVDS_A1# LVDS_A0 LVDS_DCC_SC LVDS_A0# LVDS_DCC_SD +VDD_LVDS +VDD_LVDS CN7: USB2.0 Pin Header PIN DEFINITION 1 +USB2_VCC7 2 USB2_N7_C 3 USB2_P7_C 4 GND 5 GND 6 +USB2_VCC8 7 USB2_N8_C 8 USB2_P8_C 9 GND 10 GND www.perfectron.com...
  • Page 15 2 GND 3 GND 4 GND 5 +12VSB 6 +12VSB 7 +12VSB 8 +12VSB CN17: LPC connector PIN DEFINITION 1 GND 2 INT_SERIRQ 3 3V3 4 LPC_AD0 5 LPC_AD1 6 LPC_AD2 7 LPC_AD3 8 LPC_FRAME# 9 CHIP_PLTRST# 10 C_LPC_CLK_SIO www.perfectron.com...
  • Page 16 DDI3_TXP0_DP_C DDI3_TXN0_DP_C DDI3_TXP1_DP_C DDI3_TXN1_DP_C DDI3_TXP2_DP_C DDI3_TXN2_DP_C DDI3_TXP3_DP_C DDI3_TXN3_DP_C DDI3_AUX_P_C DDI3_AUX_N_C DDI3_DDC_AUX_SEL DP3_DET DP3_PWR FP1:Front Panel PIN DEFINITION PIN DEFINITION 1 FP_HDLED+ 2 FP_PLED+ 3 HDLED- 4 GND 5 GND 6 PANSWIN# 7 EXT_RESET# 8 GND 9 NC 10 NC www.perfectron.com...
  • Page 17 166 PEG_TXN13 167 GND 168 PEG_TXN15 169 GND 170 NC 176 GND 177 PEG_RXP_14 178 GND 179 NC 180 +12V 186 PEG_RXP_13 187 PEG_RXN_14 188 PEG_RXP_15 189 3V3 190 +12V 196 PEG_RXN_13 197 GND 198 PEG_RXN_15 199 3V3 200 +12V www.perfectron.com...
  • Page 18 4 DIO3(Input) 5 DIO4(Output) 6 DIO5(Output) 7 DIO6(Output) 8 DIO7(Output) 9 3V3 10 GND J3: RS232/422/485 Box Head PIN DEFINITION 1 5V 2 GND 3 COM1P9SEL 4 COM1_DTR- 5 COM1_CTS- 6 COM1_TXD- 7 COM1_RTS- 8 COM1_RXD- 9 COM1_DSR- 10 COM1_DCD- www.perfectron.com...
  • Page 19 9 COM2_DSR- 10 COM2_DCD- J5: SYSTEM FAN Connector PIN DEFINITION SYSTEMFAN_PWN SYSTEMFAN_IO +12V JCMOS1: ME Flash Security Jumper Function description Setting ME Lock ME Unlock Default setting: 1-2 JCMOS2: RTC Reset Jumper Function description Setting Default Clear CMOS Default setting:1-2 www.perfectron.com...
  • Page 20 PIN DEFINITION PIN DEFINITION RI1#_OPTO COM1P9SEL COM1P9SEL +12V COM1P9SEL Default :1-2 short JP4: COM2 5V/12V selection PIN DEFINITION PIN DEFINITION RI1#_OPTO COM2P9SEL COM2P9SEL COM2P9SEL Default :1-2 short JP5 : AT/ATX Mode Selection(Default ATX Jumper Function description Setting Non-Put ATX Default setting: Non-Put www.perfectron.com...
  • Page 21 149 GND 150 GND 47 SMB_DAT 48 PEx16_Clkp 99 PEx16_0T(15)p 100 PEx16_0T(7)p 151 PEx16_0R(15)p 152 PEx16_0R(7)p 49 SMB_CLK 50 PEx16_Clkn 101 PEx16_0T(15)n 102 PEx16_0T(7)n 153 PEx16_0R(15)n 154 PEx16_0R(7)n 51 SMB_ALERT 52 PSON# 103 GND 104 GND 155 GND 156 GND www.perfectron.com...
  • Page 22 1440*900/24bit (dual) on off off off 1920*1080/24bit (dual) SW2: POWER BUTTON PIN DEFINITION ON NO LIGHT OFF BLUE LIGHT SW3 : CFG5/CFG6 CFG [6:5]: 00=1 x8, 2 x4 PCI Express. 01=Reserved. 10=2 x8 PCI Express. *11=1 x16 PCI Express www.perfectron.com...

  • Page 23: Chapter 3: Ami Bios Utility

    • Turn on the computer and press the <Del> key immediately. • After the <Del> key is pressed, the main BIOS setup menu displays. Other setup screens can be accessed from the main BIOS setup menu, such as the Chipset and Power menus. www.perfectron.com...

  • Page 24: Navigation Keys

    The <F10> key saves any changes made and exits the BIOS setup utility. The <Esc> key discards any changes made and exits the BIOS setup utility. Enter The <Enter> key displays a sub-screen or changes a selected or highlighted option in each menu. www.perfectron.com...

  • Page 25: Main Menu

    Press the Left and Right <Arrow> keys to move between fields. The time setting is entered in HH:MM:SS format. Note: The time is in 24-hour format. For example, 5:30 A.M. appears as 05:30:00, and 5:30 P.M. as 17:30:00.  Access Level www.perfectron.com...

  • Page 26: Advanced Menu

    Setting incorrect field values may cause the system to malfunction. 3.4.1 CPU Configuration This section is used to view CPU status and configure CPU parameters. www.perfectron.com...

  • Page 27: Power & Performance

    3.4.2 Power & Performance 3.4.3 PCH-FW Configuration www.perfectron.com...

  • Page 28: Trusted Computing

    OS.  ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.  Lock Legacy Resources Enables or Disables Lock of Legacy Resources www.perfectron.com...

  • Page 29: It8786 Super Io Configuration

    3.4.6 IT8786 Super IO Configuration User can choose a mode (RS232/RS422/RS485) on Serial Port 1. Serial Port 2/3/4 only support RS232 www.perfectron.com...

  • Page 30: Hardwaremonitor

    Detects and displays the current CPU temperature.  System Temperature Detects and displays the current system temperature.  CPU Fan Speed Detects and displays the current CPU fan speed.  VCORE to 1.35VDUAL Detects and displays the output voltages. www.perfectron.com...

  • Page 31: Usb Configuation

    3.4.8 USB configuation 3.4.9 CSM Configuration CSM Support for debug purpose  CSM Support Enable/Disable CSM Support. www.perfectron.com...

  • Page 32: Nvme Configuration

    3.4.10 NVMe Configuration 3.4.11 Network Stack Configuration www.perfectron.com...

  • Page 33: Chipset

    3.5 Chipset This section is used to configure the system based on the specific features of the chipset. 3.5.1 SA Configuration www.perfectron.com...
  • Page 34 3.5.1.1 Graphics Configuration www.perfectron.com...

  • Page 35: Pch-Io Configuration

    All Security Setup options, such as password protection and virus protection are described in this section. To access the sub menu for the following items, select the item and press <Enter>:  Change Administrator / User Password Select this option and press to access the sub menu, and then type in the password. www.perfectron.com...

  • Page 36: Boot

    Fast Boot: Enables or disables boot with initialization of a minimal set of devices required to launch active boot option.Has no effect for BBS boot options.  Boot option priorities  Boot Option #1: Sets the system boot order. www.perfectron.com...

  • Page 37: Save & Exit

    Discard Changes and Reset Reset system setup without saving any changes. Save Options  Save Changes: Save Changes done so far to any of the setup options.  Discard Changes: Discard Changes done so far to any of the setup options. www.perfectron.com...
