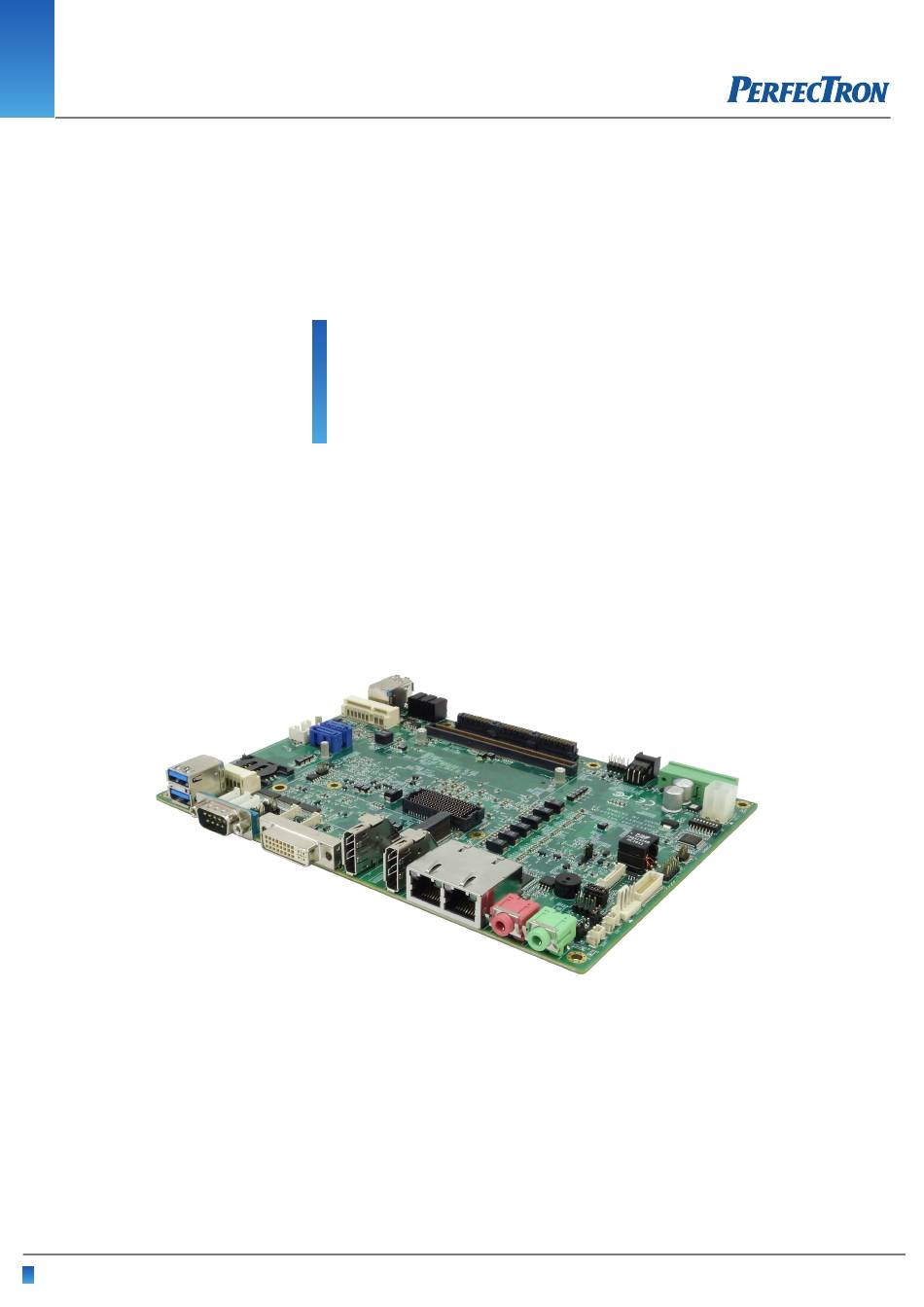

Quick Installation Guide
OXY5740A
Intel® QM175 EBX SBC, Kabylake
i7-7820EQ (4C x 3.7/3.0 GHz), 8M Cache,
with SSD Soldering Onboard, Stackable
with StackPC & FPE Expansio

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OXY5740A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PerfecTron OXY5740A

  • Page 1 Version 1.0 Quick Installation Guide Revision Date: Nov.13.2019 OXY5740A Intel® QM175 EBX SBC, Kabylake i7-7820EQ (4C x 3.7/3.0 GHz), 8M Cache, with SSD Soldering Onboard, Stackable with StackPC & FPE Expansio www.perfectron.com...
  • Page 2: Safety Information

    Safety Information 1. Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected.
  • Page 3: Revision History

    □ CD (Driver + user's manual) Optional Accessories: • 1 x Terminal block • [Optional] Cable kit for OXY5740A: 1 x SATA, 1 x SATA power, 2 x COM If any of the above items is damaged or missing, please contact your local distributor.
  • Page 4: Table Of Contents

    Table of Contents Chapter 1: Product Information Safety Information ..........................1 1. Electrical safety ........................1 2. Operation safety ........................1 Statement ............................1 Revision History ..........................2 Packing list: ............................2 Optional Accessories: ........................2 Table of Contents ........................... 3-4 Chapter 1: Product Information ......................
  • Page 5 CN10: LPC (Update BIOS) ....................15 DP1: DISPLAY PORT ......................15 DP2: DISPLAY PORT ......................156 SIM_CARD1: SIM card socket ..................156 DVI: DVI-D ........................16 COM1: RS232/422/485 with 5V/12V selectable ............... 16 JP4: COM1 5V/12V selection ..................16 JP5: COM2 5V/12V selection ..................16 COM2: RS232/422/485 ....................
  • Page 6: Chapter 1: Product Information

    Chapter 1: Product Information 1.1 Block Diagram...
  • Page 7: Key Features

    1.2 Key Features System CPU Type Intel® Kabylake-H Core™ i7/i5, BGA type Intel® Core™ i7-7820EQ (8M Cache, up to 3.70 GHz) Intel® Core™ i5-7440EQ (6M Cache, up to 3.60 GHz) Chipset Intel® Haswell QM175 PCH Memory Type 1 x DDR4 XR-DIMM up to 16GB SDRAM 1 x DDR4 SO-DIMM up to 16GB SDRAM Max.
  • Page 8 3 x RS232 (COM2 with 5V/12V selectable) LVDS 2 x 15-pin 2 x 10-pin, 6 in/2 out with isolation FPE Connector PCIe104 Connector SIM card holder Power Requirements Input Voltage 12 VDC (4-pin terminal block for V+, V+, V-, V-) Mechanical and Environment Form Factor Power Type...
  • Page 9: Board Placement

    1.3 Board Placement...
  • Page 10: Chapter 2: Jumpers And Connectors

    Chapter 2: Jumpers and Connectors 2.1 Jumpers and connectors list Label Function BAT1 BATTERY connector DIMM0 DDR4 SO DIMM Socket DIMM1 DDR4 XR DIMM Socket CN19 LVDS CONNECTOR MCARD1 Mini PCIE Card Slot<Full size Co-lay mSATA> JP14 mSATA and mPCIE selection MCARD2 Mini PCIE Card Slot (Half Size) CN1/CN3...
  • Page 11: Jumper Settings

    2.2 Jumper Settings CN19: LVDS CONNECTOR PIN DEFINITION PIN DEFINITION LVDS_BCLK LVDS_BCLK# LVDS_A3 LVDS_A3# LVDS_B3 LVDS_B3# LVDS_ACLK LVDS_B2 LVDS_ ACLK # LVDS_B2# LVDS_B1 LVDS_A2 LVDS_B1# LVDS_A2# LVDS_B0 LVDS_A1 LVDS_B0# LVDS_A1# LVDS_A0 LVDS_DCC_SC LVDS_A0# LVDS_DCC_SD LVDS_VDD LVDS_VDD (define by JP3) (define by JP3) SW3: LVDS Resolution select DEFINITION off off off off 800*600/18bit (single)
  • Page 12: Cn18: Inverter Connector

    CN18: Inverter connector PIN DEFINITION BL_EN LVDS0_BKL_CTRL_R 10 GND CPU FAN: CPU FAN Connector PIN DEFINITION CPUFAN_PWN CPUFAN_IO CPUFAN_VCC CN1/CN3: Serial ATA Connectors PIN DEFINITION CN2/CN4: SATA POWER Connector PIN DEFINITION CN17: Digital I/O Box Head PIN DEFINITION PIN DEFINITION 1 VCC 2 GND 3 DI_0...
  • Page 13: Jp3: Lvds_Vdd Select

    JP14: MCARD1 mSATA and mPCIE selection Jumper Function description Setting mPCIE mSATA Default setting: 1-2 MCARD1: Mini PCIE Card Slot<COLAY M SATA> PIN DEFINITION PIN DEFINITION WAKE# 3.3VAUX COEX1 COEX2 1.5V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET UIM_VPP Reserved Reserved W_Disable# PERST#...
  • Page 14: Lan1/Lan2

    MCARD2: Mini PCIE Card Slot PIN DEFINITION PIN DEFINITION WAKE# 3.3V Reserved Reserved 1.5V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET UIM_VPP Reserved Reserved W_Disable# PERST# PERn0 3.3Vaux PERp0 1.5V SMB_CLK PETn0 SMB_DATA PETp0 USB_D- Reserved USB_D+ Reserved Reserved LED_WWAN# Reserved LED_WLAN# Reserved...
  • Page 15: Cn20: Usb 2.0

    CN20: USB 2.0 PIN DEFINITION 1 5V 2 USB1- 3 USB1+ 4 GND 5 GND 6 5V 7 USB2- 8 USB2+ 9 GND 10 GND CN21: USB 2.0 PIN DEFINITION 1 5V 2 USB1- 3 USB1+ 4 GND 5 GND 6 5V 7 USB2- 8 USB2+...
  • Page 16: Cn6: Audio Jacks Connector (Mic)

    CN6: Audio Jacks Connector (MIC) PIN DEFINITION MIC_L MIC1_R CN7: Audio Jacks Connector (Line-Out) PIN DEFINITION FRONT_L FRONT_R CN22: DC Adapter Power Input PIN DEFINITION +VIN +VIN DC_JACK1: DC-IN PIN DEFINITION PIN DEFINITION 1 GND 2 GND 3 +VIN 4 +VIN CN10: LPC (Update BIOS) PIN DEFINITION 1 GND...
  • Page 17: Sim_Card1: Sim Card Socket

    DP2: DISPLAY PORT PIN DEFINITION PIN DEFINITION 1 DPD_LANEP0 2 GND 3 DPD_LANEN0 4 DPD_LANEP1 5 GND 6 DPD_LANEN1 7 DPD_LANEP2 8 GND 9 DPD_LANEN2 10 DPD_LANEP3 11 GND 12 DPD_LANEN3 13 DDID_DDC_AUX_SEL 14 GND 15 DDID_ AUXP 16 GND 17 DDID_ AUXN 18 DPD_DET 19 GND...
  • Page 18: Jp4: Com1 5V/12V Selection

    JP4: COM1 5V/12V selection PIN DEFINITION PIN DEFINITION RI1#_OPTO COM1P9SEL COM1P9SEL COM1P9SEL JP5: COM2 5V/12V selection PIN DEFINITION PIN DEFINITION RI1#_OPTO COM1P9SEL COM1P9SEL COM1P9SEL COM2: RS232/422/485 with 5V/12V selectable DEFINITION COM2P9SEL DTR- CTS2- TXD2- RTS2- RXD- DSR- DCD- COM3/4: RS232 DEFINITION DTR- CTS-...
  • Page 19: Con A1: Connector A Top

    CON A1: CONNECTOR A TOP PIN DEFINITION PIN DEFINITION PIN DEFINITION PIN DEFINITION PIN DEFINITION PIN DEFINITION 1 USB_OC#6 2 BUF_PLT_RST- 53 3V3_DU 54 3V3_DU 105 GND 106 CLK_LPC_UART 3 3.3V 4 3.3V 55 3V3_DU 56 GND 107 NC 108 GND 5 USBD7+ 6 USBD6+ 57 ST_LAN1_MDIP0 58 NC...
  • Page 20: Fpe1: Stackpc Fpe Top Connector

    FPE1: StackPC FPE Top Connector PIN DEFINITION PIN DEFINITION PIN DEFINITION PIN DEFINITION PIN DEFINITION 1 NC 2 NC 3 NC 4 NC 5 NC 11 GND 12 NC 13 GND 14 NC 15 GND 21 NC 22 NC 23 NC 24 GND 25 NC 31 NC...
  • Page 21: Led1: Lan1 Led Status

    LED1: LAN1 LED STATUS LED1 Light Dark Flash 1000M 100M GREEN LINK UNLINK ACTIVITY LED2: LAN2 LED STATUS LED2 Light Dark Flash 1000M 100M GREEN Link Un-link Activity LED3: POWER/HDD LED LED2 Light Dark Flash HDD un-access HDD access GREEN Power On Power Off SW1: POWER BUTTON PIN DEFINITION ON NO LIGHT...
  • Page 22: Fp2: Lan Led

    FP2: LAN LED PIN DEFINITION PIN DEFINITION 1 3V3M 2 3V3M 3 LAN_LED_LNK#_ACT 4 LAN2_ACT# 5 LAN_LED_LNK_1000# 6 LAN2_LED_1000- 7 LAN_LED_LNK_100# 8 LAN2_LED_100- Plug LED cable to FP2 pin header Active LED: plug 1-3 pin Single 1000M LED: plug 1-5 pin Single 100M LED: plug 1-7 pin Dual 1000M LED: plug 5-7 pin...
  • Page 23: Chapter 3: Getting Started

    Chapter 3: Getting Started 3.1 Installing System Memory The OXY5740A supports 1 x DDR4 XR-DIMM up to 16GB (Top Side), 1 x DDR4 SODIMM up to 16GB Disconnect all power supplies to the board before installing a memory module to prevent damage to the board and memory module.
  • Page 24 3. Insert the module firmly into the desired slot until the slot lock and secure the memory module. 4. After insert the module to the desire slot, drive screws tighten with memory module’s crew hole and bolt on PCB board.
