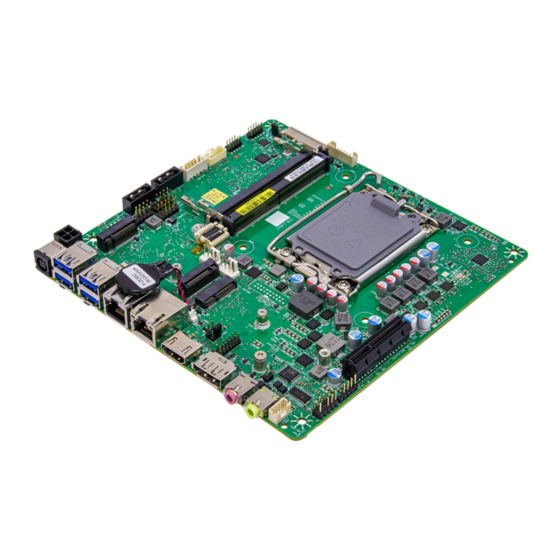

- Page 1 Version 1.0 INS8367B Intel® Alder Lake-S 12 Processor with Q670 Chipset Mini-ITX www.perfectron.com...
-
Page 2: Safety Information
All rights reserved. No part of this publication may be reproduced in any form or by any means, without prior written permission from the publisher. All trademarks are the properties of the respective owners. All product specifications are subject to change without prior notice www.perfectron.com... -
Page 3: Rohs Compliance
The task force will ensure that we follow the standard Perfectron development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which Perfectron are renowned. -
Page 4: Revision History
Revision History Revision Date (yyyy/mm/dd) Changes V1.0 2022/12/28 First release Packing List Item Description Q’ty INS8367B CD(Drivier + User’s manual) If any of the above items is damaged or missing, please contact your local distributor. www.perfectron.com... -
Page 5: Table Of Contents
3.4.7 Serial Port 2 Configuration ............................ 28 3.4.8 Hardware Monitor ............................... 29 3.4.9 S5 RTC Wake Settings ............................30 Network Stack Configuration ......................... 31 3.4.10 NVMe Configuration ............................. 32 3.4.11 3.5 Security Page ................................33 3.5.1 HDD Security ................................ 34 3.5.2 Secure Boot ................................35 www.perfectron.com... - Page 6 3.6 Boot Page .................................. 39 3.6.1 (List Boot Device Type) Drive BBS Priorities ....................... 42 3.7 Save & Exit Page ................................43 3.8 Event Logs .................................. 44 3.8.1 Change Smbios Event Log Setting ........................... 45 3.8.2 ViewSmbios Event Log ............................46 www.perfectron.com...
-
Page 7: Chapter 1 : Product Introduction
Intel® I219-LM GbE LAN + Intel® I225V 2.5 GbE LAN Audio Codec Realtek® ALC888 Rear I/O 4 x USB3.1 Display port 1 x DP ; 1 x HDMI 2(1 x GbE ; 1 x 2.5GbE) AUDIO 1 x MIC-IN ; 1 x LINE-OUT www.perfectron.com... - Page 8 170mm x 170mm ET : -20℃ ~ 70℃ Operating Temperature UT : -40℃ ~ 85℃ Storage -40℃ ~ 85℃ Temperature Relative humidity 10% to 95%, non-condensing Standard Compliance Standart Compliance CE / FCC Windows®10 64-bit OS Support Linux(Support by request) www.perfectron.com...
-
Page 9: Block Diagram
1.2 Block Diagram www.perfectron.com... -
Page 10: Board Placement
1.3 Board Placement www.perfectron.com... -
Page 11: Chapter 2 : Jumpers And Connectors Loacation
Clear CMOS Header Intruder Header RTC Battery Header M.2 2230 E-Key M.2 2242/2280M-Key M.2 3042B-Key USB3.0 Header System Fan Header CPU Fan Header USB2.0 Header LGA1700 CPU Socket DDR5 SO-DIMM Socket DDR5 SO-DIMM Socket Panel Power Option AT/ATX Mode www.perfectron.com... -
Page 12: Jumper Settings
2.2 Jumper Settings Front Panel Header DEFINITION DEFINITION 1 HDD_POWER_LED 2 POWER_LED_MAIN HDD_LED# POWER_LED_ALT 6 POWER_SWITCH# RESET_SWITCH# +5V_DC Key(no pin) Panel Power Option PIN DEFINITION DEFINITION Key(no pin) 3.3V LCD_VCC Key(no pin) 3.3V(Default) www.perfectron.com... - Page 13 14 LVDS1_LINK1_CON_DN 34 LVDS1_CLK_CON_DP 15 LVDS1_LINK0_CON_DP 35 LVDS1_CLK_CON_DN 16 LVDS1_LINK0_CON_DN 36 PANEL_PWR CABLE_ID4 PANEL_PWR PANEL_PWR LVDS Backlight Header DEFINITION 1 LVDS_BKTEN_R LVDS_PWM 3 BKLT_PWR (12v) 4 BKLT_PWR (12v) BRIGHT_UP- 8 BRIGHT_DOWN- AT/ATX Mode Jumper DEFINITION AT Mode 2-3 ATX Mode(Default) www.perfectron.com...
- Page 14 Key (no pin) Dual USB2.0 Header DEFINITION DEFINITION 5V_USB 5V_USB Data (negative) Data (negative) Data (positive) Data (positive) Key (no pin) No Connect Dual USB3.0 Header DEFINITION DEFINITION 5V_USB Key(no pin) SSRX- 5V_USB SSRX+ SSRX- SSRX+ SSTX- SSTX+ SSTX- SSTX+ www.perfectron.com...
- Page 15 RS232 RS422 RS485 DATA- RXD# DATA+ TXD# Key(no pin) Serial Port Pin-Out(COM2) RS232 RS422 RS485 RXD# TXD# Key(no pin) Clear CMOS Header DEFINITION Clear CMOS 2-3 Normal(Default) CPU FAN Header DEFINITION +12V CPU_FAN_TACH CPU_FAN_CTRL SATA Power Header PIN DEFINITION www.perfectron.com...
- Page 16 12V IN MiAPI Header DEFINITION DEFINITION MAPI_GPIO1 MAPI_GPIO2 MAPI_GPIO6 MAPI_GPIO3 MAPI_GPIO7 MAPI_GPIO4 MAPI_GPIO8 MAPI_GPIO5 MAPI_GPIO9 WD_Time MAPI_GPIO10 Power Button SMBUS_DATA UART_TX SMBUS_CLK UART_RX 5VSB TPM Header PIN DEFINITION VCC3_TPM TPM_CS2 TPM_MISO Key(no pin) TPM_MOSI PLTRST_N PRIQ_N TPM_CLK TPM_DET VSB_3V3 www.perfectron.com...
-
Page 17: Chapter 3: Ami Bios Utility
The <F10> key saves any changes made and exits the BIOS setup utility. The <Esc> key discards any changes made and exits the BIOS setup utility. Enter The <Enter> key displays a sub-screen or changes a selected or highlighted option in each menu. www.perfectron.com... -
Page 18: Main Page
This field is not selectable. There is no help text associated with it Field Name Build Date Default Value Display build date of the BIOS Comment This field is not selectable. There is no help text associated with it. Field Name ME FW Version Default Value ME Firmware Version. www.perfectron.com... - Page 19 Display the installed SATA device model/size of port 7. Comment This field is not selectable. There is no help text associated with it. Field Name System Date Default Value [Www mm/dd/yyyy] Possible Value Www : Mon/Tue/Wed/Thu/Fri/Sat/Sun mm : 1-12 www.perfectron.com...
-
Page 20: Advance Page
Set the Time. Use Tab to switch between Time elements. 3.4 Advance Page Field Name Onboard Device Help Onboard Device Configuration Comment Press Enter when selected to go into the associated Sub-Menu. Field Name CPU Configuration Help CPU Configuration Parameters www.perfectron.com... -
Page 21: Onboard Device
Network Stack Configuration Help Network Stack Settings. Comment Press Enter when selected to go into the associated Sub-Menu. Field Name NVMe Configuration Help NVMe Device Options Settings Comment Press Enter when selected to go into the associated Sub-Menu. 3.4.1 Onboard Device www.perfectron.com... - Page 22 Enable/Disable integrated LAN to wake the system. Field Name HD Audio Default Value [Enabled] Possible Value Enabled Disabled Help Control Detection of the HD-Audio device. Disabled = HDA will be unconditionally disabled Enabled = HDA will be unconditionally enabled. www.perfectron.com...
- Page 23 Field Name Chassis Intrusion Default Value [Disabled] Possible Value Disabled Enabled Reset Help Configure Chassis Intrusion. www.perfectron.com...
-
Page 24: Cpu Configuration
L3 Cache Size Comment This field is not selectable. There is no help text associated with it. Field Name SMX/TXT Default Value SMX/TXT Supported or Not Comment This field is not selectable. There is no help text associated with it. www.perfectron.com... -
Page 25: Vmd Setup Menu
Field Name VMD Configuration Default Value VMD Configuration. Comment This field is not selectable. There is no help text associated with it. Field Name Enable VMD controller Default Value [Disabled] Possible Value Enabled Disabled Help Enable/Disable to VMD controller. www.perfectron.com... -
Page 26: Trusted Computing
Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Field Name Pending operation Default Value [None] Possible Value None TPM Clear Help Schedule an Operation for the Security Device. NOTE: Your Computer www.perfectron.com... -
Page 27: Super Io Configuration
Set Parameters of Serial Port 1 (COMA) Comment Press Enter when selected to go into the associated Sub-Menu. Field Name Serial Port 2 Configuration Help Set Parameters of Serial Port 2 (COMB) Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com... -
Page 28: Serial Port 1 Configuration
This field is not selectable. There is no help text associated with it. Field Name Change Settings Default Value [AUTO] Possible Value Auto IO=3E8h; IRQ=7; IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12; IO=220h; IRQ=3,4,5,6,7,9,10,11,12; IO=228h; IRQ=3,4,5,6,7,9,10,11,12; Help Select an optimal settings for Super IO Device www.perfectron.com... -
Page 29: Serial Port 2 Configuration
Disabled Enabled Help Enable or Disable Serial Port(COM) Field Name Device Settings Default Value Device Super IO COM2 Address and IRQ. Comment This field is not selectable. There is no help text associated with it. Field Name Change Settings www.perfectron.com... -
Page 30: Hardware Monitor
0 RPM for the failed fan speed, and there is also no Front Fan Speed high RPM limitation. CPU Vcore 0~1.72V V_1P05_SB 0.9975~1.1025V VDD2 1.045~1.155V V_1P05_PROC 0.9975~1.1025V Field Name Hardware Monitor Alert Enable Default Value [Disabled] Possible Value Enabled www.perfectron.com... -
Page 31: S5 Rtc Wake Settings
Default Value [Disabled] Possible Value Disabled Fixed Time Help Enable or disable System wake on alarm event, Select FixedTime, system will wake on the hr::min::sec specified. Field Name Wake up hour(Show when Wake system from S5 set to Fixed Time) www.perfectron.com... -
Page 32: Network Stack Configuration
0-59 Help Select 0-59 For Second 3.4.10 Network Stack Configuration Field Name Network stack Default Value [Disabled] Possible Value Disabled Enabled Help Enable/Disable UEFI Network stack. Field Name Ipv4 PXE Support (Available when Network stack Enabled) Default Value [Enabled] www.perfectron.com... -
Page 33: Nvme Configuration
Default Value [Enabled] Possible Value Disabled Enabled Help Enable/Disable Ipv6 PXE Boot Support. If disabled IPV6 PXE boot support will not be available. 3.4.11 NVMe Configuration Field Name (Device) Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com... -
Page 34: Security Page
Press Enter when selected to go into the associated Sub-Menu. Field Name Secure Boot Help Set User Password. Comment Press Enter when selected to go into the associated Sub-Menu. Field Name BIOS Update Help BIOS Update support Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com... -
Page 35: Hdd Security
Setting Hard Disk Passwords ***.Discard or Save changes option in setup does not have any impact on HDD when password is set or removed. If the 'Set HDD User Password' option is hidden, do power cycle to enable the option again www.perfectron.com... -
Page 36: Secure Boot
Secure Boot Policy variables can be configured by a physically present user without full authentication Field Name Restore Factory Keys Help Force System to User Mode. Install factory default Secure Boot key databases Field Name Reset to Setup Mode Help Delete all Secure Boot key databases from NVRAM www.perfectron.com... -
Page 37: Key Management
Force System to User Mode. Install factory default Secure Boot key databases Field Name Reset to Setup Mode Help Delete all Secure Boot key databases from NVRAM Field Name Platform Key (PK) Default Value Size:0, Keys:0, Key source: No Keys www.perfectron.com... - Page 38 Press Enter when selected to go into the associated Sub-Menu. Field Name Forbidden Signatures Default Value Size:0, Keys:0, Key source: No Keys Help Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX www.perfectron.com...
- Page 39 Copy NVRAM content of Secure Boot variables to files in a root folder on a file system device Field Name Enroll Efi Image Help Allow the image to run in Secure Boot mode. Enroll SHA256 Hash certificate of a PE image into Authorized Signature Database (db) www.perfectron.com...
-
Page 40: Boot Page
USB Floppy, CD/DVD, USB CD/DVD, Hard Disk , USB Key, USB Hard Disk , NVME, Network, Disabled Comment Sets the system boot order Field Name Boot Option #2 Default Value [CD/DVD] Possible Value USB Floppy, CD/DVD, USB CD/DVD, Hard Disk , USB Key, USB Hard Disk , www.perfectron.com... - Page 41 Specifies the Boot Device Priority sequence from available USB Floppy Drives. Comment Press Enter when selected to go into the associated Sub-Menu. Field Name (UEFI) CDROM/DVD ROM Drive BBS Priorities Help Specifies the Boot Device Priority sequence from available USB CDROM/DVD Drives. www.perfectron.com...
- Page 42 Press Enter when selected to go into the associated Sub-Menu. Field Name (UEFI) NETWORK Drive BBS Priorities Help Specifies the Boot Device Priority sequence from available Hard Disk Drives. Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com...
-
Page 43: List Boot Device Type) Drive Bbs Priorities
3.6.1 (List Boot Device Type) Drive BBS Priorities Field Name Boot Option #1 Default Value Possible Value Boot Device Name 1 of this type Help Sets the system boot order www.perfectron.com... -
Page 44: Save & Exit Page
Discard Changes and Exit Help Exit system setup without saving any changes. Field Name Save Changes and Reset Help Reset the system after saving the changes. Field Name Restore Defaults Help Restore/Load Default values for all the setup options. www.perfectron.com... -
Page 45: Event Logs
Press <Enter> to change the Smbios Event Log configuration. Comment Press Enter when selected to go into the associated Sub-Menu. Field Name View Smbios Event Log Help Press <Enter> to change the Smbios Event Log configuration. Comment Press Enter when selected to go into the associated Sub-Menu. www.perfectron.com... -
Page 46: Change Smbios Event Log Setting
Choose options for erasing Smbios Event Log. Erasing is done prior to any logging activation during reset. Field Name Whea Log is Full Default Value [Do Nothing] Possible Value Do Nothing Erase Immediately Help Choose options for reactions to a full Smbios Event Log. www.perfectron.com... -
Page 47: Viewsmbios Event Log
3.8.2 ViewSmbios Event Log Field Name DATE / TIME / ERROR CODE / SEVERITY / COUNT Default Value MM/DD/YY HH:MM:SS Smbios 0x16 N/A N/A Possible Value By Events. Help By Events. www.perfectron.com...
