PerfecTron OXY5135B Series User Manual

PerfecTron OXY5135B Series User Manual

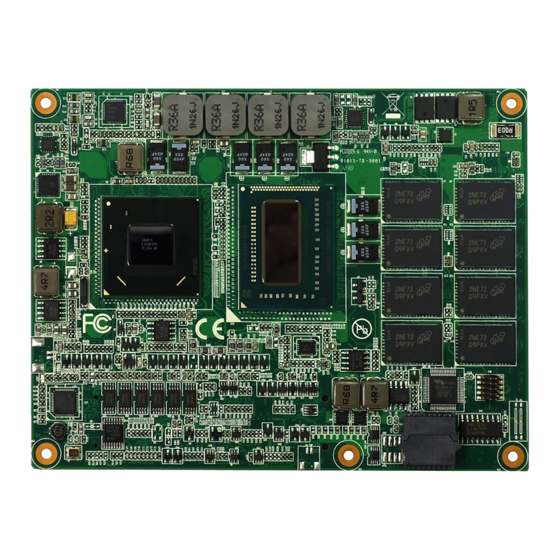

Com express with intel ivy bridge+qm77

Advertisement

Quick Links

Version 1.0
Revision Date: August. 01. 2013
www.perfectron.com
OXY5135B
COM Express with Intel Ivy Bridge+QM77
User's Manual
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OXY5135B Series and is the answer not in the manual?

Questions and answers

Summary of Contents for PerfecTron OXY5135B Series

  • Page 1 Version 1.0 Revision Date: August. 01. 2013 User’s Manual OXY5135B COM Express with Intel Ivy Bridge+QM77 User’s Manual www.perfectron.com...
  • Page 2: Operation Safety

    All rights reserved. No part of this publication may be reproduced in any form or by any means, without prior written permission from the publisher.  All trademarks are the properties of the respective owners.  All product specifications are subject to change without prior notice www.perfectron.com...
  • Page 3: Revision History

    BGA CPU (Core™ i7-3517UE) (-40 to 85°C optional) OXY5135B-UT-3610ME COM Express Type 6 Intel® Ivy Bridge Processor (Mobile) BGA CPU (Core™ i5-3610ME) (-40 to 85°C optional) OXY5135B-UT-3217UE COM Express Type 6 Intel® Ivy Bridge Processor (Mobile) BGA CPU (Core™ i3-3217UE) (-40 to 85°C optional) www.perfectron.com...
  • Page 4: Table Of Contents

    3.4.4.1 SATA Mode Selection ....................20 3.4.5 F81801 Super IO Configuration ................... 21 3.4.5.1 Serial Port 0 configuration ................... 22 3.4.5.2 Serial Port 1 configuration ................... 23 3.4.6 F81866 Super IO Configuration ................... 24 3.4.6.1 Serial Port 0 Configuration ................... 25 www.perfectron.com...
  • Page 5 3.5.1 System Agent (SA) configuration ..................35 3.5.1.1 Graphics configuration ....................36 LCD Control .......................... 37 3.5.1.2 Memory Information ....................38 3.6 BOOT SETTING........................38 3.6.1 CSM parametes ........................39 3.7 SECURITY ..........................40 3.8 SAVE & EXIT .......................... 41 www.perfectron.com...
  • Page 6: Chapter 1: Product Information

    OXY5135B COM Express User’s Manual V1.0 Chapter 1: Product Information 1.1 Block Diagram www.perfectron.com...
  • Page 7: Key Features

    Ethernet Chipset 1 x Intel® 82579LM GbE LAN Boot from LAN Yes for PXE I/O Interface SATA 2 x SATAIII (6 Gb/s) 2 x SATAII (3 Gb/s) 4 x USB 3.0 8 x USB 2.0 LPC bus SMBus I²C www.perfectron.com...
  • Page 8 ATX mode (12V & 5Vsb) Dimension 125 x 95 mm (4.9" x 3.7") Operating Temp. -20 to 70°C Storage Temp. -20 to 85°C Relative Humidity 10% to 90%, non-condensing *All specifications and photos are subject to change without notice. www.perfectron.com...
  • Page 9: Board Placement

    OXY5135B COM Express User’s Manual V1.0 1.3 Board Placement www.perfectron.com...
  • Page 10: Mechanical Drawing

    OXY5135B COM Express User’s Manual V1.0 1.4 Mechanical Drawing www.perfectron.com...
  • Page 11: Chapter 2: Jumpers And Connectors

    High Definition Audio bus ● 2 x SATAIII, 2 x SATAII ● 4 x USB 3.0, 8 x USB 2.0 ● ● SMBus and I²C 2.2 CD Connector ● DDI1 (DP/HDMI/DVI/SDVO) ● DDI2 (DP/HDMI/DVI) ● DDI3 (DP/HDMI/DVI) ● 1 x PCIe x1 www.perfectron.com...
  • Page 12: Pin Definitions

    A29 AC/HDA_SYNC B29 AC/HDA_SDIN1 C29 DDI1_PAIR5+ D29 DDI1_PAIR1+ A30 AC/HDA_RST# B30 AC/HDA_SDIN0 C30 DDI1_PAIR5- D30 DDI1_PAIR1- A31 GND B31 GND C31 GND D31 GND A32 AC/HDA_BITCLK B32 SPKR C32 DDI2_CTRLCLK_AUX+ D32 DDI1_PAIR2+ A33 AC/HDA_SDOUT B33 I2C_CK C33 DDI2_CTRLDATA_AUX- D33 DDI1_PAIR2- www.perfectron.com...
  • Page 13 A66 GND B66 WAKE0# C66 PEG_RX4- D66 PEG_TX4- A67 GPI2 B67 WAKE1# C67 NC D67 GND A68 PCIE_TX0+ B68 PCIE_RX0+ C68 PEG_RX5+ D68 PEG_TX5+ A69 PCIE_TX0- B69 PCIE_RX0- C69 PEG_RX5- D69 PEG_TX5- A70 GND B70 GND C70 GND D70 GND www.perfectron.com...
  • Page 14 A103 LID# B103 SLEEP# C103 GND D103 GND A104 VCC_12V B104 VCC_12V C104 VCC_12V D104 VCC_12V A105 VCC_12V B105 VCC_12V C105 VCC_12V D105 VCC_12V A106 VCC_12V B106 VCC_12V C106 VCC_12V D106 VCC_12V A107 VCC_12V B107 VCC_12V C107 VCC_12V D107 VCC_12V www.perfectron.com...
  • Page 15 OXY5135B COM Express User’s Manual V1.0 A108 VCC_12V B108 VCC_12V C108 VCC_12V D108 VCC_12V A109 VCC_12V B109 VCC_12V C109 VCC_12V D109 VCC_12V A110 GND B110 GND C110 GND D110 GND www.perfectron.com...
  • Page 16: Chapter 3: Ami Biosutility

    The <F10> key saves any changes made and exits the BIOS setup utility. The <Esc> key discards any changes made and exits the BIOS setup utility. Enter The <Enter> key displays a sub‐screen or changes a selected or highlighted option in each menu. www.perfectron.com...
  • Page 17: Main Menu

    OXY5135B COM Express User’s Manual V1.0 3.3 Main Menu The Main menu is the first screen that you will see when you enter the BIOS Setup Utility. System Language Choose the system default language. www.perfectron.com...
  • Page 18: Advanced Menu

    The Advanced Menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference. Setting incorrect field values may cause the system to malfunction. www.perfectron.com...
  • Page 19: Acpi Settings

    OXY5135B COM Express User’s Manual V1.0 3.4.1 ACPI Settings System ACPI parameters ACPI Sleep State Select ACPI sleep state the system will enter when the SUSPEND button is pressed. 3.4.2 CPU Configuration This section is used to configure the CPU. www.perfectron.com...
  • Page 20: Com Express Gpio Configuration

    OXY5135B COM Express User’s Manual V1.0 3.4.3 COM Express GPIO Configuration COM Express GPIO configuration settings GPIO Direction Set GPIO as Input or Output www.perfectron.com...
  • Page 21: Sata Configuration

    OXY5135B COM Express User’s Manual V1.0 3.4.4 SATA Configuration SATA device options settings 3.4.4.1 SATA Mode Selection Determines how SATA controllers operate www.perfectron.com...
  • Page 22: F81801 Super Io Configuration

    OXY5135B COM Express User’s Manual V1.0 3.4.5 F81801 Super IO Configuration System Super IO chip parameters. www.perfectron.com...
  • Page 23: Serial Port 0 Configuration

    OXY5135B COM Express User’s Manual V1.0 3.4.5.1 Serial Port 0 configuration Set parameters of serial port 0 (COMA) Serial Port Enable or Disable serial port (COM) Change settings Select an optimal setting for Super IO device. www.perfectron.com...
  • Page 24: Serial Port 1 Configuration

    OXY5135B COM Express User’s Manual V1.0 3.4.5.2 Serial Port 1 configuration Set parameters of serial port 1 (COMB) Serial Port Enable or Disable serial port (COM) Change settings Select an optimal setting for Super IO device. www.perfectron.com...
  • Page 25: F81866 Super Io Configuration

    OXY5135B COM Express User’s Manual V1.0 3.4.6 F81866 Super IO Configuration System Super IO chip parameters. Serial Port Configuration Set parameters of serial port (COM) www.perfectron.com...
  • Page 26: Serial Port 0 Configuration

    OXY5135B COM Express User’s Manual V1.0 Parallel port configuration Set parameters of parallel port (LPT/LPTE) 3.4.6.1 Serial Port 0 Configuration Serial Port Enable or Disable serial port (COM) Change settings Select an optimal setting for Super IO device. www.perfectron.com...
  • Page 27: Serial Port 1 Configuration

    OXY5135B COM Express User’s Manual V1.0 3.4.6.2 Serial Port 1 Configuration Enable or disable serial port (COM) Serial Port Enable or Disable serial port (COM) Change settings Select an optimal setting for Super IO device. Mode RS232, RS-422, RS-485 selection. www.perfectron.com...
  • Page 28: Serial Port 2 Configuration

    OXY5135B COM Express User’s Manual V1.0 3.4.6.3 Serial Port 2 Configuration Enable or disable serial port (COM) Serial Port Enable or Disable serial port (COM) 3.4.6.4 Serial Port 3 Configuration Enable or disable serial port (COM) www.perfectron.com...
  • Page 29: Serial Port 4 Configuration

    OXY5135B COM Express User’s Manual V1.0 Serial Port Enable or Disable serial port (COM) 3.4.6.5 Serial Port 4 Configuration Enable or disable serial port (COM) Serial Port Enable or Disable serial port (COM) www.perfectron.com...
  • Page 30: Serial Port 5 Configuration

    OXY5135B COM Express User’s Manual V1.0 3.4.6.6 Serial Port 5 Configuration Enable or disable serial port (COM) Serial Port Enable or Disable serial port (COM) 3.4.6.7 Parallel port configuration Enable or disable parallel port (LPT/LPTE) www.perfectron.com...
  • Page 31: Serial Port Console Redirection

    OXY5135B COM Express User’s Manual V1.0 Parallel Port Enable or Disable parallel port (LPT/LPTE) Change settings Select an optimal setting for Super IO device. Device Mode Change the printer port mode 3.4.7 Serial Port Console Redirection Serial port console redirection www.perfectron.com...
  • Page 32 OXY5135B COM Express User’s Manual V1.0 Console Redirection Console Redirection enable or disable Console redirection settings The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. www.perfectron.com...
  • Page 33: Console Redirection Settings

    Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the buffers are empty, a ‘start’ signal can be sent to re-start the flow. Hardware flow control uses two wires to send star/stop signals. www.perfectron.com...
  • Page 34: Intel(R) 82579Lm Gigabit Network Connection

    OXY5135B COM Express User’s Manual V1.0 3.4.8 Intel(R) 82579LM Gigabit Network Connection Configure Gigabit Ethernet device parameters 3.4.8.1 PORT CONFIGURATION MENU NIC Configuration Click to configure the network device port www.perfectron.com...
  • Page 35: Nic Configuration

    Blink LEDs (range 0-15 seconds) Blink LEDs for the specified duration (up to 15 seconds) 3.4.8.1.1 NIC Configuration Link Speed Change link speed and duplex for current port. Wake on LAN Enable this option to wake the system with a magic packet. www.perfectron.com...
  • Page 36: Chipset

    3.5 Chipset This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources. 3.5.1 System Agent (SA) configuration System Agent (SA) parameters www.perfectron.com...
  • Page 37: Graphics Configuration

    OXY5135B COM Express User’s Manual V1.0 VT-d Check to enable VT-d function on MCH. Graphics configuration Config graphics settings Memory Configuration Memory configuration parameters 3.5.1.1 Graphics configuration www.perfectron.com...
  • Page 38: Lcd Control

    Secondary IGFX Boot Display Select secondary display device. LCD Panel Type Select LCD panel used by Internal Graphics device by selexting the appropriate setup item. Panel Color Depth Select the LFP panel color depth www.perfectron.com...
  • Page 39: Memory Information

    OXY5135B COM Express User’s Manual V1.0 3.5.1.2 Memory Information 3.6 Boot Setting This section is used to configure the boot features. Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535 (0xFFFF) means idenfinite waiting www.perfectron.com...
  • Page 40: Csm Parametes

    Enables or diables Quite Boot option CSM parametes Enables or disables Quite Boot option 3.6.1 CSM parametes Launch PXE OpROM policy Controls the execution of UEFI and Legacy PXE OpROM Launch Storage OpROM policy Controls the execution of UEFI and Legacy Storage OpROM www.perfectron.com...
  • Page 41: Security

    OXY5135B COM Express User’s Manual V1.0 3.7 Security Use the Security Menu to establish system passwords Administrator Password Set administrator password User Password Set user password www.perfectron.com...
  • Page 42: Save & Exit

    Reset the system after saving the changes Discard Changes and Reset Reset system setup without saving any changes Save Changes Save changes done so far to any of the setup options Discard Changes Discard changes done so far to any of the setup options www.perfectron.com...
  • Page 43 Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. Launch EFI Shell from filesystem device Attemps to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. www.perfectron.com...
