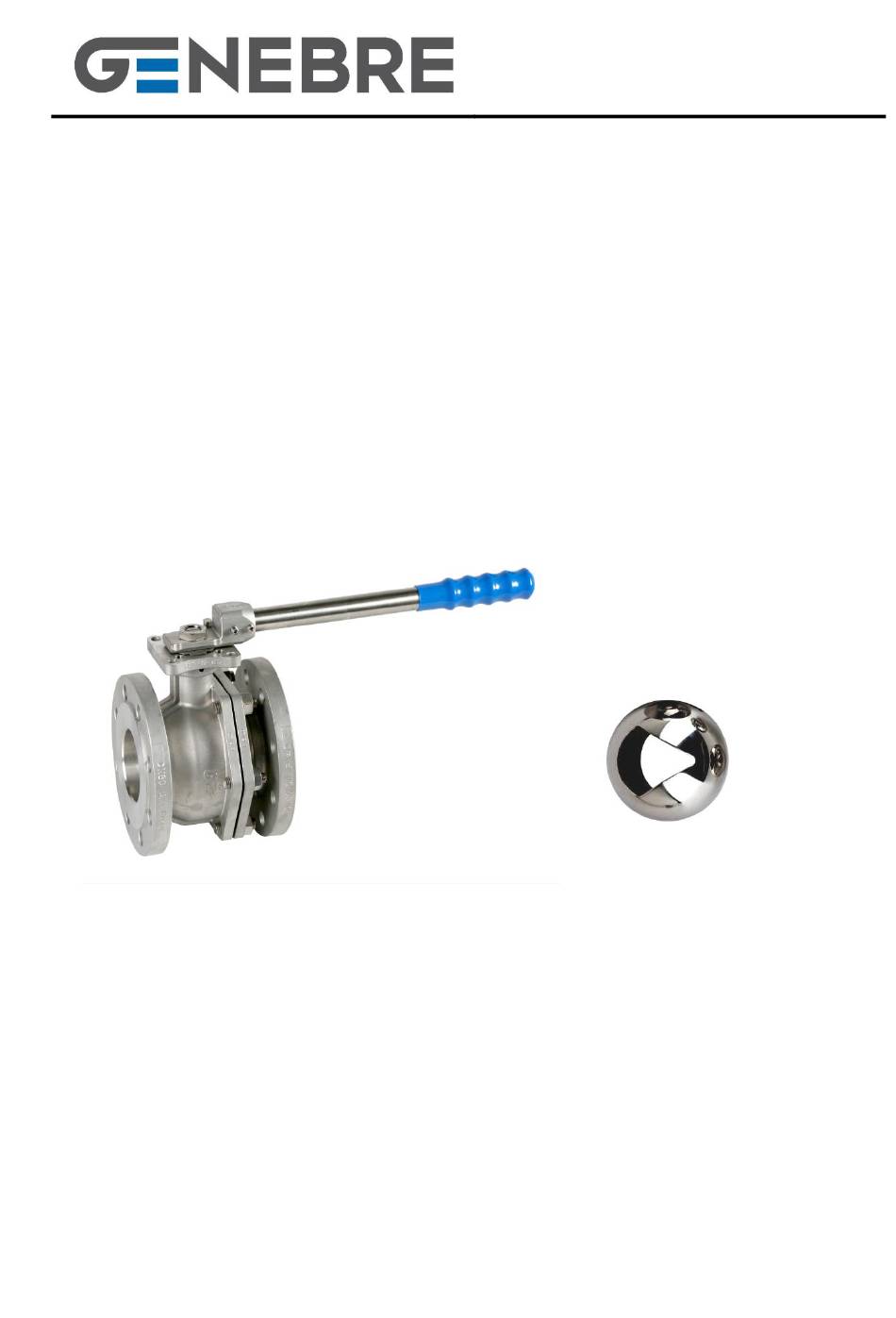

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
genebre@genebre.es - www.genebre.es
INSTALLATION, OPERATION AND MAINTENANCE
MANUAL

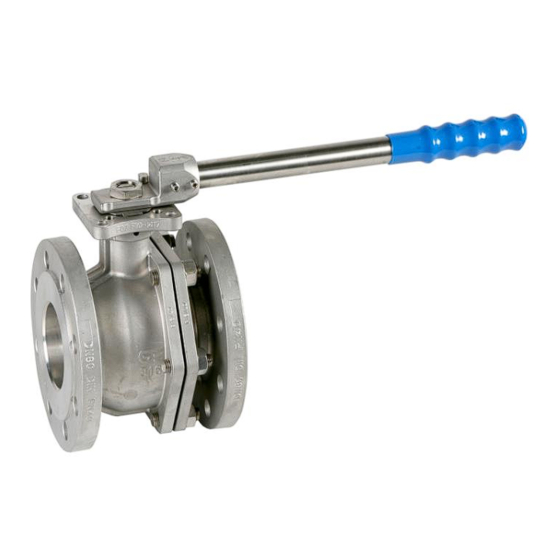

"V" control ball valve, direct mount
Flanged ends
Ref. GENEBRE: 2528AV
GENEBRE S.A.
FECHA DE REVISIÓN: 02/09/2020
NUMERO DE REVISIÓN: 0
1
Advertisement
Table of Contents
Related Manuals for Genebre 2528AV
Summary of Contents for Genebre 2528AV
- Page 1 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es INSTALLATION, OPERATION AND MAINTENANCE MANUAL “V” control ball valve, direct mount Flanged ends Ref. GENEBRE: 2528AV GENEBRE S.A. FECHA DE REVISIÓN: 02/09/2020 NUMERO DE REVISIÓN: 0...
-
Page 2: Table Of Contents
Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Installation, operation and maintenance instructions 1. Products description ..................3 2. Transport and Storage conditions ............. 3 3. Valve Breakdown ..................4 4. Installation Instructions 4.1 Preparation... -
Page 3: Products Description
- www.genebre.es 1. Product description. Genebre, S.A. offers a wide range of ball valves (90º turn), designed and assembled to handle and drive fluids in industrial procedures. The compatibility of materials used to build the valves (see technical specifications) and the application of valves to the different industrial processes is at user's risk. -
Page 4: Valve Breakdown
Before installing and/or manipulating these elements READ CAREFULLY the enclosed instructions for use and OBSERVE all contained information. If any of the contents is not clear enough, please contact GENEBRE, S.A. User is responsible for the safe use of these products, as established in present instructions for use and in the specific technical documentation of the supplied device. - Page 5 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es Surface Spare Nº Name Material Treatment Part Code Body Stainless Steel 1.4408 Shot blasting ------ Stainless Steel 1.4408 Shot blasting ------ Ball Stainless Steel 1.4408...
-
Page 6: Installation Instructions
Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 4. Installation instructions 4.1) Preparation Remove any material remains of the valve wrapping. Serious problems may arise with the installation of a valve in a dirty pipe. -
Page 7: Usage
(opened or closed). 5.3) Remote operation When automation of ball valves is required, GENEBRE S.A. can provide a great variety of pneumatic actuators, electric actuators, electropneumatic and electronic positioners to cover a large range of operations. -
Page 8: Maintenance Instructions
Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 6. Maintenance instructions Frequency, location and process of maintenance will be determined by the user by taking into account usage of the product. -
Page 9: Disassembling
Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 7.1) Disassembling You must remove the valve from its installation to repair it, making sure the pipe has been previously depressurized. Prepare a clean working area and adequate tools to perform mechanical tasks. -
Page 10: Reassembling
Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es All locking surfaces in the ball, seats, joints and sides have to be checked for corrosion, erosion, metallic inlays in the seats and marks. If they were damaged or in case of doubt, they will need to be replaced. -
Page 11: Torques Table
Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es e.- Place the cap (part. 2) over the body (part. 1) matching the external flange holes; place the nuts (part. 17) on the studs (part. 18) to bring together the two different parts of the valve. -
Page 12: Hygiene And Safety Instructions
Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 8.3) Tightening torque Screws / Nuts for joining the valve's different parts: It is required for all body screws to make contact of body metal against cover metal. - Page 13 Edificio Genebre. Av. de Joan Carles I, 46-48 08908 L'Hospitalet de Llobregat. Barcelona (Spain) genebre@genebre.es - www.genebre.es 9.2) Always operate the valve in open position to make sure there is no pressure in the internal cavity. 9.3) Any valve being used by toxic services department needs to obtain a cleanliness certificate before being operated.
